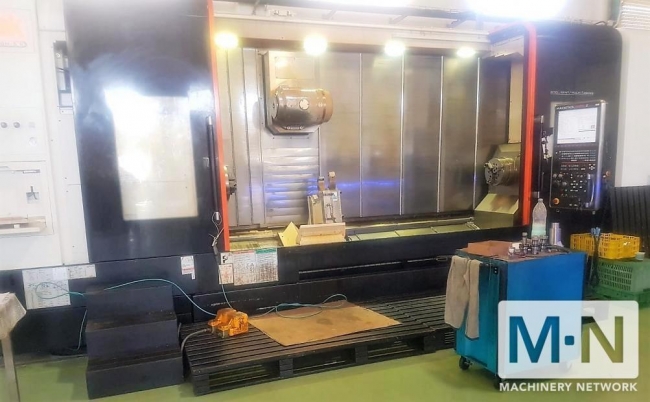

MAZAK INTEGREX E-420H-S 2 3000U

Type:

LATHES, COMBINATION, N/C & CNC, (3-axis Or More)

Manufacturer:

MAZAK

Model:

INTEGREX E-420H-S 2 3000U

Condition:

Not Specified

Year:

2013

Stock #:

37896

Status:

Sold

Description:

15 " Chuck On Main, 12" On Sub, 12,000 Rpm Milling, 80 ATC, Prog Steady

Location:

California, United States

Specifications from OEM brochure and equipped with are described to the best of our knowledge. ALL items should be confirmed by buyer.

Quote Request Have one for sale?

For more information call +1 (818) 465-6700 or contact us

Spec Sheet:

(1) USED MAZAK INTEGREX E-420H-S 2 3000U 5 AXIS
2013

SPECIFICATIONS:
MAXIMUM MACHINING DIAMETER ¢670 MM
MAXIM.UM MACHINING LENGTH 3060 MM
TRAVEL (X I Y) 845/420 MM
TRAVEL ( Z) 3113 MM
TRAVEL { B I C ) 240°/360°
RAPID TRAVERSE RATE ( X I Y I Z } 50000/50000/40000 MM/MIN
TURNING SPINDLE SPEED { 30MIN. RATING 4000 RPM, 30 KW (40 HP)
MILLING SPINDLE ( 15MIN.RATING ) 12000 RPM, 22KW (30 HP)
TOOL SHANK CAT-40
TOOL STORAGE CAPACITY 120
FLOOR SPACE REQUIREMENT 7310 >< 3315 MM

STANDARD EQUIPMENT

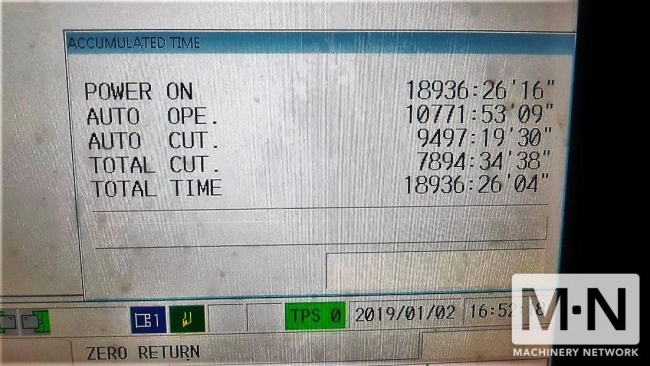

MAZAK MAZATROL MATRIX II CONTROL
19" COLOR LCD
1ST SPINDLE BORE DIA.91MM(4000RPM)
1ST SPINDLE C-AXIS 0.0001DEGREE INCR.
2ND SPINDLE BORE DIA.91MM(4000RPM)
2ND SPINDLE C-AXIS 0.0001DEGREE INCR.
3-D COORDINATE CONVERSION

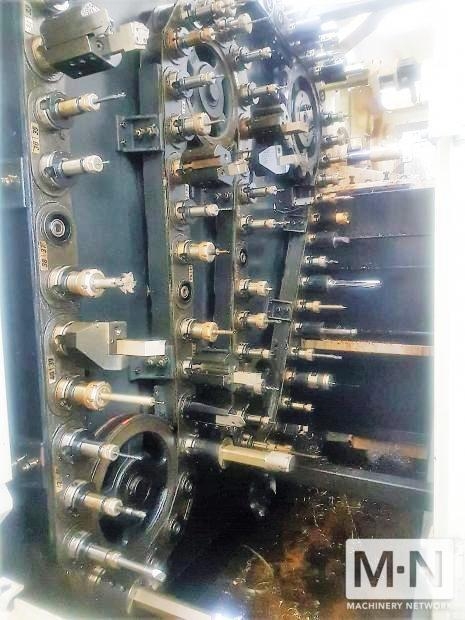

40 TOOL MAGAZINE
5KG THRU CLNT/FLOOD CLNT SIMUL-FLOWABLE ABSOLUTE POSITIONING SYS (LINEAR AXES) ACTIVE VIBRATION CONTROL
ADDITIONAL ELAIISO FUNCTIONS (REQ.EIAIISO)
ADD. WORKPIECE COORDINATE SYS. 300-PAIRS AUTO CHUCK JAW OPEN/CLOSE(1&2 L-SPINDLE) B)MAZACC-2D SOFTWARE(SHAPE COMPENSATION)
8-AXIS 0.0001DEG/CNTRING (REO.EIAIISO) CARDBUS 1/F (2-SLOT)
CHUCK AIR BLAST (1&2 LATHE SPINDLE)
COMPLETE COOLANT SYSTEM
COOLANT THROUGH MILLING HEAD
DIRECT ENTRY OF DRAWINGS DIMENSIONS EIA PATTERN CYCLE (GRID, ARC)
EIA-ISO CODE INPUT FUNCTION {STANDARD) E-TOWER
FIRST LATHE SPINDLE MOTOR AC 30KW(40HP)
FULL COVERAGE CHIP AND COOLANT GUARD
G37.AUTO TLM (LASER ROT.TOOL MEAS.REQ.) HTD. CHUCK OPEN/CLOSE CONFIRM (1&2 SPDL) HYDRAULIC PRESSURE INTERLOCK INTELLIGENT SAFETY SHIELD
INTELLIGENT THERMAL SHIELD INVERSE TIME FEED
LAN PORT
MAZA-CHECK
MAZAK TAPPING/BORING TORNADO (EIAIISO)
MAZAK VOICE ADVISER MAZATROL MATRIX 2 CONTROL MILLING SPINDLE SPEED 12000 RPM ONE SET OF ADJUSTING TOOLS
ONE SET OF MANUALS
OPERATOR DOOR INTERLOCK WITH LOCK-SWITCH POLAR COORDINATES INPUT (EIA)
POWER TRANSFORMER
PREP. FOR MAZAK MONITORING SYS.-8 RMP600
RELOCATION DETECTOR
ROLLER GUIDES
SECOND LATHE SPINDLE MOTOR AC 30KW(40HP)
SEQUENCE NUMBER COMPARISON STOP FUNCTION STANDARD TOOLING PACKAGE
SWIVEL TYPE OPERATION CONTROL PANEL
SAFETY MEASURES ON WORLDWIDE LEVEL
THREAD CUTTING FUNCTION
TILTED WORKING PLANE
TURNING WITH POSITIONING S-AXIS
USBIIF
USER MACRO (COMMON VARIABLES:600 PAIRS) VIRTUAL MACHINING
WORK LIGHT
X,Y,ZPITCH ERROR COMPENSATION INPUT Y AXIS TRAVEL 16.53" (420MM)

ADDITIONAL EQUIPMENT - INCLUDED

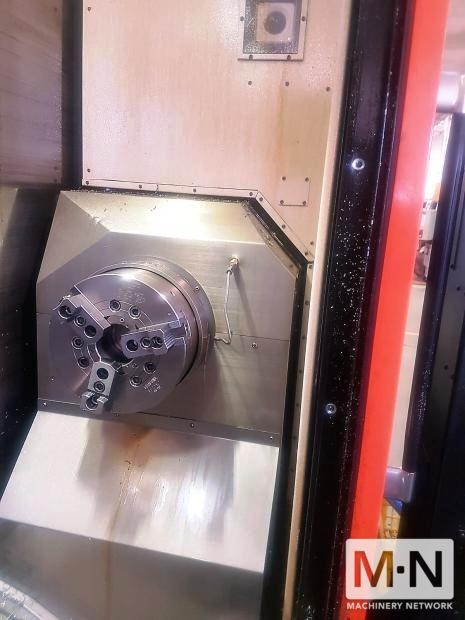

15" CHUCK KITAGAWA B-15A1115 FOR 132MM (1ST SPDL)
12" CHUCK KITAGAWA B212A0815 (2ND SP) CLOSED CTR
80 HSK-TOOL MAGAZINE (REQUIRED TOOL) C1C2 SYNCHRONOUS FUNCTION
TOOL EYE (AUTOMATIC)
DOUBLE FOOT SWITCH (1&2 LATHE SPINDLE)
TOUCH SENSOR (RMP600) RADIO TYPE-RENISHAW
SCALE.FEEDBACK SYSTEM (X-AXIS) SCALE FEEDBACK SYSTEM (Y-AXIS)
SCALE FEEDBACK SYSTEM (Z·AXIS,3000(120")
MANUAL PULSE GENERATOR 1 (DETACHABLE)
TURRET AIR BLAST (FLOOD-COOLANT NOZZLE)
15KG THRU CLNT/FLOOD CLNT SIMUL-FLOWABLE
SIGNAL TOWER (3 COLORS UGHTS,SQUARE)

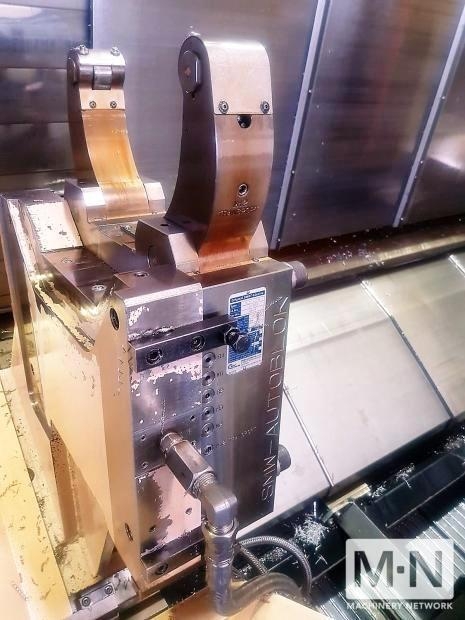

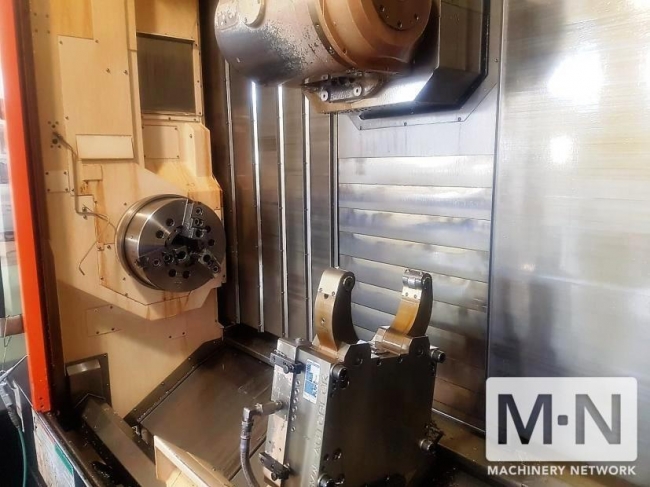

STEADY REST-SMW SLU4 SINGLE/1 NC BASE
CHIP CONVEYOR (SIDE/CONSEP 2000) 3000U (120")
B-MILL SPINDLE SYNCHR. TAPPING (W/0 TOOL)
TOOL RADIUS COMPENSATION I 5-AXIS
EIA DYNAMIC COMPENSATION 2 (INCLUDED 1)
MAXIMUM PROGRAM SIZE 8MB
B-CYLINDRICAL & POLAR COORDINATE (EIA)
5-AXIS MACHINING PACKAGE (B)
TOOLING PACKAGE
HSK A63 SEM22X50 - 2PCS.
HSK A63WH SVJCR J16 - 1PCS.
HSK A63WH ASHR25-2 - 5PCS.
HSK A63WH ASHR25-1 - 4PCS.
HSK A63WH TBK 32R - 1PCS.
HSK A63 SEM 22X100C - 2PCS.
HSK A63WH ABB40 - 6PCS.
HSK A63 ER32X80 - 25PCS.
HSK A63 ER16X100 - 25PCS.
HSK A63WH MULNR J12MW - 1PCS.
RENISHAW RMP600 - 1PCS.
