MAZAK INTEGREX E-1550V/10 II
Type:
LATHES, COMBINATION, N/C & CNC, (3-axis Or More)
Manufacturer:
MAZAK
Model:
INTEGREX E-1550V/10 II
Condition:
Not Specified
Year:
2010
Stock #:
35772
Status:
Sold
Description:
MAZATROL MATRIX, 124.02" MAX SWING, (2) 1000MM PALLETS BORE & TAP (35,000 OPTION), 50 HP, 120 ATC
Location:
California, United States
Specifications from OEM brochure and equipped with are described to the best of our knowledge. ALL items should be confirmed by buyer.

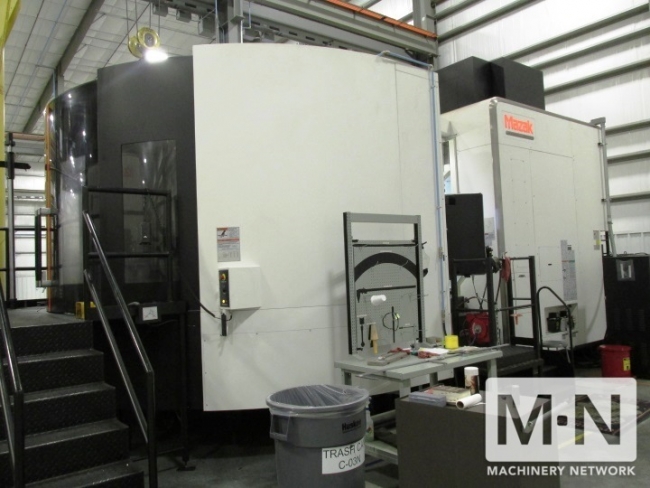

(1) USED MAZAK INTEGREX E-1550V/10 II VERTICAL/HORIZONTAL 5 AXIS CNC MILL/TURNING CENTER
NEW 2012
SPECIFICATIONS:
PALLET SIZE.............................39.37” X 39.37”
MAX.SWING...............................124.02”
TURNING DIAMETER........................78.74”
TURNING LENGTH..........................54.92”
X-AXIS TRAVEL...........................73.82”
Y-AXIS TRAVEL...........................61.02”
Z-AXIS TRAVEL...........................52.95”
B-AXIS TRAVEL...........................150 DEGREES
C-AXIS TRAVEL...........................360 DEGREES
TOOL MAGAZINE CAPACITY..................120 ATC
SPINDLE SPEED (MILLING).................10,000 RPM
RAPID TRAVERSE RATE.....................1654 IPM
MAIN SPINDLE DRIVE (MILLING)............50 HP
LATHE SPINDLE SPEED (TABLE).............300 RPM
C-AXIS ON TABLE INCREMENT...............0001
APPROXIMATE WEIGHT......................99,000 LBS.
DIMENSIONS ........................254” X 381” X 181”
EQUIPPED WITH:
MAZATROL MATRIX CNC CONTROL WITH 15” COLOR LCD SCREEN
NEW 2012
SPECIFICATIONS:
PALLET SIZE.............................39.37” X 39.37”
MAX.SWING...............................124.02”
TURNING DIAMETER........................78.74”
TURNING LENGTH..........................54.92”
X-AXIS TRAVEL...........................73.82”
Y-AXIS TRAVEL...........................61.02”
Z-AXIS TRAVEL...........................52.95”
B-AXIS TRAVEL...........................150 DEGREES
C-AXIS TRAVEL...........................360 DEGREES
TOOL MAGAZINE CAPACITY..................120 ATC
SPINDLE SPEED (MILLING).................10,000 RPM
RAPID TRAVERSE RATE.....................1654 IPM
MAIN SPINDLE DRIVE (MILLING)............50 HP
LATHE SPINDLE SPEED (TABLE).............300 RPM
C-AXIS ON TABLE INCREMENT...............0001
APPROXIMATE WEIGHT......................99,000 LBS.
DIMENSIONS ........................254” X 381” X 181”
EQUIPPED WITH:
MAZATROL MATRIX CNC CONTROL WITH 15” COLOR LCD SCREEN
