MAZAK INTEGREX 200 IVS

Type:

LATHES, COMBINATION, N/C & CNC, (3-axis Or More)

Manufacturer:

MAZAK

Model:

INTEGREX 200 IVS

Condition:

Not Specified

Year:

2009

Stock #:

36786

Status:

Sold

Description:

8" Chuck, 26" Max Swing, 40" Max cutting length,

Location:

Florida, United States

Specifications from OEM brochure and equipped with are described to the best of our knowledge. ALL items should be confirmed by buyer.

Quote Request Have one for sale?

For more information call +1 (818) 465-6700 or contact us

Spec Sheet:

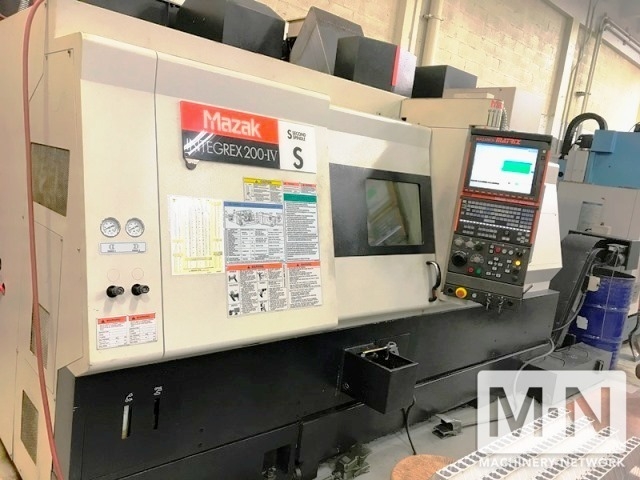

(1) USED MAZAK INTEGREX 200 IVS CNC TURNING CENTER
NEW 2009

SPECIFICATIONS:
STANDARD CHUCK DIA. MAIN SPINDLE (L)…. 8″
STANDARD CHUCK DIA. SECOND SPINDLE (R).. 8″
MAXIMUM SWING……………………… 26″
NOTE: TOOL EYE BODY MAY LIMIT MAX. SWING.
MAXIMUM SWING OVER CARRIAGE…………. 19.5″ -26″
TOOL MAGAZINE TYPE AND Y AXIS POSITION
MAXIMUM CUTTING DIAMETER: CHUCKING…… 26″
MAXIMUM CUTTING LENGTH……………… 40″
MAXIMUM DISTANCE BETWEEN STANDARD CHUCK FACES.. 41.14″
MAIN SPINDLE SPECIFICATIONS (L):
SPINDLE NOSE………………………. A2-6
SPINDLE BORE………………………. 2.99″
MAXIMUM BAR WORK…. ………………. 2″
SPINDLE SPEED……………………… 35 – 5000 RPM
SPINDLE INDEX (PROGRAMMABLE)………… 0.0001 DEGREE
SPINDLE HORSEPOWER (CONT./30 MINS.)….. 20/30 H.P. (A.C.)
SPINDLE TORQUE…………………….. 258.1 FT-LBS
SECOND SPINDLE SPECIFICATIONS (R)
SPINDLE NOSE………………………. A2-6
SPINDLE BORE………………………. 2.99″
MAXIMUM BAR WORK…………………… 2″X 34.6″ DEEP FROM CHUCK FACE
SPINDLE SPEED……………………… 35 – 5000 RPM
SPINDLE INDEX (PROGRAMMABLE)…………0.0001 DEG.
SPINDLE HORSEPOWER (CONT./30 MIN)……. 20/25 HP (A.C.)
SPINDLE TORQUE…………………….. 241 FT-LBS
TURRET AND TOOLING SPECIFICATIONS:
TYPE OF TURRET…………………….. 1 POSITION, W/ATC
TOOL SHANK HEIGHT………………….. 1.0″
TOOL SIZE (BORING BAR MAX. DIA.)…….. 1.5″
MAGAZINE CAPACITY………………….. 40 TOOLS
TOOL SELECTION METHOD………………. RANDOM
ATC TOOL SHANK…………………….. MAZAK KM63
ROTARY TOOL SPINDLE SPEED…………… 12,000 RPM
ROTARY TOOL SPINDLE HORSEPOWER (20% ED). 25 H.P. (A.C.)
AXIS TRAVELS:
B-AXIS……………………………. 225 DEGREES
Y-AXIS……………………………. +/- 3.15″
X-AXIS……………………………. 22.83″
Z-AXIS……………………………. 41.14″
SECOND HEADSTOCK W-AXIS…………….. 41.34″
GENERAL SPECIFICATIONS:
FLOOR SPACE (WXL)………………….. 86.93″ X 150.39″
MACHINE HEIGHT…………………….. 102.24″
TOTAL POWER REQUIRED (MACHINE ONLY)….. 63 KVA
NOTE: ACTUAL MACHINE MAIN TRANSFORMER
KVA RATING WILL BE GREATER.
AIR REQUIREMENTS…………………… 71 PSI / 24.7 CFM
MACHINE WEIGHT…………………….. 19,140 LBS.

EQUIPPED WITH:
MAZATROL MATRIX NEXUS CONTROL
C1C2 SYNCHRONOUS FUNCTION
MAZACC-3D HIGH SPEED SOFTWARE PACKAGE
EIA/ISO FUNCTION
SIMULTANEOUS 5 AXIS
TOOL TIP POINT CONTROL SIMULTANEOUS 5 AXES
TOOL RADIUS COMPENSATION 5-AXIS
15KG/213 PSI THRU COOLANT FLOOD SIMUL-FLOWABLE
8″ THRU-HOLE CHUCK BB-08 (1ST SPD.) THRU-HOLD CYL.S1875
2ND SPINDLE C-AXIS 0.0001 DEGREE INCR.
40 KM-TOOL MAGAZINE
CHIP CONVEYOR SIDE DISPOSAL (HINGE TYPE)
ALL AVAILABLE MANUALS
APPROX. 2600 CUT HOURS
80 KM TOOL HOLDERS
