MAZAK E-1550VII
Type:
LATHES, COMBINATION, N/C & CNC, (3-axis Or More)
Manufacturer:
MAZAK
Model:
E-1550VII
Condition:
Not Specified
Year:
2009
Stock #:
37049
Status:
Sold
Description:
Mazak Matrix Control, (2) 55” Pallets, 78” Max Diam., 10K RPM, BT-50 Taper, 160 Tools, 2010
Location:
California, United States
Specifications from OEM brochure and equipped with are described to the best of our knowledge. ALL items should be confirmed by buyer.

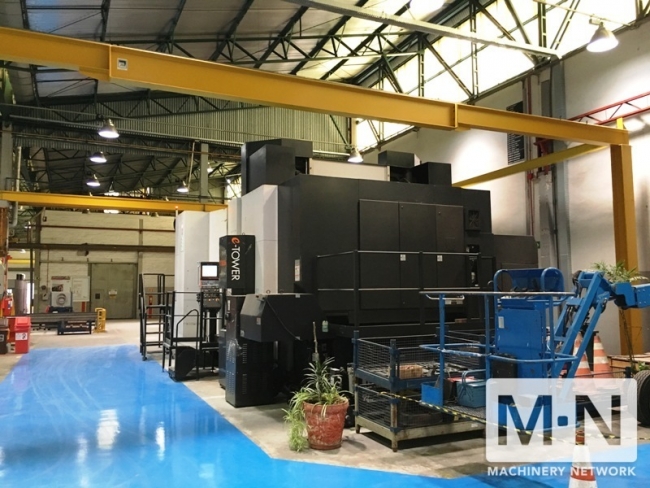

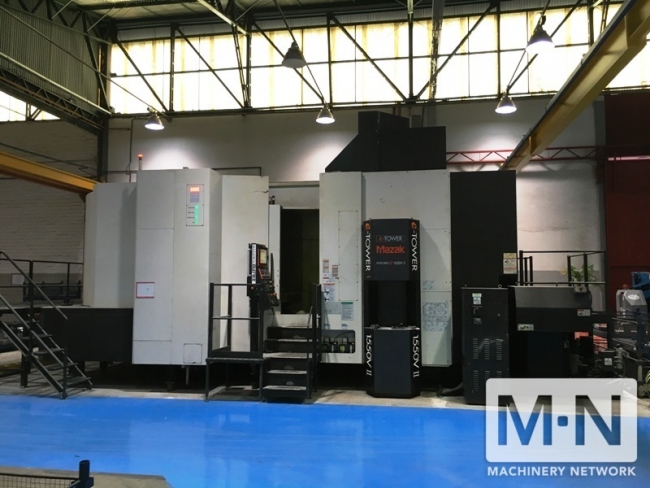

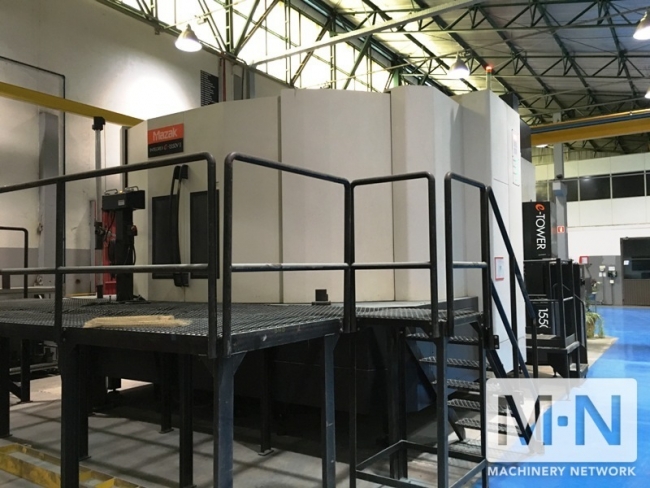

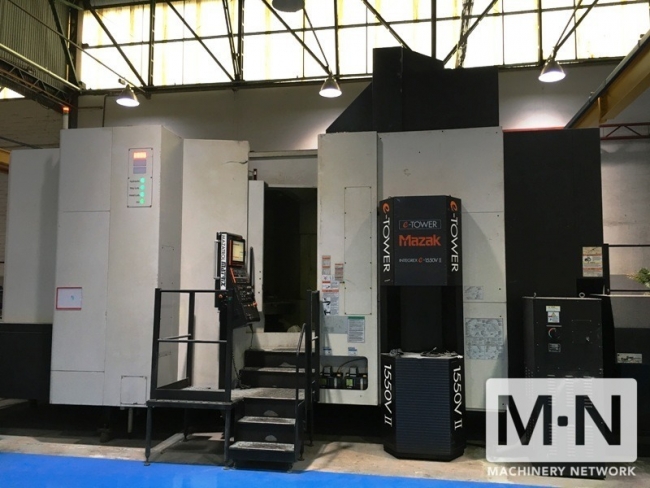

(1) USED MAZAK INTEGREX E-1550V10II 5 AXIS CNC VERTICAL TURNING AND MACHINING CENTER
NEW: 2009
SPECIFICATIONS:
PALLET SIZE...........................55.12"
MAXIMUM TABLE LOAD....................11,023 LBS.
NUMBER OF PALLETS.....................2
MAX. TURNING SPINDLE SPEED............300 RPM
MAXIMUM WORKPIECE HEIGHT..............58.69 IN
MAXIMUM WORKPIECE DIAMETER............78.74 IN
X-AXIS TRAVELS........................73.82 IN
Y-AXIS TRAVELS........................61.02 IN
Z-AXIS TRAVELS........................52.95 IN
C-AXIS TRAVEL.........................360 DEG.
B-AXIS TRAVEL.........................150 DEG.
B-AXIS CONTOURING.....................0.0001 DEG.
C-AXIS INDEXING.......................0.0001 DEG.
MILLING SPINDLE SPEED.................10,000 RPM
SPINDLE TAPER.........................BT-50

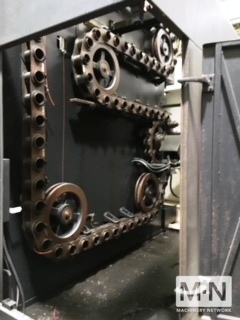

TOOL STORAGE CAPACITY.................160
MILLING SPINDLE MOTOR.................50 HP
RAPID TRAVERSE RATE...................1575 IPM
MAIN SPINDLE (30 MIN/CONT)............50 / 40 HP
EQUIPPED WITH:
MAZAK MATRIX CONTROL

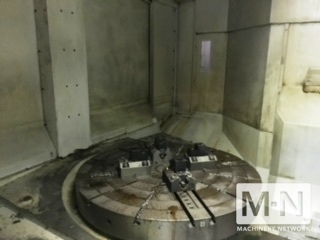

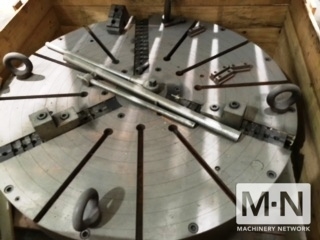

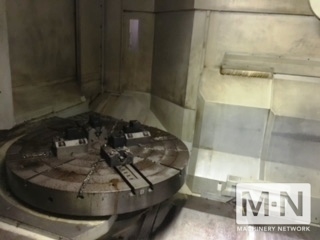

1400 MM 4 JAW INDEPENDENT CHUCK
1400 MM PALLET
TWO (2) PALLET CHANGER
E-TOWER
SCALE FEEDBACK ON C AXIS
HOBBING FUNCTION W/O TOOLING
FINE SPLINE INTERPOLATION ( EIA )
SPINDLE CHILLER UNIT
WORK MEASURING SYSTEM
SCALE FEEDBACK SYSTEM X & Y AXIS
ABSOLUTE POSITIONING SYSTEM ( LINEAR AXIS )
DETACHABLE MANUAL PULSE GENERATOR
COOLANT TEMPERATURE CONTROL SYSTEM
HYDRAULIC UNIT TEMPERATURE CONTROL SYSTEM
WORK CENTERING W/ POWER ROTATION
MAZACC 3D HIGH SPEED SOFTWARE
HIGH SMOOTHING CONTROL
CHIP CONVEYOR
NEW: 2009
SPECIFICATIONS:
PALLET SIZE...........................55.12"
MAXIMUM TABLE LOAD....................11,023 LBS.
NUMBER OF PALLETS.....................2
MAX. TURNING SPINDLE SPEED............300 RPM
MAXIMUM WORKPIECE HEIGHT..............58.69 IN
MAXIMUM WORKPIECE DIAMETER............78.74 IN
X-AXIS TRAVELS........................73.82 IN
Y-AXIS TRAVELS........................61.02 IN
Z-AXIS TRAVELS........................52.95 IN
C-AXIS TRAVEL.........................360 DEG.
B-AXIS TRAVEL.........................150 DEG.
B-AXIS CONTOURING.....................0.0001 DEG.
C-AXIS INDEXING.......................0.0001 DEG.
MILLING SPINDLE SPEED.................10,000 RPM
SPINDLE TAPER.........................BT-50
TOOL STORAGE CAPACITY.................160
MILLING SPINDLE MOTOR.................50 HP
RAPID TRAVERSE RATE...................1575 IPM
MAIN SPINDLE (30 MIN/CONT)............50 / 40 HP
EQUIPPED WITH:
MAZAK MATRIX CONTROL
1400 MM 4 JAW INDEPENDENT CHUCK
1400 MM PALLET
TWO (2) PALLET CHANGER
E-TOWER
SCALE FEEDBACK ON C AXIS
HOBBING FUNCTION W/O TOOLING
FINE SPLINE INTERPOLATION ( EIA )
SPINDLE CHILLER UNIT
WORK MEASURING SYSTEM
SCALE FEEDBACK SYSTEM X & Y AXIS
ABSOLUTE POSITIONING SYSTEM ( LINEAR AXIS )
DETACHABLE MANUAL PULSE GENERATOR
COOLANT TEMPERATURE CONTROL SYSTEM
HYDRAULIC UNIT TEMPERATURE CONTROL SYSTEM
WORK CENTERING W/ POWER ROTATION
MAZACC 3D HIGH SPEED SOFTWARE
HIGH SMOOTHING CONTROL
CHIP CONVEYOR
