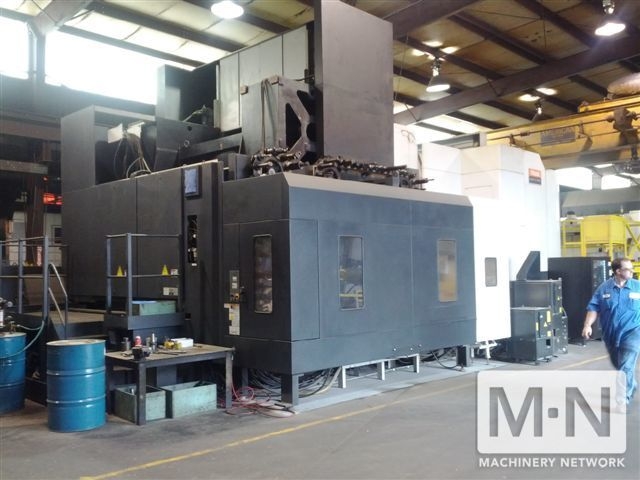

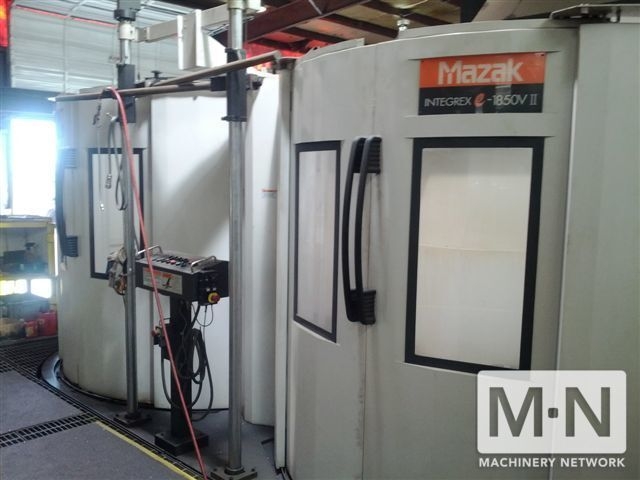

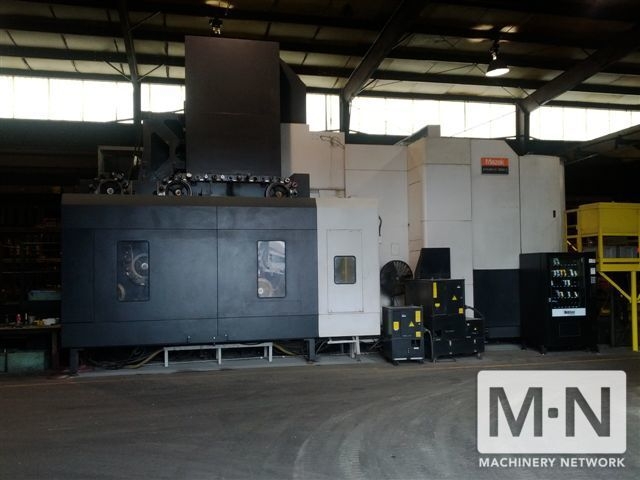

MAZAK E-1850V12/II 2 PALLET
Type:
LATHES, COMBINATION, N/C & CNC, (3-axis Or More)
Manufacturer:
MAZAK
Model:
E-1850V12/II 2 PALLET
Condition:
Not Specified
Year:
2009
Stock #:
31207
Status:
Sold
Description:

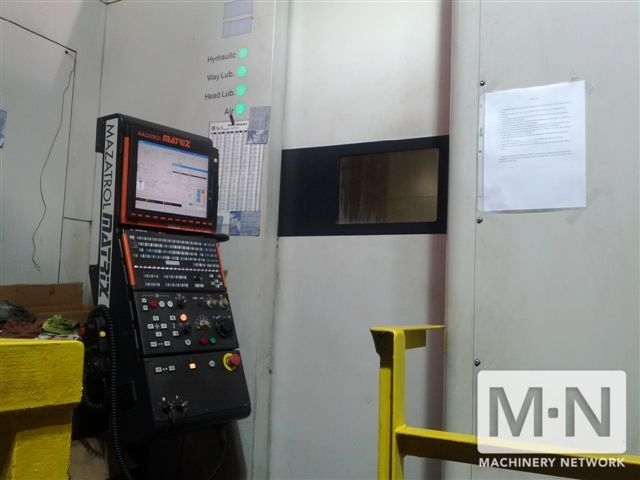

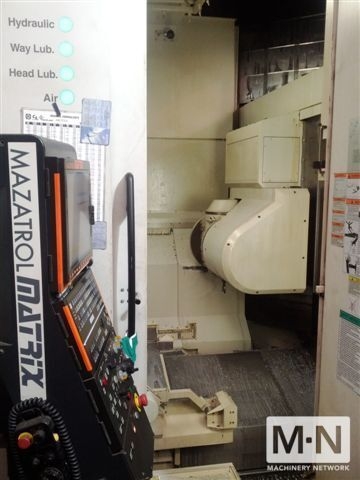

Cyber Prod Module MX Control, 92.5" Max Swing, 120 ATC
Location:
Florida, United States
Specifications from OEM brochure and equipped with are described to the best of our knowledge. ALL items should be confirmed by buyer.
1) Used Mazak E-1850V12/II 2 Pallet Mult-tasking machining and turning center, 5 Axis
New 2009
SPECIFICATIONS:
Pallet Size....................................................................(2)64.9"
Maximum Swing With 2 Pallet Changer.........................92.5"
Maximum Machining Diameter With 2 PC.....................92.5"
Floor Space Required...................................................334.5" x 578.1"
Machine Height from Bottom of Base............................224.5"
TRAVELS
X-Axis Travels..............................................................120.27"
Y-Axis Travels...............................................................72.83"
Z-Axis Travels...............................................................70.86"
B-Axis Travels...............................................................150 Deg
(0.0001 Deg Incr.) (-30 Deg to 120 Deg)
C-Axis Travels...............................................................360 Deg
WORKPIECE SIZE
Maximum Table Load.....................................................11,000 lbs.
Maximum Workpiece Height...........................................70.8"
Maximum Workpiece Diameter.......................................92.5
TABLE
Maximum Speed............................................................250 RPM
Minimum Indexing Increment...........................................0.0001 Deg
Spindle Horsepower (30 Min/Cont)................................60/50 HP
Spindle Torque................................................................4,794 ft-lbs
Obtains Full HP @(30min./Cont.)..........

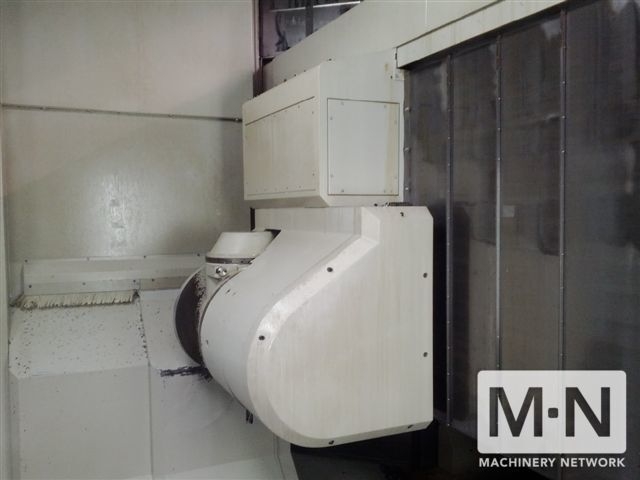

MILLING SPINDLE
Spindle Nose................................................................. BIG PLUS Cat tools
Spindle Horsepower (1 Min/30 Min/Cont)......................50/40 HP
Spindle Torque................................................................339 ft-lbs
Obtains Full HP @..........................................................2,000 RPM
Spindle Speed.................................................................10,000 RPM
Spindle Speed Increment.................................................1 RPM
Number of Ranges...........................................................1 (2) Ranges
AUTOMATIC TOOL CHANGER
Magazine Capacity...........................................................120
Tool-to-Tool Time............................................................1.8 seconds
Tool Selection Method......................................................Random/Shortest Path
Maximum Tool Diameter...................................................5.31"
Max.Tool Dia.W/Adjacent Pockets Empty........................10.24"
Maximum Tool Length......................................................25.69"
Maximum Tool Weight......................................................66 lbs.
AXIS RAPID RATES
X, Y and Z-Axis..............................................................1,575 IPM
B-Axis............................................................................30 RPM
C-Axis............................................................................18 RPM
Air Requirements............................................................26.48 CFM
EQUIPPED WITH:
All Available Tooling

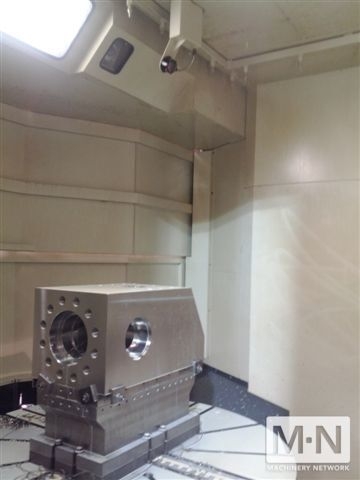

2) DIA.64.9" PALLET W/FACE-PLATE & JAWS(PER)
120 Tool Chain Magazine
Thru M-SPDL Coolant 15kg w/hi pressure prep
Consept Chip Conveyor
Protocaol B RE-232C
EIA Dynamic Compensation 2 (Included 1)
Re-Threading
Overload Detection
Preparation for MMS-B Optical Type OMP60
Work-Centering on 2 PC Set up Station
Mazak Super Fow TSHIGH Pressure re Coolant 1000PSI/8GPM DPT#43
Mazak Monitoring System B Optical OMP60-Probe Only DPT#3
Eng # 40117 Laser Measurement NC4 Macro Upgrade Only DPT#13
Windows XP Operating System
Automatic Tool Eye
E-Tower
15" Color LCD
EIA/ISO Code Input Function
Max Program Size 8MB
Cardbus I/F 2 slot
USB I/F
B) Mill-Spindle Synchronous Tapping w/o tool
F) EIA/ISO Function Simultaneous 5 Axes
F) Tool Tip Point Control/Simult.5 Axes
F) Tool Radius Compensation 5-Axis
3-D Coordinate Conversion
B) G00 Slope Constant
B) Mazacc-2D Software Shape Compensation
B) Shape Compensation for Rotary Axes
Inch/Metric Conversion
B) Cylindrical G07 & Polar Coordinate G12
Lathe SPDL Table Motor 60hp
Lathe SPDL Table Speed 250 rpm
Prep for Visual Tool ID/Data Manqmnt / Cat
Absolute Positioning Sys (Linear Axes)
Operator Door Interlock w/ Lock Switch
Hydraulic Pressure Interlock
Safety Cover for 2 Pallet
Relocation Device
