MAZAK INTEGREX 200 IV ST
Type:
LATHES, COMBINATION, N/C & CNC, (3-axis Or More)
Manufacturer:
MAZAK
Model:
INTEGREX 200 IV ST
Condition:
Not Specified
Year:
2011
Stock #:
30602
Status:
Sold
Description:
80 TOOLS, 60" CENTERS, 45 HOURS OF CUT TIME
Videos:
Location:
United States
Specifications from OEM brochure and equipped with are described to the best of our knowledge. ALL items should be confirmed by buyer.

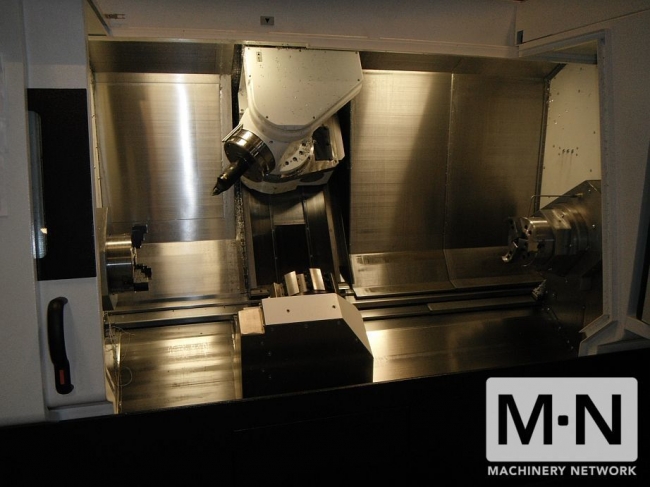

(1) MAZAK INTEGREX 200 IV ST CNC TURNING CENTER

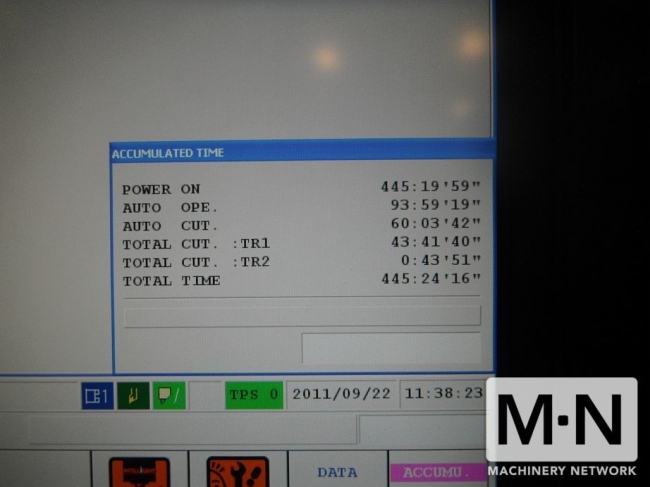

NEW 2011 80 Tools 45 hours of cut time
IMMEDIATE DELIVERY
STANDARD SPECIFICATIONS: Standard Chuck Dia. Main Spindle (L).... 8"
Standard Chuck Dia. Second Spindle (R).. 8"
Maximum Swing........................... 26"
Maximum Swing Using Y-Axis.............. 19.5" - 26"
NOTE: Limited to 12.99" when in operating range without tools mounted.
Maximum Swing over Lower Turret......... 10.6"
NOTE: Without tools or holders on lower turret.
Maximum Cutting Diameter: Chucking...... 26" (Upper)
Maximum Cutting Diameter: Chucking...... 10.24" (Lower)
NOTE: Without boring bar holder mounted.
Maximum Cutting Length 60".............. 58.85"
Maximum Distance Between Chuck Jaws 60". 60.83"
MAIN SPINDLE SPECIFICATIONS (L):
Spindle Nose............................ A2-6
Maximum Bar Work.... ................... 2"
Spindle Speed........................... 35 - 5000 RPM
Spindle Index (Programmable)............ 0.0001 Degree
Spindle Horsepower (Cont./30 Mins.)..... 20/30 H.P. (A.C.)
Spindle Torque.......................... 258.1 ft-lbs

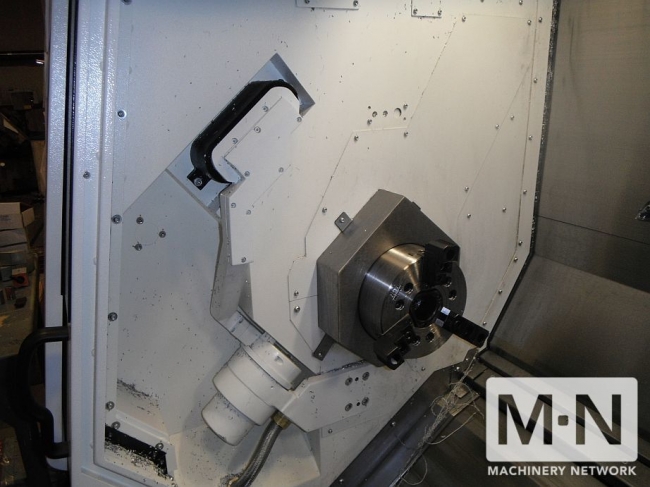

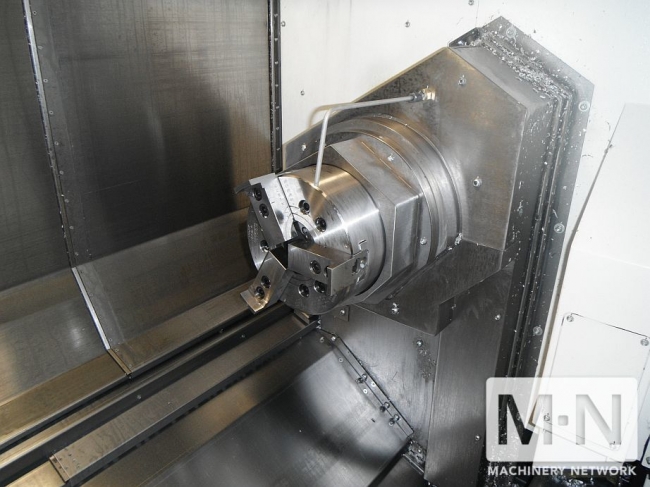

SECOND SPINDLE SPECIFICATIONS (R):
Spindle Nose............................ A2-6
Spindle Bore............................ 2.99"
Maximum Bar Work........................ 2"x 34.6" deep from chuck face (2" thru optional)
Spindle Speed........................... 35 - 5000 RPM
Spindle Index (Programmable)............ 0.001 Degree (0.0001 Deg. C-Axis Optional)
Spindle Horsepower (Cont./30 Min.)...... 20/25 HP (A.C.)
Spindle Torque.......................... 241 ft-lbs

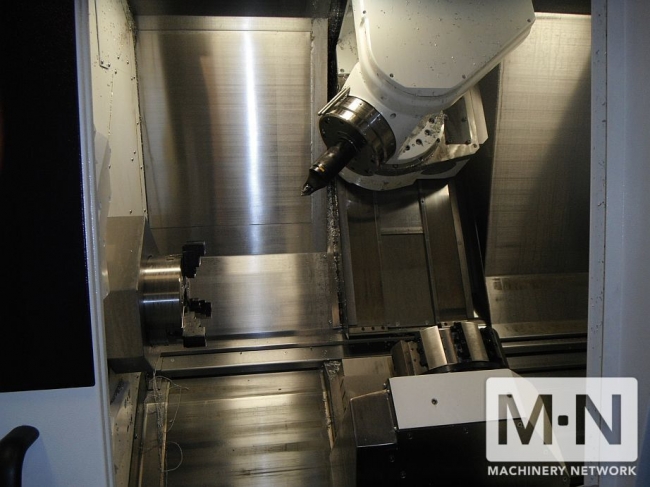

UPPER TURRET AND TOOLING SPECIFICATIONS:
Type of Turret.......................... 1 Position, w/ATC
Tool Shank Height....................... 1.0"
Tool Size (Boring Bar Max. Dia.)........ 1.5"
Magazine Capacity....................... 80 Tools
Tool Selection Method................... Random
Tool to Tool ATC Time................... 1.3 Sec.
Max. Tool Dia. w/All Pockets Full....... 3.54"
Max. Tool Dia. w/Adjacent Pockets Empty. 4.92"
Max. Tool Length (From Gage-Line)....... 11.81"
Maximum Tool Weight..................... 22 lbs.
ATC Tool Shank.......................... Capto C6
Rotary Tool Spindle Speed............... 12,000 RPM
Rotary Tool Spindle Horsepower (20% ED). 25 H.P. (A.C.)
Rotary Tool Torque (20% ED)............ 88.2 ft-lbs
Maximum Face Mill....................... 4"
Maximum End Mill........................ 1.25"
Maximum Drill........................... 1.18"
Maximum Tap............................. 1-8 UNC
LOWER TURRET AND TOOLING SPECIFICATIONS:
Type of Turret.......................... Drum
Tool Size (Boring Bar Maximum Diameter). 1.25"
Total Number of Tools................... 9 (6 rotary opt.)
Tool Selection Method................... Bi-Directional
Tool Index Time (1 Step)................ 0.14 Sec.
AXIS TRAVELS:
B-Axis.................................. 225 degrees (0.0001 degree increments/contouring optional)
Y-Axis.................................. +/- 3.15"
X-Axis.................................. 22.83"
Z-Axis.................................. 60.82"
X2 Axis Lower........................... 5.91"
Z2 Axis Lower........................... 58.66"
Second Headstock W-Axis................. 61.02"
AXIS RAPID RATES:
Y-Axis.................................. 1024 IPM
X/X2 Axis............................... 1496 IPM
Z/Z2 Axis............................... 1496 IPM
Second Headstock W-Axis................. 1181 IPM
C-Axis.................................. 555 RPM
GENERAL SPECIFICATIONS:
Floor Space (WxL)....................... 95.39" x 200.31"
Machine Height.......................... 102.24"
EQUIPPED WITH:

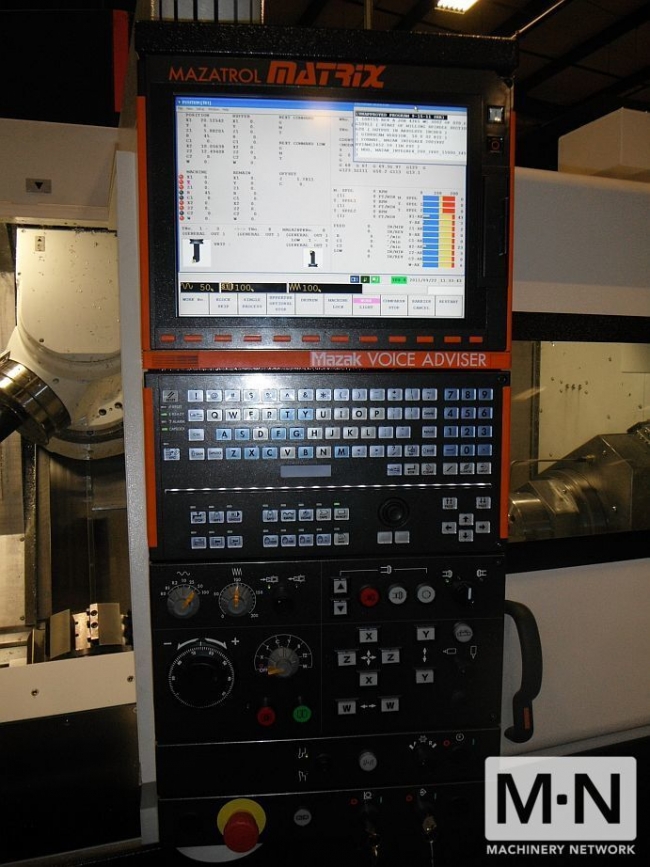

MAZATROL MATRIX CONTROL
15" COLOR LCD
EIA/ISO CODE INPUT FUNCTION (STANDARD)
ADD. EIA/ISO FUNCTIONS (REQ.EIA/ISO)
3-D COORDINATE CONVERSION
ABSOLUTE POSITIONING SYS (LINEAR AXES)
Y-AXIS CONTROL
STANDARD TOOLING PACKAGE (LOWER TURRET W/O MILLING)
COOLANT THROUGH MILLING HEAD(UP-TURRET)
5KG/71PSI THRU CLNT/FLOOD CLNT SIMUL-FLOWABLE (UPPER TURRET)
1KG FLOOD COOLANT (LOWER TURRET)
CHUCK AIR BLAST (SECOND SPINDLE)
C-AXIS 0.0001 DEGREE INCR.(1ST SPINDLE)
B-AXIS 0.0001 DEG/CNTRING (REQ. EIA/ISO)
B-AXIS INDEX 5 DEGREE(COUPLING CLAMP)
LOWER 9 POSITION DRUM TURRET

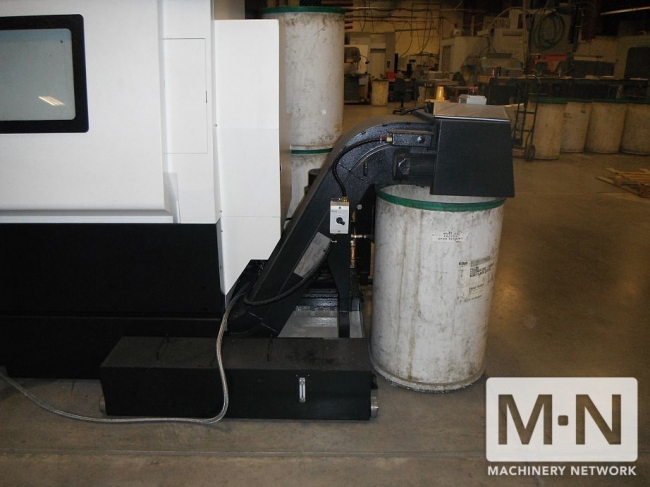

CHIP CONVEYOR SIDE 60" 1500U (HINGE TYPE)
FOUNDATION KIT(PLATES)
TOOL EYE (AUTOMATIC)
RELOCATION DEVICE
WINDOWS XP OPERATING SYSTEM FOR MAZAK MACHINE CONTROL
MT CONNECT PREPARATION
15KG/213PSI THRU/FLOOD COOLANT (UPPER TURRET) 71 PSI LOWER
AUTOMATIC PARTS CATCHER W/EJEC (2.5"DIAMETER X 4.7"L X 5.5LB)
AUTO PECKING W/LOAD DETECTION(UP-TURRET)
C1C2 SYNCHRONOUS FUNCTION
F)EIA/ISO FUNCTION SIMULTANEOUS 5 AXES
F)TOOL TIP POINT CONTROL /SIMULT. 5 AXES
F)TOOL RADIUS COMPENSATION 5-AXIS
MAXIMUM PROGRAM SIZE : 8MB
TAIL CENTER ATTACHMENT (LOWER TURRET)
NEW 2011 80 Tools 45 hours of cut time
IMMEDIATE DELIVERY
STANDARD SPECIFICATIONS: Standard Chuck Dia. Main Spindle (L).... 8"
Standard Chuck Dia. Second Spindle (R).. 8"
Maximum Swing........................... 26"
Maximum Swing Using Y-Axis.............. 19.5" - 26"
NOTE: Limited to 12.99" when in operating range without tools mounted.
Maximum Swing over Lower Turret......... 10.6"
NOTE: Without tools or holders on lower turret.
Maximum Cutting Diameter: Chucking...... 26" (Upper)
Maximum Cutting Diameter: Chucking...... 10.24" (Lower)
NOTE: Without boring bar holder mounted.
Maximum Cutting Length 60".............. 58.85"
Maximum Distance Between Chuck Jaws 60". 60.83"
MAIN SPINDLE SPECIFICATIONS (L):
Spindle Nose............................ A2-6
Maximum Bar Work.... ................... 2"
Spindle Speed........................... 35 - 5000 RPM
Spindle Index (Programmable)............ 0.0001 Degree
Spindle Horsepower (Cont./30 Mins.)..... 20/30 H.P. (A.C.)
Spindle Torque.......................... 258.1 ft-lbs
SECOND SPINDLE SPECIFICATIONS (R):
Spindle Nose............................ A2-6
Spindle Bore............................ 2.99"
Maximum Bar Work........................ 2"x 34.6" deep from chuck face (2" thru optional)
Spindle Speed........................... 35 - 5000 RPM
Spindle Index (Programmable)............ 0.001 Degree (0.0001 Deg. C-Axis Optional)
Spindle Horsepower (Cont./30 Min.)...... 20/25 HP (A.C.)
Spindle Torque.......................... 241 ft-lbs
UPPER TURRET AND TOOLING SPECIFICATIONS:
Type of Turret.......................... 1 Position, w/ATC
Tool Shank Height....................... 1.0"
Tool Size (Boring Bar Max. Dia.)........ 1.5"
Magazine Capacity....................... 80 Tools
Tool Selection Method................... Random
Tool to Tool ATC Time................... 1.3 Sec.
Max. Tool Dia. w/All Pockets Full....... 3.54"
Max. Tool Dia. w/Adjacent Pockets Empty. 4.92"
Max. Tool Length (From Gage-Line)....... 11.81"
Maximum Tool Weight..................... 22 lbs.
ATC Tool Shank.......................... Capto C6
Rotary Tool Spindle Speed............... 12,000 RPM
Rotary Tool Spindle Horsepower (20% ED). 25 H.P. (A.C.)
Rotary Tool Torque (20% ED)............ 88.2 ft-lbs
Maximum Face Mill....................... 4"
Maximum End Mill........................ 1.25"
Maximum Drill........................... 1.18"
Maximum Tap............................. 1-8 UNC
LOWER TURRET AND TOOLING SPECIFICATIONS:
Type of Turret.......................... Drum
Tool Size (Boring Bar Maximum Diameter). 1.25"
Total Number of Tools................... 9 (6 rotary opt.)
Tool Selection Method................... Bi-Directional
Tool Index Time (1 Step)................ 0.14 Sec.
AXIS TRAVELS:
B-Axis.................................. 225 degrees (0.0001 degree increments/contouring optional)
Y-Axis.................................. +/- 3.15"
X-Axis.................................. 22.83"
Z-Axis.................................. 60.82"
X2 Axis Lower........................... 5.91"
Z2 Axis Lower........................... 58.66"
Second Headstock W-Axis................. 61.02"
AXIS RAPID RATES:
Y-Axis.................................. 1024 IPM
X/X2 Axis............................... 1496 IPM
Z/Z2 Axis............................... 1496 IPM
Second Headstock W-Axis................. 1181 IPM
C-Axis.................................. 555 RPM
GENERAL SPECIFICATIONS:
Floor Space (WxL)....................... 95.39" x 200.31"
Machine Height.......................... 102.24"
EQUIPPED WITH:
MAZATROL MATRIX CONTROL
15" COLOR LCD
EIA/ISO CODE INPUT FUNCTION (STANDARD)
ADD. EIA/ISO FUNCTIONS (REQ.EIA/ISO)
3-D COORDINATE CONVERSION
ABSOLUTE POSITIONING SYS (LINEAR AXES)
Y-AXIS CONTROL
STANDARD TOOLING PACKAGE (LOWER TURRET W/O MILLING)
COOLANT THROUGH MILLING HEAD(UP-TURRET)
5KG/71PSI THRU CLNT/FLOOD CLNT SIMUL-FLOWABLE (UPPER TURRET)
1KG FLOOD COOLANT (LOWER TURRET)
CHUCK AIR BLAST (SECOND SPINDLE)
C-AXIS 0.0001 DEGREE INCR.(1ST SPINDLE)
B-AXIS 0.0001 DEG/CNTRING (REQ. EIA/ISO)
B-AXIS INDEX 5 DEGREE(COUPLING CLAMP)
LOWER 9 POSITION DRUM TURRET
CHIP CONVEYOR SIDE 60" 1500U (HINGE TYPE)
FOUNDATION KIT(PLATES)
TOOL EYE (AUTOMATIC)
RELOCATION DEVICE
WINDOWS XP OPERATING SYSTEM FOR MAZAK MACHINE CONTROL
MT CONNECT PREPARATION
15KG/213PSI THRU/FLOOD COOLANT (UPPER TURRET) 71 PSI LOWER
AUTOMATIC PARTS CATCHER W/EJEC (2.5"DIAMETER X 4.7"L X 5.5LB)
AUTO PECKING W/LOAD DETECTION(UP-TURRET)
C1C2 SYNCHRONOUS FUNCTION
F)EIA/ISO FUNCTION SIMULTANEOUS 5 AXES
F)TOOL TIP POINT CONTROL /SIMULT. 5 AXES
F)TOOL RADIUS COMPENSATION 5-AXIS
MAXIMUM PROGRAM SIZE : 8MB
TAIL CENTER ATTACHMENT (LOWER TURRET)
