MAZAK INTEGREX I200S
Type:
LATHES, COMBINATION, N/C & CNC, (3-axis Or More)
Manufacturer:
MAZAK
Model:
INTEGREX I200S
Condition:
Not Specified
Year:
2011
Stock #:
31453
Status:
Sold
Description:
8" CHUCK, 25.9" SWING
Location:
United States
Specifications from OEM brochure and equipped with are described to the best of our knowledge. ALL items should be confirmed by buyer.

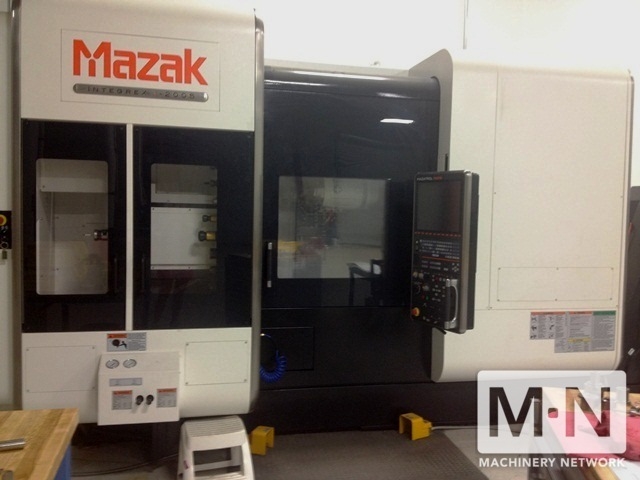

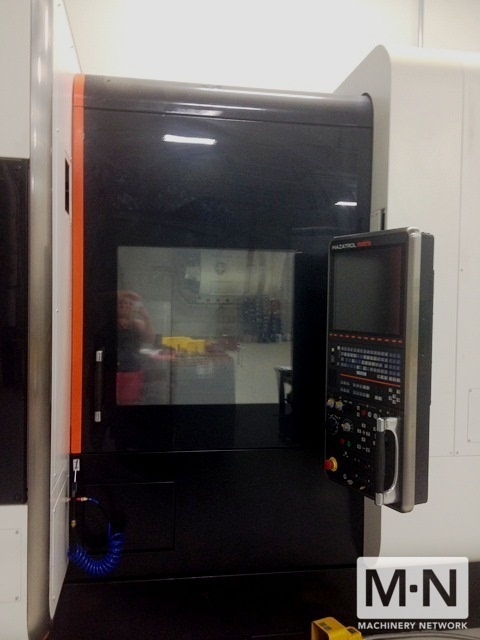

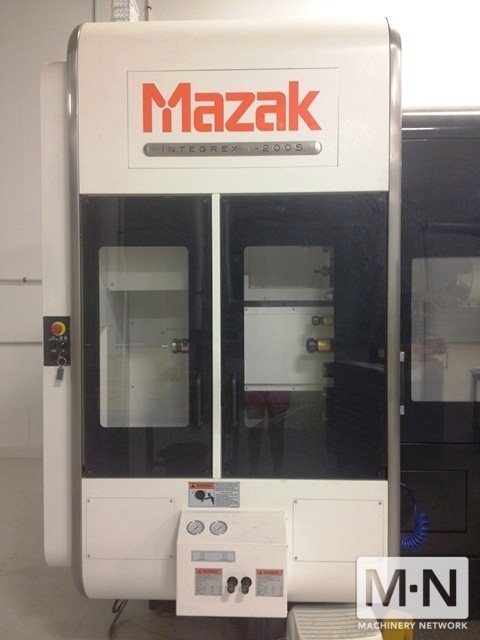

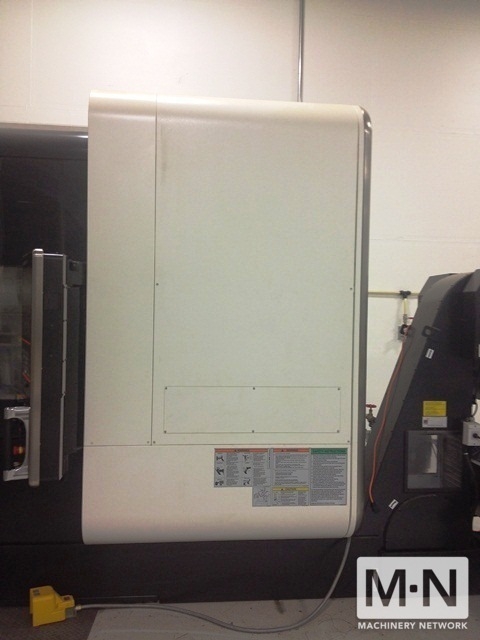

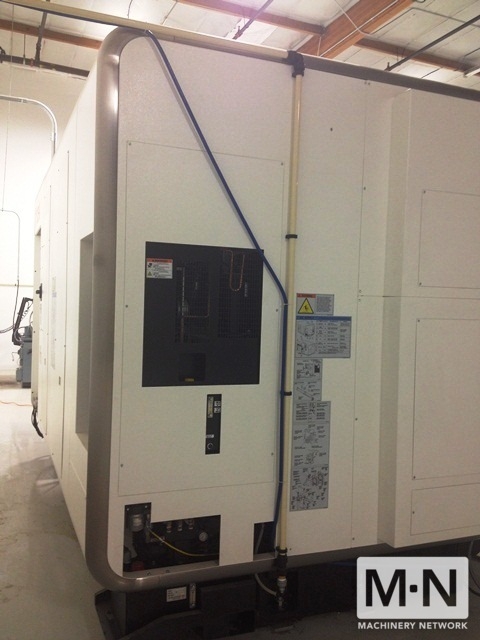

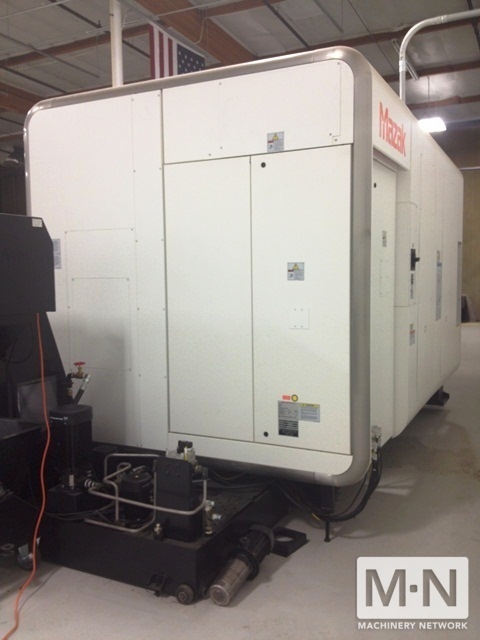

1) MAZAK INTEGREX i200S CNC Multitasking Center
New 2011 Del'd 7/2011
Power On Time 1171 Hours, Run Time 317 Hours
Specifications:
Chuck size.....................8” main and second spindle
Max Swing......................25.9”
Max machining length...........39.8”
Main spindle...................5000RPM
Main Spindle...................30 HP 30 min rating
Second spindle.................5000RPM
Spindle Bar Capacity........... 2.02"
Second spindle HP..............25 HP 30 min rating
Milling Spindle................12,000RPM
Milling Spindle................30 HP 20%ED
Tool storage...................72 tools Capto
Floor Space....................157” x 110”
Equipped with:
2nd spindle C-Axis
1000 PSI Coolant

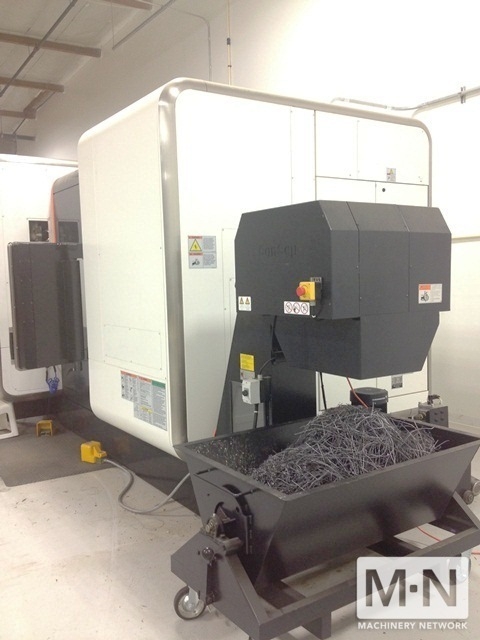

Consep Chip Conveyor
213 PSI Coolant
Overload detection
3 color signal tower
Chip bucket
Reneshaw RMP 60 probe
3 D high speed
Additional software
Tool tip point control
Tool radius compensation
Approx 30 Capto Toolholders and assorted collets
New 2011 Del'd 7/2011
Power On Time 1171 Hours, Run Time 317 Hours
Specifications:
Chuck size.....................8” main and second spindle
Max Swing......................25.9”
Max machining length...........39.8”
Main spindle...................5000RPM
Main Spindle...................30 HP 30 min rating
Second spindle.................5000RPM
Spindle Bar Capacity........... 2.02"
Second spindle HP..............25 HP 30 min rating
Milling Spindle................12,000RPM
Milling Spindle................30 HP 20%ED
Tool storage...................72 tools Capto
Floor Space....................157” x 110”
Equipped with:
2nd spindle C-Axis
1000 PSI Coolant
Consep Chip Conveyor
213 PSI Coolant
Overload detection
3 color signal tower
Chip bucket
Reneshaw RMP 60 probe
3 D high speed
Additional software
Tool tip point control
Tool radius compensation
Approx 30 Capto Toolholders and assorted collets
