MAZAK SLANT TURN 550M
Type:
LATHES, COMBINATION, N/C & CNC, (3-axis Or More)
Manufacturer:
MAZAK
Model:
SLANT TURN 550M
Condition:
Not Specified
Year:
2012
Stock #:
36266
Status:
Sold
Description:
MAZATROL MATRIX , 40" MAX SWING, 36" CENTER DIST., 15 HP,
Location:
Illinois, United States
Specifications from OEM brochure and equipped with are described to the best of our knowledge. ALL items should be confirmed by buyer.

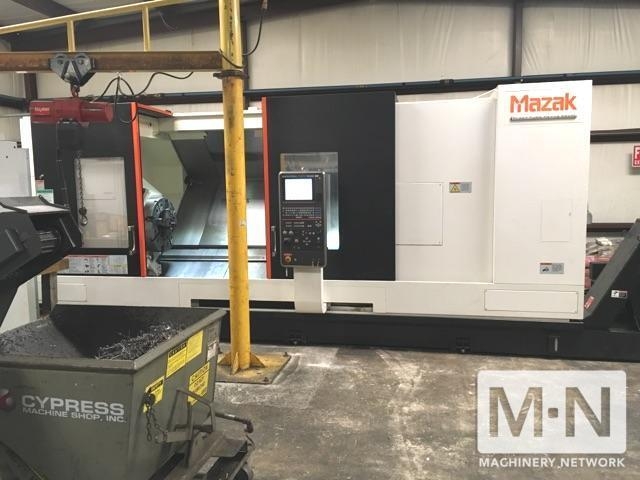

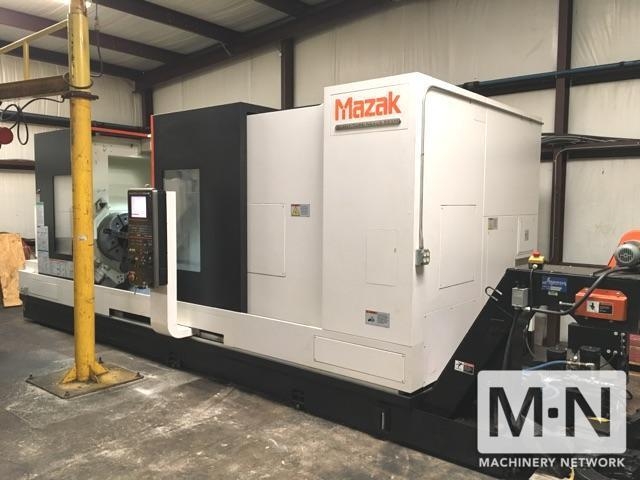

(1) USED MAZAK SLANT TURN NEXUS 550M/2000 CNC TURNING AND MILLING CENTER
NEW 2012
SPEICICATIONS
MAXIMUM SWING OVER BED .........40.9"
MAXIMUM MACHINING DIA............36"
SWING OVER THE CARRIAGE..........29.4"
MAXIMUM MACHINING LENGTH.........86.38"
SPINDLE NOSE ................A2 - 20
SPINDLE BORE MAIN................10.28"
SPINDLE SPEED ...................1000 RPM
C - AXIS.........................360,000 N/C CONTOURING
NUMBER OF GEAR RANGES............2
MAXIMUM SPINDLE TORQUE...........5193 FT/LBS
MAIN MOTOR ......................60 HP
X - AXIS TRAVEL .................18.25"
Z - AXIS TRAVEL .................89.8"
MILL SPINDLE RPM.................4000 RPM
MILL SPINDLE HP .................15 HP AC
RAPID TRAVERSE RATES X, Z .......787, 945 IPM
TURRET POSITIONS.................12
TURRET INDEX TIME................5" SEC.
TAILSTOCK TRAVEL BODY............86.75"
MACHINE WEIGHT..................41,667 LBS.

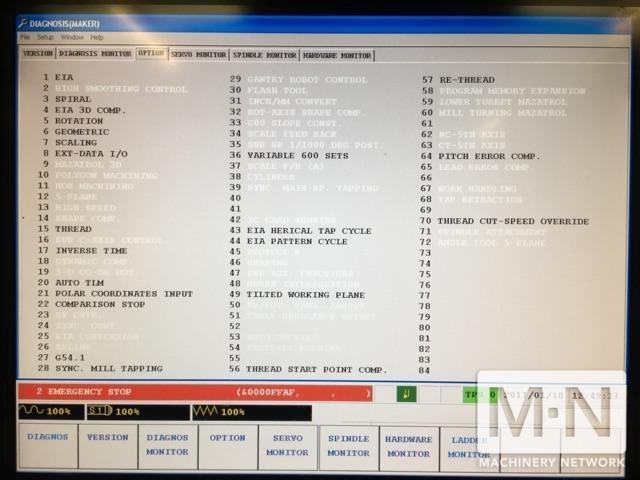

EQUIPPED WITH:
MAZATROL MATRIX CNC CONVERSATIONAL CONTROL
ABSOLUTE POSITIONING
ALL AVAIABLE TOOL HOLDERS
ALL AVAILABLE MANUALS
AUTO TOOL LENGTH MEASUREMENT & BREAKAGE DETECTION
CHIP CONVEYOR
CHUCK OPEN CLOSE
COMPARISON STOP
EIA 3D COMPENSATION
EIA HELICAL TAPPING
EIA PATTERN CYCLE
EIA/ISO PROGRAMMING / 12.1'' COLOR MONITOR
EXTERNAL DATA I/O
G54.1
GEOMETRIC
INVERSE TIME
MULTI TAP TRANSFORMER
PITCH ERROR COMPENSATION
POLAR COORDINATE INPUT
RETHREAD
ROTATION
SCALING
SPIRAL
SYNC TAP ON MILL HEADS
THREAD CUT-SPEED OVERRIDE
THREAD CUTTING FUNCTION
THREAD POINT START COMPENSATION
TILTED WORKPLANE
TOOL EYE FOR 24" CK AUTOMATIC
USER MACRO 600 VARIABLES
NEW 2012
SPEICICATIONS
MAXIMUM SWING OVER BED .........40.9"
MAXIMUM MACHINING DIA............36"
SWING OVER THE CARRIAGE..........29.4"
MAXIMUM MACHINING LENGTH.........86.38"
SPINDLE NOSE ................A2 - 20
SPINDLE BORE MAIN................10.28"
SPINDLE SPEED ...................1000 RPM
C - AXIS.........................360,000 N/C CONTOURING
NUMBER OF GEAR RANGES............2
MAXIMUM SPINDLE TORQUE...........5193 FT/LBS
MAIN MOTOR ......................60 HP
X - AXIS TRAVEL .................18.25"
Z - AXIS TRAVEL .................89.8"
MILL SPINDLE RPM.................4000 RPM
MILL SPINDLE HP .................15 HP AC
RAPID TRAVERSE RATES X, Z .......787, 945 IPM
TURRET POSITIONS.................12
TURRET INDEX TIME................5" SEC.
TAILSTOCK TRAVEL BODY............86.75"
MACHINE WEIGHT..................41,667 LBS.
EQUIPPED WITH:
MAZATROL MATRIX CNC CONVERSATIONAL CONTROL
ABSOLUTE POSITIONING
ALL AVAIABLE TOOL HOLDERS
ALL AVAILABLE MANUALS
AUTO TOOL LENGTH MEASUREMENT & BREAKAGE DETECTION
CHIP CONVEYOR
CHUCK OPEN CLOSE
COMPARISON STOP
EIA 3D COMPENSATION
EIA HELICAL TAPPING
EIA PATTERN CYCLE
EIA/ISO PROGRAMMING / 12.1'' COLOR MONITOR
EXTERNAL DATA I/O
G54.1
GEOMETRIC
INVERSE TIME
MULTI TAP TRANSFORMER
PITCH ERROR COMPENSATION
POLAR COORDINATE INPUT
RETHREAD
ROTATION
SCALING
SPIRAL
SYNC TAP ON MILL HEADS
THREAD CUT-SPEED OVERRIDE
THREAD CUTTING FUNCTION
THREAD POINT START COMPENSATION
TILTED WORKPLANE
TOOL EYE FOR 24" CK AUTOMATIC
USER MACRO 600 VARIABLES
