MAZAK E1060-V/8-II
Type:
LATHES, COMBINATION, N/C & CNC, (3-axis Or More)
Manufacturer:
MAZAK
Model:
E1060-V/8-II
Condition:
Not Specified
Year:
2010
Stock #:
33667
Status:
Sold
Description:

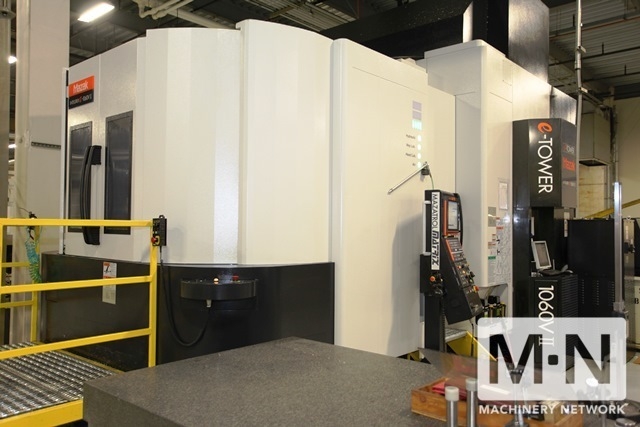

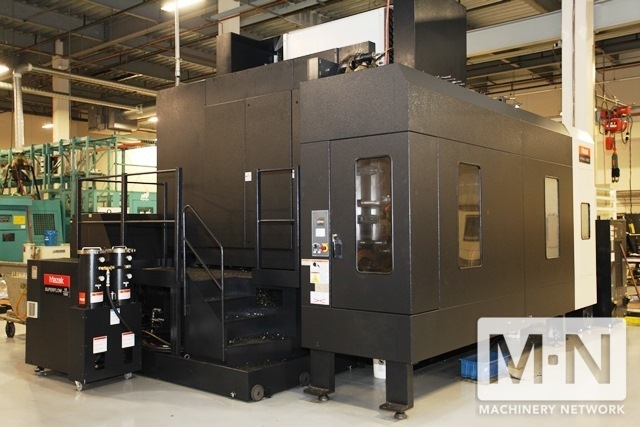

Mazak Integrex e1060-V/8-II, Mazatrol Matrix Control,
Location:
Oregon, United States
Specifications from OEM brochure and equipped with are described to the best of our knowledge. ALL items should be confirmed by buyer.
1) USED MAZAK INTEGREX E1060 V/8-II 5-AXIS CNC MULTI AXIS TURNING CENTER NEW 2010
SPECIFICATIONS: AXIS TRAVEL X – AXIS .............................73.82” Y – AXIS .............................41.73” Z – AXIS .............................52.95” B – AXIS FULL CONTOURING .............150 DEGREE (-30 DEG. TO 120 DEG.) C – AXIS .............................360 DEGREE (.0001 DEG. INCREMENT) PALLETS ..............................2 39.4” DIAMETER ROUND TAPPED WORK PIECE DIMENSIONS ................49.21” X 49.21” WEIGHT ...............................4784 POUNDS MILLING SPINDLE SPEED ................10,000 RPM / 2 WINDINGS TAPER ................................CAT 50 BIG PLUS HORSEPOWER ...........................50 INT. / 40 CONT. TURNING SPINDLE SPEED ................500 RPM TOOL CHANGER CAPACITY ................120 TOOL DIAMETER ........................5.31” / 10.24” TOOL LENGTH ..........................19.69” TOOL WEIGHT ..........................66 POUNDS RAPID TRAVERSE X, Y, Z AXIS ..........1653 IPM B AXIS ...............................30 RPM C AXIS ...............................18 RPM MACHINE WEIGHT .......................83,800 POUNDS
EQUIPPED WITH: MAZATROL MATRIX CNC CONVERSATIONAL CONTROL W / 15” DISPLAY E-TOWER 1000 PSI HIGH PRESSURE COOLANT THROUGH SPINDLE W / MAZAK SUPERFLOW V8M MANUAL PULSE GENERATOR (DETACHABLE) TWO PALLET CHANGER TOOL EYE AUTOMATIC CONSEP CHIP CONVEYOR SYSTEM COOLANT WASHDOWN AT OPERATOR AND PALLET LOAD STATIONS HEIDENHEIN LINEAR SCALES X, Y, Z SPINDLE AIR BLOW POWER INDEXING AT WORK LOAD STATION RENISHAW NC4 LASER TOOL MEASUREMENT RENISHAW H/V OMP60 PROBE HYDRAULIC PRESSURE INTERLOCK AUTO POWER ON/OFF/WARM-UP 8MB PROGRAM STORAGE PREP FOR LAN AND MODEM MILL SPINDLE SYNCHRONOUS TAPPING BACKGROUND TOOL PATH CHECK TOOL BREAKAGE DETECTION ADAPTIVE FEEDRATE CONTROL TOOL LIFE MONITORING RENISHAW ADVANCED PROBE MACROS / INSPECTION PLUS 3D COORDINATE ROTATION G68.2 EIA SIMULTANEOUS 5-AXIS TOOL TIP POINT CONTROL 5-AXIS SIMULTANEOUS 5-AXIS TOOL RADIUS COMP. G00 SLOPE CONSTANT 2D SOFTWARE SHAPE CONTINUOUS SHAPE CONTINUOUS ROTARY AXIS INCH / METRIC CONVERSION CYLINDRICAL G07 POLAR COORDINATE G12 MAZACC-3D HIGH SPEED SOFTWARE PACKAGE HIGH SMOOTHING CONTROL ADDITIONAL EIA / ISO FUNCTION ALL AVAILABLE MANUALS
SPECIFICATIONS: AXIS TRAVEL X – AXIS .............................73.82” Y – AXIS .............................41.73” Z – AXIS .............................52.95” B – AXIS FULL CONTOURING .............150 DEGREE (-30 DEG. TO 120 DEG.) C – AXIS .............................360 DEGREE (.0001 DEG. INCREMENT) PALLETS ..............................2 39.4” DIAMETER ROUND TAPPED WORK PIECE DIMENSIONS ................49.21” X 49.21” WEIGHT ...............................4784 POUNDS MILLING SPINDLE SPEED ................10,000 RPM / 2 WINDINGS TAPER ................................CAT 50 BIG PLUS HORSEPOWER ...........................50 INT. / 40 CONT. TURNING SPINDLE SPEED ................500 RPM TOOL CHANGER CAPACITY ................120 TOOL DIAMETER ........................5.31” / 10.24” TOOL LENGTH ..........................19.69” TOOL WEIGHT ..........................66 POUNDS RAPID TRAVERSE X, Y, Z AXIS ..........1653 IPM B AXIS ...............................30 RPM C AXIS ...............................18 RPM MACHINE WEIGHT .......................83,800 POUNDS
EQUIPPED WITH: MAZATROL MATRIX CNC CONVERSATIONAL CONTROL W / 15” DISPLAY E-TOWER 1000 PSI HIGH PRESSURE COOLANT THROUGH SPINDLE W / MAZAK SUPERFLOW V8M MANUAL PULSE GENERATOR (DETACHABLE) TWO PALLET CHANGER TOOL EYE AUTOMATIC CONSEP CHIP CONVEYOR SYSTEM COOLANT WASHDOWN AT OPERATOR AND PALLET LOAD STATIONS HEIDENHEIN LINEAR SCALES X, Y, Z SPINDLE AIR BLOW POWER INDEXING AT WORK LOAD STATION RENISHAW NC4 LASER TOOL MEASUREMENT RENISHAW H/V OMP60 PROBE HYDRAULIC PRESSURE INTERLOCK AUTO POWER ON/OFF/WARM-UP 8MB PROGRAM STORAGE PREP FOR LAN AND MODEM MILL SPINDLE SYNCHRONOUS TAPPING BACKGROUND TOOL PATH CHECK TOOL BREAKAGE DETECTION ADAPTIVE FEEDRATE CONTROL TOOL LIFE MONITORING RENISHAW ADVANCED PROBE MACROS / INSPECTION PLUS 3D COORDINATE ROTATION G68.2 EIA SIMULTANEOUS 5-AXIS TOOL TIP POINT CONTROL 5-AXIS SIMULTANEOUS 5-AXIS TOOL RADIUS COMP. G00 SLOPE CONSTANT 2D SOFTWARE SHAPE CONTINUOUS SHAPE CONTINUOUS ROTARY AXIS INCH / METRIC CONVERSION CYLINDRICAL G07 POLAR COORDINATE G12 MAZACC-3D HIGH SPEED SOFTWARE PACKAGE HIGH SMOOTHING CONTROL ADDITIONAL EIA / ISO FUNCTION ALL AVAILABLE MANUALS
