MAZAK E1850
Type:
LATHES, COMBINATION, N/C & CNC, (3-axis Or More)
Manufacturer:
MAZAK
Model:
E1850
Condition:
Not Specified
Year:
2009
Stock #:
31215
Status:
Sold
Description:
2 PALLET CHANGER W CYBER PROD MODULE MX CONTROL
Location:
Oregon, United States
Specifications from OEM brochure and equipped with are described to the best of our knowledge. ALL items should be confirmed by buyer.
(1) USED MAZAK INTEGREX E-1850V12/ II 2 PALLET CHANGER NEW 2009
SPECIFICATIONS: PALLET SIZE: .............................. (2)64.9” MAXIMUM SWING WITH 2 PALLET CHANGER: ...... 92.5" MAXIMUM MACHINING DIAMETER WITH 2 PC: ..... 92.5" FLOOR SPACE REQUIRED: ..................... 334.5" X 578.1" MACHINE HEIGHT FROM BOTTOM OF BASE: ....... 224.5" TRAVELS: X-AXIS TRAVELS:............................ 120.27" Y-AXIS TRAVELS:............................ 72.83" Z-AXIS TRAVELS:............................ 70.86" B-AXIS TRAVELS:............................ 150 DEG (0.0001 DEG INCR.) (-30 DEG TO 120 DEG) C-AXIS TRAVELS:............................ 360 DEG WORKPIECE SIZE: MAXIMUM TABLE LOAD: ....................... 11,000 LBS MAXIMUM WORKPIECE HEIGHT: ................. 70.8" MAXIMUM WORKPIECE DIAMETER: ............... 92.5 TABLE: MAXIMUM SPEED: ............................ 250 RPM MINIMUM INDEXING INCREMENT: ............... 0.0001 DEG SPINDLE HORSEPOWER (30 MIN/CONT): ......... 60/50 HP SPINDLE TORQUE: ........................... 4,794 FT-LBS OBTAINS FULL HP @(30MIN./CONT.): .......... C-AXIS CLAMPING TORQUE: ................... C-AXIS CONTOURING TORQUE (30% ED): ........ MILLING SPINDLE SPINDLE NOSE: ............................. BIG PLUS CAT TOOLS SPINDLE HORSEPOWER (1 MIN/30 MIN/CONT): ... 50/40 HP SPINDLE TORQUE: ........................... 339 FT-LBS OBTAINS FULL HP @: ........................ 2,000 RPM SPINDLE SPEED: ............................ 35 - 10,000 RPM SPINDLE SPEED INCREMENT: .................. 1 RPM NUMBER OF RANGES: ......................... 1 (2) RANGES AUTOMATIC TOOL CHANGER: MAGAZINE CAPACITY: ........................ 120 (TOOL HIVE 180/240/330) TOOL-TO-TOOL TIME: ........................ 1.8 SECONDS TOOL SELECTION METHOD: .................... RANDOM/SHORTEST PATH MAXIMUM TOOL DIAMETER: .................... 5.31" MAX.TOOL DIA.W/ADJACENT POCKETS EMPTY: .... 10.24" MAXIMUM TOOL LENGTH: ...................... 25.69" MAXIMUM TOOL WEIGHT: ...................... 66 LBS AXIS RAPID RATES: X, Y AND Z-AXIS: .......................... 1,575 IPM B-AXIS: ................................... 30 RPM C-AXIS: ................................... 18 RPM AIR REQUIREMENTS: ......................... 26.48 CFM

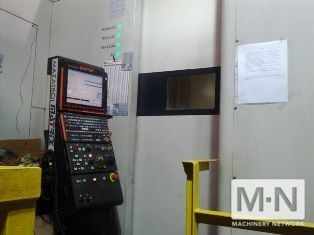

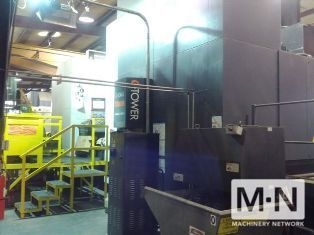

EQUIPPED WITH: ALL AVAILABLE TOOLING 2) DIA.64.9” PALLET W/FACE-PLATE & JAWS(PER) 120 TOOL CHAIN MAGAZINE THRU M-SPDL COOLANT 15KG W/HI PRESSURE PREP CONSEPT CHIP CONVEYOR PROTOCAOL B RE-232C EIA DYNAMIC COMPENSATION 2 (INCLUDED 1) RE-THREADING OVERLOAD DETECTION PREPARATION FOR MMS-B OPTICAL TYPE OMP60 WORK-CENTERING ON 2 PC SET UP STATION MAZAK SUPER FOW TSHIGH PRESSURE RE COOLANT 1000PSI/8GPM DPT#43 MAZAK MONITORING SYSTEM B OPTICAL OMP60-PROBE ONLY DPT#3 ENG # 40117 LASER MEASUREMENT NC4 MACRO UPGRADE ONLY DPT#13 WINDOWS XP OPERATING SYSTEM AUTOMATIC TOOL EYE E-TOWER 15” COLOR LCD EIA/ISO CODE INPUT FUNCTION MAX PROGRAM SIZE 8MB CARDBUS I/F 2 SLOT USB I/F (B) MILL-SPINDLE SYNCHRONOUS TAPPING W/O TOOL (F) EIA/ISO FUNCTION SIMULTANEOUS 5 AXES (F) TOOL TIP POINT CONTROL/SIMULT.5 AXES (F) TOOL RADIUS COMPENSATION 5-AXIS 3-D COORDINATE CONVERSION (B) G00 SLOPE CONSTANT (B) MAZACC-2D SOFTWARE SHAPE COMPENSATION (B) SHAPE COMPENSATION FOR ROTARY AXES INCH/METRIC CONVERSION (B) CYLINDRICAL G07 & POLAR COORDINATE G12 LATHE SPDL TABLE MOTOR 60HP LATHE SPDL TABLE SPEED 250 RPM PREP FOR VISUAL TOOL ID/DATA MANQMNT / CAT ABSOLUTE POSITIONING SYS (LINEAR AXES) OPERATOR DOOR INTERLOCK W/ LOCK SWITCH HYDRAULIC PRESSURE INTERLOCK SAFETY COVER FOR 2 PALLET RELOCATION DEVICE
PRICE……..$875,000.00
Buyer is responsible for disassembly and shipping
SPECIFICATIONS: PALLET SIZE: .............................. (2)64.9” MAXIMUM SWING WITH 2 PALLET CHANGER: ...... 92.5" MAXIMUM MACHINING DIAMETER WITH 2 PC: ..... 92.5" FLOOR SPACE REQUIRED: ..................... 334.5" X 578.1" MACHINE HEIGHT FROM BOTTOM OF BASE: ....... 224.5" TRAVELS: X-AXIS TRAVELS:............................ 120.27" Y-AXIS TRAVELS:............................ 72.83" Z-AXIS TRAVELS:............................ 70.86" B-AXIS TRAVELS:............................ 150 DEG (0.0001 DEG INCR.) (-30 DEG TO 120 DEG) C-AXIS TRAVELS:............................ 360 DEG WORKPIECE SIZE: MAXIMUM TABLE LOAD: ....................... 11,000 LBS MAXIMUM WORKPIECE HEIGHT: ................. 70.8" MAXIMUM WORKPIECE DIAMETER: ............... 92.5 TABLE: MAXIMUM SPEED: ............................ 250 RPM MINIMUM INDEXING INCREMENT: ............... 0.0001 DEG SPINDLE HORSEPOWER (30 MIN/CONT): ......... 60/50 HP SPINDLE TORQUE: ........................... 4,794 FT-LBS OBTAINS FULL HP @(30MIN./CONT.): .......... C-AXIS CLAMPING TORQUE: ................... C-AXIS CONTOURING TORQUE (30% ED): ........ MILLING SPINDLE SPINDLE NOSE: ............................. BIG PLUS CAT TOOLS SPINDLE HORSEPOWER (1 MIN/30 MIN/CONT): ... 50/40 HP SPINDLE TORQUE: ........................... 339 FT-LBS OBTAINS FULL HP @: ........................ 2,000 RPM SPINDLE SPEED: ............................ 35 - 10,000 RPM SPINDLE SPEED INCREMENT: .................. 1 RPM NUMBER OF RANGES: ......................... 1 (2) RANGES AUTOMATIC TOOL CHANGER: MAGAZINE CAPACITY: ........................ 120 (TOOL HIVE 180/240/330) TOOL-TO-TOOL TIME: ........................ 1.8 SECONDS TOOL SELECTION METHOD: .................... RANDOM/SHORTEST PATH MAXIMUM TOOL DIAMETER: .................... 5.31" MAX.TOOL DIA.W/ADJACENT POCKETS EMPTY: .... 10.24" MAXIMUM TOOL LENGTH: ...................... 25.69" MAXIMUM TOOL WEIGHT: ...................... 66 LBS AXIS RAPID RATES: X, Y AND Z-AXIS: .......................... 1,575 IPM B-AXIS: ................................... 30 RPM C-AXIS: ................................... 18 RPM AIR REQUIREMENTS: ......................... 26.48 CFM
EQUIPPED WITH: ALL AVAILABLE TOOLING 2) DIA.64.9” PALLET W/FACE-PLATE & JAWS(PER) 120 TOOL CHAIN MAGAZINE THRU M-SPDL COOLANT 15KG W/HI PRESSURE PREP CONSEPT CHIP CONVEYOR PROTOCAOL B RE-232C EIA DYNAMIC COMPENSATION 2 (INCLUDED 1) RE-THREADING OVERLOAD DETECTION PREPARATION FOR MMS-B OPTICAL TYPE OMP60 WORK-CENTERING ON 2 PC SET UP STATION MAZAK SUPER FOW TSHIGH PRESSURE RE COOLANT 1000PSI/8GPM DPT#43 MAZAK MONITORING SYSTEM B OPTICAL OMP60-PROBE ONLY DPT#3 ENG # 40117 LASER MEASUREMENT NC4 MACRO UPGRADE ONLY DPT#13 WINDOWS XP OPERATING SYSTEM AUTOMATIC TOOL EYE E-TOWER 15” COLOR LCD EIA/ISO CODE INPUT FUNCTION MAX PROGRAM SIZE 8MB CARDBUS I/F 2 SLOT USB I/F (B) MILL-SPINDLE SYNCHRONOUS TAPPING W/O TOOL (F) EIA/ISO FUNCTION SIMULTANEOUS 5 AXES (F) TOOL TIP POINT CONTROL/SIMULT.5 AXES (F) TOOL RADIUS COMPENSATION 5-AXIS 3-D COORDINATE CONVERSION (B) G00 SLOPE CONSTANT (B) MAZACC-2D SOFTWARE SHAPE COMPENSATION (B) SHAPE COMPENSATION FOR ROTARY AXES INCH/METRIC CONVERSION (B) CYLINDRICAL G07 & POLAR COORDINATE G12 LATHE SPDL TABLE MOTOR 60HP LATHE SPDL TABLE SPEED 250 RPM PREP FOR VISUAL TOOL ID/DATA MANQMNT / CAT ABSOLUTE POSITIONING SYS (LINEAR AXES) OPERATOR DOOR INTERLOCK W/ LOCK SWITCH HYDRAULIC PRESSURE INTERLOCK SAFETY COVER FOR 2 PALLET RELOCATION DEVICE
PRICE……..$875,000.00
Buyer is responsible for disassembly and shipping
