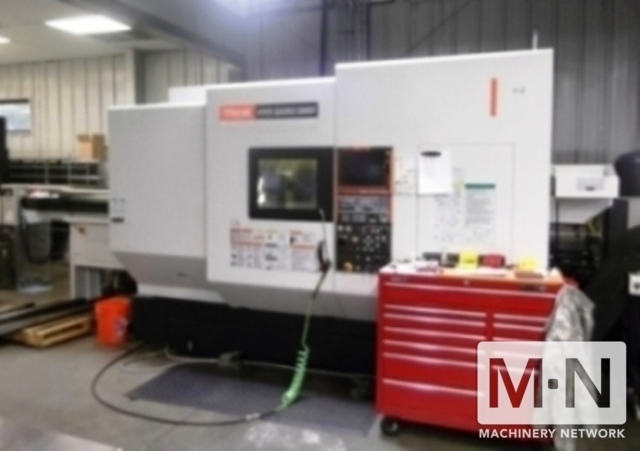

MAZAK HYPER QUADREX 200MSY
Type:
LATHES, COMBINATION, N/C & CNC, (3-axis Or More)
Manufacturer:
MAZAK
Model:
HYPER QUADREX 200MSY
Condition:
Not Specified
Year:
2009
Stock #:
31935
Status:
Sold
Description:
2.5" Bar Cap.,
Location:
Colorado, United States
Specifications from OEM brochure and equipped with are described to the best of our knowledge. ALL items should be confirmed by buyer.
1) USED MAZAK HYPER QUADREX 200MSY CNC TURNING CENTER
NEW 2009
SPECIFICATIONS:
Maximum Swing Over Upper Turret: ........ 14.56"
Maximum Swing Over Lower Turret: ........ 12.598"
Maximum Machining Diameter: Chucking: ... 13.54"(Upper)
Maximum Machining Diameter: Chucking: ... 8.26"(Lower)
Maximum Distance Between Chuck Jaws: .... 33.875"
MAIN SPINDLE SPECIFICATIONS (L):
Preparation ONLY for BB08................ 8" 3-Jaw or Collet Chuck
Spindle Nose:............................ A2-6
Spindle Bore:............................ 2.99"
Maximum Bar Work:........................ 2.56"
Spindle Speed:........................... 35-5,000 RPM
Spindle Index (Programmable):............ 0.0001 Deg.
3,600,000 Positions
Spindle Horsepower (Cont./30 Min.):...... 20/30 HP (AC)
Spindle Torque (25% ED):................. 344.4 ft-lbs.
SECOND SPINDLE SPECIFICATIONS (R)
8" BB08 Chuck Package with Y1225 Non-thru cylinder
Spindle Nose:............................A2-6
Spindle Bore:............................2.99"
Spindle Speed:...........................35-5,000 RPM
Spindle Index (Programmable):............0.0001 Deg.
3,600,000 Positions
Spindle Horsepower (Cont./30 Min.):......20/30 HP (AC)
Spindle Torque (25% ED):.................344.4 ft-lbs.

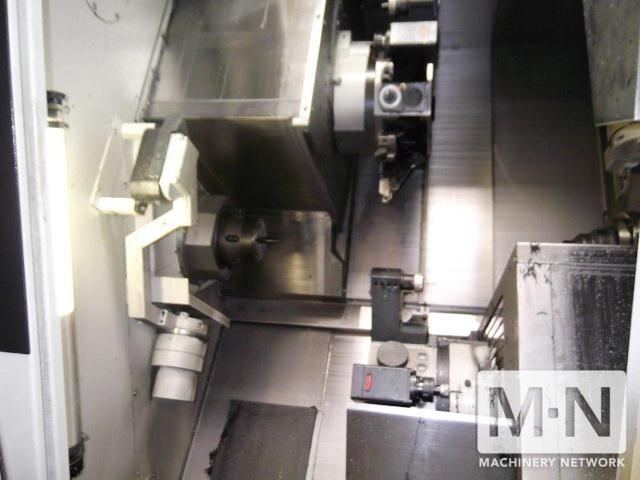

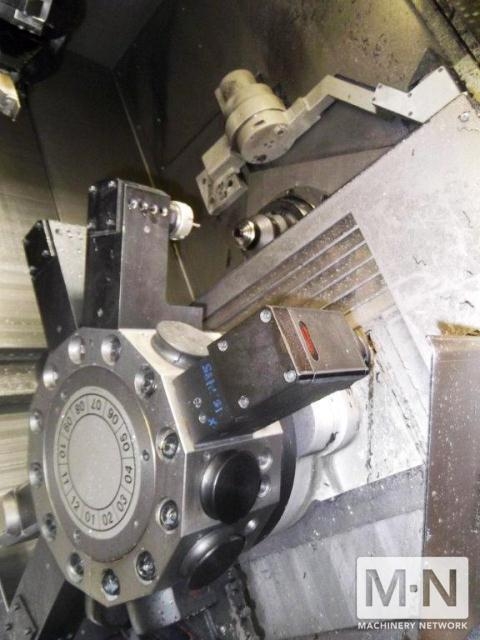

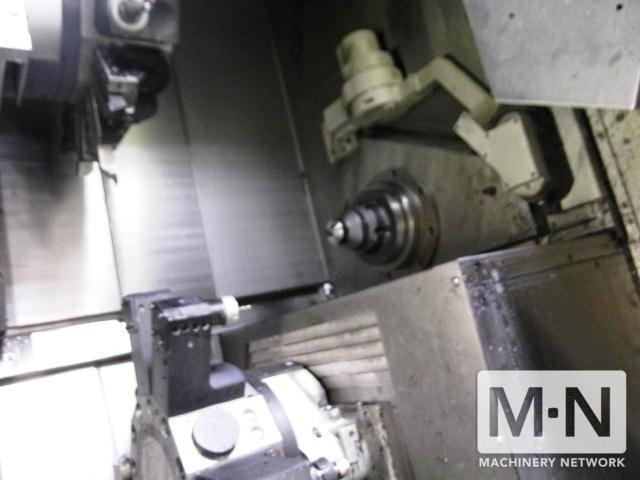

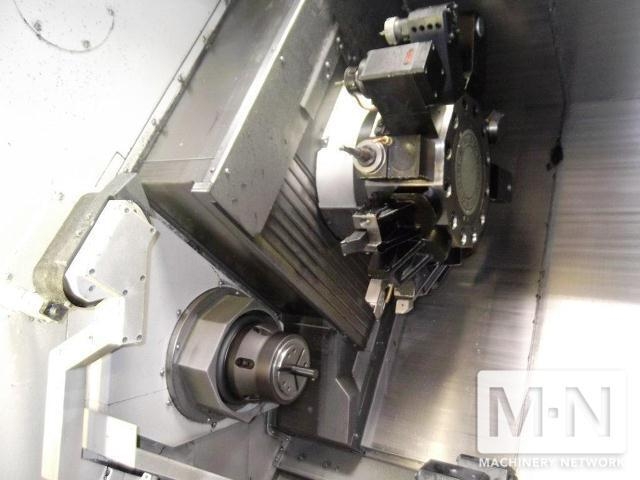

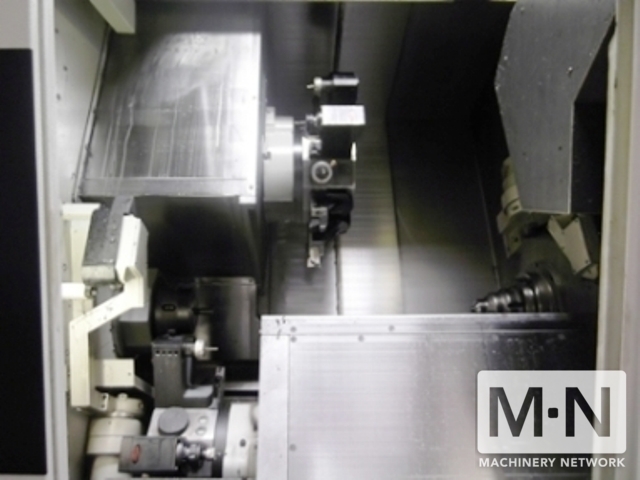

UPPER / LOWER TURRET AND TOOLING SPECIFICATIONS:
Type of Turret:.......................... 12 pos. Drum VDI
Tool Shank Height:....................... 1"
Tool Size (Boring Bar Max. Dia.):........ 1.5"
Total Number of Tools:................... 12
Tool Selection Method:................... Bi-Directional
Tool Index Time (1 Step):................ 0.2 sec.
Rotary Tool Spindle Speed:............... 35-6,000 RPM
Rotary Tool Spindle Horsepower(10 min):.. 7.5 HP
Rotary Tool Torque (3 min.):............. 25.8 ft-lbs,
Maximum End Mill:........................ 0.75" Dia.
Maximum Drill:........................... 0.75" Dia.
Maximum Tap:............................. M20 x 2.5
AXIS TRAVELS:
X1-Axis:................................. 8.2"
Y1-Axis: ................................ +/-2.0"
Z1-Axis: ................................ 29.875"
X2-Axis Lower:........................... 5.5625"
Y2 Axis Lower:........................... +0.75"/-2.0"
Z2 Axis Lower: .......................... 32.125"
W Axis:.................................. 34.075"
AXIS RAPID RATES:
X1-Axis: ................................ 1181 IPM
Y1-Axis: ................................ 1024 IPM
Z1-Axis:................................. 1417 IPM
X2-Axis Lower:........................... 945 IPM
Y2-Axis Lower:........................... 787 IPM
Z2 Axis Lower:........................... 1417 IPM
W-Axis:.................................. 1181 IPM
C1/C2-Axis:.............................. 555 RPM
GENERAL SPECIFICATIONS:
Floor Space (WxL):....................... 137.8" x 103"
Machine Height:.......................... 97.8"
Total Power Required (Machine Only):..... 61.4 KVA
Air Requirements:........................ 72.5PSI/8.8CFM
Machine Weight:.......................... 26,235 lbs.
EQUIPPED WITH

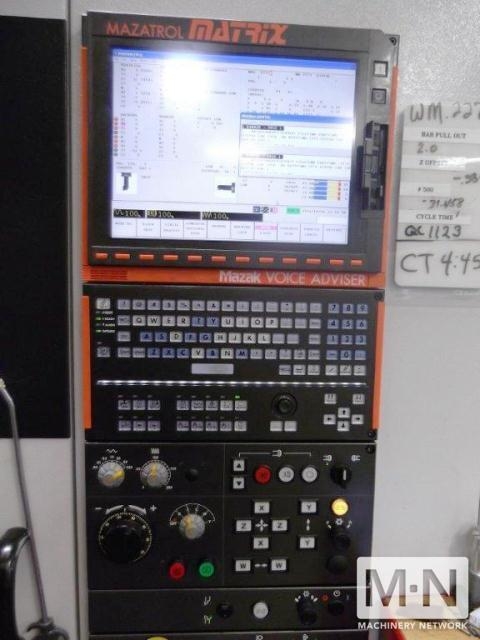

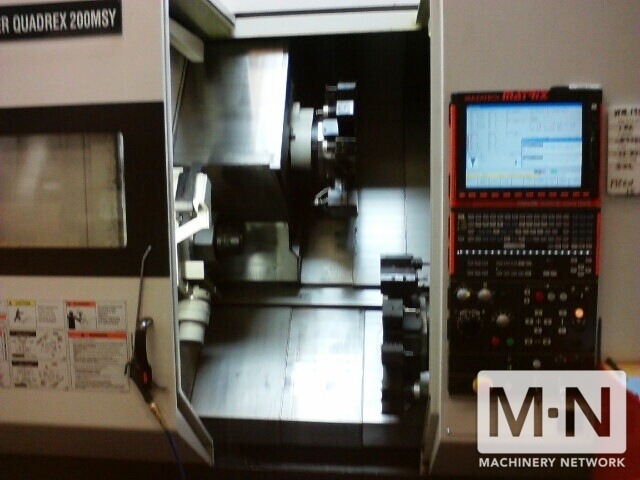

Mazatrol Matrix Control
15" Color LCD
EIA/ISO Code Input Function
Cylindrical (G07) & Polar Coordinate (G12)
Milling-Spindle Synchronous Tapping
IC Memory Card I/F + USB I/F (1-Port)
Inch/Metric Conversion
Cardbus I/F (2-Slot)
LAN Port
USB I/F (2-Port)
Y-Axis Control (Upper & Lower Turret)
Absolute Positioning Sys (N/A with S/F)
Hi-Pressure Coolant System @ 213 PSI
C-Axis 0.0001 Degree Incr. (1st Spindle)
Second Spindle C-Axis 0.0001 Degree Incr.
Main & Sub Spindle Synchronization
Chuck Air Blast (Second Spindle)
12 Position Drum Turret (VDI: Upper)
12 Position Drum Turret (VDI: Lower)
Rotary-Tool Spindle 6000 RPM
Automatic Tool Eye (1st and 2nd Spindles)
Auto Chuck Jaws Open/Close (1&2 Spindle)
Chuck Open/Close Confirm (1&2 Spindle)
Relocation Device
Workpiece Unloader & Conveyor
Auto Power Off (Breaker Trip)
Overload Detector HD1 & HD2
Additional Coolant Nozzle (1&2 Spindle)
Chip Conveyor Side Disposal (Hinge Type)
Chip Bucket (Swing Type)
ATS ML-565 Barfeeder Package w/I/F
Price $319,500.00 US Dollars
NEW 2009
SPECIFICATIONS:
Maximum Swing Over Upper Turret: ........ 14.56"
Maximum Swing Over Lower Turret: ........ 12.598"
Maximum Machining Diameter: Chucking: ... 13.54"(Upper)
Maximum Machining Diameter: Chucking: ... 8.26"(Lower)
Maximum Distance Between Chuck Jaws: .... 33.875"
MAIN SPINDLE SPECIFICATIONS (L):
Preparation ONLY for BB08................ 8" 3-Jaw or Collet Chuck
Spindle Nose:............................ A2-6
Spindle Bore:............................ 2.99"
Maximum Bar Work:........................ 2.56"
Spindle Speed:........................... 35-5,000 RPM
Spindle Index (Programmable):............ 0.0001 Deg.
3,600,000 Positions
Spindle Horsepower (Cont./30 Min.):...... 20/30 HP (AC)
Spindle Torque (25% ED):................. 344.4 ft-lbs.
SECOND SPINDLE SPECIFICATIONS (R)
8" BB08 Chuck Package with Y1225 Non-thru cylinder
Spindle Nose:............................A2-6
Spindle Bore:............................2.99"
Spindle Speed:...........................35-5,000 RPM
Spindle Index (Programmable):............0.0001 Deg.
3,600,000 Positions
Spindle Horsepower (Cont./30 Min.):......20/30 HP (AC)
Spindle Torque (25% ED):.................344.4 ft-lbs.
UPPER / LOWER TURRET AND TOOLING SPECIFICATIONS:
Type of Turret:.......................... 12 pos. Drum VDI
Tool Shank Height:....................... 1"
Tool Size (Boring Bar Max. Dia.):........ 1.5"
Total Number of Tools:................... 12
Tool Selection Method:................... Bi-Directional
Tool Index Time (1 Step):................ 0.2 sec.
Rotary Tool Spindle Speed:............... 35-6,000 RPM
Rotary Tool Spindle Horsepower(10 min):.. 7.5 HP
Rotary Tool Torque (3 min.):............. 25.8 ft-lbs,
Maximum End Mill:........................ 0.75" Dia.
Maximum Drill:........................... 0.75" Dia.
Maximum Tap:............................. M20 x 2.5
AXIS TRAVELS:
X1-Axis:................................. 8.2"
Y1-Axis: ................................ +/-2.0"
Z1-Axis: ................................ 29.875"
X2-Axis Lower:........................... 5.5625"
Y2 Axis Lower:........................... +0.75"/-2.0"
Z2 Axis Lower: .......................... 32.125"
W Axis:.................................. 34.075"
AXIS RAPID RATES:
X1-Axis: ................................ 1181 IPM
Y1-Axis: ................................ 1024 IPM
Z1-Axis:................................. 1417 IPM
X2-Axis Lower:........................... 945 IPM
Y2-Axis Lower:........................... 787 IPM
Z2 Axis Lower:........................... 1417 IPM
W-Axis:.................................. 1181 IPM
C1/C2-Axis:.............................. 555 RPM
GENERAL SPECIFICATIONS:
Floor Space (WxL):....................... 137.8" x 103"
Machine Height:.......................... 97.8"
Total Power Required (Machine Only):..... 61.4 KVA
Air Requirements:........................ 72.5PSI/8.8CFM
Machine Weight:.......................... 26,235 lbs.
EQUIPPED WITH
Mazatrol Matrix Control
15" Color LCD
EIA/ISO Code Input Function
Cylindrical (G07) & Polar Coordinate (G12)
Milling-Spindle Synchronous Tapping
IC Memory Card I/F + USB I/F (1-Port)
Inch/Metric Conversion
Cardbus I/F (2-Slot)
LAN Port
USB I/F (2-Port)
Y-Axis Control (Upper & Lower Turret)
Absolute Positioning Sys (N/A with S/F)
Hi-Pressure Coolant System @ 213 PSI
C-Axis 0.0001 Degree Incr. (1st Spindle)
Second Spindle C-Axis 0.0001 Degree Incr.
Main & Sub Spindle Synchronization
Chuck Air Blast (Second Spindle)
12 Position Drum Turret (VDI: Upper)
12 Position Drum Turret (VDI: Lower)
Rotary-Tool Spindle 6000 RPM
Automatic Tool Eye (1st and 2nd Spindles)
Auto Chuck Jaws Open/Close (1&2 Spindle)
Chuck Open/Close Confirm (1&2 Spindle)
Relocation Device
Workpiece Unloader & Conveyor
Auto Power Off (Breaker Trip)
Overload Detector HD1 & HD2
Additional Coolant Nozzle (1&2 Spindle)
Chip Conveyor Side Disposal (Hinge Type)
Chip Bucket (Swing Type)
ATS ML-565 Barfeeder Package w/I/F
Price $319,500.00 US Dollars
