MAZAK QTN550MY
Type:
LATHES, COMBINATION, N/C & CNC, (3-axis Or More)
Manufacturer:
MAZAK
Model:
QTN550MY
Condition:
Not Specified
Year:
2015
Stock #:
37602
Status:
Sold
Description:
32" CHUCK, MAZATROL MATRIX 2 CTRL, LESS THAN 1000 HOURS
Location:
California, United States
Specifications from OEM brochure and equipped with are described to the best of our knowledge. ALL items should be confirmed by buyer.

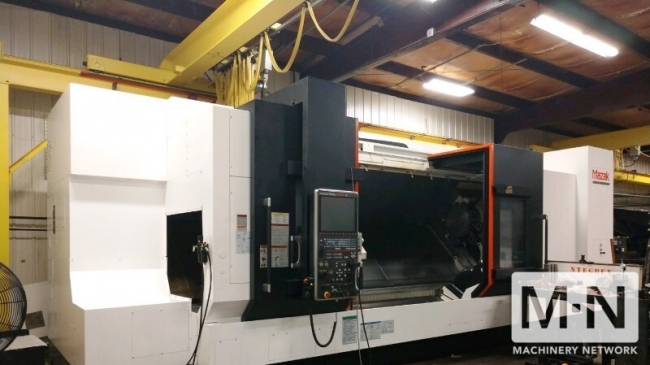

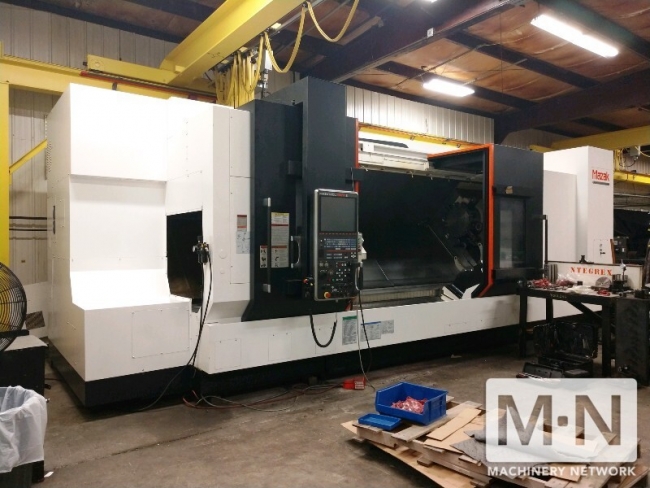

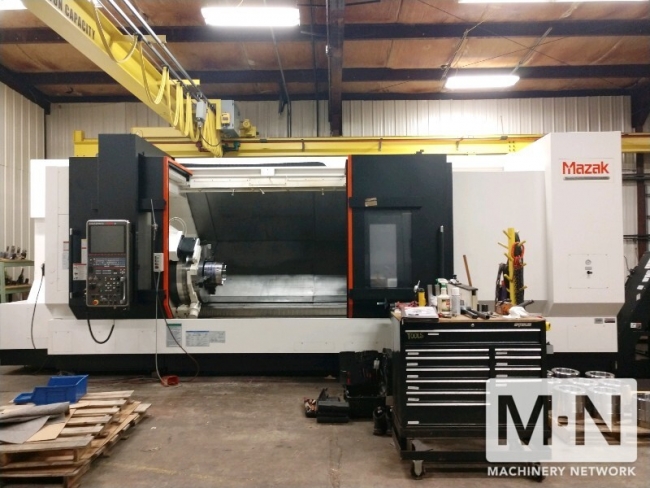

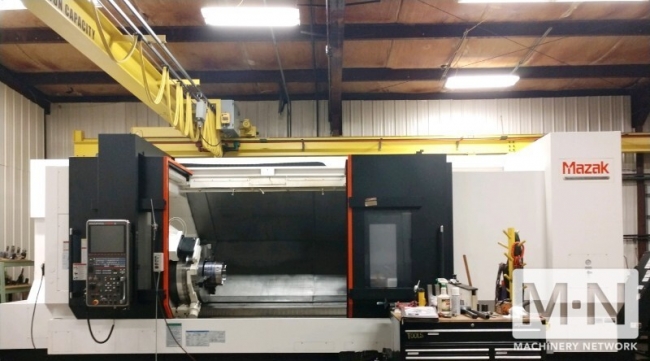

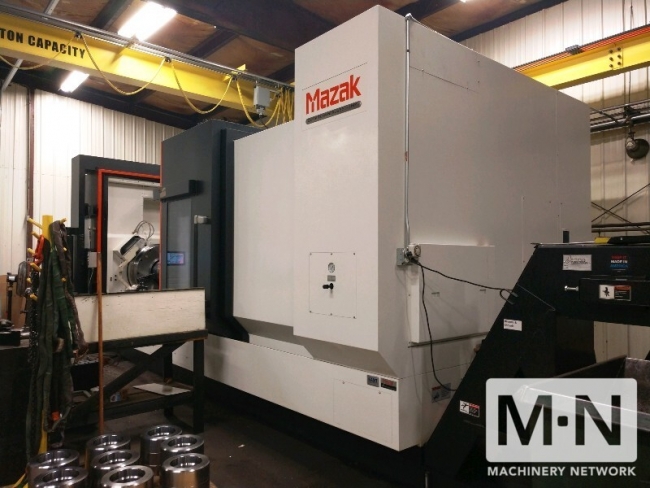

(1) USED MAZAK QUICK TURN NEXUS 550MY-3000 x 120" CNC TURNING CENTER
NEW 2015 | *LESS THAN 1000 HOURS*
SPECIFICATIONS
Max Swing: 46"
X-Travel: 23"
Z-Travel: 120"
Distance Between Centers: 120"
MAIN SPINDLE
Bar Capacity: 12.50"
Spindle Bore: 13"

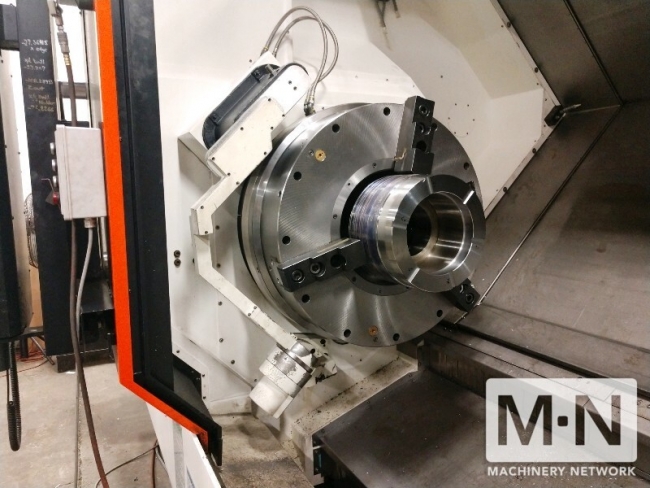

Chuck Size: 32"
Spindle Speed: 750 RPM
Spindle Motor: 80 HP
SUB SPINDLE
Bore: 13"
Spindle Nose: A2-20

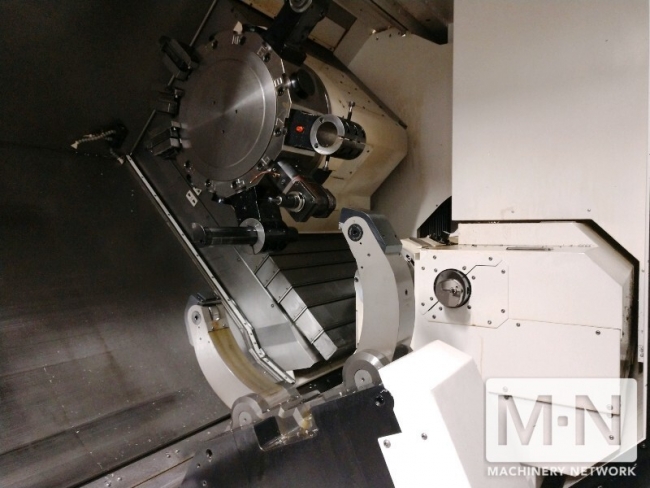

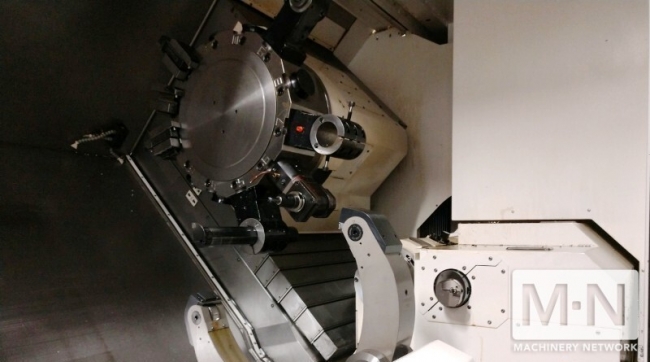

TURRET
Turret Tool Positions: 12
Rotary tool Max RPM: 4000 RPM
Rotary tool power: 10 HP/70.1 ft-lbs
EQUIPPED WITH:

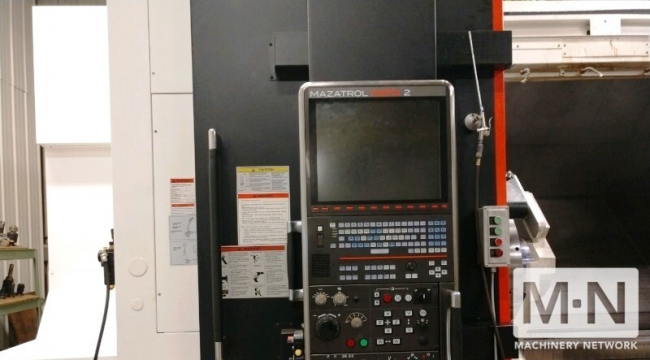

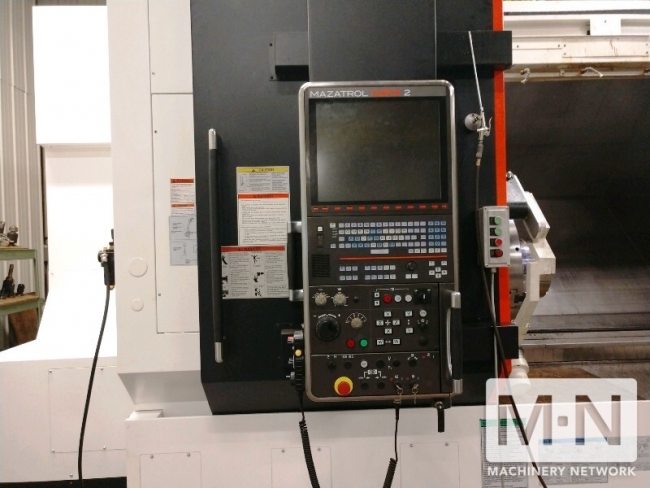

Mazatrol Matrix 2 control
New spindle from Mazak w/ 6 months parts and labor warranty from installation
Large Boring Bar Stocker Option ($70,000 option included)
Automatic tool eye (Max chuck size 32")
Rotary tool speed 4000 RPM/95NM(70.1 FT-LBS)/10 HP
Hinge Belt Chip Conveyor
Automatic Steady Rest Prep & installation SMW K5.1-Z (3.94"-16.14" CAP) ($87,100 option included)

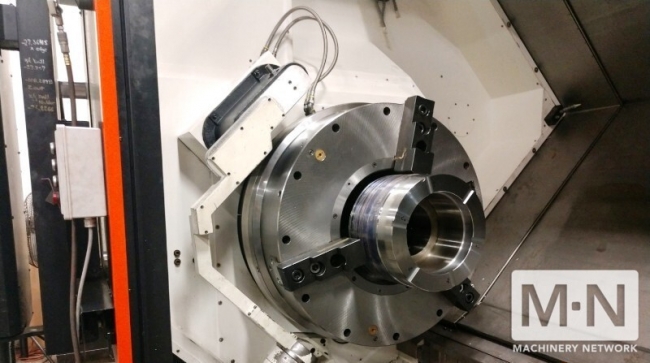

3 Jaw Air Chuck (Model TBD)
Steady Rest Prep
Overload Detection
Re-threading
Thread Start Point
100mm ID Boring Bar Holder
Mazak Air Chuck Interface
ATS BP 800-375 Self Contained Air chuck
Jaw Jogging and OD/ID Recharge Package
All Tools from the standard tooling package
EIA/ISO input function
Air chuck interface
Coolant PSI: 118 PSI
Chip Conveyor
NEW 2015 | *LESS THAN 1000 HOURS*
SPECIFICATIONS
Max Swing: 46"
X-Travel: 23"
Z-Travel: 120"
Distance Between Centers: 120"
MAIN SPINDLE
Bar Capacity: 12.50"
Spindle Bore: 13"
Chuck Size: 32"
Spindle Speed: 750 RPM
Spindle Motor: 80 HP
SUB SPINDLE
Bore: 13"
Spindle Nose: A2-20
TURRET
Turret Tool Positions: 12
Rotary tool Max RPM: 4000 RPM
Rotary tool power: 10 HP/70.1 ft-lbs
EQUIPPED WITH:
Mazatrol Matrix 2 control
New spindle from Mazak w/ 6 months parts and labor warranty from installation
Large Boring Bar Stocker Option ($70,000 option included)
Automatic tool eye (Max chuck size 32")
Rotary tool speed 4000 RPM/95NM(70.1 FT-LBS)/10 HP
Hinge Belt Chip Conveyor
Automatic Steady Rest Prep & installation SMW K5.1-Z (3.94"-16.14" CAP) ($87,100 option included)
3 Jaw Air Chuck (Model TBD)
Steady Rest Prep
Overload Detection
Re-threading
Thread Start Point
100mm ID Boring Bar Holder
Mazak Air Chuck Interface
ATS BP 800-375 Self Contained Air chuck
Jaw Jogging and OD/ID Recharge Package
All Tools from the standard tooling package
EIA/ISO input function
Air chuck interface
Coolant PSI: 118 PSI
Chip Conveyor
