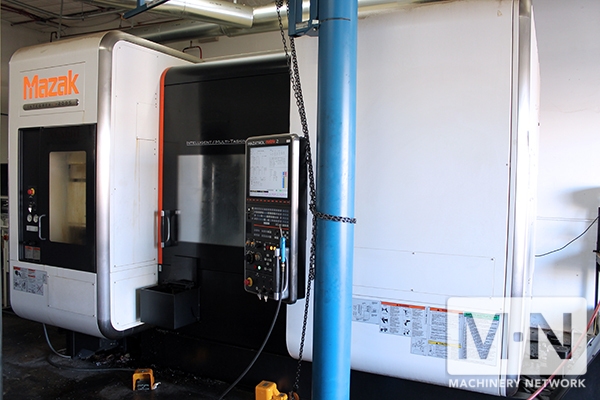

MAZAK INTEGREX I 200S
Type:
LATHES, COMBINATION, N/C & CNC, (3-axis Or More)
Manufacturer:
MAZAK
Model:
INTEGREX I 200S
Condition:
Not Specified
Year:
2013
Stock #:
37680
Status:
Sold
Description:
MAX MACHINING LENGTH 39.8" MAX SWING (INCHES) 25.9" SPINDLE SPEED 5,000 RPM (Main) BAR STOCK CAPACITY 2.55" Z - AXIS TRAVEL (INCHES) 42.4" Y - AXIS TRAVEL (INCHES) 9.84" X - AXIS TRAVEL (INCHES) 24.1"
Location:
Illinois, United States
Specifications from OEM brochure and equipped with are described to the best of our knowledge. ALL items should be confirmed by buyer.
MAZAK INTEGREX I 200SNew 2013
machine specification TOOL CHANGER TYPE 36 ATC MAX MACHINING LENGTH 39.8" MAX SWING (INCHES) 25.9" SPINDLE SPEED 5,000 RPM (Main) BAR STOCK CAPACITY 2.55" Z - AXIS TRAVEL (INCHES) 42.4" Y - AXIS TRAVEL (INCHES) 9.84" X - AXIS TRAVEL (INCHES) 24.1" B - AXIS TRAVEL 240 Degrees (-30, +210) C - AXIS TRAVEL MAIN SPINDLE .0001 Degree W - AXIS TAILSTOCK TRAVEL 41.97" MILLING SPEED 12,000 RPM SPINDLE SPEED (SUB) 5,000 RPM SPINDLE NOSE A2-6 MAIN SPINDLE BORE 2.99" MAIN SPINDLE OUTPUT 30 HP FULL 5 AXIS Simultaneous Milling MAXIMUM SWING OVER BED 25.9'' MAXIMUM MACHINING DIAMETER 25.9" MAXIMUM CUTTING LENGTH 39.8" SECOND SPINDLE NOSE A2-6 SECOND SPINDLE SPEED 5000 RPM SECOND SPINDLE INDEXING .001 Degree Programmable SECOND SPINDLE OUTPUT 25 HP RAPID TRAVERSE RATES X, Z, W, Y 1969, 1969, 1181, 1575 IPM RAPID TRAVERSE RATE B, C 40, 555 RPM ROTARY TOOLS SPINDLE NOSE CAPTO TOOL MAGAZINE CAPACITY 36 ATC ROTARY TOOL SPINDLE SPEEDS 12,000 RPM ROTARY TOOL MOTOR 30 HP MAX TOOL LENGTH 15.75'' MAX TOOL DIA. / ADJACENT 3.54''/4.92'' machine equipped with KEN OKUYAMA DESIGN EIA/ISO CODE INPUT FUNCTION ADDITIONAL EIA/ISO FUNCTIONS SHAPE COMPENSATION FOR ROTARY AXIS CYLINDRICAL & POLAR COORDINATE MILLING SPINDLE SYNCHRONOUS TAPPING INCH/METRIC CONVERSION CARDBUS I/F 2-SLOT LAN PORT USB I/F ROLLER GUIDES Y AXIS CONTROL COMPLETE COOLANT SYSTEM C AXIS .0001 DEGREE MAIN SPINDLE CHUCK AIR BLAST SECOND SPINDLE 8" THRU HOLE CHUCK BB-08 MAIN SPINDLE 8" CHUCK B-208 2ND SPINDLE NON-THRU HOLE AUTOMATIC TOOL EYE AUTO CHUCK JAW OPEN / CLOSE (1 & 2) CHUCK OPEN CLOSE CONFIRM 1ST AND 2ND SPINDLE BALLSCREW COOLERS RELOCATION DEVICE MT CONNECT ADAPTER SOFTWARE WINDOWS 7 OPERATING SYSTEM CHIP CONVEYOR CONCEPT 2000 CHIP REMOVAL SYSTEM 2ND. SPINDLE C-AXIS 0.0001 DEGREE INCREMENTS B-AXIS O.OOO1 CONTOURING MILLING SPINDLE PREP FOR FLASH AND MULTI TOOL SYSTEM ROYAL ACCU-LENGTH COLLET CHUCK A6/S20 MAZATROL MATRIX 2 CNC CONTROL LNS BARFEED SYSTEM AUTOMATIC PARTS CATCHER COLLET CHUCK WITH ASSORTED COLLETS RENISHAW PART PROBE FULL COMPLIMENT OF TOOL HOLDERS HIGH PRESSURE COOLANT
machine specification TOOL CHANGER TYPE 36 ATC MAX MACHINING LENGTH 39.8" MAX SWING (INCHES) 25.9" SPINDLE SPEED 5,000 RPM (Main) BAR STOCK CAPACITY 2.55" Z - AXIS TRAVEL (INCHES) 42.4" Y - AXIS TRAVEL (INCHES) 9.84" X - AXIS TRAVEL (INCHES) 24.1" B - AXIS TRAVEL 240 Degrees (-30, +210) C - AXIS TRAVEL MAIN SPINDLE .0001 Degree W - AXIS TAILSTOCK TRAVEL 41.97" MILLING SPEED 12,000 RPM SPINDLE SPEED (SUB) 5,000 RPM SPINDLE NOSE A2-6 MAIN SPINDLE BORE 2.99" MAIN SPINDLE OUTPUT 30 HP FULL 5 AXIS Simultaneous Milling MAXIMUM SWING OVER BED 25.9'' MAXIMUM MACHINING DIAMETER 25.9" MAXIMUM CUTTING LENGTH 39.8" SECOND SPINDLE NOSE A2-6 SECOND SPINDLE SPEED 5000 RPM SECOND SPINDLE INDEXING .001 Degree Programmable SECOND SPINDLE OUTPUT 25 HP RAPID TRAVERSE RATES X, Z, W, Y 1969, 1969, 1181, 1575 IPM RAPID TRAVERSE RATE B, C 40, 555 RPM ROTARY TOOLS SPINDLE NOSE CAPTO TOOL MAGAZINE CAPACITY 36 ATC ROTARY TOOL SPINDLE SPEEDS 12,000 RPM ROTARY TOOL MOTOR 30 HP MAX TOOL LENGTH 15.75'' MAX TOOL DIA. / ADJACENT 3.54''/4.92'' machine equipped with KEN OKUYAMA DESIGN EIA/ISO CODE INPUT FUNCTION ADDITIONAL EIA/ISO FUNCTIONS SHAPE COMPENSATION FOR ROTARY AXIS CYLINDRICAL & POLAR COORDINATE MILLING SPINDLE SYNCHRONOUS TAPPING INCH/METRIC CONVERSION CARDBUS I/F 2-SLOT LAN PORT USB I/F ROLLER GUIDES Y AXIS CONTROL COMPLETE COOLANT SYSTEM C AXIS .0001 DEGREE MAIN SPINDLE CHUCK AIR BLAST SECOND SPINDLE 8" THRU HOLE CHUCK BB-08 MAIN SPINDLE 8" CHUCK B-208 2ND SPINDLE NON-THRU HOLE AUTOMATIC TOOL EYE AUTO CHUCK JAW OPEN / CLOSE (1 & 2) CHUCK OPEN CLOSE CONFIRM 1ST AND 2ND SPINDLE BALLSCREW COOLERS RELOCATION DEVICE MT CONNECT ADAPTER SOFTWARE WINDOWS 7 OPERATING SYSTEM CHIP CONVEYOR CONCEPT 2000 CHIP REMOVAL SYSTEM 2ND. SPINDLE C-AXIS 0.0001 DEGREE INCREMENTS B-AXIS O.OOO1 CONTOURING MILLING SPINDLE PREP FOR FLASH AND MULTI TOOL SYSTEM ROYAL ACCU-LENGTH COLLET CHUCK A6/S20 MAZATROL MATRIX 2 CNC CONTROL LNS BARFEED SYSTEM AUTOMATIC PARTS CATCHER COLLET CHUCK WITH ASSORTED COLLETS RENISHAW PART PROBE FULL COMPLIMENT OF TOOL HOLDERS HIGH PRESSURE COOLANT
