MAZAK INTEGREX 70Y/3000
Type:
LATHES, COMBINATION, N/C & CNC, (3-axis Or More)
Manufacturer:
MAZAK
Model:
INTEGREX 70Y/3000
Condition:
Not Specified
Year:
2000
Stock #:
36053
Status:
Sold
Description:

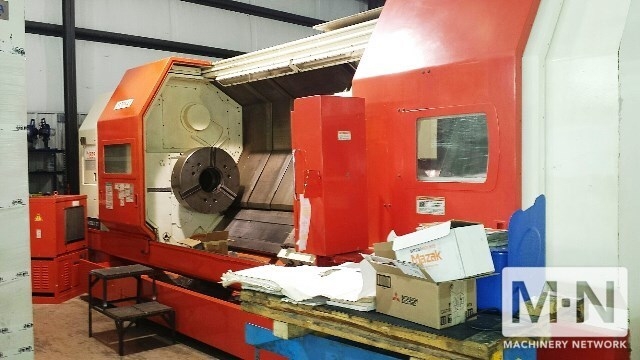

24" 3-JAW HYDR CHUCK, 32" MAX TURN DIAM., 10" SPINDLE BORE,
Location:
California, United States
Specifications from OEM brochure and equipped with are described to the best of our knowledge. ALL items should be confirmed by buyer.

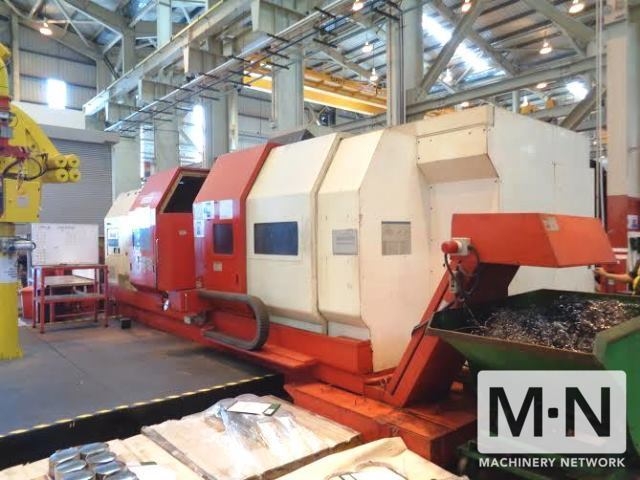

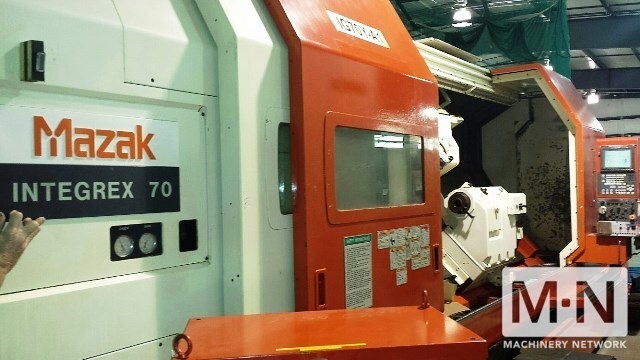

(1) USED MAZAK INTEGREX 70Y/3000 LARGE BORE UNIVERSAL MULTI TASKING CENTER
NEW 2000
SPECIFICATIONS
MAXIMUM SWING OVER BED...........36"
MAXIMUM SWING OVER CROSS-SLIDE...30.3"
MAXIMUM TURNING DIAMETER.........32"
MAXIMUM DISTANCE BETWEEN CENTERS.121.4"
MAXIMUM WORKPIECE WEIGHT.........6600 LBS.
MAXIMUM CUTTING FORCE............3300 LBS.
SPINDLE SPEEDS...................750 RPM
SPINDLE BORE MAIN................10.2"
NUMBER OF GEAR RANGES............2
MAXIMUM SPINDLE TORQUE...........4930 FT/LBS.
MAIN MOTOR DRIVE.................60 HP AC
X - AXIS TRAVEL .................27.5"
Z - AXIS TRAVEL .................121.3"
Y - AXIS TRAVEL .............+ - 5.12"
C AXIS TRAVEL....................360,000 N/C CONTOURING
RAPID TRAVERSE RATE X, Y, Z, C...472,315,590,15
MAXIMUM CUTTING FEEDRATE.........197 IPM

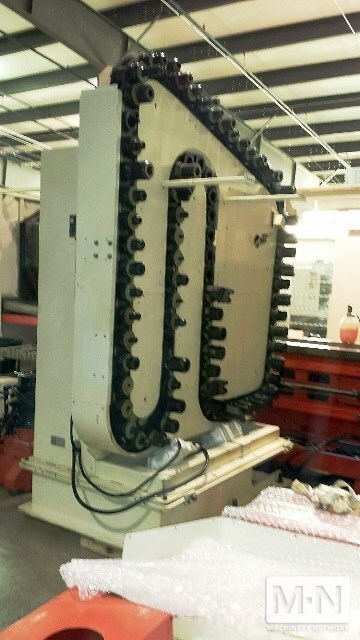

TOOL MAGAZINE CAPACITY...........60 ATC
TYPE OF TURRET ATC CHANGER
ROTARY TOOL SPINDLE SPEEDS.......3000 RPM
MAXIMUM THRUST FOR ROTARY TOOL...155.51 FT/LBS.
ROTARY TOOL MOTOR .........15 HP AC

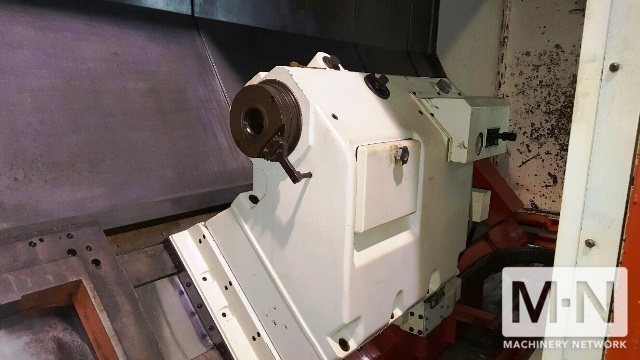

TAILSTOCK TYPE .................HYD. N/C PROGRAMMABLE
MACHINE WEIGHT .................78,000 LBS.
EQUIPPED WITH

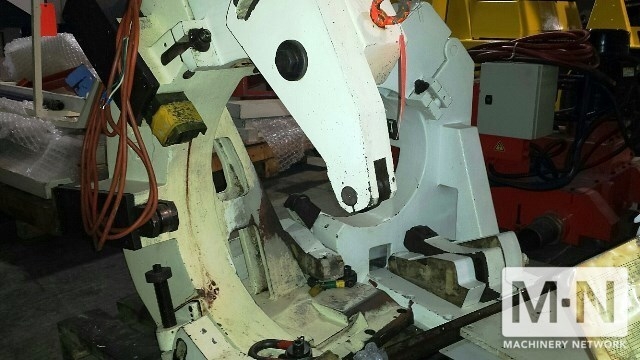

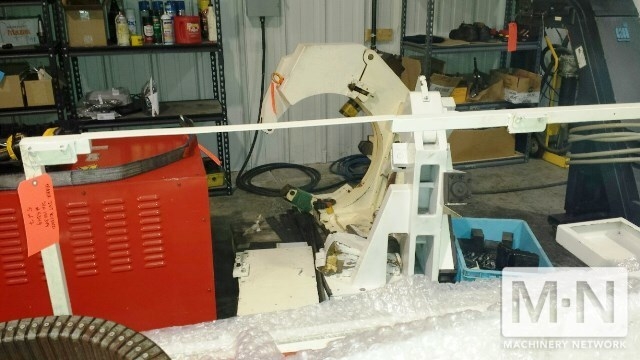

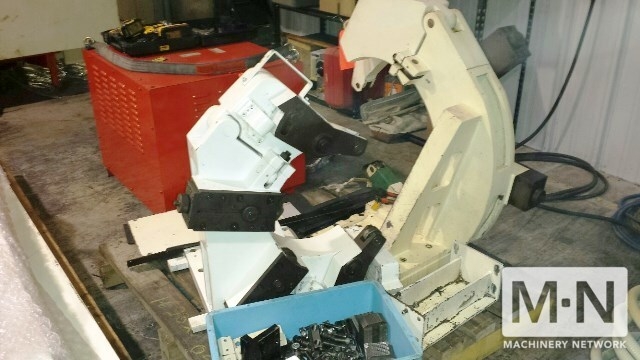

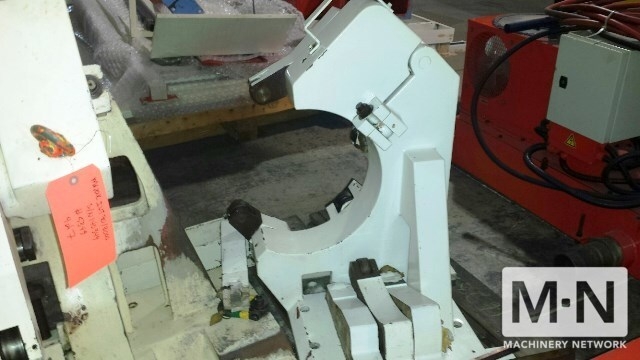

(2) MANUAL STEADY RESTS AND BAS
24" 3-JAW HYDRAULIC CHUCK PACKAGE W/ 9" BAR CAPACITY
ALL VDI HOLDER TO BE INCLUDED (APPROXIMATE 50)
BACKGROUND EDITTING

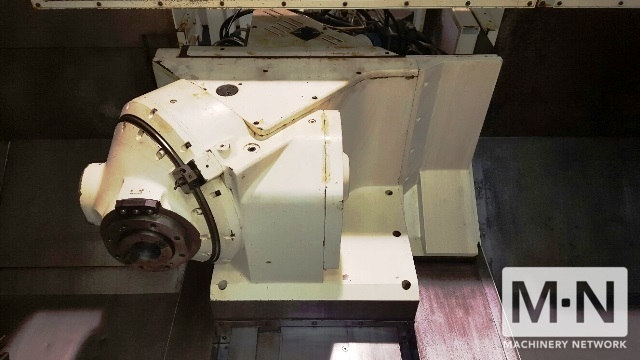

COOLANT THRU THE MILLING HEAD
EIA/ISO
ENHANCED Y-AXIS MAZATROL

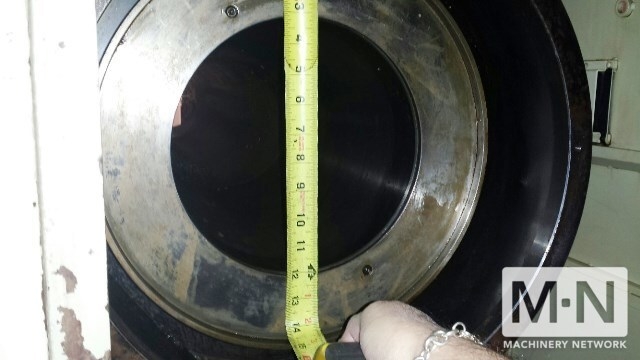

FACTORY 10.2" SPINDLE BORE
FULL C-AXIS SPINDLE

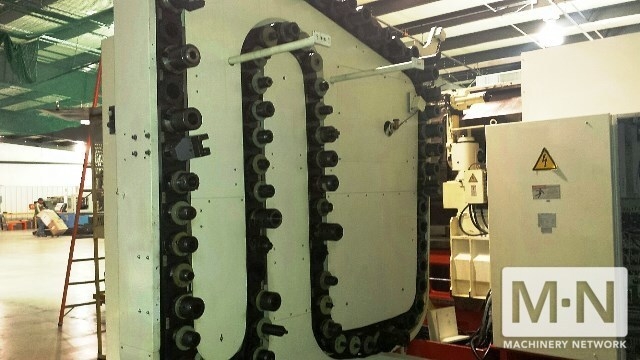

LONG BORING BAR STOCKER SYSTEM WITH ATC

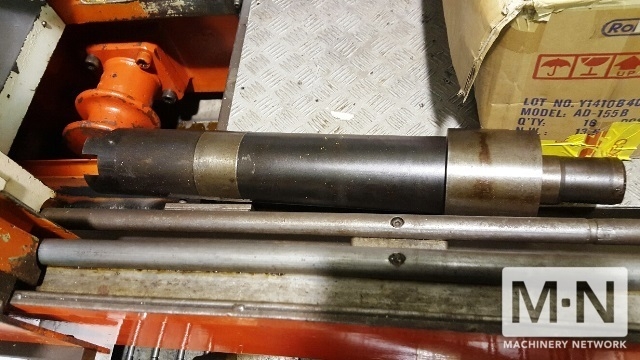

LONG BORING BARS
MAZATROL 640T CNC CONVERSATIONAL CONTROL
SYNCHRONOUS TAPPING TOOL LIFE MONITORING
Y-AXIS CONTROL Y-AXIS CROSSLIDE
NEW 2000
SPECIFICATIONS
MAXIMUM SWING OVER BED...........36"
MAXIMUM SWING OVER CROSS-SLIDE...30.3"
MAXIMUM TURNING DIAMETER.........32"
MAXIMUM DISTANCE BETWEEN CENTERS.121.4"
MAXIMUM WORKPIECE WEIGHT.........6600 LBS.
MAXIMUM CUTTING FORCE............3300 LBS.
SPINDLE SPEEDS...................750 RPM
SPINDLE BORE MAIN................10.2"
NUMBER OF GEAR RANGES............2
MAXIMUM SPINDLE TORQUE...........4930 FT/LBS.
MAIN MOTOR DRIVE.................60 HP AC
X - AXIS TRAVEL .................27.5"
Z - AXIS TRAVEL .................121.3"
Y - AXIS TRAVEL .............+ - 5.12"
C AXIS TRAVEL....................360,000 N/C CONTOURING
RAPID TRAVERSE RATE X, Y, Z, C...472,315,590,15
MAXIMUM CUTTING FEEDRATE.........197 IPM
TOOL MAGAZINE CAPACITY...........60 ATC
TYPE OF TURRET ATC CHANGER
ROTARY TOOL SPINDLE SPEEDS.......3000 RPM
MAXIMUM THRUST FOR ROTARY TOOL...155.51 FT/LBS.
ROTARY TOOL MOTOR .........15 HP AC
TAILSTOCK TYPE .................HYD. N/C PROGRAMMABLE
MACHINE WEIGHT .................78,000 LBS.
EQUIPPED WITH
(2) MANUAL STEADY RESTS AND BAS
24" 3-JAW HYDRAULIC CHUCK PACKAGE W/ 9" BAR CAPACITY
ALL VDI HOLDER TO BE INCLUDED (APPROXIMATE 50)
BACKGROUND EDITTING
COOLANT THRU THE MILLING HEAD
EIA/ISO
ENHANCED Y-AXIS MAZATROL
FACTORY 10.2" SPINDLE BORE
FULL C-AXIS SPINDLE
LONG BORING BAR STOCKER SYSTEM WITH ATC
LONG BORING BARS
MAZATROL 640T CNC CONVERSATIONAL CONTROL
SYNCHRONOUS TAPPING TOOL LIFE MONITORING
Y-AXIS CONTROL Y-AXIS CROSSLIDE
