MAZAK E 1550V/10II
Type:
LATHES, COMBINATION, N/C & CNC, (3-axis Or More)
Manufacturer:
MAZAK
Model:
E 1550V/10II
Condition:
Not Specified
Year:
2008
Stock #:
36010
Status:
Sold
Description:
73"X61"X52", B & C AXES, CAT 50, 10K RPM,
Location:
Illinois, United States
Specifications from OEM brochure and equipped with are described to the best of our knowledge. ALL items should be confirmed by buyer.

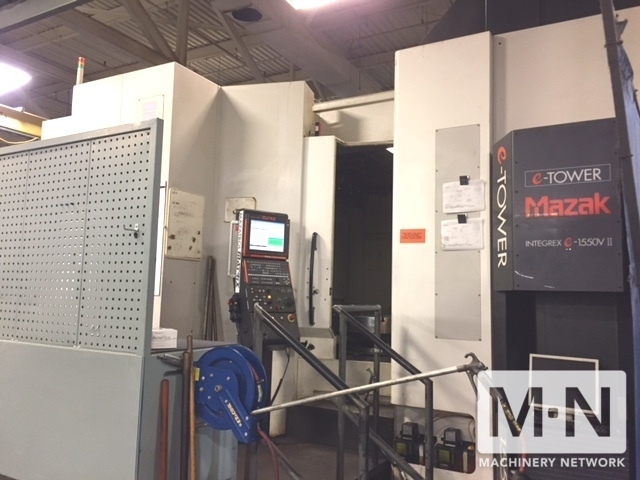

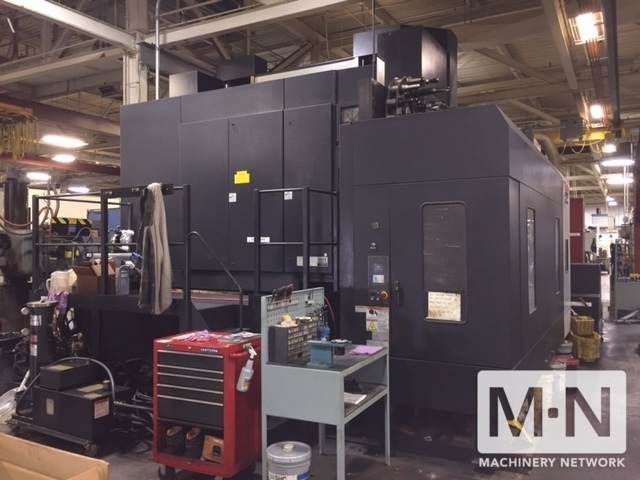

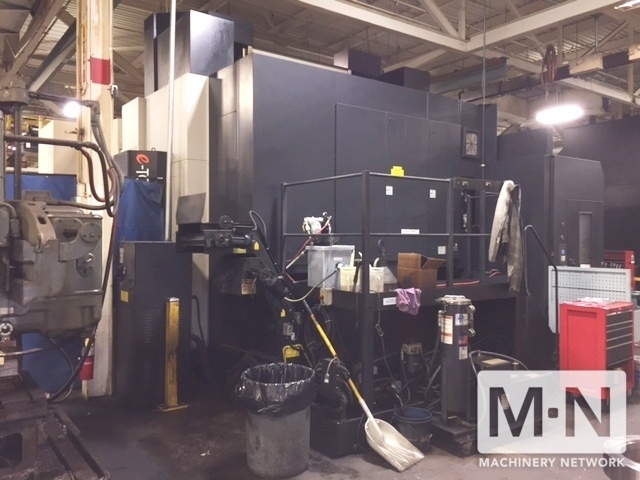

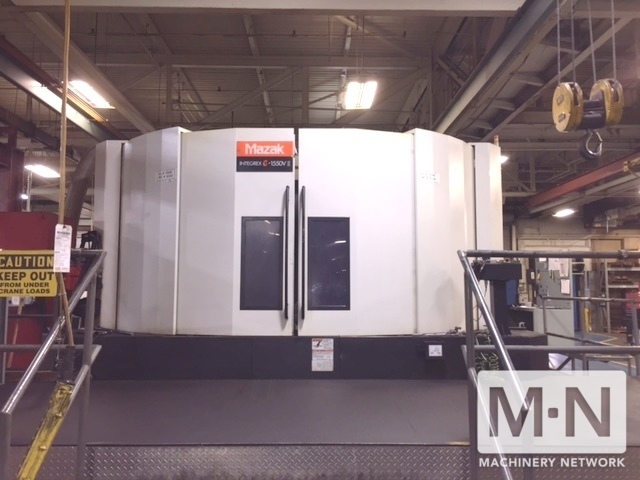

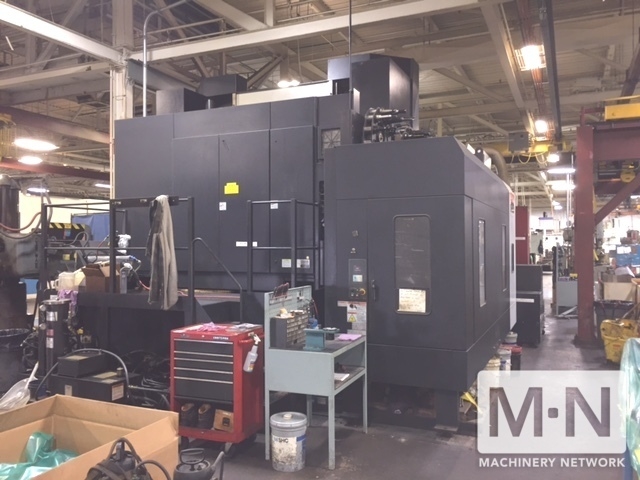

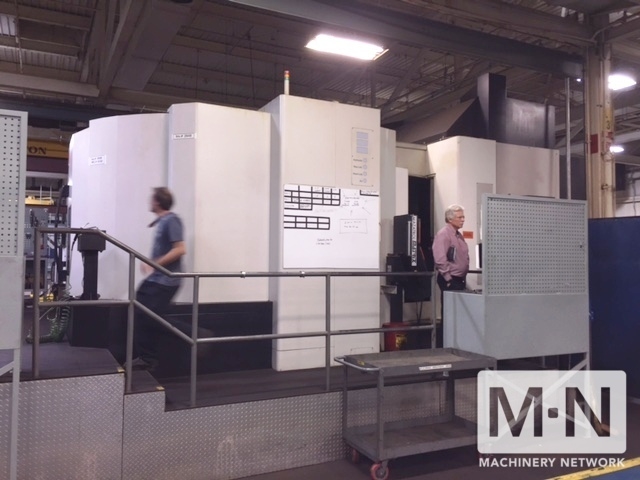

(1) USED MAZAK E 1550V/10II CNC MULTI AXIS HORIZONTAL/VERTICAL TURNING CENTER
NEW 2008
SPECIFICATIONS:
NUMBER OF TABLES..........................2
TABLE SIZE................................55.12" DIAMETER
MAXIMUM TABLE LOAD........................11,023 LBS.
X - AXIS TRAVEL...........................73.82"
Y - AXIS TRAVEL...........................61.02"
Z - AXIS TRAVEL...........................52.95"
B - AXIS TRAVEL HEAD TILT W/..............0001 INCREMENTS 150 DEG. (- 30 ~ +120 DEG)
C - AXIS TRAVEL TURNING TABLE.............0001 DEGREE
TURNING TABLE MAXIMUM SPEED...............300 RPM
MAXIMUM TURNING DIAMETER..................78.74"
MACHINING SPINDLE HORSEPOWER..............50 HP
TABLE MOTOR...............................50 HP
SPINDLE NOSE.................BIG PLUS CAT 50
SPINDLE SPEEDS............................10,000 RPM
NUMBER OF RANGES..........................2 RANGES
RAPID TRAVERSE RATE X, Y, Z.1.............654 IPM
CUTTING FEEDRATE..........................1654 IPM
RAPID TRAVERSE C - AXIS...................8.9 RPM
RAPID TRAVERSE B - AXIS...................30 RPM
AUTO TOOL CHANGE CAPACITY.................120 ATC
MAXIMUM TOOL DIAMETER......................5.31"
MAXIMUM TOOL DIAMETER W/ADJ. POCKET EMPTY..10.24"
MAXIMUM TOOL LENGTH........................25.59"
MAXIMUM TOOL WEIGHT.......................66 LBS.
MACHINE WEIGHT............................99,204 LBS
EQUIPPED WITH:

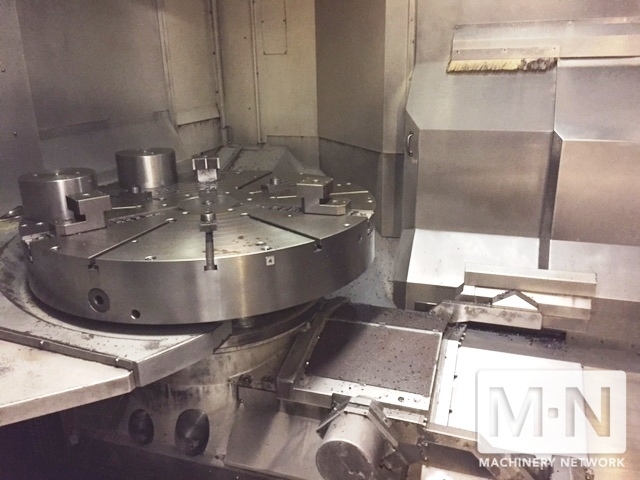

(2) 1400MM DRILLED AND TAPPED TABLES W/ LOCATION BORE 120 ATC

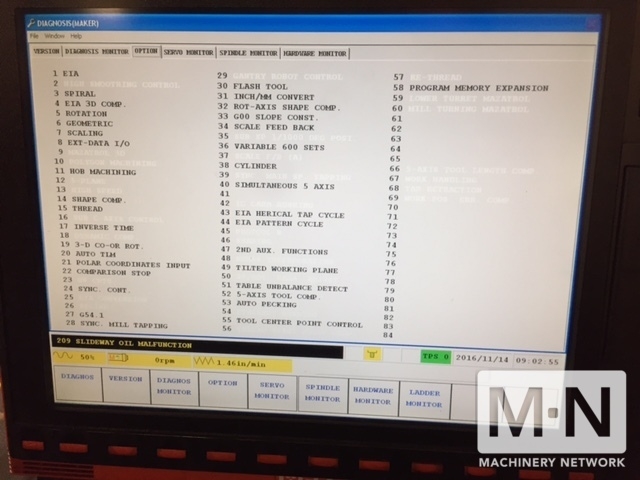

15" COLOR DISPLAY PANEL 8MG MEMORY
AUTO PECKING WITH LOAD DETAECTION AUTOMATIC TOOL EYE
B-AXIS .0001 DEGREE N/A CONTOURING C-AXIS .0001 DEGREE
COMPLETE DIAMOND PLATE MACHINING PLATFORM CONCEPT CHIP REMOVAL SYSTEM
COOLANT GUN AT PALLET STATION CPC TOOL MANAGEMENT W/ TOOL ID
CYLINDRICAL & POLAR COORDINATE ROTATION EIA
EIA & ADDITIONAL EIA EIA 3D COMP.
EIA COODINATE ROTATION EIA/ISO SIMUTANEOUS 5-AXIS
E-TOWER G00 SLOPE CONSTANT
HOBBING FUNCTION W/O TOOL HYDRAULIC PRESSURE INTERLOCK
INCH/METRIC SWITCH LASER MEASUREMENT SYSTEM FOR ROTARY TOOL
MAZAK 2-D SOFTWARE SHAPE COMPENSATION MAZATROL MATRIX CNC CONVERSATIONAL CONTROL
MILL SPINDLE SYNC. TAP MONITOURING SYSTEM B OMP 60 PROBE H/V ONLY
OVERLOAD DETECTION PAN PORT
PREP FOR HIGH PRESSURE COOLANT THRU THE SPINDLE (SUPERFLOW) PREP FOR VISUAL TOOL ID
REMOTE MPG ROTATION GEOMETRIC
SCALING / COORDINATE SYSTEM ROTATION SHAPE COMPENSATION FOR ROTARY AXIS
SPIRALEIA 3D COMP. STOPPER BLOCK FOR ANGLE TOOL HOLDER
SUPERFLOW 1000 PSI COOLANT PUMP THREAD MILLING
TOOL RADIUS COMPENSATION SIMUTANEOUS 5-AXIS TOOL TIP POINT CONTROL SIMUTANEOUS 5-AXIS
WORK PIECE AIR BLAST
NEW 2008
SPECIFICATIONS:
NUMBER OF TABLES..........................2
TABLE SIZE................................55.12" DIAMETER
MAXIMUM TABLE LOAD........................11,023 LBS.
X - AXIS TRAVEL...........................73.82"
Y - AXIS TRAVEL...........................61.02"
Z - AXIS TRAVEL...........................52.95"
B - AXIS TRAVEL HEAD TILT W/..............0001 INCREMENTS 150 DEG. (- 30 ~ +120 DEG)
C - AXIS TRAVEL TURNING TABLE.............0001 DEGREE
TURNING TABLE MAXIMUM SPEED...............300 RPM
MAXIMUM TURNING DIAMETER..................78.74"
MACHINING SPINDLE HORSEPOWER..............50 HP
TABLE MOTOR...............................50 HP
SPINDLE NOSE.................BIG PLUS CAT 50
SPINDLE SPEEDS............................10,000 RPM
NUMBER OF RANGES..........................2 RANGES
RAPID TRAVERSE RATE X, Y, Z.1.............654 IPM
CUTTING FEEDRATE..........................1654 IPM
RAPID TRAVERSE C - AXIS...................8.9 RPM
RAPID TRAVERSE B - AXIS...................30 RPM
AUTO TOOL CHANGE CAPACITY.................120 ATC
MAXIMUM TOOL DIAMETER......................5.31"
MAXIMUM TOOL DIAMETER W/ADJ. POCKET EMPTY..10.24"
MAXIMUM TOOL LENGTH........................25.59"
MAXIMUM TOOL WEIGHT.......................66 LBS.
MACHINE WEIGHT............................99,204 LBS
EQUIPPED WITH:
(2) 1400MM DRILLED AND TAPPED TABLES W/ LOCATION BORE 120 ATC
15" COLOR DISPLAY PANEL 8MG MEMORY
AUTO PECKING WITH LOAD DETAECTION AUTOMATIC TOOL EYE
B-AXIS .0001 DEGREE N/A CONTOURING C-AXIS .0001 DEGREE
COMPLETE DIAMOND PLATE MACHINING PLATFORM CONCEPT CHIP REMOVAL SYSTEM
COOLANT GUN AT PALLET STATION CPC TOOL MANAGEMENT W/ TOOL ID
CYLINDRICAL & POLAR COORDINATE ROTATION EIA
EIA & ADDITIONAL EIA EIA 3D COMP.
EIA COODINATE ROTATION EIA/ISO SIMUTANEOUS 5-AXIS
E-TOWER G00 SLOPE CONSTANT
HOBBING FUNCTION W/O TOOL HYDRAULIC PRESSURE INTERLOCK
INCH/METRIC SWITCH LASER MEASUREMENT SYSTEM FOR ROTARY TOOL
MAZAK 2-D SOFTWARE SHAPE COMPENSATION MAZATROL MATRIX CNC CONVERSATIONAL CONTROL
MILL SPINDLE SYNC. TAP MONITOURING SYSTEM B OMP 60 PROBE H/V ONLY
OVERLOAD DETECTION PAN PORT
PREP FOR HIGH PRESSURE COOLANT THRU THE SPINDLE (SUPERFLOW) PREP FOR VISUAL TOOL ID
REMOTE MPG ROTATION GEOMETRIC
SCALING / COORDINATE SYSTEM ROTATION SHAPE COMPENSATION FOR ROTARY AXIS
SPIRALEIA 3D COMP. STOPPER BLOCK FOR ANGLE TOOL HOLDER
SUPERFLOW 1000 PSI COOLANT PUMP THREAD MILLING
TOOL RADIUS COMPENSATION SIMUTANEOUS 5-AXIS TOOL TIP POINT CONTROL SIMUTANEOUS 5-AXIS
WORK PIECE AIR BLAST
