MAZAK SQT-250MSY
Type:
LATHES, COMBINATION, N/C & CNC, (3-axis Or More)
Manufacturer:
MAZAK
Model:
SQT-250MSY
Condition:
Not Specified
Year:
2000
Stock #:
35122
Status:
Sold
Description:
MAZAK SQT 250MSY, MAZATROL FUSION 640T, 6-AXIS, 20" MAX SWING, 2.9" SPINDLE BORE, 22.7" DISTANCE BETWEEN SPINDLES, 1.25" BORING BAR
Videos:
Location:
California, United States
Specifications from OEM brochure and equipped with are described to the best of our knowledge. ALL items should be confirmed by buyer.

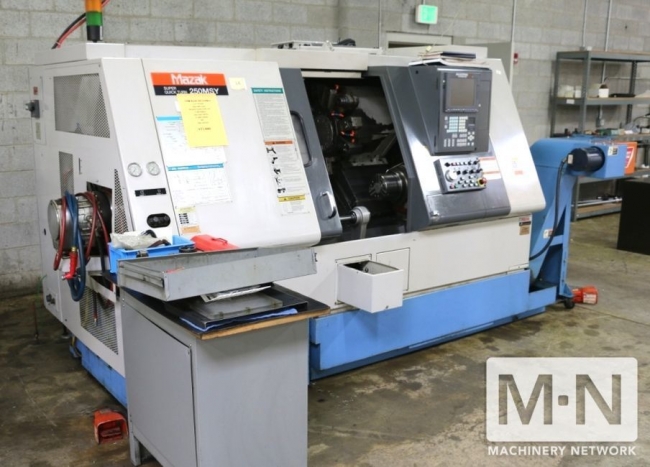

(1) USED MAZAK SQT 250MSY 6 AXIS CNC TURNING CENTER

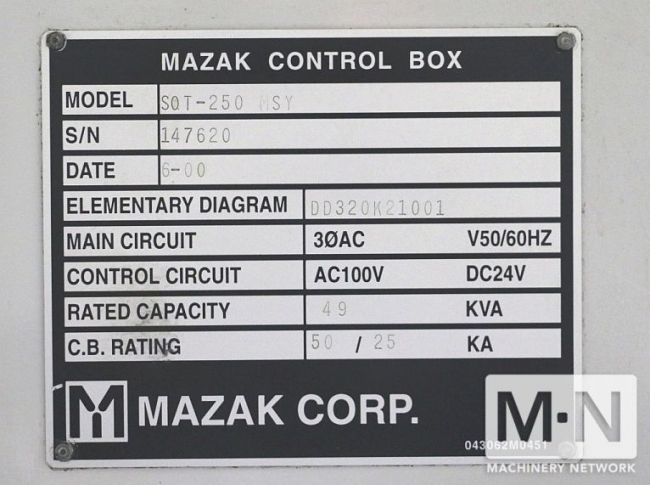

S/N 147620, MFG. 2000
SPECIFICATIONS
MAX. SWING .......................... 20.60"
MAX. SWING OVER THE CARRIAGE......... 16.54"
SPINDLE BORE......................... 2.99"
SPINDLE NOSE......................... A2-6"
SPINDLE SPEEDS ...................... 35 - 4000 RPM
X - AXIS............................. 7.12"
Z - AXIS ............................ 24.5"
B - AXIS............................. 19.7"
Y - AXIS............................. +-1.97"
DISTANCE BETWEEN SPINDLES............ 22.7"
SPINDLE INDEXING (MAIN SPDL ONLY).... 0.001 DEGREE
SUB SPINDLE RPM...................... 5000
SUB SPINDLE BODY TRAVEL.............. 19.7"

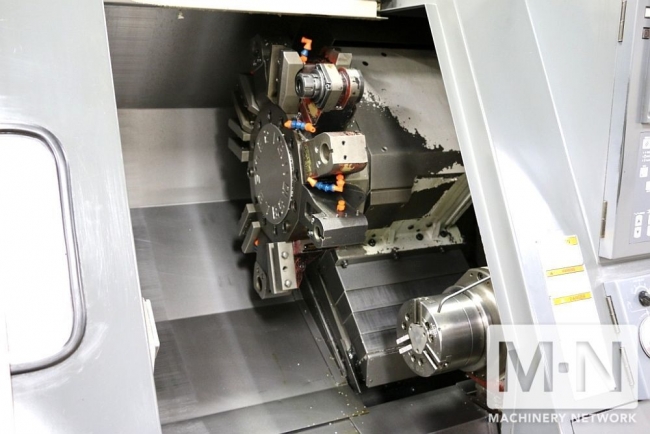

TURRET TYPE.......................... 12 POSITION
BORING BAR TYPE...................... 1.25"
ROTARY TOOL SPEED.................... 120-6000 RPM
ROTARY HORSE POWER................... 5 HP AC
RAPID TRAVERSE RATES................. 1180 X,Z IPM
RAPID TRAVERSE RATE.................. 708 IPM
RAPID TRAVERSE C - AXIS.............. 400 RPM
MAIN MOTOR .......................... 25 HP AC
EQUIPPED WITH:

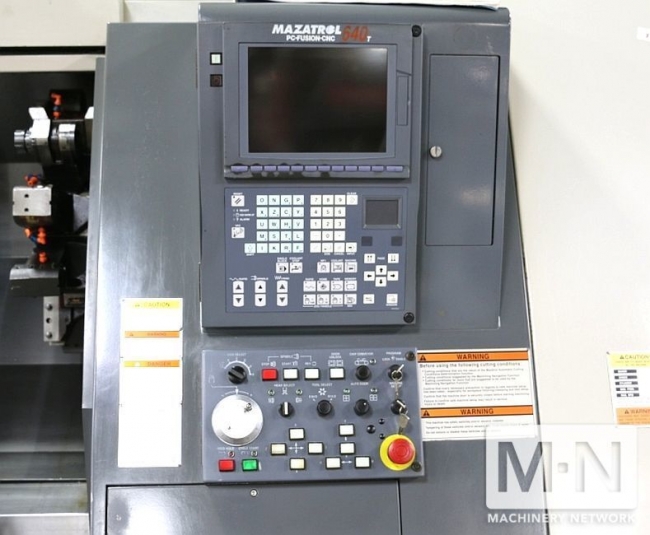

MAZATROL FUSION 640T CNC CONTROL
AUTOMATIC PARTS CATCHER

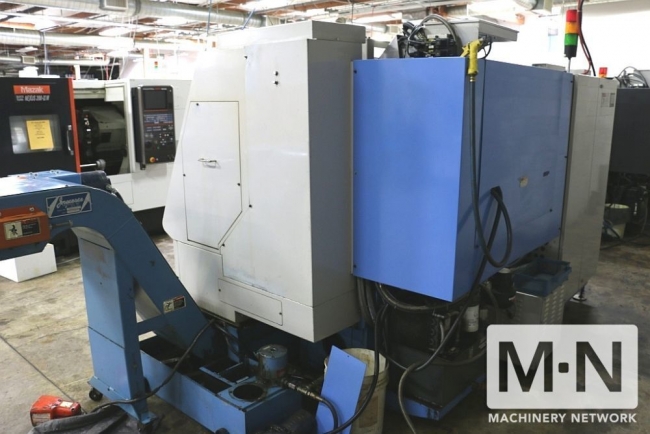

CHIP CONVEYOR
AUTOMATIC TOOL EYE

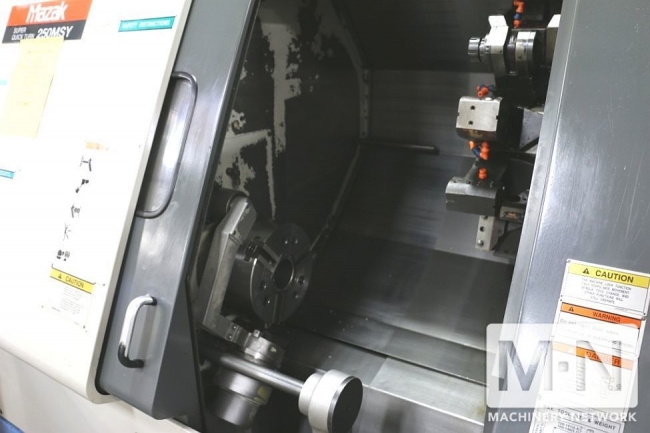

10" 3-JAW HYDRAULIC CHUCK
6" 3 JAW HYDRAULIC CHUCK (SUB)
ROTARY HEADS
OD TURNING HOLDER
ID BORING HOLDERS
SYNCHRONIZED TAPPING ON MILLING HEAD
ALL AVAILABLE MANUALS
ALL AVAILABLE STANDARD TURNING TOOL HOLDERS
S/N 147620, MFG. 2000
SPECIFICATIONS
MAX. SWING .......................... 20.60"
MAX. SWING OVER THE CARRIAGE......... 16.54"
SPINDLE BORE......................... 2.99"
SPINDLE NOSE......................... A2-6"
SPINDLE SPEEDS ...................... 35 - 4000 RPM
X - AXIS............................. 7.12"
Z - AXIS ............................ 24.5"
B - AXIS............................. 19.7"
Y - AXIS............................. +-1.97"
DISTANCE BETWEEN SPINDLES............ 22.7"
SPINDLE INDEXING (MAIN SPDL ONLY).... 0.001 DEGREE
SUB SPINDLE RPM...................... 5000
SUB SPINDLE BODY TRAVEL.............. 19.7"
TURRET TYPE.......................... 12 POSITION
BORING BAR TYPE...................... 1.25"
ROTARY TOOL SPEED.................... 120-6000 RPM
ROTARY HORSE POWER................... 5 HP AC
RAPID TRAVERSE RATES................. 1180 X,Z IPM
RAPID TRAVERSE RATE.................. 708 IPM
RAPID TRAVERSE C - AXIS.............. 400 RPM
MAIN MOTOR .......................... 25 HP AC
EQUIPPED WITH:
MAZATROL FUSION 640T CNC CONTROL
AUTOMATIC PARTS CATCHER
CHIP CONVEYOR
AUTOMATIC TOOL EYE
10" 3-JAW HYDRAULIC CHUCK
6" 3 JAW HYDRAULIC CHUCK (SUB)
ROTARY HEADS
OD TURNING HOLDER
ID BORING HOLDERS
SYNCHRONIZED TAPPING ON MILLING HEAD
ALL AVAILABLE MANUALS
ALL AVAILABLE STANDARD TURNING TOOL HOLDERS
