MAZAK INTEGREX 60Y
Type:
LATHES, COMBINATION, N/C & CNC, (3-axis Or More)
Manufacturer:
MAZAK
Model:
INTEGREX 60Y
Condition:
Not Specified
Stock #:
34045
Status:
Sold
Description:

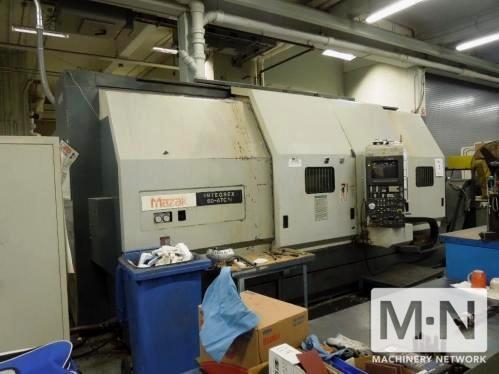

MAZAK INTEGREX 60Y
Location:
California, United States
Specifications from OEM brochure and equipped with are described to the best of our knowledge. ALL items should be confirmed by buyer.
(1) USED MAZAK INTEGREX 60Y CNC MULTI TASKING TURNING CENTER
NEW 1991
SPECIFICATIONS
MAX. SWING OVER BED........................36"
MAX. SWING OVER CROSS-SLIDE................27"
MAXIMUM TURNING DIAMETER...................24"
MAXIMUM TURNING LENGTH.....................80"
SPINDLE BORE DIA...........................4.625"
SPINDLE BAR CAPACITY.......................4.13"
SPINDLE NOSE..............................A2-11"
SPINDLE SPEEDS.............................1000 RPM
NUMBER OF GEAR RANGES......................4
MAXIMUM SPINDLE TORQUE.....................4930 FT/LBS.
SPINDLE PROGRAMMING INCREMENTS ............001 N/C CONTOURING
TOOL CHANGER CAPACITY......................30 ATC
ROTARY TOOL SPINDLE SPEEDS.................15-1500 RPM
ROTARY TOOL MOTOR..........................15 HP AC
MAXIMUM THRUST OF ROTARY TOOL..............155.51 FT/LBS.
X - AXIS...................................27.5"
Z - AXIS...................................81"
Y - AXIS.................................+-5.1" W/ TOOL
RAPID TRAVERSE
X - AXIS..................................236 IPM
Z - AXIS..................................315 IPM
MACHINE WEIGHT............................44,000 LBS.
EQUIPPED WITH
MAZATROL T-32-3 CNC CONVERSATIONAL CONTROL
Y-AXIS CONTROL
EIA/ISO
24" 3-JAW HYDRAULIC CHUCK
TOOL EYE (MANUAL)
15 HP ROTARY TOOL
CHUCK AIR BLAST
PROGRAMMABLE STEADY REST (1.18" - 8.66")
BACKGROUND EDITTING
TOOL LIFE MONITORING
FULL C-AXIS SPINDLE
CHIP CONVEYOR
ALL AVAILABLE TOOL HOLDERS
ALL AVAILABLE MANUALS
NEW 1991
SPECIFICATIONS
MAX. SWING OVER BED........................36"
MAX. SWING OVER CROSS-SLIDE................27"
MAXIMUM TURNING DIAMETER...................24"
MAXIMUM TURNING LENGTH.....................80"
SPINDLE BORE DIA...........................4.625"
SPINDLE BAR CAPACITY.......................4.13"
SPINDLE NOSE..............................A2-11"
SPINDLE SPEEDS.............................1000 RPM
NUMBER OF GEAR RANGES......................4
MAXIMUM SPINDLE TORQUE.....................4930 FT/LBS.
SPINDLE PROGRAMMING INCREMENTS ............001 N/C CONTOURING
TOOL CHANGER CAPACITY......................30 ATC
ROTARY TOOL SPINDLE SPEEDS.................15-1500 RPM
ROTARY TOOL MOTOR..........................15 HP AC
MAXIMUM THRUST OF ROTARY TOOL..............155.51 FT/LBS.
X - AXIS...................................27.5"
Z - AXIS...................................81"
Y - AXIS.................................+-5.1" W/ TOOL
RAPID TRAVERSE
X - AXIS..................................236 IPM
Z - AXIS..................................315 IPM
MACHINE WEIGHT............................44,000 LBS.
EQUIPPED WITH
MAZATROL T-32-3 CNC CONVERSATIONAL CONTROL
Y-AXIS CONTROL
EIA/ISO
24" 3-JAW HYDRAULIC CHUCK
TOOL EYE (MANUAL)
15 HP ROTARY TOOL
CHUCK AIR BLAST
PROGRAMMABLE STEADY REST (1.18" - 8.66")
BACKGROUND EDITTING
TOOL LIFE MONITORING
FULL C-AXIS SPINDLE
CHIP CONVEYOR
ALL AVAILABLE TOOL HOLDERS
ALL AVAILABLE MANUALS
