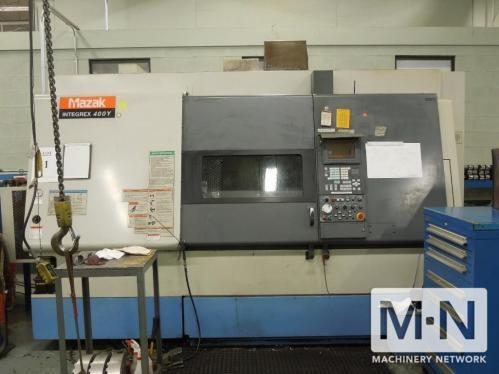

MAZAK INTEGREX 400Y
Type:
LATHES, COMBINATION, N/C & CNC, (3-axis Or More)
Manufacturer:
MAZAK
Model:
INTEGREX 400Y
Condition:
Not Specified
Year:
2000
Stock #:
34044
Status:
Sold
Description:
MAZAK INTEGREX 400Y, MAZATROL FUSION 640T, 3" BAR CAP, 3.4" SPINDLE BORE, 24" MAX SWING
Location:
California, United States
Specifications from OEM brochure and equipped with are described to the best of our knowledge. ALL items should be confirmed by buyer.
(1) USED MAZAK INTEGREX 400Y CNC MULTITASKING TURNING CENTER
NEW 2000
SPECIFICATIONS:
MAX. SWING..........................24.01"
MAX MACHINING DIA...................24.01
MAXIMUM CUTTING LENGTH..............40.2"
SPINDLE BORE........................3.46"
SPINDLE NOSE.......................A2-8
MAX BAR CAPACITY....................3.0"
SPINDLE SPEEDS......................35-3000 RPM
AXIS TRAVEL
C - AXIS.............................001 INCREMENTS
X - AXIS.............................22.83"
Z - AXIS.............................43.11"
Y - AXIS.........................+/- 4.13"
B - AXIS ...........................+120 DEGREES
....................................-105 DEGREES
N/A CONTOURING
RAPID TRAVERSE RATES
C - AXIS .............................400 RPM
X - AXIS .............................1181 IPM
Z - AXIS .............................1181 IPM
Y - AXIS .............................591 IPM
B - AXIS 400 RPM
MIN. SPINDLE INDEXING (MAIN SPINDLE)..001 DEGREE
TOOL MAGAZINE CAPACITY ...............40 ATC
TYPE OF TURRET........................1 POSITION W/ATC
MAX. TOOL DIA. ADJ....................3.54"/4.72"
MAX. TOOL LENGTH......................11.8"
ROTARY TOOLS SPINDLE NOSE.............63 KM
ROTARY TOOL SPINDLE SPEED ............10,000 RPM
ROTARY TOOL MOTOR.....................20 HP
MAXIMUM TOOL WEIGHT...................22 LBS.
Z - AXIS THRUST.......................3124 FT/LBS.
MAIN MOTOR............................40 HP/AC
EQUIPPED WITH
MAZATROL FUSION 640T CNC CONVERSATIONAL CONTROL
EIA/ISO OPTION PACKAGE
HYDRAULIC PRESSURE INTERLOCK
COOLANT THRU MILL HEAD
TRANSFORMER
2 GIG HARD DRIVE
SYNCHRONOUS TAPPING (MILL HEAD)
PCMI
3.5 FLOPPY
RS232C
TOOL EYE (AUTOMATIC)
40 STATION AUTOMATIC TOOL CHANGER
15" 3-JAW HYDRUALIC CHUCK
BACKGROUND TOOL PATH CHECK
B-AXIS .001 DEGREE INCREMENT
WORK CO-ORDINATE ROTATION
B-AXIS CONTROL
CHIP CONVEYOR
ALL MANUALS
NEW 2000
SPECIFICATIONS:
MAX. SWING..........................24.01"
MAX MACHINING DIA...................24.01
MAXIMUM CUTTING LENGTH..............40.2"
SPINDLE BORE........................3.46"
SPINDLE NOSE.......................A2-8
MAX BAR CAPACITY....................3.0"
SPINDLE SPEEDS......................35-3000 RPM
AXIS TRAVEL
C - AXIS.............................001 INCREMENTS
X - AXIS.............................22.83"
Z - AXIS.............................43.11"
Y - AXIS.........................+/- 4.13"
B - AXIS ...........................+120 DEGREES
....................................-105 DEGREES
N/A CONTOURING
RAPID TRAVERSE RATES
C - AXIS .............................400 RPM
X - AXIS .............................1181 IPM
Z - AXIS .............................1181 IPM
Y - AXIS .............................591 IPM
B - AXIS 400 RPM
MIN. SPINDLE INDEXING (MAIN SPINDLE)..001 DEGREE
TOOL MAGAZINE CAPACITY ...............40 ATC
TYPE OF TURRET........................1 POSITION W/ATC
MAX. TOOL DIA. ADJ....................3.54"/4.72"
MAX. TOOL LENGTH......................11.8"
ROTARY TOOLS SPINDLE NOSE.............63 KM
ROTARY TOOL SPINDLE SPEED ............10,000 RPM
ROTARY TOOL MOTOR.....................20 HP
MAXIMUM TOOL WEIGHT...................22 LBS.
Z - AXIS THRUST.......................3124 FT/LBS.
MAIN MOTOR............................40 HP/AC
EQUIPPED WITH
MAZATROL FUSION 640T CNC CONVERSATIONAL CONTROL
EIA/ISO OPTION PACKAGE
HYDRAULIC PRESSURE INTERLOCK
COOLANT THRU MILL HEAD
TRANSFORMER
2 GIG HARD DRIVE
SYNCHRONOUS TAPPING (MILL HEAD)
PCMI
3.5 FLOPPY
RS232C
TOOL EYE (AUTOMATIC)
40 STATION AUTOMATIC TOOL CHANGER
15" 3-JAW HYDRUALIC CHUCK
BACKGROUND TOOL PATH CHECK
B-AXIS .001 DEGREE INCREMENT
WORK CO-ORDINATE ROTATION
B-AXIS CONTROL
CHIP CONVEYOR
ALL MANUALS
