MAZAK VCN510 CII
Type:
LATHES, COMBINATION, N/C & CNC, (3-axis Or More)
Manufacturer:
MAZAK
Model:
VCN510 CII
Condition:
Not Specified
Year:
2006
Stock #:
31748
Status:
Sold
Description:
Matrix Control, 41"X20"X20", 30 Tools, 12k RPM
Location:
California, United States
Specifications from OEM brochure and equipped with are described to the best of our knowledge. ALL items should be confirmed by buyer.

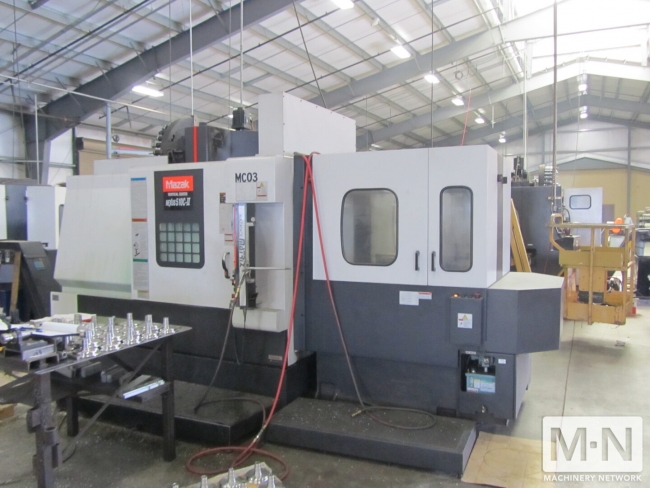

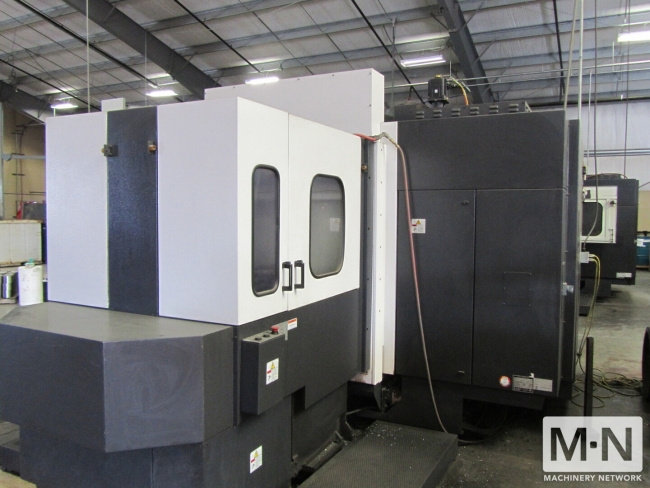

1) Used Mazak VCN510 CNC Vertical Machining Center
New 2006
STANDARD SPECIFICATIONS: Table Size................................. 51.2" x 21.6" X-Axis Stroke.............................. 41.3" Y-Axis Stroke.............................. 20.0" Z-Axis Stroke.............................. 20.0" Spindle Face to Table Surface.............. 26.0" Column Face to Spindle Center.............. 22.6" Maximum Table Weight Capacity.............. 2,646 LBS Spindle Speed.............................. 12,000 RPM Spindle Motor (5MIN/10MIN/30MIN/CONT.)..... 25/20/10 HP Spindle Taper ............................. #40 Rapid Traverse (X,Y,Z)..................... 1417.3 IPM Number of Tools............................ 30 Maximum Tool Diameter...................... 3.15" Maximum Tool Diameter (Adjacent Pockets)... 4.92" Maximum Tool Length........................ 13.78" Maximum Tool Weight........................ 17.64 LBS. Tool Select Method......................... RANDOM Tool Change Time (Chip to Chip)............ 2.9 SEC Power Supply (15 MIN/CONT)................. 31.29/26.31 kVA Machine Height............................. 110.7" Floor Space................................ 113.4" X 111.6" Machine Weight............................. 15,180 LBS
Equipped With: Coolant thru the spindle Two Position Automatic Pallet Changer Steps for Pallet Changer Chip Conveyor Auto Tool Length Measurement Probe OMP 40 Synch. Tapping
New 2006
STANDARD SPECIFICATIONS: Table Size................................. 51.2" x 21.6" X-Axis Stroke.............................. 41.3" Y-Axis Stroke.............................. 20.0" Z-Axis Stroke.............................. 20.0" Spindle Face to Table Surface.............. 26.0" Column Face to Spindle Center.............. 22.6" Maximum Table Weight Capacity.............. 2,646 LBS Spindle Speed.............................. 12,000 RPM Spindle Motor (5MIN/10MIN/30MIN/CONT.)..... 25/20/10 HP Spindle Taper ............................. #40 Rapid Traverse (X,Y,Z)..................... 1417.3 IPM Number of Tools............................ 30 Maximum Tool Diameter...................... 3.15" Maximum Tool Diameter (Adjacent Pockets)... 4.92" Maximum Tool Length........................ 13.78" Maximum Tool Weight........................ 17.64 LBS. Tool Select Method......................... RANDOM Tool Change Time (Chip to Chip)............ 2.9 SEC Power Supply (15 MIN/CONT)................. 31.29/26.31 kVA Machine Height............................. 110.7" Floor Space................................ 113.4" X 111.6" Machine Weight............................. 15,180 LBS
Equipped With: Coolant thru the spindle Two Position Automatic Pallet Changer Steps for Pallet Changer Chip Conveyor Auto Tool Length Measurement Probe OMP 40 Synch. Tapping
