MAZAK QTN200MY
Type:
LATHES, COMBINATION, N/C & CNC, (3-axis Or More)
Manufacturer:
MAZAK
Model:
QTN200MY
Condition:
Not Specified
Year:
2006
Stock #:
31746
Status:
Sold
Description:
8" Chuck, 3" Bore, 26" Max Swing, Coolant, Chip Conveyor, LNS Quick Load Barfeed
Location:
California, United States
Specifications from OEM brochure and equipped with are described to the best of our knowledge. ALL items should be confirmed by buyer.

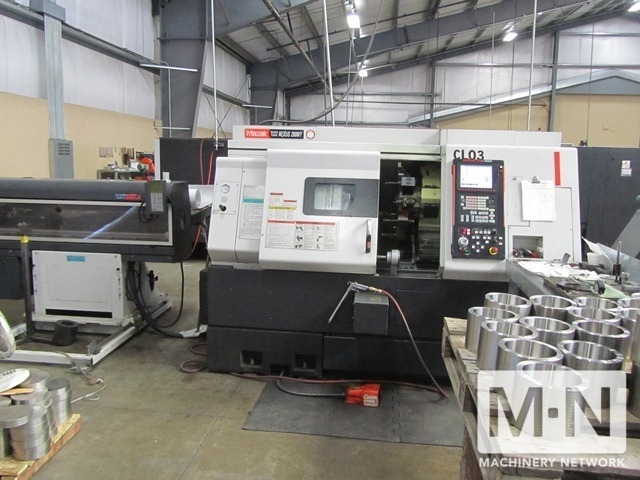

1) Used Mazak QTN 200MY CNC Multi Axis Turning Center
New 2006
STANDARD SPECIFICATIONS: Chuck Size.................................8" Maximum Swing..............................26.58" Standard Machining Diameter................10.87" Maximum Machining Diameter.................14.75" Maximum Machining Length...................21.28" Spindle Motor..............................35 HP Standard Bar Capacity......................2.0"
Spindle Speed..............................5,000 Spindle Nose...............................A2-6 Spindle Bore...............................3" Turret Type................................MODIFIED VDI DRUM Number of Tools............................12 Tool Size..................................1" x 1" Square Mill Spindle Power HP......................7.5 (10 min) Turret Index Time.(1 Position / Full)......(0.2 / 0.6) X-Axis Travel..............................9.05" Z-Axis Travel..............................22.63" Y-Axis Travel..............................+/- 2" Rapid Traverse Rates X-Axis................1181 IPM Rapid Traverse Rates Z-Axis................1300 IPM Rapid Traverse Rates Y-Axis................826.8 IPM Tailstock Center...........................MT#5 Machine Height.............................72.44" Floor Space Requirement....................106.81" X 73.23" Weight.....................................10,802 LBS
Equipped With: High Power Coolant Auto Parts Catcher Auto chuck Jaws Chip Conveyor EIA/ISO LNS Quick Load Barfeed
New 2006
STANDARD SPECIFICATIONS: Chuck Size.................................8" Maximum Swing..............................26.58" Standard Machining Diameter................10.87" Maximum Machining Diameter.................14.75" Maximum Machining Length...................21.28" Spindle Motor..............................35 HP Standard Bar Capacity......................2.0"
Spindle Speed..............................5,000 Spindle Nose...............................A2-6 Spindle Bore...............................3" Turret Type................................MODIFIED VDI DRUM Number of Tools............................12 Tool Size..................................1" x 1" Square Mill Spindle Power HP......................7.5 (10 min) Turret Index Time.(1 Position / Full)......(0.2 / 0.6) X-Axis Travel..............................9.05" Z-Axis Travel..............................22.63" Y-Axis Travel..............................+/- 2" Rapid Traverse Rates X-Axis................1181 IPM Rapid Traverse Rates Z-Axis................1300 IPM Rapid Traverse Rates Y-Axis................826.8 IPM Tailstock Center...........................MT#5 Machine Height.............................72.44" Floor Space Requirement....................106.81" X 73.23" Weight.....................................10,802 LBS
Equipped With: High Power Coolant Auto Parts Catcher Auto chuck Jaws Chip Conveyor EIA/ISO LNS Quick Load Barfeed
