MAZAK A-16 CELL
Type:
LATHES, COMBINATION, N/C & CNC, (3-axis Or More)
Manufacturer:
MAZAK
Model:
A-16 CELL
Condition:
Not Specified
Stock #:
31699
Status:
Sold
Description:
Fusion 640 CNC Control, 80" Swing, 30 ATC, CC, Coolant System,
Location:
California, United States
Specifications from OEM brochure and equipped with are described to the best of our knowledge. ALL items should be confirmed by buyer.

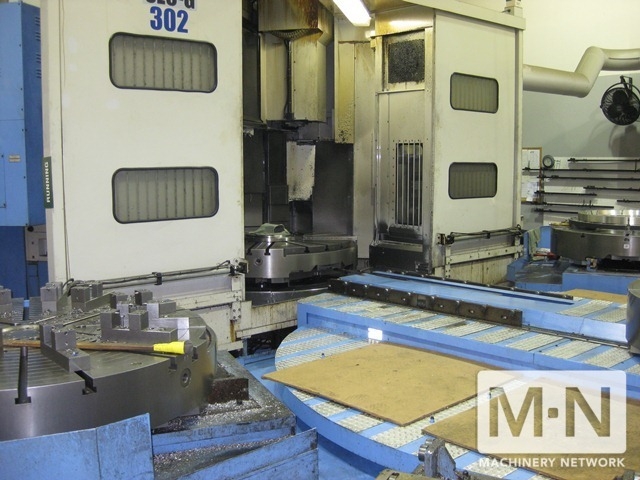

(2) MAZAK A-16 VERTICAL TURNING SYSTEMS(V.T.L) WITH ROTARY TOOLS AND A SIX POSITION PALLET SYSTEM (A.P.C.)
SPECIFICATIONS: TABLE DIAMETER (FACEPLATE): ........................ 65.0" MAXIMUM SWING: .................................... 80.0" MAXIMUM CUTTING DIAMETER: ......................... 69.0" MAXIMUM WORKPIECE HEIGHT: WITH STANDARD FACE PLATE: .......................... 75.7" WITH 2-PALLET CHANGER & STD. PALLET: ............... 69" TABLE HEIGHT FROM FLOOR: ........................... 46.1" TABLE HEIGHT FROM FLOOR WITH 2 PALLET CHANGER): .... 51.8" MAIN SPINDLE: TABLE SPEED: ....................................... 1 - 230 RPM NUMBER OF SPEED RANGES: ............................ 2 TABLE HORSEPOWER (CONT/30 MINS): ................... 60/80 H.P. MINIMUM TABLE INDEX INCREMENT (C-AXIS): ............ 0.001 DEGREE RAM TOOL RETENTION AND WORK SYSTEM: .................... RAM W/ATC TOOL CLAMPING FORCE (VDI TURNING TOOLS): ........... 15,400 LBS TOOL MAGAZINE CAPACITY: ............................ 30 TOOLS TOOL SIZE (TURNING & FACING): ...................... 1.5"X1.5"X6/7" TOOL SIZE (BORING BAR MAX. DIA.): .................. 2.5" MAXIMUM TOOL LENGTH: ............................... 15.75" MAXIMUM TOOL WEIGHT: ............................... 88 LBS TOOL CHANGE TIME (MILL/MILL OR TURN/TURN): ......... 35 SECONDS ROTARY TOOL SPINDLE: SPEED/RANGES: ...................................... 15 - 1,500 RPM/1 SPINGLE HORSEPOWER: ................................ 20 H.P. MILLING TOOL HOLDER CLAMPING FORCE: ................ 2,640 LBS AXIS: TRAVEL X-AXIS (RT/LEFT OF MACH.CENTERLINE): ........ 40"/ 30" TRAVEL Z-AXIS: .................................... 50.0" VERTICAL TRAVEL OF CROSS-RAIL: ..................... 47.2" CROSS-RAIL POSITIONING STEPS (5 POS.): ............. 4 (11.81"EA.) RAPID TRAVERSE: X-AXIS: ............................................ 472 IPM Z-AXIS: ............................................ 551 IPM C-AXIS: ............................................ 3 RPM
EQUIPPED WITH: FUSION 640 CNC CONTROL PALLET SYSTEM WITH ONE LOAD STATION, FOUR OPEN AND TWO IN THE MACHINES FOR A TOTAL OF 6 PALLETS. PALLET CHUCKS: 3 EA. 3 JAW AND 3 EA. 4 JAW C-AXIS FOR TABLE (360,000 POSITIONS .001 DEGREE INCREMENTS) STANDARD WORK LIGHT COMPLETE COOLANT SYSTEM (32 PSI/ 4 GPM) CHIP AND COOLANT SPLASH GUARDING CHIP CONVEYOR (WITHOUT BUCKET) CHIP SCRAPER FACE PLATE INCLUDING ONE (1) SET OF (4) FACE PLATE JAWS. FRONT DOOR INTERLOCK WITH LOCK-SWITCH HYDRAULIC PRESSURE INTERLOCK ONE (1) SET OF ADJUSTING TOOLS STANDARD TOOLING PACKAGE
CUSTOMER RESPONSIBLE FOR REMOVAL
SPECIFICATIONS: TABLE DIAMETER (FACEPLATE): ........................ 65.0" MAXIMUM SWING: .................................... 80.0" MAXIMUM CUTTING DIAMETER: ......................... 69.0" MAXIMUM WORKPIECE HEIGHT: WITH STANDARD FACE PLATE: .......................... 75.7" WITH 2-PALLET CHANGER & STD. PALLET: ............... 69" TABLE HEIGHT FROM FLOOR: ........................... 46.1" TABLE HEIGHT FROM FLOOR WITH 2 PALLET CHANGER): .... 51.8" MAIN SPINDLE: TABLE SPEED: ....................................... 1 - 230 RPM NUMBER OF SPEED RANGES: ............................ 2 TABLE HORSEPOWER (CONT/30 MINS): ................... 60/80 H.P. MINIMUM TABLE INDEX INCREMENT (C-AXIS): ............ 0.001 DEGREE RAM TOOL RETENTION AND WORK SYSTEM: .................... RAM W/ATC TOOL CLAMPING FORCE (VDI TURNING TOOLS): ........... 15,400 LBS TOOL MAGAZINE CAPACITY: ............................ 30 TOOLS TOOL SIZE (TURNING & FACING): ...................... 1.5"X1.5"X6/7" TOOL SIZE (BORING BAR MAX. DIA.): .................. 2.5" MAXIMUM TOOL LENGTH: ............................... 15.75" MAXIMUM TOOL WEIGHT: ............................... 88 LBS TOOL CHANGE TIME (MILL/MILL OR TURN/TURN): ......... 35 SECONDS ROTARY TOOL SPINDLE: SPEED/RANGES: ...................................... 15 - 1,500 RPM/1 SPINGLE HORSEPOWER: ................................ 20 H.P. MILLING TOOL HOLDER CLAMPING FORCE: ................ 2,640 LBS AXIS: TRAVEL X-AXIS (RT/LEFT OF MACH.CENTERLINE): ........ 40"/ 30" TRAVEL Z-AXIS: .................................... 50.0" VERTICAL TRAVEL OF CROSS-RAIL: ..................... 47.2" CROSS-RAIL POSITIONING STEPS (5 POS.): ............. 4 (11.81"EA.) RAPID TRAVERSE: X-AXIS: ............................................ 472 IPM Z-AXIS: ............................................ 551 IPM C-AXIS: ............................................ 3 RPM
EQUIPPED WITH: FUSION 640 CNC CONTROL PALLET SYSTEM WITH ONE LOAD STATION, FOUR OPEN AND TWO IN THE MACHINES FOR A TOTAL OF 6 PALLETS. PALLET CHUCKS: 3 EA. 3 JAW AND 3 EA. 4 JAW C-AXIS FOR TABLE (360,000 POSITIONS .001 DEGREE INCREMENTS) STANDARD WORK LIGHT COMPLETE COOLANT SYSTEM (32 PSI/ 4 GPM) CHIP AND COOLANT SPLASH GUARDING CHIP CONVEYOR (WITHOUT BUCKET) CHIP SCRAPER FACE PLATE INCLUDING ONE (1) SET OF (4) FACE PLATE JAWS. FRONT DOOR INTERLOCK WITH LOCK-SWITCH HYDRAULIC PRESSURE INTERLOCK ONE (1) SET OF ADJUSTING TOOLS STANDARD TOOLING PACKAGE
CUSTOMER RESPONSIBLE FOR REMOVAL
