MAZAK CYBERTECH TURN 4500M/300 BB
Type:
LATHES, COMBINATION, N/C & CNC, (3-axis Or More)
Manufacturer:
MAZAK
Model:
CYBERTECH TURN 4500M/300 BB
Condition:
Not Specified
Year:
2007
Stock #:
31692
Status:
Sold
Description:
MAZATROL FUSION 640MT CONTROL, 24" CHUCK, 50 HP, CC, INSTAL 2010,BIG BORE, 33.88" SWING, 120" LONG, MILLING.
Location:
South Carolina, United States
Specifications from OEM brochure and equipped with are described to the best of our knowledge. ALL items should be confirmed by buyer.

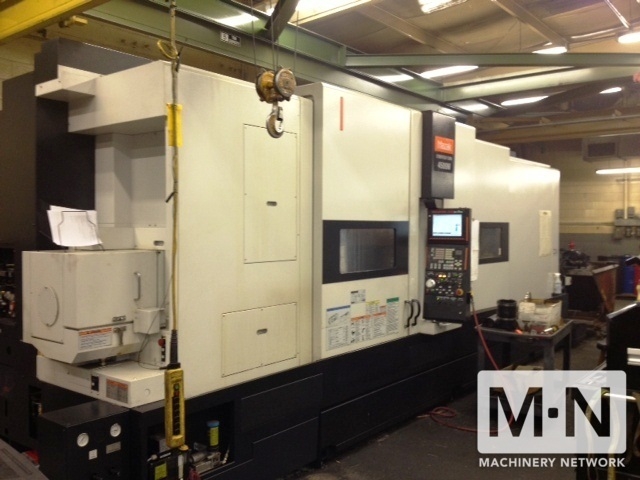

(1) Used Mazak CyberTech Turn 4500M/300 Big Bore
New 2007. INSTALLED 2010
***LOW HOURS:7,035 ***
Specifications:
Chuck Size ........................... 24" Chuck
Maximum Swing / Over Carriage ........ 33.88" / 27.5
Maximum Cutting Diameter ............. 31.88"
Maximum Cutting Length ............... 120"
X Axis Travel ........................ 21.375"
Z Axis Travel ........................ 123.25"
C Axis Incremental Movement .......... 001 Deg
Spindle Nose / Spindle Bore .......... A2-15" / 7.28"
Spindle Speeds - 2 Ranges ............ 1,600 RPM (800rpm w/current chuck)
Spindle Motor HP ..................... 50 HP
Rotary Tool Speed .................... 3,000 RPM
Rotary Tool HP / Spindle Torque ...... 15 HP / 103 ft/lbs
Number of Turret Positions-All Live .. 12 Pos Trt
Rapid Traverse Rates X / Z ........... 945/ 1181 IPM
Tailstock Taper / Max. Body Travel ... MT #5 / 100.4"
Machine Dimensions ................... 284"x98"x111"
Machine Weight ....................... 35,715 lbs.
Equipped With:
Mazatrol Fusion 640MT Control
Windows 2000 Operating System for Mazak Machine Control
12.1” Color LCD
Milling-Spindle Synchronous Tapping
3.5” FDD Unit
Network Interface (LAN and Modem)

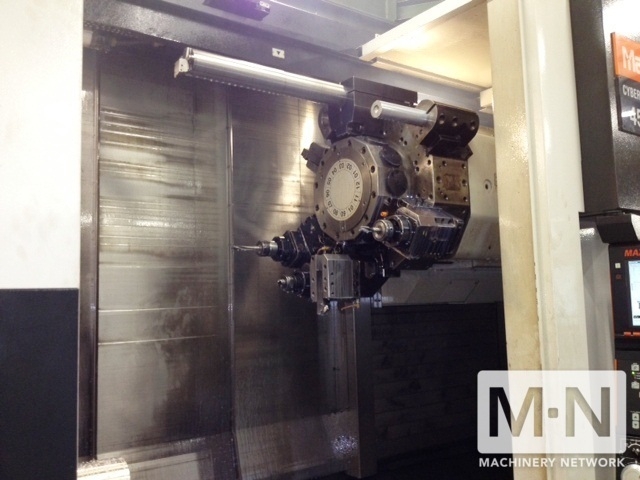

12 Position Drum Turret
Extended Tailstock (19”)
Chip Conveyor
Multitap Transformer
Tool Eye (Automatic Upper Turret)
Prep for rear chuck
Prepped for 1,000 PSI super flow
Steady Rest

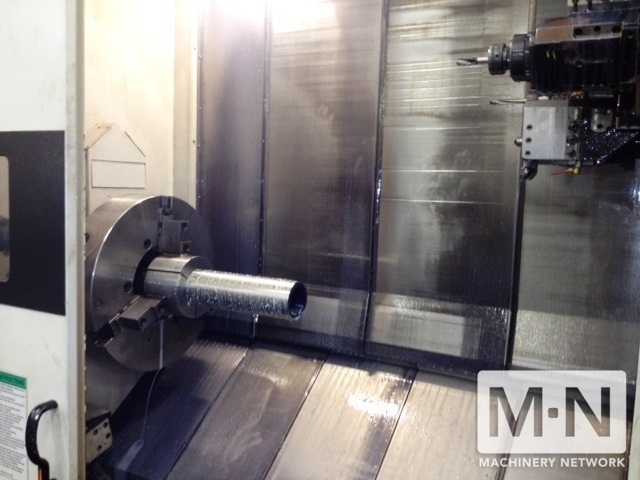

Manual 24” Scroll Chuck
Background Path Check
Shape Comp.
Direct Drawing Size Inputs
User Macros
600 Macro Variables
User Macro Interrupt
Work Coordinate Select
Polar Coordinate Input
Cylindrical Interpolation
EIA Helical Interpolation
EIA Coordinate Rotation
Rotary Axis Submicron
Rotary Axis Shape Comp.
2nd Tool Eye
New 2007. INSTALLED 2010
***LOW HOURS:7,035 ***
Specifications:
Chuck Size ........................... 24" Chuck
Maximum Swing / Over Carriage ........ 33.88" / 27.5
Maximum Cutting Diameter ............. 31.88"
Maximum Cutting Length ............... 120"
X Axis Travel ........................ 21.375"
Z Axis Travel ........................ 123.25"
C Axis Incremental Movement .......... 001 Deg
Spindle Nose / Spindle Bore .......... A2-15" / 7.28"
Spindle Speeds - 2 Ranges ............ 1,600 RPM (800rpm w/current chuck)
Spindle Motor HP ..................... 50 HP
Rotary Tool Speed .................... 3,000 RPM
Rotary Tool HP / Spindle Torque ...... 15 HP / 103 ft/lbs
Number of Turret Positions-All Live .. 12 Pos Trt
Rapid Traverse Rates X / Z ........... 945/ 1181 IPM
Tailstock Taper / Max. Body Travel ... MT #5 / 100.4"
Machine Dimensions ................... 284"x98"x111"
Machine Weight ....................... 35,715 lbs.
Equipped With:
Mazatrol Fusion 640MT Control
Windows 2000 Operating System for Mazak Machine Control
12.1” Color LCD
Milling-Spindle Synchronous Tapping
3.5” FDD Unit
Network Interface (LAN and Modem)
12 Position Drum Turret
Extended Tailstock (19”)
Chip Conveyor
Multitap Transformer
Tool Eye (Automatic Upper Turret)
Prep for rear chuck
Prepped for 1,000 PSI super flow
Steady Rest
Manual 24” Scroll Chuck
Background Path Check
Shape Comp.
Direct Drawing Size Inputs
User Macros
600 Macro Variables
User Macro Interrupt
Work Coordinate Select
Polar Coordinate Input
Cylindrical Interpolation
EIA Helical Interpolation
EIA Coordinate Rotation
Rotary Axis Submicron
Rotary Axis Shape Comp.
2nd Tool Eye
