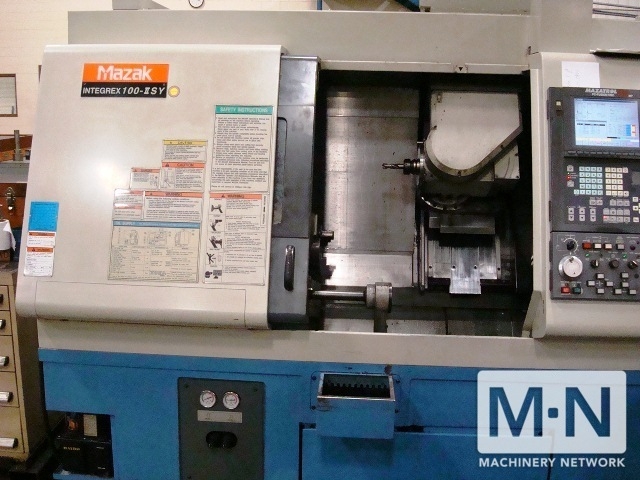

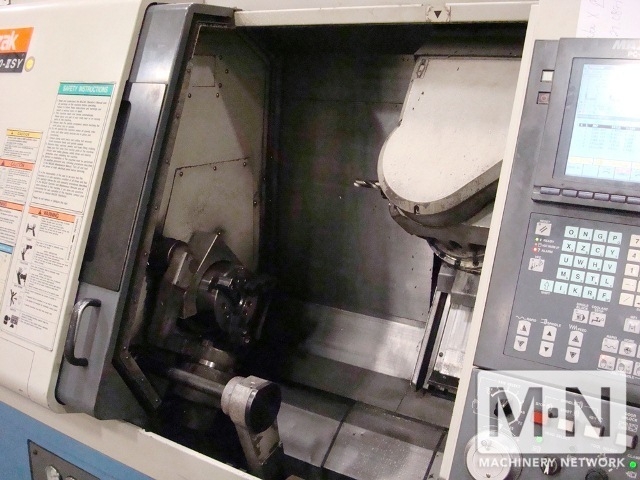

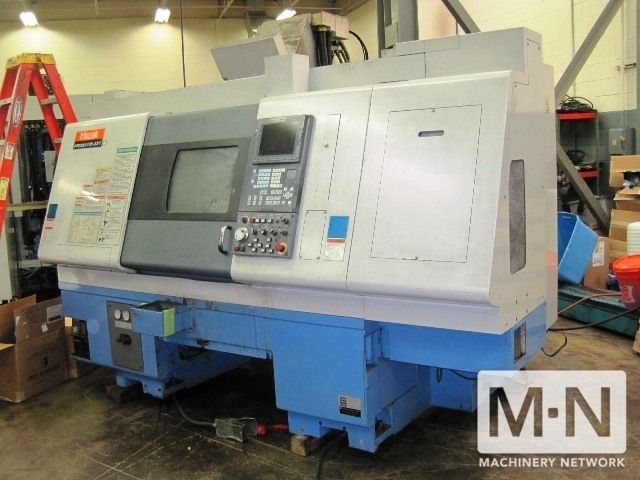

MAZAK INTEGREX 100IISY
Type:
LATHES, COMBINATION, N/C & CNC, (3-axis Or More)
Manufacturer:
MAZAK
Model:
INTEGREX 100IISY
Condition:
Not Specified
Year:
2003
Stock #:
31418
Status:
Sold
Description:

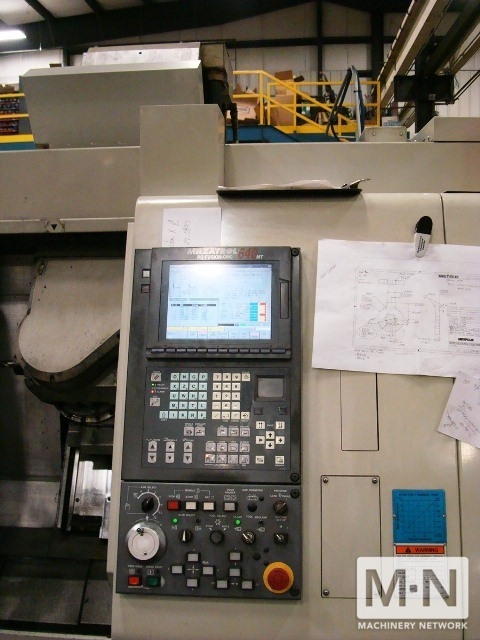

Mazatrol Fusion 640T, (2) 6" CHUCKS, 20 ATC. 6,000 RPM, Barfeed
Location:
Illinois, United States
Specifications from OEM brochure and equipped with are described to the best of our knowledge. ALL items should be confirmed by buyer.
1) Mazak Integrex 100IISY Mazatrol Fusion 640T
New 2003
Specifications:
Chuck Types..........................................................(2) 6" Hyd/ATS Clt's.
Maximum Swing/Over Carriage..............................18.5"/11.42"
Maximum Cutting Diameter/Length.........................18.5" / 29.72"
Travel X axis..........................................................14.17"
Travel Y axis..........................................................+/- 2.36"
Travel Z axis..........................................................30.87"
Travel B Axis........................................................225 deg/.001 deg
Spindle Nose/Spindle Bore/Bar Cap......................A2-5" / 2.4" / 2.1"
Main Spindle & Subspindle Speed..........................6,000 RPM
Spindle HP 30 min. / continuous.............................10 HP / 7.5 HP
Main & Subspindle Indexing...................................001 degree
Sub Spindle Bar Work...........................................1.65"
Rotary Tool Motor/Rotary Tool Speed..................7.5 HP / 10,000 RPM
Tool Magazine Capacity........................................20 Position ATC
Rapid Traverse Rates X / Y / Z..............................1181/1024/1299 IPM
Machine Weight.....................................................10,803 lbs
Equipped With:
EIA/ISO
Coolant thru Milling Head
Chip Conveyor
Auto Parts Catcher
Y Axis Capability
Parts Ejector for Sub Spindle
Mill Tool/Synchronous Tapping
3.5" Floppy Disk Drive
RS-232C Port for DNC Interface
6" Chuck on Main / Sub
ATS-A5-3JTL 3J Collet Chuck
ATS-A5-5CTL 16C Collet Chuck
Barfeed Interface Iemca Micro Boss
Full "C" axis on Subspindle
PCMCIA Interface(2 Slots)
Networking Interface
Multi-Tap Transformer
Miscell. KM63 Tooling
New 2003
Specifications:
Chuck Types..........................................................(2) 6" Hyd/ATS Clt's.
Maximum Swing/Over Carriage..............................18.5"/11.42"
Maximum Cutting Diameter/Length.........................18.5" / 29.72"
Travel X axis..........................................................14.17"
Travel Y axis..........................................................+/- 2.36"
Travel Z axis..........................................................30.87"
Travel B Axis........................................................225 deg/.001 deg
Spindle Nose/Spindle Bore/Bar Cap......................A2-5" / 2.4" / 2.1"
Main Spindle & Subspindle Speed..........................6,000 RPM
Spindle HP 30 min. / continuous.............................10 HP / 7.5 HP
Main & Subspindle Indexing...................................001 degree
Sub Spindle Bar Work...........................................1.65"
Rotary Tool Motor/Rotary Tool Speed..................7.5 HP / 10,000 RPM
Tool Magazine Capacity........................................20 Position ATC
Rapid Traverse Rates X / Y / Z..............................1181/1024/1299 IPM
Machine Weight.....................................................10,803 lbs
Equipped With:
EIA/ISO
Coolant thru Milling Head
Chip Conveyor
Auto Parts Catcher
Y Axis Capability
Parts Ejector for Sub Spindle
Mill Tool/Synchronous Tapping
3.5" Floppy Disk Drive
RS-232C Port for DNC Interface
6" Chuck on Main / Sub
ATS-A5-3JTL 3J Collet Chuck
ATS-A5-5CTL 16C Collet Chuck
Barfeed Interface Iemca Micro Boss
Full "C" axis on Subspindle
PCMCIA Interface(2 Slots)
Networking Interface
Multi-Tap Transformer
Miscell. KM63 Tooling
