MAZAK MULTIPLEX 6200Y
Type:
LATHES, COMBINATION, N/C & CNC, (3-axis Or More)
Manufacturer:
MAZAK
Model:
MULTIPLEX 6200Y
Condition:
Not Specified
Year:
1999
Stock #:
31252
Status:
Sold
Description:
Mazatrol Fusion 640T Ctrl,8" Chucks, Auto Lube, 2 Turrets, Live Tools.
Location:
Colorado, United States
Specifications from OEM brochure and equipped with are described to the best of our knowledge. ALL items should be confirmed by buyer.

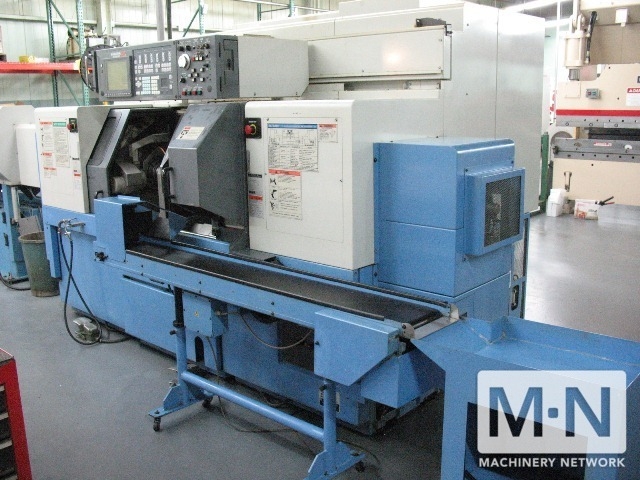

1) USED MAZAK MULTIPLEX 6200Y CNC MILLING AND TURNING WITH Y-AXIS
NEW: 1999
SPECIFICATIONS:
MAX. SWING DIA. .................................................12.5"
STANDARD CUTTING DIAMETER ......................10.24"
MAX. DISTANCE BETWEEN SPINDLES..............46.85" MAX.
BAR CAPACITY .....................................................2" SPINDLE NOSE
SPINDLE THRU HOLE DIA.................................... A2-6" (2.4")
SPINDLE SPEED .....................................................5000 RPM
MAIN SPINDLE MOTOR .......................................30 HP AC

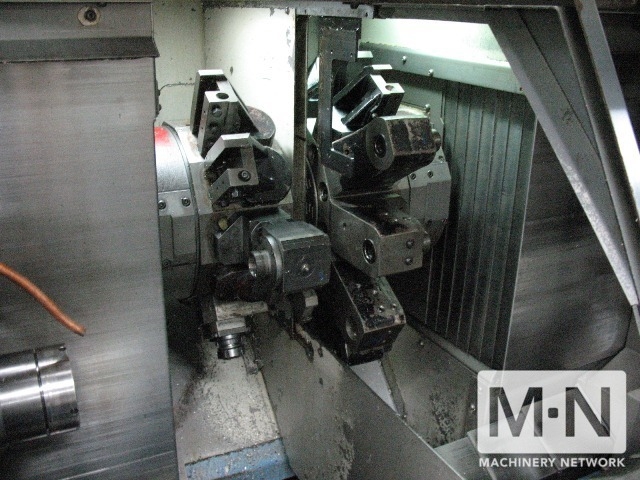

TURRET TYPE .........................................................12 DRUM TURRET X 2
ROTARY TOOL SPEED ..........................................4500 RPM
ROTARY TOOL HORSEPOWER ...........................5 HP AC
NO. OF TOOLS 12 / 12
STROKE OF Y-AXIS .............................................+/- 2.00"
STROKE OF X- AXIS ............................................. 9.06"
STROKE OF Z -AXIS (L-R) .....................................17.25"/19.37"
SPINDLE INDEXING INCREMENTS......................001 DEGREE
RAPID TRAVERSE RATE (X & Z)...........................1200/1300
C-AXIS 400 IPM
MACHINE WEIGHT...................................................18,000 LBS.
FLOOR SPACE...........................................................234"X155"X80"
EQUIPPED WITH:

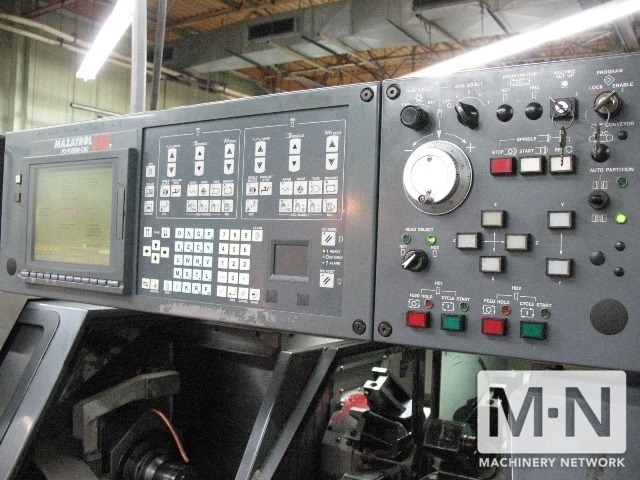

MAZATROL FUSION 640T CNC CONTROL
BARFEED INTERFACE

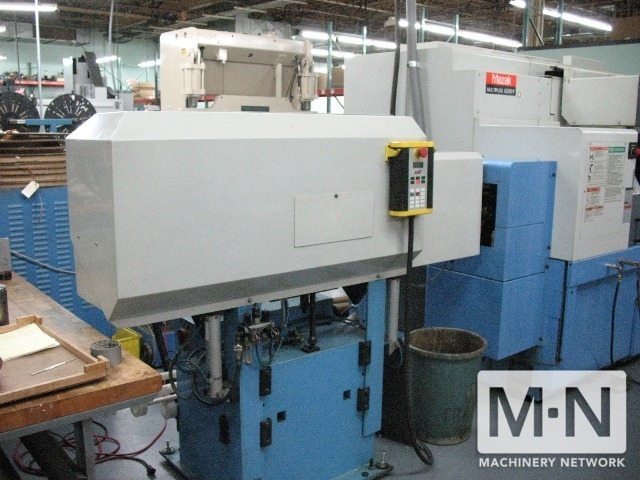

LNS QUICK LOAD SERVO BAR FEED SYSTEM

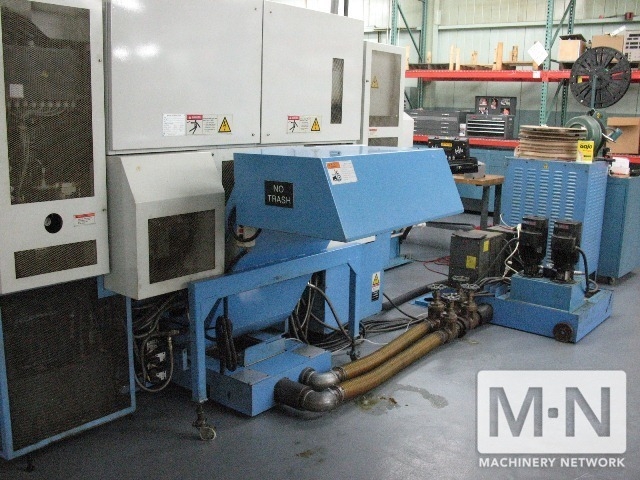

HIGH PRESSURE COOLANT
PARTS CATCHERUNLOADING PACKAGE
CHIP CONVEYOR
TOOL EYE
NEW: 1999
SPECIFICATIONS:
MAX. SWING DIA. .................................................12.5"
STANDARD CUTTING DIAMETER ......................10.24"
MAX. DISTANCE BETWEEN SPINDLES..............46.85" MAX.
BAR CAPACITY .....................................................2" SPINDLE NOSE
SPINDLE THRU HOLE DIA.................................... A2-6" (2.4")
SPINDLE SPEED .....................................................5000 RPM
MAIN SPINDLE MOTOR .......................................30 HP AC
TURRET TYPE .........................................................12 DRUM TURRET X 2
ROTARY TOOL SPEED ..........................................4500 RPM
ROTARY TOOL HORSEPOWER ...........................5 HP AC
NO. OF TOOLS 12 / 12
STROKE OF Y-AXIS .............................................+/- 2.00"
STROKE OF X- AXIS ............................................. 9.06"
STROKE OF Z -AXIS (L-R) .....................................17.25"/19.37"
SPINDLE INDEXING INCREMENTS......................001 DEGREE
RAPID TRAVERSE RATE (X & Z)...........................1200/1300
C-AXIS 400 IPM
MACHINE WEIGHT...................................................18,000 LBS.
FLOOR SPACE...........................................................234"X155"X80"
EQUIPPED WITH:
MAZATROL FUSION 640T CNC CONTROL
BARFEED INTERFACE
LNS QUICK LOAD SERVO BAR FEED SYSTEM
HIGH PRESSURE COOLANT
PARTS CATCHERUNLOADING PACKAGE
CHIP CONVEYOR
TOOL EYE
