MAZAK QTN-250 MSY
Type:
LATHES, COMBINATION, N/C & CNC, (3-axis Or More)
Manufacturer:
MAZAK
Model:
QTN-250 MSY
Condition:
Not Specified
Year:
2005
Stock #:
30822
Status:
Sold
Description:
LNS Bar, Sub-Spindle, Milling, 10" Chk, Chip Conv
Location:
New York, United States
Specifications from OEM brochure and equipped with are described to the best of our knowledge. ALL items should be confirmed by buyer.

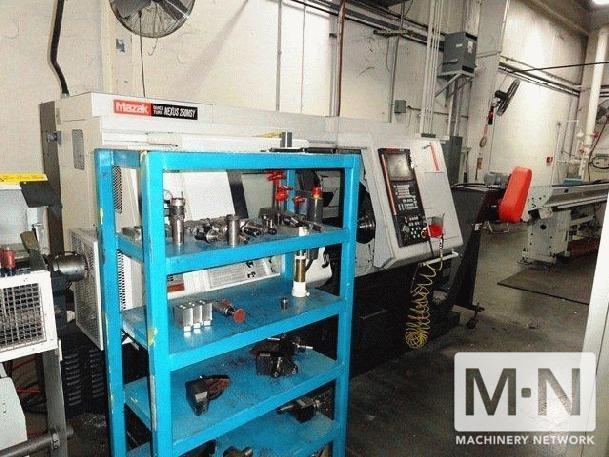

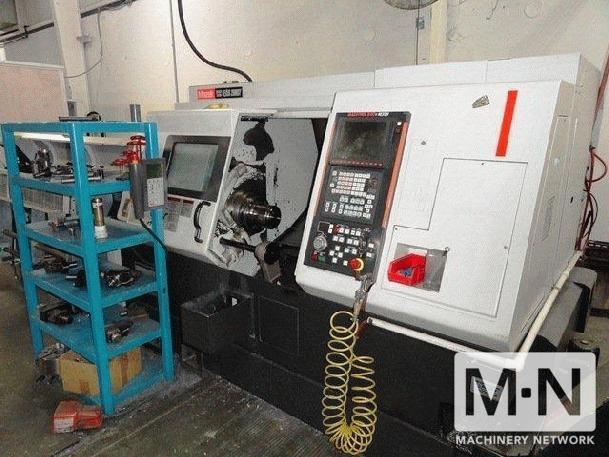

(1) USED MAZAK QTN-250 MSY CNC TURNING CENTER
NEW 2005

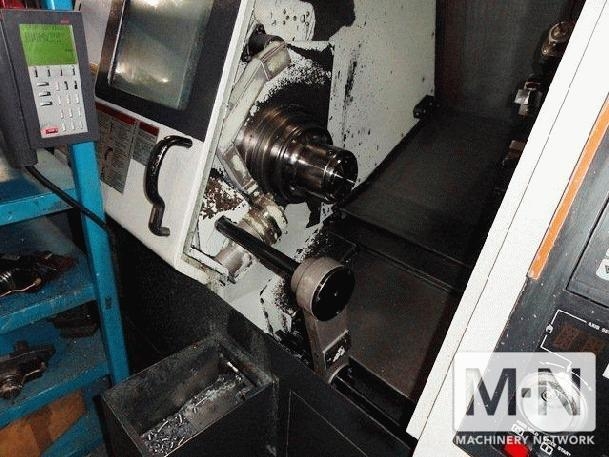

CHUCK SIZE ........................... 10"
SUB-SPINDLE CHUCK SIZE ............... 6"
MAX MACHINING DIAMETER .............. 14.75"
MAX SWING OVER BED .................. 26.5"
DISTANCE BETWEEN JAWS FACES (BOTH SPINDLES) .... 21.275"
TRAVEL X/Y/Z AXIS ...........9"/4"+-2"/22.75"
SPINDLE SPEEDS ...................... 4000 RPM
SPINDLE MOTOR ....................... 35 HP
SUB-SPINDLE SPEEDS .................. 6000 RPM
SUB-SPINDLE MOTOR ................... 15 HP
MILLING SPINDLE SPEED ............... 4,500 RPM
MILLING SPINDLE MOTOR ............... 7.5 HP
MAX. BAR MATERIAL DIAMETER .......... 3"
TURRET .............................. 12 STATION VDI
RAPID TRAVERSE X/Y/Z/C....... 1181/826/1299/555 RPM
FLOOR SPACE ......................... 116" X 73"
MACHINE WEIGHT ...................... 11,905EQUIPPED WITH:

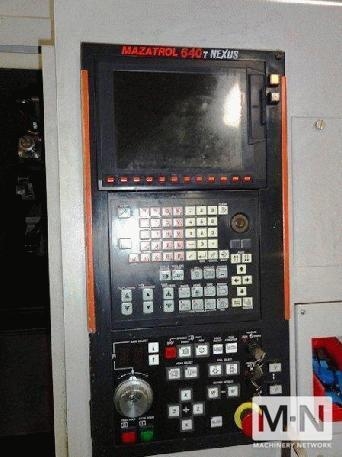

* MAZAKTROL 640T CNC CONTROL
* EIA/ISO OTION PACKAGE-BASIC EIA/ISO-DIRECT
DRAWING SIZE UNIT-USER MACRO (82 VARIABLES)
ADDITIONAL 600 MACRO VARIABLES

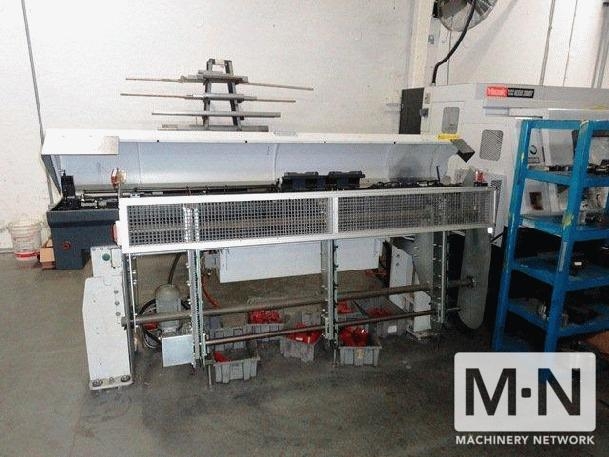

* LNS QUICK SIX S2 BAR 6' BAR LENGTH
5/16" TO 3-1/8" CAP, 7 BARSTOCKS LOADING CAPWITH 8 LINERS RANGING FROM 1" TO 3" INCH
* 6 X - 2 Z 8 LIVE HOLDERS
* AUTOMATIC PARTS CATCHER
* TOOL SETTER
* 10" KITAGAWA HYDRAULIC CHUCK
* ATS-A8-S30TL COLLECT CHUCK TRUE LENGTH
* CHIP CONVEYOR SIDE DISPOSAL HINGE TYPE** MACHINE HOURS
* POWER ON TIME - 20,622
* AUTO OPERATION - 3,665
* AUTO CUT - 2,368
* TOTAL CUT - 8,052
NEW 2005
CHUCK SIZE ........................... 10"
SUB-SPINDLE CHUCK SIZE ............... 6"
MAX MACHINING DIAMETER .............. 14.75"
MAX SWING OVER BED .................. 26.5"
DISTANCE BETWEEN JAWS FACES (BOTH SPINDLES) .... 21.275"
TRAVEL X/Y/Z AXIS ...........9"/4"+-2"/22.75"
SPINDLE SPEEDS ...................... 4000 RPM
SPINDLE MOTOR ....................... 35 HP
SUB-SPINDLE SPEEDS .................. 6000 RPM
SUB-SPINDLE MOTOR ................... 15 HP
MILLING SPINDLE SPEED ............... 4,500 RPM
MILLING SPINDLE MOTOR ............... 7.5 HP
MAX. BAR MATERIAL DIAMETER .......... 3"
TURRET .............................. 12 STATION VDI
RAPID TRAVERSE X/Y/Z/C....... 1181/826/1299/555 RPM
FLOOR SPACE ......................... 116" X 73"
MACHINE WEIGHT ...................... 11,905EQUIPPED WITH:
* MAZAKTROL 640T CNC CONTROL
* EIA/ISO OTION PACKAGE-BASIC EIA/ISO-DIRECT
DRAWING SIZE UNIT-USER MACRO (82 VARIABLES)
ADDITIONAL 600 MACRO VARIABLES
* LNS QUICK SIX S2 BAR 6' BAR LENGTH
5/16" TO 3-1/8" CAP, 7 BARSTOCKS LOADING CAPWITH 8 LINERS RANGING FROM 1" TO 3" INCH
* 6 X - 2 Z 8 LIVE HOLDERS
* AUTOMATIC PARTS CATCHER
* TOOL SETTER
* 10" KITAGAWA HYDRAULIC CHUCK
* ATS-A8-S30TL COLLECT CHUCK TRUE LENGTH
* CHIP CONVEYOR SIDE DISPOSAL HINGE TYPE** MACHINE HOURS
* POWER ON TIME - 20,622
* AUTO OPERATION - 3,665
* AUTO CUT - 2,368
* TOTAL CUT - 8,052
