MAZAK INTEGREX 100-IIIS
Type:
LATHES, COMBINATION, N/C & CNC, (3-axis Or More)
Manufacturer:
MAZAK
Model:
INTEGREX 100-IIIS
Condition:
Not Specified
Year:
2004
Stock #:
30351
Status:
Sold
Description:
6" CHUCK, 2" BAR CAPACITY
Location:
California, United States
Specifications from OEM brochure and equipped with are described to the best of our knowledge. ALL items should be confirmed by buyer.

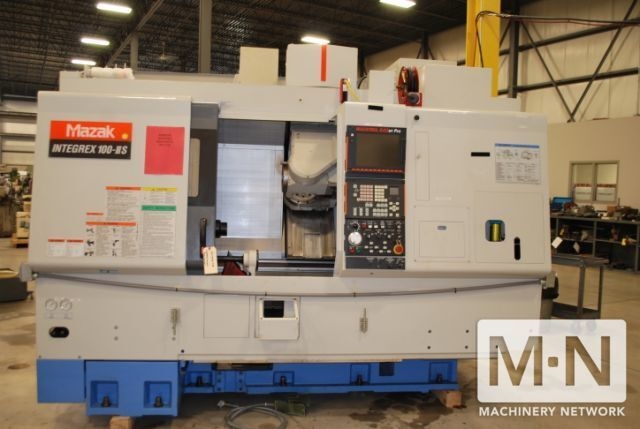

(1) USED MAZAK INTEGREX 100-IIIS CNC TURNING CENTER
NEW 2004
SPECIFICATIONS:
Chuck Size 6"
Max Diameter Bar Capacity 2"
Max Swing Over Bed / Carriage 13.86" / 21.45"
Max Turning Diameter 21.45"
Max Machining Length 20.39"
Spindle Motor 10 / 7.5 HP AC
Spindle Speed 6000 RPM
Spindle Bore 2.40"
Spindle Nose A2-5
Spindle Torque 119 ft. lbs.
Tools 40
Milling Motor 7.5 / 3 HP AC
Milling Speed 12,000 RPM
Rapid Traverse Rates (X / Y / Z) 1181 / 1025 / 1299 IPM
X-Axis Travel 16.14"
Z-Axis Travel 22.4"
C-Axis Index .001 Degrees
Y-Axis
Machine Dimensions (L x W x H) 99.8" x 81.9" x 91.5"
Machine Weight 9921 lbs.
FEATURES:

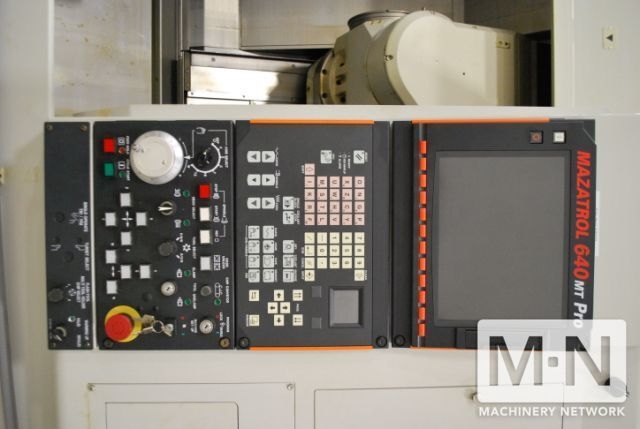

MAZATROL FUSION 640MT PRO CNC CONTROL
10.4" Color LCD
(2) 3J Collet Chucks
KM Style Tool Changer
TOOL OPTIONS:
213 PSI thru Coolant milling spindle
40 Tool ATC KM

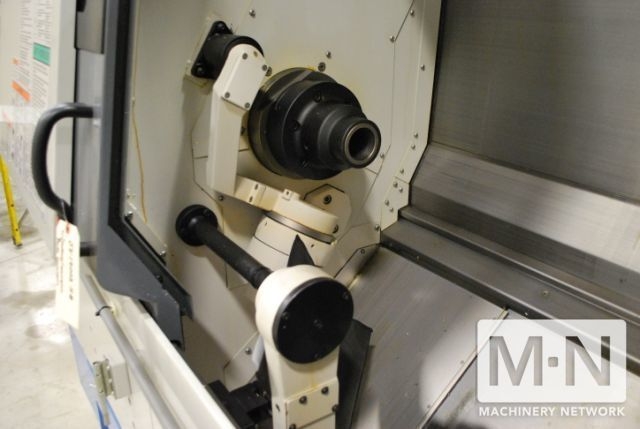

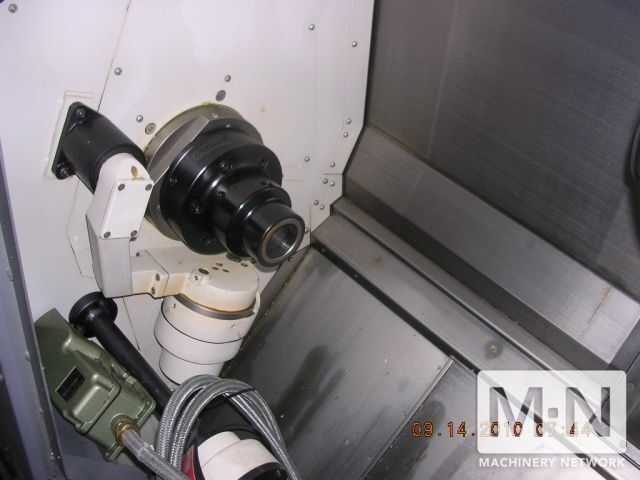

Second Spindle C axis 0.001 degree
6” Big Bore Chuck 2” capacity
Overload Detection
Auto Power On/Off
Light tower three lights

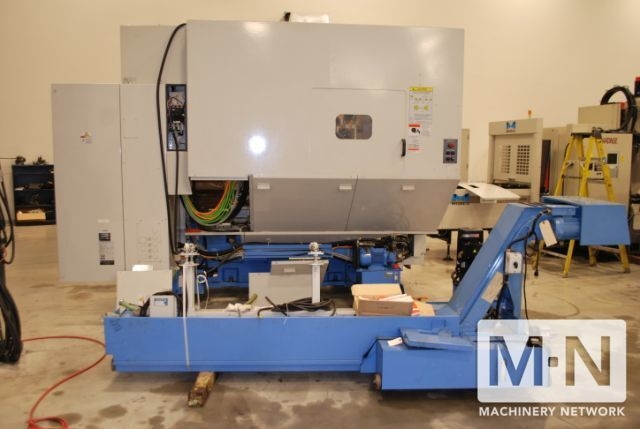

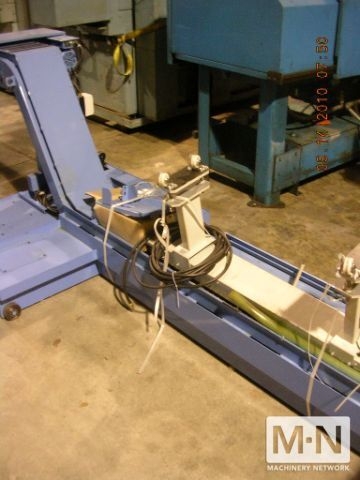

Chip conveyor Hinge type
Auto Parts Catcher
Workpiece conveyor
2ea. Additional work lights
2ea. ATS 3 J TLS Collet Nose
Workpiece ejector for second spindle
NEW 2004
SPECIFICATIONS:
Chuck Size 6"
Max Diameter Bar Capacity 2"
Max Swing Over Bed / Carriage 13.86" / 21.45"
Max Turning Diameter 21.45"
Max Machining Length 20.39"
Spindle Motor 10 / 7.5 HP AC
Spindle Speed 6000 RPM
Spindle Bore 2.40"
Spindle Nose A2-5
Spindle Torque 119 ft. lbs.
Tools 40
Milling Motor 7.5 / 3 HP AC
Milling Speed 12,000 RPM
Rapid Traverse Rates (X / Y / Z) 1181 / 1025 / 1299 IPM
X-Axis Travel 16.14"
Z-Axis Travel 22.4"
C-Axis Index .001 Degrees
Y-Axis
Machine Dimensions (L x W x H) 99.8" x 81.9" x 91.5"
Machine Weight 9921 lbs.
FEATURES:
MAZATROL FUSION 640MT PRO CNC CONTROL
10.4" Color LCD
(2) 3J Collet Chucks
KM Style Tool Changer
TOOL OPTIONS:
213 PSI thru Coolant milling spindle
40 Tool ATC KM
Second Spindle C axis 0.001 degree
6” Big Bore Chuck 2” capacity
Overload Detection
Auto Power On/Off
Light tower three lights
Chip conveyor Hinge type
Auto Parts Catcher
Workpiece conveyor
2ea. Additional work lights
2ea. ATS 3 J TLS Collet Nose
Workpiece ejector for second spindle
