MAZAK NEXUS 100MY2B
Type:
LATHES, COMBINATION, N/C & CNC, (3-axis Or More)
Manufacturer:
MAZAK
Model:
NEXUS 100MY2B
Condition:
Not Specified
Year:
2007
Stock #:
28198
Status:
Sold
Description:
MAZATROL NEXUS,
Location:
California, United States
Specifications from OEM brochure and equipped with are described to the best of our knowledge. ALL items should be confirmed by buyer.

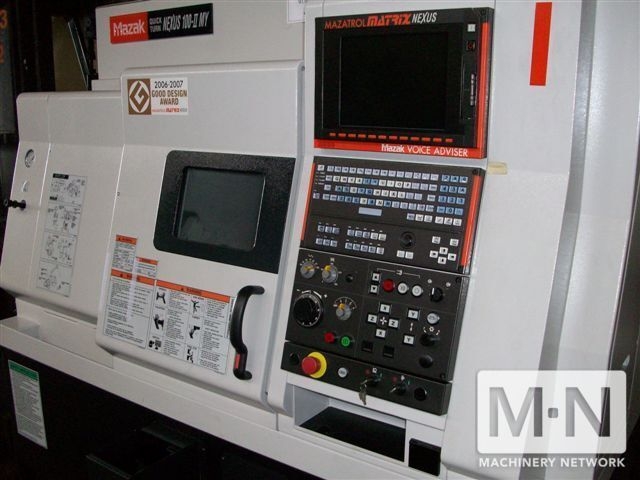

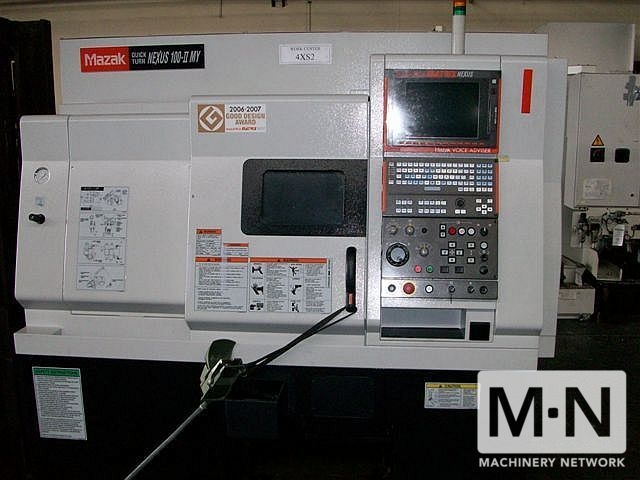

1) USED MAZAK NEXUS QT100-MY2B CNC TURNING CENTER
NEW-2007
"BANK OWNED MACHINE "
SPECIFICATIONS:
MAX SWING............................. 21.65"
SWING OVER CROSS SLIDE................ 11.00"
MAX TURNING DIA....................... 13.00"
MAX TURNING LENGTH.................... 12.30"
HOLE THRU SPINDLE..................... 2.44"
THRU HOLE CHUCK....................... 6"
BAR CAPACITY.......................... 2.00"
Z AXIS................................ 15.1"
X AXIS................................ 7.50"
C AXIS................................ 0.001 DEGREE
Y AXIS................................ 4"
SPINDLE NOSE.......................... A2-5
ROTARY TOOL SPEED..................... 4500 RPM
MAIN SPINDLE MOTOR.................... 15 HP
SPINDLE SPEED......................... 6000 RPM
POSITIONS............................. 12
EQUIPPED WITH:

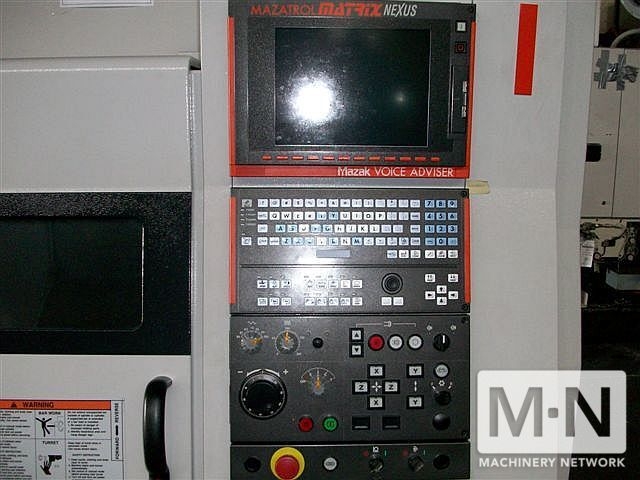

MAZATROL NEXUS MULTI AXIS CNC CONTROL (12" COLOR)
EIA/ISO CODE INPUT FUNCTION
LAN PORT
HIGH-POWER COOLANT
12 POSITION DRUM TURRET (VDI)
PROGRAMMABLE TAILSTOCK
AUTO PARTS CATCHER

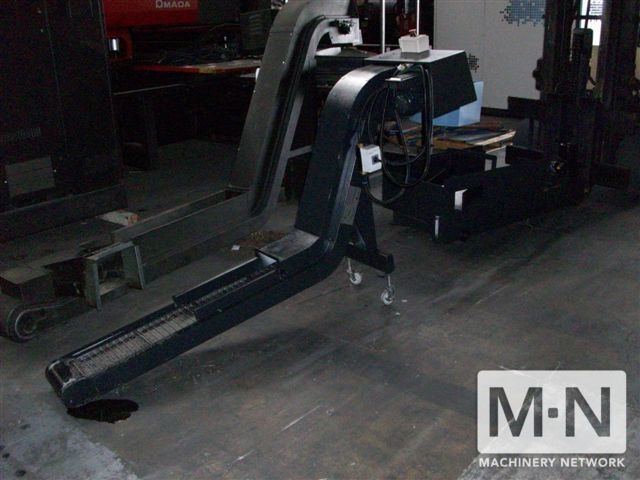

SIDE DISPOSAL CHIP CONVEYOR

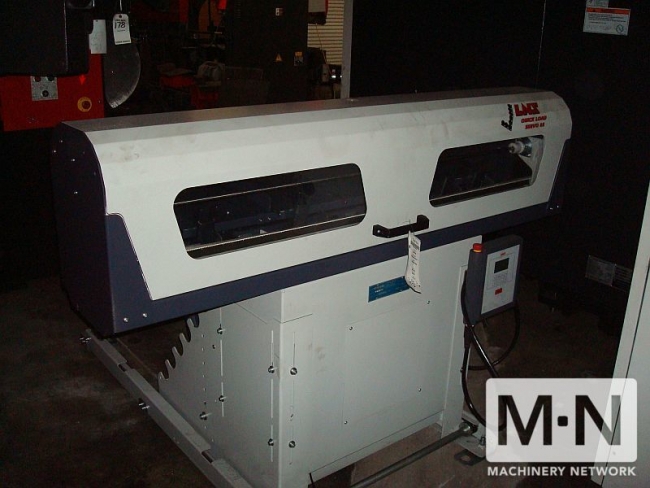

LNS QUICK LOAD BARFEED
INCH/METRIC CONVERSION
TOOL EYE
WINDOWS XP OPERATING SYSTEM FOR MAZAK
ASSORTED TOOLING INCLUDING COLLET CHUCK & LIVE TOOL HOLDERS
NEW-2007
"BANK OWNED MACHINE "
SPECIFICATIONS:
MAX SWING............................. 21.65"
SWING OVER CROSS SLIDE................ 11.00"
MAX TURNING DIA....................... 13.00"
MAX TURNING LENGTH.................... 12.30"
HOLE THRU SPINDLE..................... 2.44"
THRU HOLE CHUCK....................... 6"
BAR CAPACITY.......................... 2.00"
Z AXIS................................ 15.1"
X AXIS................................ 7.50"
C AXIS................................ 0.001 DEGREE
Y AXIS................................ 4"
SPINDLE NOSE.......................... A2-5
ROTARY TOOL SPEED..................... 4500 RPM
MAIN SPINDLE MOTOR.................... 15 HP
SPINDLE SPEED......................... 6000 RPM
POSITIONS............................. 12
EQUIPPED WITH:
MAZATROL NEXUS MULTI AXIS CNC CONTROL (12" COLOR)
EIA/ISO CODE INPUT FUNCTION
LAN PORT
HIGH-POWER COOLANT
12 POSITION DRUM TURRET (VDI)
PROGRAMMABLE TAILSTOCK
AUTO PARTS CATCHER
SIDE DISPOSAL CHIP CONVEYOR
LNS QUICK LOAD BARFEED
INCH/METRIC CONVERSION
TOOL EYE
WINDOWS XP OPERATING SYSTEM FOR MAZAK
ASSORTED TOOLING INCLUDING COLLET CHUCK & LIVE TOOL HOLDERS
