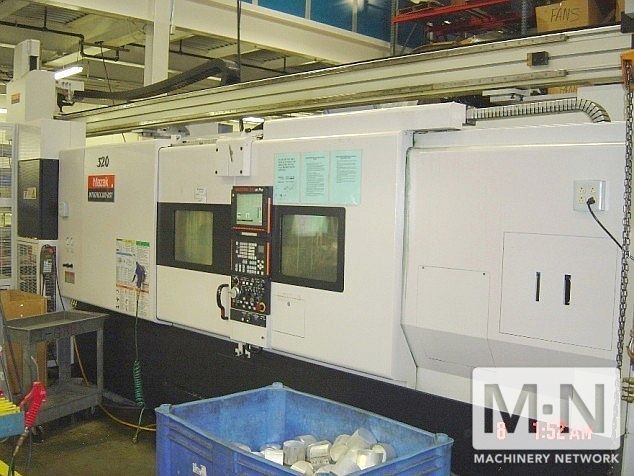

MAZAK INTEGREX-300III-SY

Type:

LATHES, COMBINATION, N/C & CNC, (3-axis Or More)

Manufacturer:

MAZAK

Model:

INTEGREX-300III-SY

Condition:

Not Specified

Year:

2004

Stock #:

27189

Status:

Sold

Location:

United States

Specifications from OEM brochure and equipped with are described to the best of our knowledge. ALL items should be confirmed by buyer.

Quote Request Have one for sale?

For more information call +1 (818) 465-6700 or contact us

Spec Sheet:

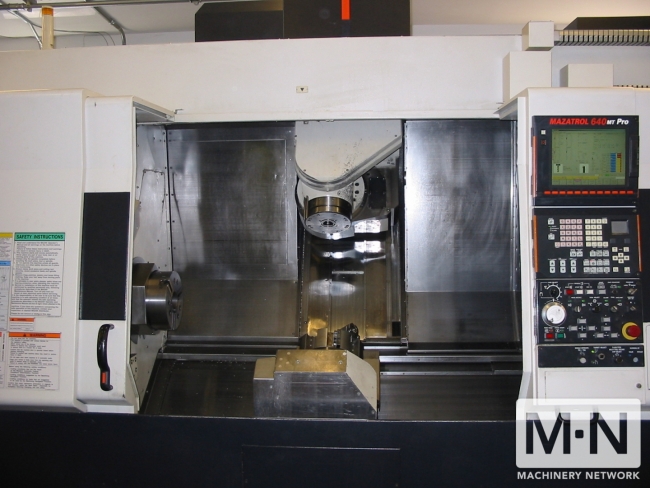

(1) MAZAK INTEGREX 300 III ST/1500 MULTI-TAKING 8-AXIS MACHINE
W/ LOWER TURRET
NEW 2005

SPECIFICATIONS:
Max. Swing 33.5"
Max. Swing Using Y-Axis 26"-33.5"
Max Machining Dia 33.5"
Max. Swing Over Lower Turret 16.5"
Maximum Cutting Length 60"
Spindle Bore 3.46"
Spindle Nose A2-8
Max Bar Capacity 3.0"
Spindle Speeds 4000 RPM
Axis Travel C - Axis .0001 INCREMENTS
X - Axis 24.8"
Z - Axis 62.41"
X2- Axis (lower turret) 9.06"
Z2- Axis (lower turret) 60.2"
Y - Axis +/- 4.53"
B - Axis 225 degrees
5 DEGREE CLAMPING
W - Axis (second spindle) 60.24"
Second Spindle RPM 4000 RPM
Spindle Nose A2-8
Spindle Bore (Second Spindle) 3.46"
Bar Capacity 3"
Second Spindle Min. Indexing .0001 degree
Second Spindle Travel 60.2"
Rapid Traverse Rates C - Axis 555 RPM
X - Axis 1496 IPM
Z - Axis 1496 IPM
Y - Axis 1023 IPM
B - Axis 555 RPM
W - Axis 1181 IPM
Min. Spindle Indexing (main Spindle) .001 DEGREE

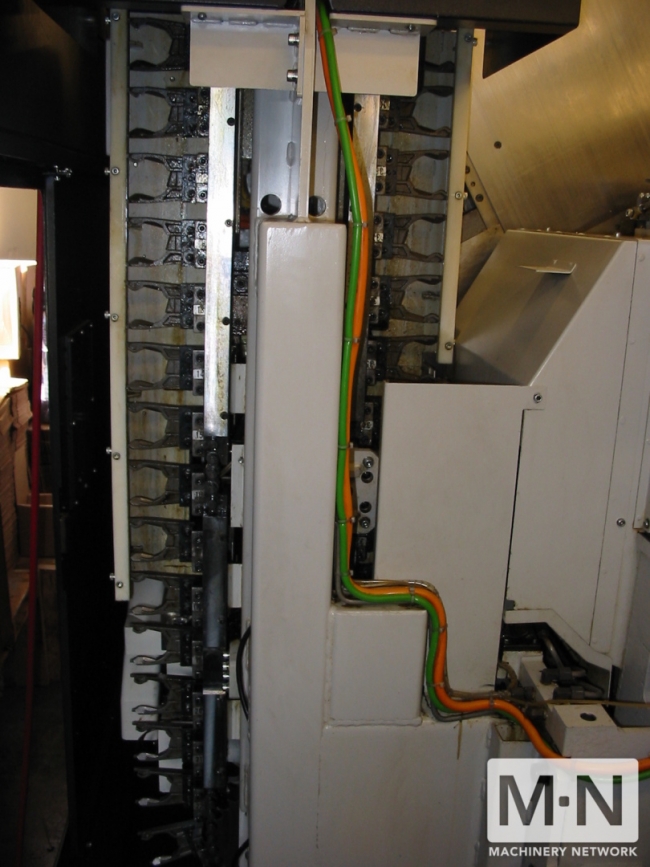

Tool Magazine Capacity 40 ATC CAPTO
Lower Turret Positions 9 tool drum
Max. Tool Dia. Adj. 3.54"/4.92"
Max. Tool Length 15.75" \
Rotary Tools Spindle Nose CAPTO STYLE
Rotary Tool Spindle Speed 12,000 RPM
Rotary Tool Motor 25 HP
Maximum Tool Weight 22 LBS.
Z - Axis Thrust 3124 FT/LBS.
Main Motor / Second Spindle 35 HP/AC 35 HP

EQUIPPED WITH:

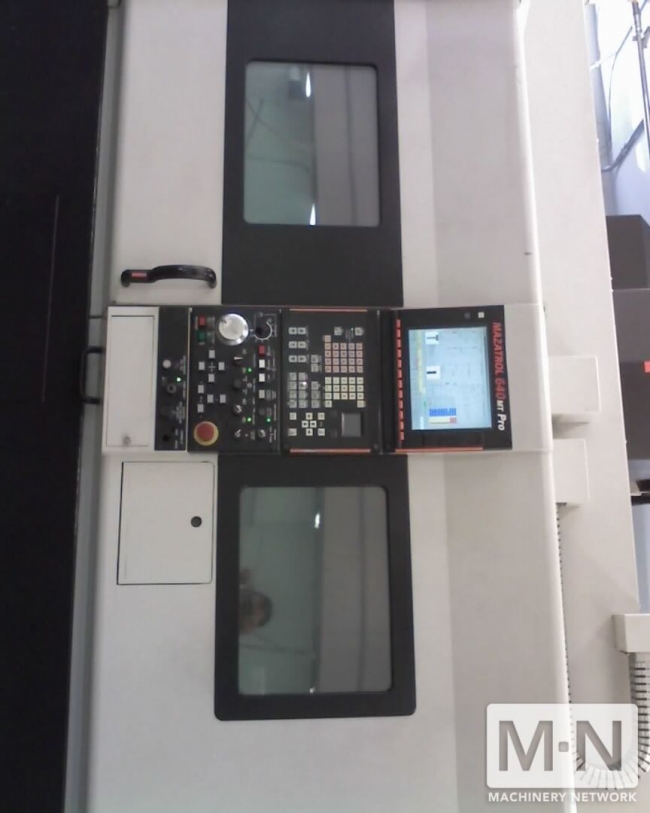

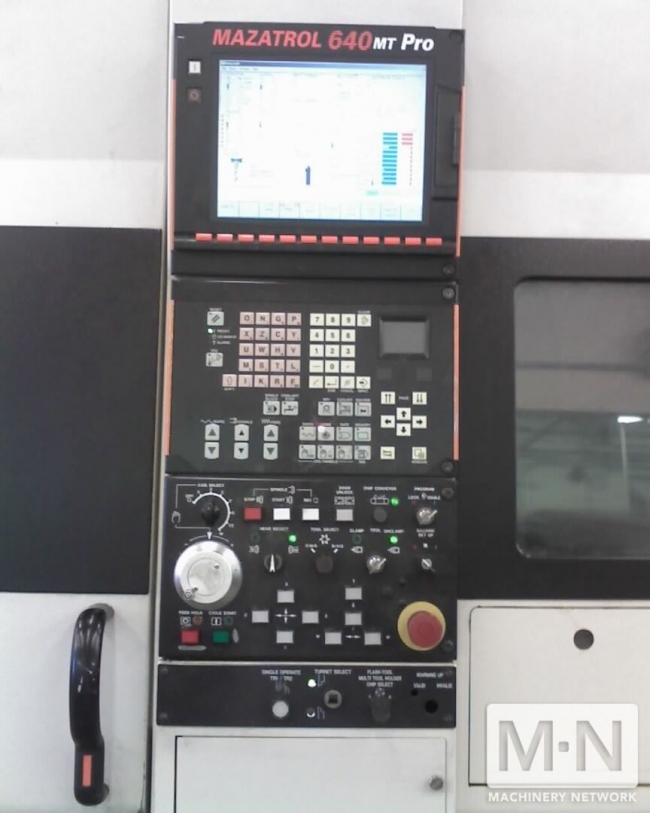

MAZATROL PC FUSION 640MT PRO CNC CONVERSATIONAL CONTROL
SIMILTANEOUS 6-AXIS PACKAGE
10" 3-JAW HYDRAULIC CHUCKS FRONT/REAR
12.1" COLOR SCREEN
AUTOMATIC OPEN/CLOSE
AUTOMATIC OPEN/CLOSE CONFIRMATION
THREAD POINT COMPENSATION
CYLINDRICAL INTERPOLATION
POLAR CO-ORDINATE INTERPOLATION
TOOL WEAR COMPENSATION
TOOL EYE MEASUREMENT FOR UPPER AND LOWER TURRET
MAZAK TORNADO TAPPING
48 ALPHANUMERIC CHARACTERS FOR PROGRAM NAME (MAZATROL)
MAZATROL AND EIA/ISO PROGRAMMING
TOOL LIFE MONITORING
BACKGROUND TOOL PATH CHECK
MILLING SPINDLE MULTI-ORIENT
8 FIGURE PROGRAM NUMBER (EIA)
BARRIER PROTECTION
MACHINING NAVI-MONITOR
NETWORK LAN AND MOTEM
PREPPED FOR FLASH AND MULTI
C-AXIS MAIN SPINDLE DRIVE PACKAGE
TOOL EYE AUTOMATIC FRONT AND SECOND SPINDLE
