MAZAK QTN350 MK2-1500U
Type:
LATHES, COMBINATION, N/C & CNC, (3-axis Or More)
Manufacturer:
MAZAK
Model:
QTN350 MK2-1500U
Condition:
Not Specified
Year:
2007
Stock #:
26810
Status:
Sold
Description:
MATRIX CTRL, 60", LIVE C & Y AXES,
Location:
United States
Specifications from OEM brochure and equipped with are described to the best of our knowledge. ALL items should be confirmed by buyer.

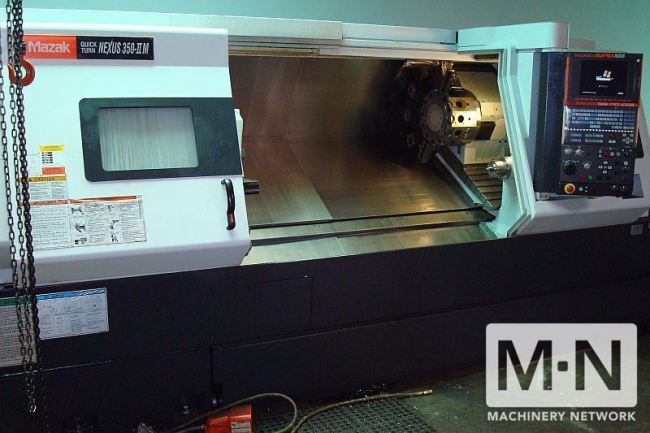

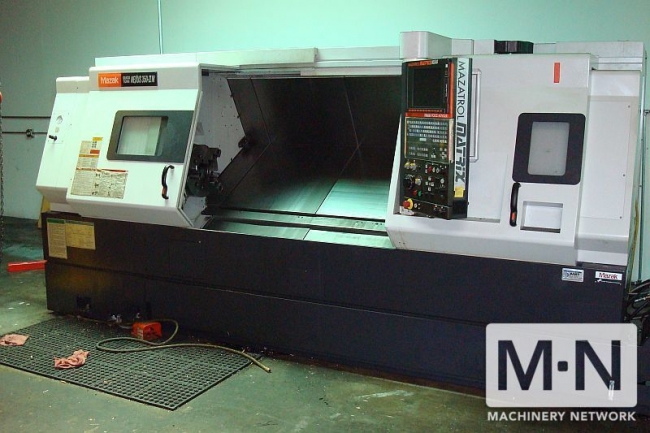

(1) USED MAZAK NEXUS QUICK TURN 350-II MK 1500U CNC TURNING CENTER - NEW 2007
SPECIFICATIONS:
TURNING DIAMETER - NOMINAL/MAX.: 12"/16.5"
TURNING LENGTH: 60.6"
MAX. SWING: 29.5"
AXIS TRAVELS - X AXIS: 8.875"
- Z AXIS: 63.625"
- C AXIS: .001 DEG/360,000 POSITION
SPINDLE BORE: 4.4"
BAR CAPACITY: 4"
MAX. SPINDLE SPEED: 3300 RPM
SPINDLE MOTOR: 40 HP

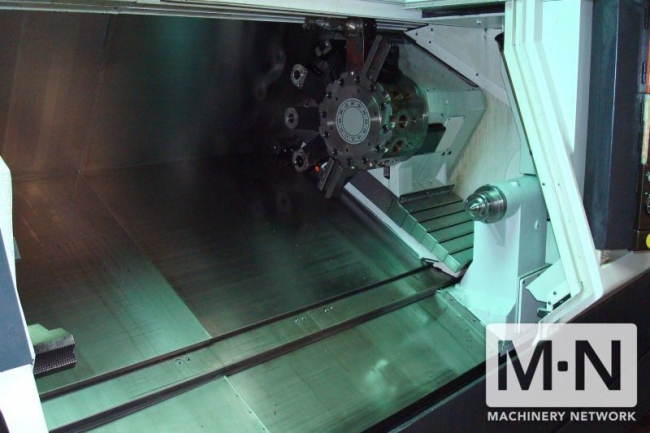

TURRET CAPACITY: 12 TOOL - VDI
LIVE TOOLING - SPEED: 4000 RPM
- MOTOR: 10 HP
RAPID FEEDRATES - X AXIS: 1181 IPM
- Z AXIS: 1291 IPM
TAILSTOCK QUILL DIAMETER: MT #5
TAILSTOCK BODY TRAVEL: 62.375"
EQUIPPED WITH:

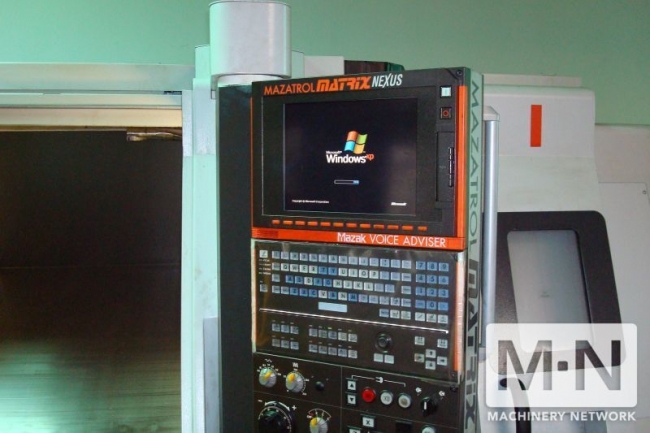

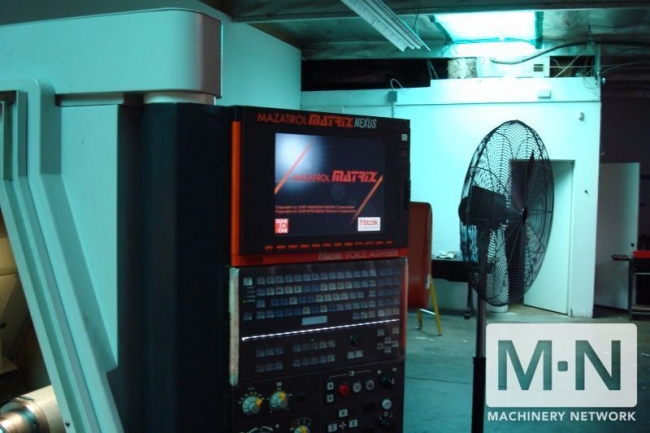

MAZATROL MATRIX NEXUS PC BASED CONTROL
-USA I/F, LAN PORT, USER MACROS, EIA/ISO, SEQ. NUMBER -COMPARISON STOP FUNCTION, DOOR INTERLOCK
AUTOMATIC TOOL EYE
HIGH PRESSURE COOLANT (213 PSI)
PROGRAMMABLE TAILSTOCK

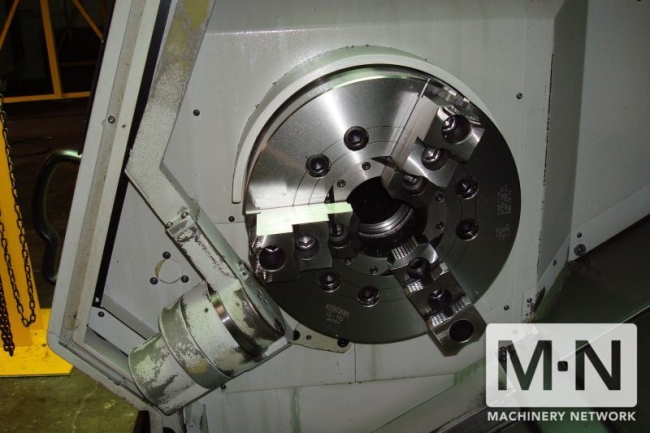

15" KITIGAWA HYDRAULIC CHUCK
CHIP CONVEYOR
SPECIFICATIONS:
TURNING DIAMETER - NOMINAL/MAX.: 12"/16.5"
TURNING LENGTH: 60.6"
MAX. SWING: 29.5"
AXIS TRAVELS - X AXIS: 8.875"
- Z AXIS: 63.625"
- C AXIS: .001 DEG/360,000 POSITION
SPINDLE BORE: 4.4"
BAR CAPACITY: 4"
MAX. SPINDLE SPEED: 3300 RPM
SPINDLE MOTOR: 40 HP
TURRET CAPACITY: 12 TOOL - VDI
LIVE TOOLING - SPEED: 4000 RPM
- MOTOR: 10 HP
RAPID FEEDRATES - X AXIS: 1181 IPM
- Z AXIS: 1291 IPM
TAILSTOCK QUILL DIAMETER: MT #5
TAILSTOCK BODY TRAVEL: 62.375"
EQUIPPED WITH:
MAZATROL MATRIX NEXUS PC BASED CONTROL
-USA I/F, LAN PORT, USER MACROS, EIA/ISO, SEQ. NUMBER -COMPARISON STOP FUNCTION, DOOR INTERLOCK
AUTOMATIC TOOL EYE
HIGH PRESSURE COOLANT (213 PSI)
PROGRAMMABLE TAILSTOCK
15" KITIGAWA HYDRAULIC CHUCK
CHIP CONVEYOR
