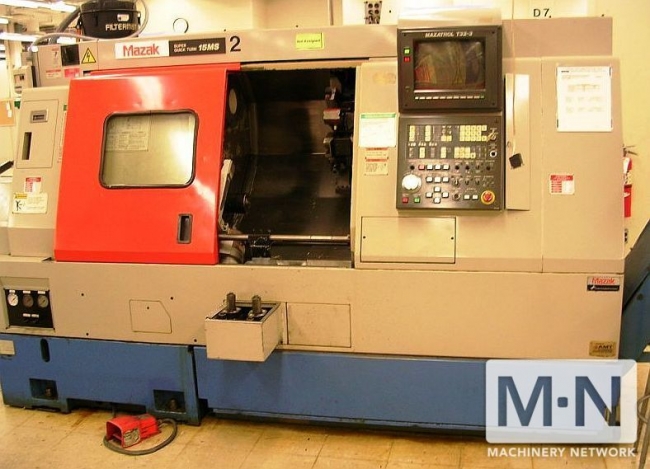

MAZAK SUPER QUICKTURN 15MS
Type:
LATHES, COMBINATION, N/C & CNC, (3-axis Or More)
Manufacturer:
MAZAK
Model:
SUPER QUICKTURN 15MS
Condition:
Not Specified
Year:
1993
Stock #:
24404
Status:
Sold
Description:
T32-3 CTRL, TOUCH PROBE, 6" 3-JAW CK, C.C, SUB SPDL, LIVE TOOLING
Location:
Pennsylvania, United States
Specifications from OEM brochure and equipped with are described to the best of our knowledge. ALL items should be confirmed by buyer.
(1) USED MAZAK MODEL SQT-15MS CNC TURNING CENTER W/ LIVE TOOLS,

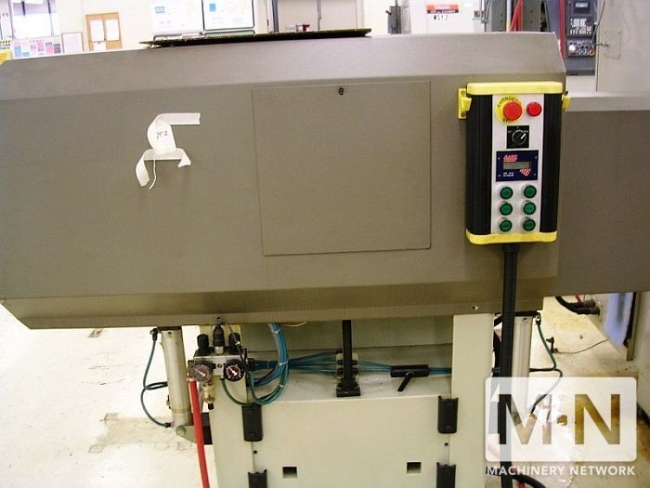

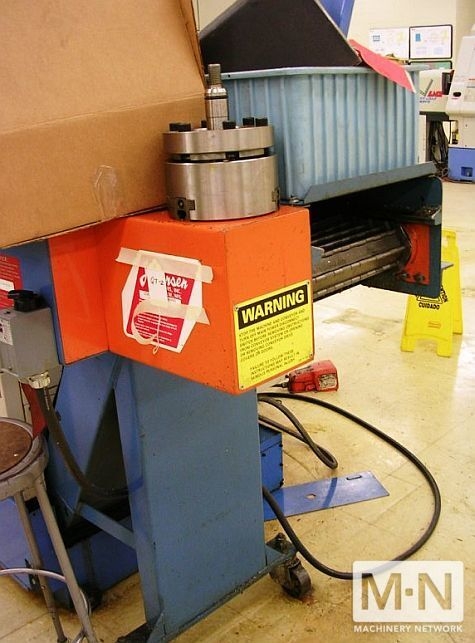

SUB SPINDLE, C-AXIS AND MAZATROL T-32-3 CONTROL,& SMW MAGIZINE STYLE BAR-FEED
NEW 1993
SPECIFICATIONS:
TRAVELS - X-AXIS:.................... 7.125"
Z-AXIS:.................... 22.75"
B-AXIS:.................... 23.25"
RAPID FEED RATE(X,Z,B AXIS):.......... 1176/1176 IPM
RAPID FEED RATE (C AXIS):............. 100 RPM
CHUCK SIZE:........................... 8"
MAXIMUM SWING:........................ 20.91"
STANDARD MACHINING DIAMETER::......... 10.87"
MAXIMUM MACHINING DIAMETER:........... 11.81"
BAR WORK CAPABILITY::................. 2"
DIST B/W SPDL END & TURRET END FACE:.. 4.92" - 27.56"
MAXIMUM MACHINING LENGTH:............. 20.90"
MAIN SPINDLE
ROTATION SPEED RANGE:............... 35 - 5,000 RPM
BORE:............................... 2.4"
MOTOR OUTPUT (30 MIN):.............. 25 HP
SECONDARY SPINDLE
CHUCK SIZE:......................... 6"
MOTOR OUTPUT (10 MIN):.............. 10 HP
MAXIMUM TORQUE:..................... 36.17 LB FT
NUMBER OF TOOLS (MILLING TOOLS):...... 12 TOOL SIZE
OD TURNING:......................... 1"
ID TURNING:......................... 1.5"
ROTARY DRILL:....................... .55"
ROTARY TAP:......................... 1/2 UNC MAIN SPINDLE
3/8 UNC SUB SPINDLE
ROTARY END MILL:.................... 0.63"
INDEXING TIME:...................... 0.5/1.4 SEC
MILL ROTATION SPEED:................ 3,000 RPM
MILL SPINDLE MOTOR OUTPUT (10 MIN):. 4 HP
COOLANT TANK CAPACITY:................ 52.84 GAL
ELECTRICAL EQUIPMENT:................. 59.724 KVA
SPINDLE CENTER WEIGHT:................ 40.16"
DIMENSIONS:........................... 119.49" (L) X
62.20" (W) X
74.80" (H)
EQUIPPED WITH:

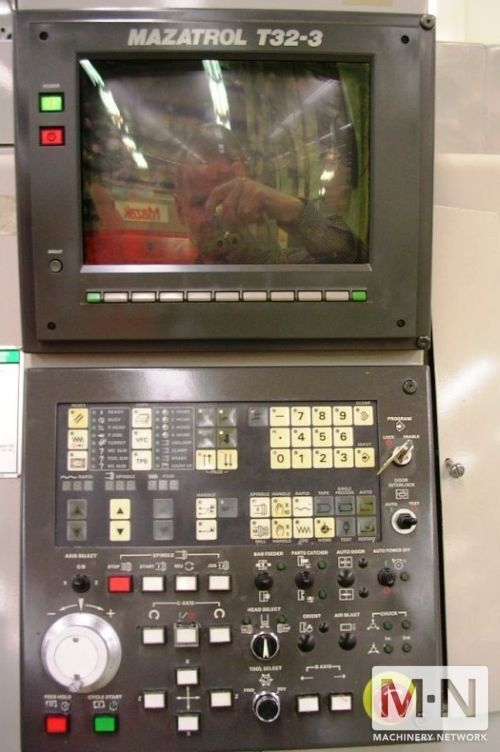

MAZATROL T32-3 CNC CONTROL

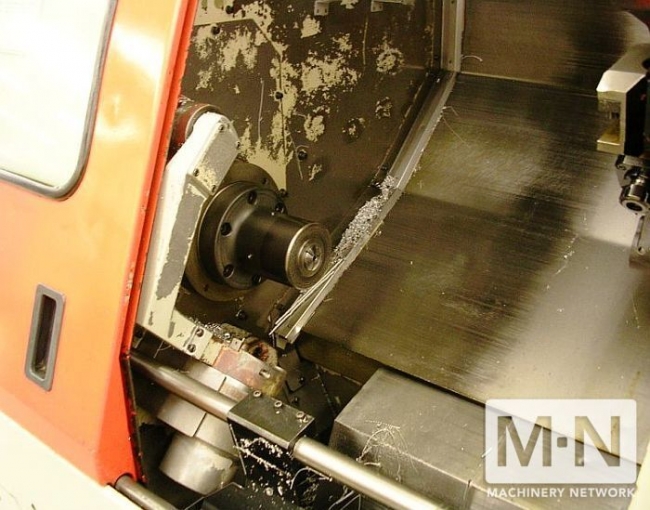

6" 3-JAW CHUCK AND 16C COLLET CHUCK (MAIN SPINDLE)
6" 3-JAW CHUCK AND B42 COLLET CHUCK (SUB SPINDLE)

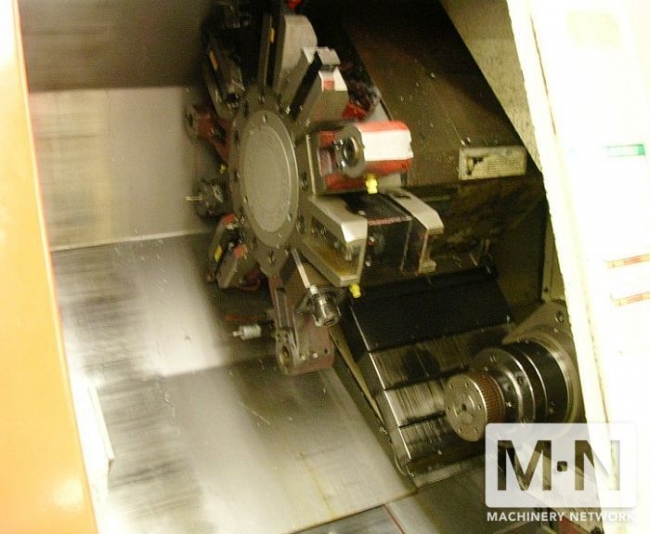

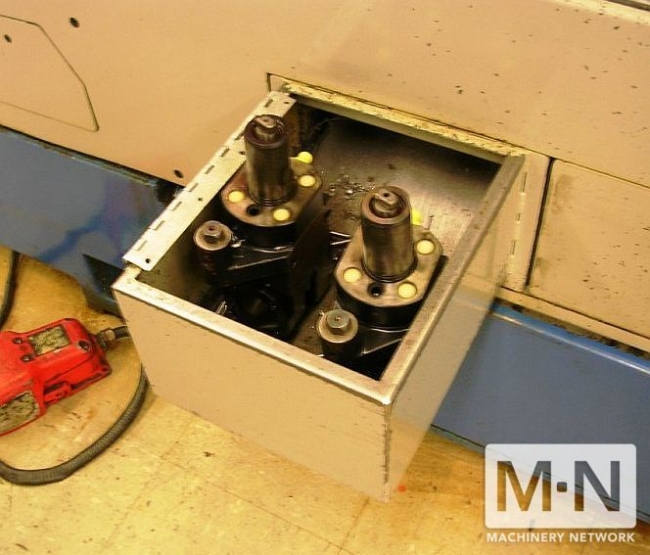

THREE LIVE HOLDERS (2 - Z, 1 - X)
MISC REGULAR HOLDERS (ENOUGH TO FILL TURRET PLUS)
RENESHAW PROBE HOLDER WITH PROBE
FILTERMIST
SUB SPINDLE, C-AXIS AND MAZATROL T-32-3 CONTROL,& SMW MAGIZINE STYLE BAR-FEED
NEW 1993
SPECIFICATIONS:
TRAVELS - X-AXIS:.................... 7.125"
Z-AXIS:.................... 22.75"
B-AXIS:.................... 23.25"
RAPID FEED RATE(X,Z,B AXIS):.......... 1176/1176 IPM
RAPID FEED RATE (C AXIS):............. 100 RPM
CHUCK SIZE:........................... 8"
MAXIMUM SWING:........................ 20.91"
STANDARD MACHINING DIAMETER::......... 10.87"
MAXIMUM MACHINING DIAMETER:........... 11.81"
BAR WORK CAPABILITY::................. 2"
DIST B/W SPDL END & TURRET END FACE:.. 4.92" - 27.56"
MAXIMUM MACHINING LENGTH:............. 20.90"
MAIN SPINDLE
ROTATION SPEED RANGE:............... 35 - 5,000 RPM
BORE:............................... 2.4"
MOTOR OUTPUT (30 MIN):.............. 25 HP
SECONDARY SPINDLE
CHUCK SIZE:......................... 6"
MOTOR OUTPUT (10 MIN):.............. 10 HP
MAXIMUM TORQUE:..................... 36.17 LB FT
NUMBER OF TOOLS (MILLING TOOLS):...... 12 TOOL SIZE
OD TURNING:......................... 1"
ID TURNING:......................... 1.5"
ROTARY DRILL:....................... .55"
ROTARY TAP:......................... 1/2 UNC MAIN SPINDLE
3/8 UNC SUB SPINDLE
ROTARY END MILL:.................... 0.63"
INDEXING TIME:...................... 0.5/1.4 SEC
MILL ROTATION SPEED:................ 3,000 RPM
MILL SPINDLE MOTOR OUTPUT (10 MIN):. 4 HP
COOLANT TANK CAPACITY:................ 52.84 GAL
ELECTRICAL EQUIPMENT:................. 59.724 KVA
SPINDLE CENTER WEIGHT:................ 40.16"
DIMENSIONS:........................... 119.49" (L) X
62.20" (W) X
74.80" (H)
EQUIPPED WITH:
MAZATROL T32-3 CNC CONTROL
6" 3-JAW CHUCK AND 16C COLLET CHUCK (MAIN SPINDLE)
6" 3-JAW CHUCK AND B42 COLLET CHUCK (SUB SPINDLE)
THREE LIVE HOLDERS (2 - Z, 1 - X)
MISC REGULAR HOLDERS (ENOUGH TO FILL TURRET PLUS)
RENESHAW PROBE HOLDER WITH PROBE
FILTERMIST
