MAZAK MULTIPLEX 625 MARK II
Type:
LATHES, COMBINATION, N/C & CNC, (3-axis Or More)
Manufacturer:
MAZAK
Model:
MULTIPLEX 625 MARK II
Condition:
Not Specified
Year:
1996
Stock #:
23045
Status:
Sold
Description:
6 AXIS, MAZATROL T-PLUS
Location:
Illinois, United States
Specifications from OEM brochure and equipped with are described to the best of our knowledge. ALL items should be confirmed by buyer.

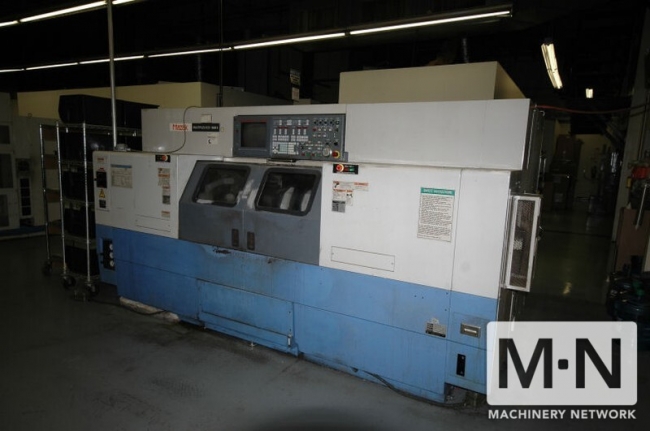

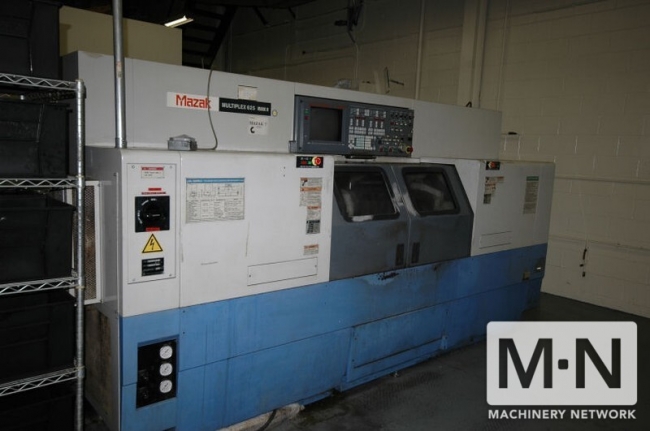

(1) MAZAK MULTIPLEX 625 MARKII 6-AXIS TURNING &
MILLING CENTER, USED 1996
SPECIFICATIONS:
MAX. SWING DIA. 15.35"
SWING OVER CARRIAGE 15.35"
MAX. DIST B/W SPDLS 46.45"
MAX. BAR CAPACITY 2.55"
SPDLE NOSE/SPDLE THRU HOLE DIA A2-6" (2.99")
SPINDLE SPEED 35-4000 RPM
MAIN SPINDLE MOTOR 25 HP AC
TURRET TYPE 12 DRUM TURRET X 2
ROTARY TOOL SPEED 120-3000 RPM
ROTARY TOOL HORSEPOWER 5 HP AC
NO. OF TOOLS 12 / 12
STROKE OF X- AXIS 9.05"
STROKE OF Z -AXIS (L-R) 16.93"/19.09"
SPDL INDEXING INCREMENTS .001 DEGREE
RAPID TRAVERSE RATE (X & Z) 945 IPM
MACHINE WEIGHT 18,000 LBS.
EQUIPPED WITH:

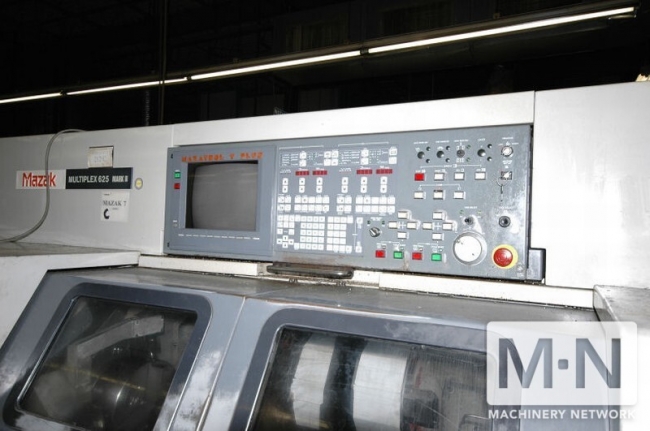

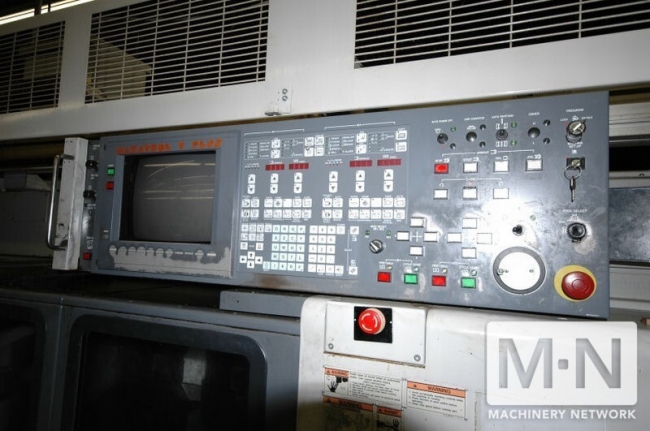

MAZATROL T-PLUS CNC CONTROL
EIA/ISO PROGRAMMING
TOOL EYES (L/R)
AIR BLAST (L/R)
(2)10" 3-JAW HYDRAULIC CHUCKS
AUTO PARTICIAN
CHIP CONVEYOR

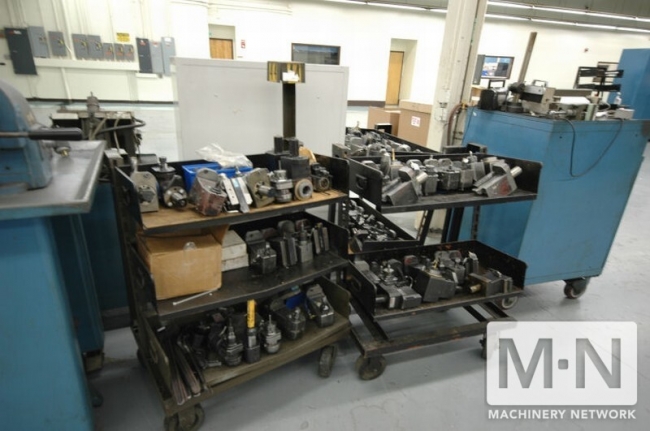

(11)Z-AXIS ROTARY HOLDERS,(10)TURNING HOLDERS
(7) BORIING BAR HOLDERS
ALL AVAILABLE MANUALS
MILLING CENTER, USED 1996
SPECIFICATIONS:
MAX. SWING DIA. 15.35"
SWING OVER CARRIAGE 15.35"
MAX. DIST B/W SPDLS 46.45"
MAX. BAR CAPACITY 2.55"
SPDLE NOSE/SPDLE THRU HOLE DIA A2-6" (2.99")
SPINDLE SPEED 35-4000 RPM
MAIN SPINDLE MOTOR 25 HP AC
TURRET TYPE 12 DRUM TURRET X 2
ROTARY TOOL SPEED 120-3000 RPM
ROTARY TOOL HORSEPOWER 5 HP AC
NO. OF TOOLS 12 / 12
STROKE OF X- AXIS 9.05"
STROKE OF Z -AXIS (L-R) 16.93"/19.09"
SPDL INDEXING INCREMENTS .001 DEGREE
RAPID TRAVERSE RATE (X & Z) 945 IPM
MACHINE WEIGHT 18,000 LBS.
EQUIPPED WITH:
MAZATROL T-PLUS CNC CONTROL
EIA/ISO PROGRAMMING
TOOL EYES (L/R)
AIR BLAST (L/R)
(2)10" 3-JAW HYDRAULIC CHUCKS
AUTO PARTICIAN
CHIP CONVEYOR
(11)Z-AXIS ROTARY HOLDERS,(10)TURNING HOLDERS
(7) BORIING BAR HOLDERS
ALL AVAILABLE MANUALS
