MAZAK MULTIPLEX 6200
Type:
LATHES, COMBINATION, N/C & CNC, (3-axis Or More)
Manufacturer:
MAZAK
Model:
MULTIPLEX 6200
Condition:
Not Specified
Year:
2004
Stock #:
29964
Status:
Sold
Description:

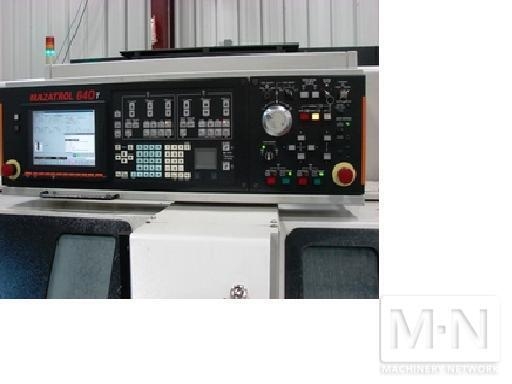

MAZATROL FUSION 640MT
Location:
United States
Specifications from OEM brochure and equipped with are described to the best of our knowledge. ALL items should be confirmed by buyer.

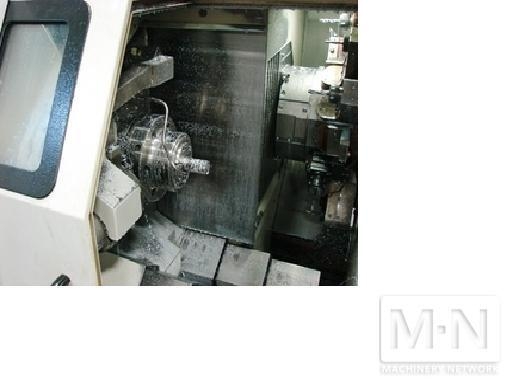

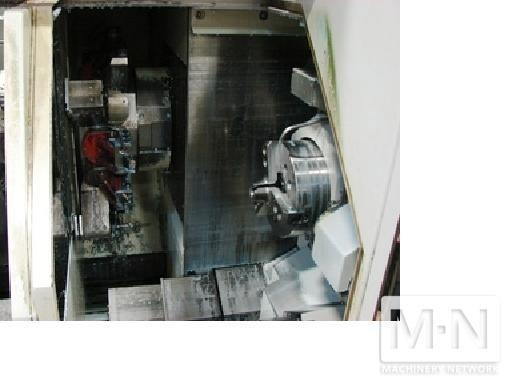

(1) USED MAZAK MULTIPLEX 6200 BAR FEED DUAL SPINDLE TURNING CENTER NEW 2004
SPECIFICATIONS: MAZAK MULTIPLEX 6200 DUAL SPINDLE TURNING CENTER WITH LARGE QUANTITY LIVE TOOLING PACKAGE CONTROL: ............................ MAZATROL FUSION 640MT CNC CONTROL CHUCK SIZE 8" (2) WITH: ATS QUICK CHANGE COLLET CHUCK ON MAIN SPINDLE AND 6" DIA. 3-JAW CHUCK ON SECOND SPINDLE MAX DIAMETER BAR CAPACITY: .......... 2" MAX SWING OVER BED: ................. 12.5" MAX TURNING DIAMETER: ............... 10.24" DISTANCE BETWEEN SPINDLES: .......... 46.85" SPINDLE MOTOR: ...................... 30 / 20 HP AC SPINDLE SPEED: ...................... 35 - 5000 RPM SPINDLE BORE: ....................... 2.4" SPINDLE NOSE: ....................... A2-6 TURRET POSITIONS: ................... 12 X (2) LIVE OR TURNING (BOTH TURRETS) MILLING MOTOR: ...................... 5 HP MILLING SPEED: ...................... 25 - 4500 RPM RAPID TRAVERSE RATES (X & Y / Z): ... 1200 / 1300 IPM X-AXIS TRAVEL: ...................... 9.06" Z-AXIS TRAVEL (L & R): .............. 17.25" / 19.37" C-AXIS INDEX: ....................... 0.001 DEGREE MACHINE DIMENSIONS (L X W X H): ..... 140.6" X 71.9" X 82.3" MACHINE WEIGHT: ..................... 17,420 LBS
EQUIPPED WITH: LNS MODEL QUICK LOAD SERVO 3 (6) FT. BAR LENGTH MAGAZINE BARFEED 10.4" COLOR LCD CONVERSATIONAL PROGRAMMING EIA/ISO INPUT FUNCTION GRAPHIC DISPLAY 1 MB MEMORY 3.5" FLOPPY DISC DRIVE 1.5 GB HARD DRIVE TWIN UPPER TURRETS WITH TWIN OPPOSED SPINDLES C-AXIS MILLING CAPABILITY (L & R) UNLOAD HAND FOR RIGHT SPINDLE PROGRAMMABLE TOOL EYE (L & R) COLLET CHUCK FOR LEFT SPINDLE 6" 3-JAW HYDRAULIC CHUCK ON RIGHT SPINDLE MULTI-TAP TRANSFORMER CHIP CONVEYOR (REAR DISCHARGE) PARTS CATCHER WITH PARTS EXIT CONVEYOR THREE COLOR TOWER LIGHT CENTER DOOR DIVIDER (2) ORIGINAL KITAGAWA 8" CHUCKS
SPECIFICATIONS: MAZAK MULTIPLEX 6200 DUAL SPINDLE TURNING CENTER WITH LARGE QUANTITY LIVE TOOLING PACKAGE CONTROL: ............................ MAZATROL FUSION 640MT CNC CONTROL CHUCK SIZE 8" (2) WITH: ATS QUICK CHANGE COLLET CHUCK ON MAIN SPINDLE AND 6" DIA. 3-JAW CHUCK ON SECOND SPINDLE MAX DIAMETER BAR CAPACITY: .......... 2" MAX SWING OVER BED: ................. 12.5" MAX TURNING DIAMETER: ............... 10.24" DISTANCE BETWEEN SPINDLES: .......... 46.85" SPINDLE MOTOR: ...................... 30 / 20 HP AC SPINDLE SPEED: ...................... 35 - 5000 RPM SPINDLE BORE: ....................... 2.4" SPINDLE NOSE: ....................... A2-6 TURRET POSITIONS: ................... 12 X (2) LIVE OR TURNING (BOTH TURRETS) MILLING MOTOR: ...................... 5 HP MILLING SPEED: ...................... 25 - 4500 RPM RAPID TRAVERSE RATES (X & Y / Z): ... 1200 / 1300 IPM X-AXIS TRAVEL: ...................... 9.06" Z-AXIS TRAVEL (L & R): .............. 17.25" / 19.37" C-AXIS INDEX: ....................... 0.001 DEGREE MACHINE DIMENSIONS (L X W X H): ..... 140.6" X 71.9" X 82.3" MACHINE WEIGHT: ..................... 17,420 LBS
EQUIPPED WITH: LNS MODEL QUICK LOAD SERVO 3 (6) FT. BAR LENGTH MAGAZINE BARFEED 10.4" COLOR LCD CONVERSATIONAL PROGRAMMING EIA/ISO INPUT FUNCTION GRAPHIC DISPLAY 1 MB MEMORY 3.5" FLOPPY DISC DRIVE 1.5 GB HARD DRIVE TWIN UPPER TURRETS WITH TWIN OPPOSED SPINDLES C-AXIS MILLING CAPABILITY (L & R) UNLOAD HAND FOR RIGHT SPINDLE PROGRAMMABLE TOOL EYE (L & R) COLLET CHUCK FOR LEFT SPINDLE 6" 3-JAW HYDRAULIC CHUCK ON RIGHT SPINDLE MULTI-TAP TRANSFORMER CHIP CONVEYOR (REAR DISCHARGE) PARTS CATCHER WITH PARTS EXIT CONVEYOR THREE COLOR TOWER LIGHT CENTER DOOR DIVIDER (2) ORIGINAL KITAGAWA 8" CHUCKS
