MAZAK INTEGREX 35Y
Type:
LATHES, COMBINATION, N/C & CNC, (3-axis Or More)
Manufacturer:
MAZAK
Model:
INTEGREX 35Y
Condition:
Not Specified
Year:
1998
Stock #:
29826
Status:
Sold
Description:
22.5" SWING, 60" CUTTING LENGTH
Location:
United States
Specifications from OEM brochure and equipped with are described to the best of our knowledge. ALL items should be confirmed by buyer.

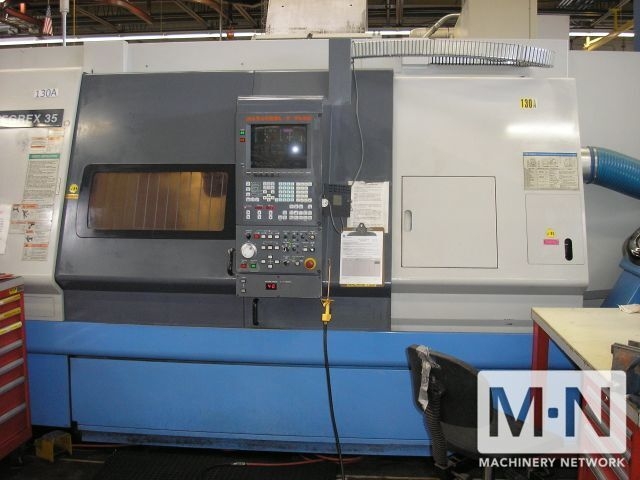

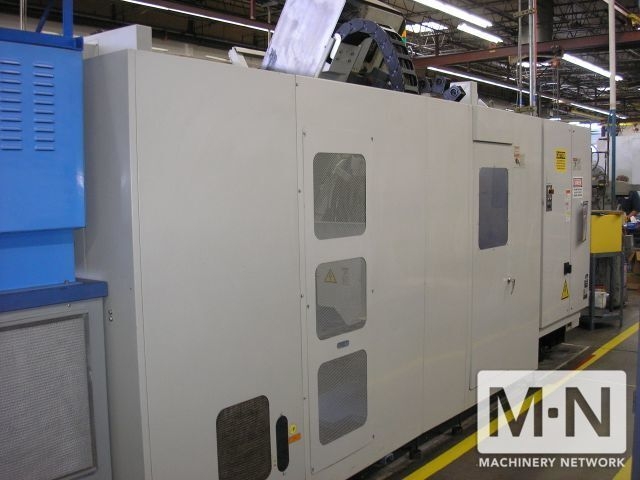

(1) USED MAZAK INTEGREX 35Y/1500 CNC TURNING CENTER
NEW 1998
SPECIFICATIONS:
MAX SWING: 22.5"
MAX MACHINING DIAMETER: 22.5"
MAX CUTTING LENGTH: 60.2"
SPINDLE BORE: 3.46"
SPINDLE NOSE: A2-8
MAX BAR CAPACITY: 3.0"
SPINDLE SPEED: 2800 RPM
TRAVELS:
C-AXIS: 360,000 DEG.
X-AXIS: 11.81"
Z-AXIS: 62"
Y-AXIS: +/- 3.54"
RAPID TRAVERSE RATES:
C-AXIS: 100 IPM
X-AXIS: 1181 IPM
Z-AXIS: 1181 IPM
Y-AXIS: 591 IPM
MIN. SPINDLE INDEXING: .001 DEG.

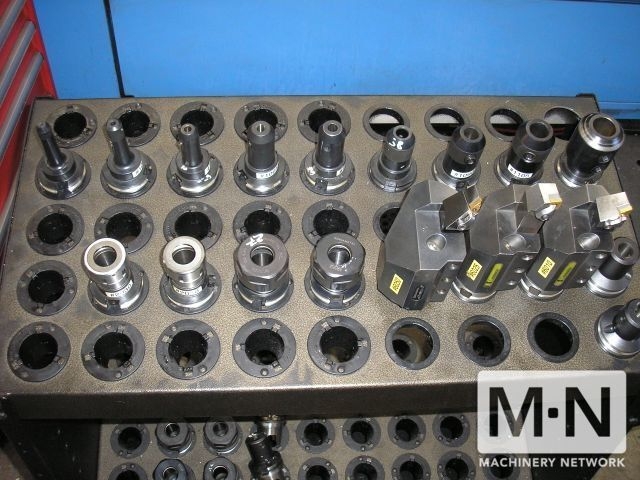

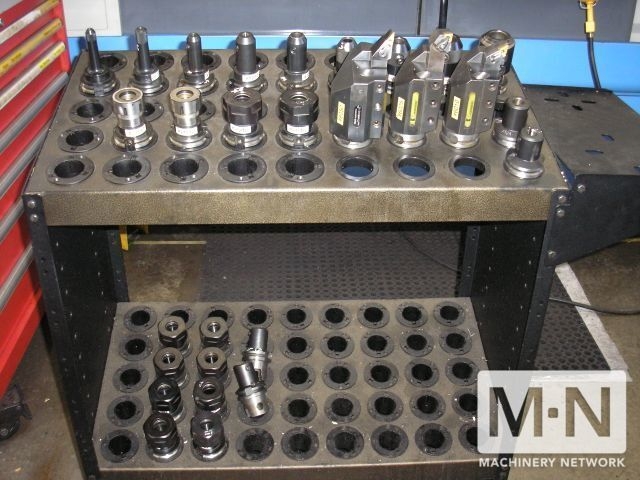

TOOL MAGAZINE CAPACITY: 40 ATC
TYPE OF TURRET: 2 POSITION W/ATC
MAX. TOOL DIA. ADJ: 3.54"/4.72"
MAX. TOOL LENGTH: 11.8"
ROTARY TOOLS SPINDLE NOSE: CAT #40
ROTARY TOOL SPINDLE SPEED: 6000 RPM
ROTARY TOOL MOTOR: 10 HP
MAXIMUM TOOL WEIGHT: 22 LBS.
Z - AXIS THRUST: 5810 LBS.
TAIL STOCK CENTER: MT # 5
TAIL STOCK STROKE: 55.4"
TAIL STOCK QUILL STROKE: 5.1"
MAIN MOTOR: 40 HP
EQUIPPED WITH:

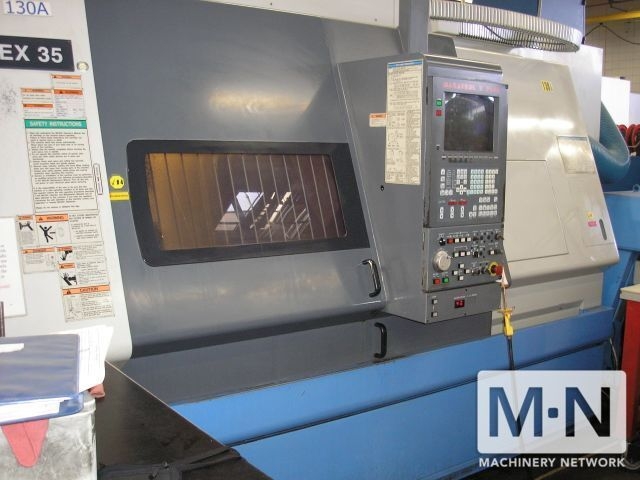

MAZATROL T-PLUS CNC CONTROL
EIA/ISO PROGRAMMING
1 MB MEMORY
PREPPED FOR SMW STEADY REST

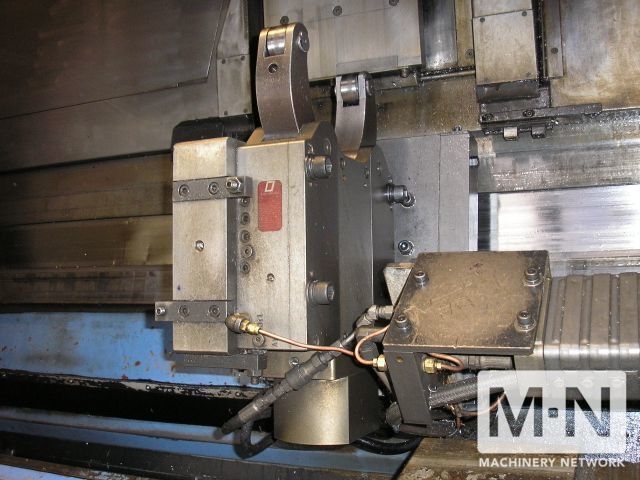

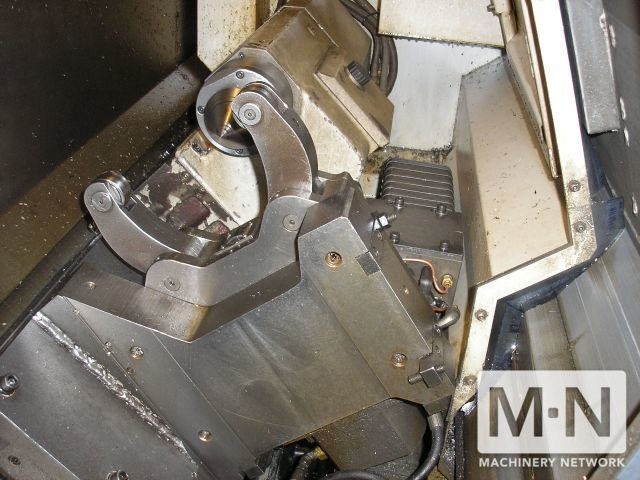

SMW HYDRAULIC OPEN & CLOSE STEADY REST
HIGH POWER COOLANT SYSTEM

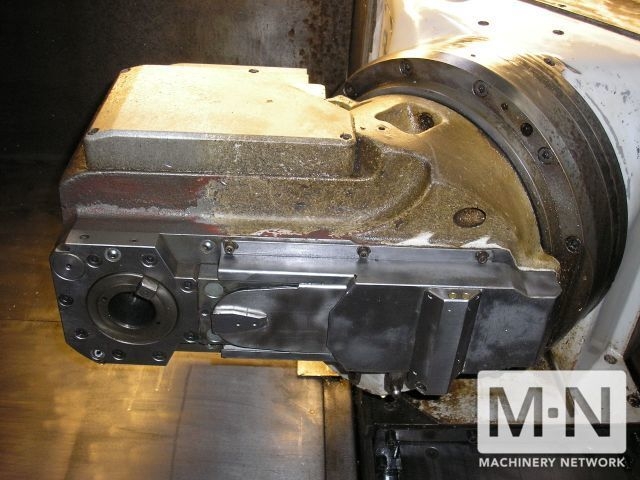

COOLANT THRU MILLING HEAD
X,Y,Z PITCH ERROR COMPENSATION
C - PITCH ERROR COMPENSATION
AUTOMATIC TOOL EYE

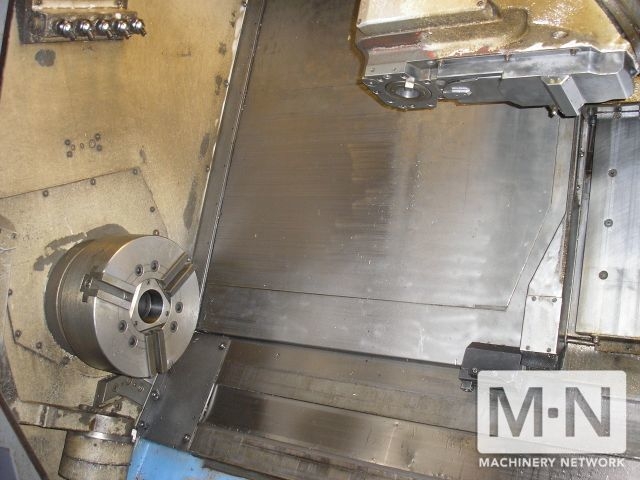

12" 3-JAW HYDRAULIC CHUCK
TEMPERATURE CONTROLLED COOLANT
RIGID TAPPING
POLAR COORDINATE ROTATION
CHIP CONVEYOR
DOOR INTERLOCK
ALL AVAILABLE MANUALS
NEW 1998
SPECIFICATIONS:
MAX SWING: 22.5"
MAX MACHINING DIAMETER: 22.5"
MAX CUTTING LENGTH: 60.2"
SPINDLE BORE: 3.46"
SPINDLE NOSE: A2-8
MAX BAR CAPACITY: 3.0"
SPINDLE SPEED: 2800 RPM
TRAVELS:
C-AXIS: 360,000 DEG.
X-AXIS: 11.81"
Z-AXIS: 62"
Y-AXIS: +/- 3.54"
RAPID TRAVERSE RATES:
C-AXIS: 100 IPM
X-AXIS: 1181 IPM
Z-AXIS: 1181 IPM
Y-AXIS: 591 IPM
MIN. SPINDLE INDEXING: .001 DEG.
TOOL MAGAZINE CAPACITY: 40 ATC
TYPE OF TURRET: 2 POSITION W/ATC
MAX. TOOL DIA. ADJ: 3.54"/4.72"
MAX. TOOL LENGTH: 11.8"
ROTARY TOOLS SPINDLE NOSE: CAT #40
ROTARY TOOL SPINDLE SPEED: 6000 RPM
ROTARY TOOL MOTOR: 10 HP
MAXIMUM TOOL WEIGHT: 22 LBS.
Z - AXIS THRUST: 5810 LBS.
TAIL STOCK CENTER: MT # 5
TAIL STOCK STROKE: 55.4"
TAIL STOCK QUILL STROKE: 5.1"
MAIN MOTOR: 40 HP
EQUIPPED WITH:
MAZATROL T-PLUS CNC CONTROL
EIA/ISO PROGRAMMING
1 MB MEMORY
PREPPED FOR SMW STEADY REST
SMW HYDRAULIC OPEN & CLOSE STEADY REST
HIGH POWER COOLANT SYSTEM
COOLANT THRU MILLING HEAD
X,Y,Z PITCH ERROR COMPENSATION
C - PITCH ERROR COMPENSATION
AUTOMATIC TOOL EYE
12" 3-JAW HYDRAULIC CHUCK
TEMPERATURE CONTROLLED COOLANT
RIGID TAPPING
POLAR COORDINATE ROTATION
CHIP CONVEYOR
DOOR INTERLOCK
ALL AVAILABLE MANUALS
