MAZAK INTEGREX 200-IIIS
Type:
LATHES, COMBINATION, N/C & CNC, (3-axis Or More)
Manufacturer:
MAZAK
Model:
INTEGREX 200-IIIS
Condition:
Not Specified
Year:
2004
Stock #:
24796
Status:
Sold
Description:
FUSION 640MT, 5K RPM, 29.3 HP, 40ATC, 26" SWING, SUB SPDL, 8" CHUCK
Location:
United States
Specifications from OEM brochure and equipped with are described to the best of our knowledge. ALL items should be confirmed by buyer.

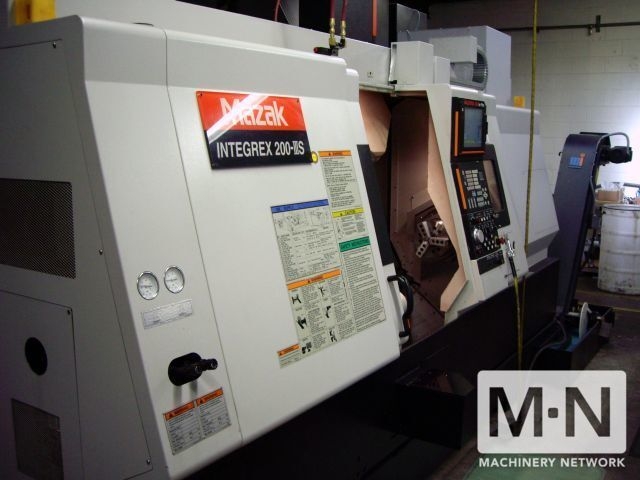

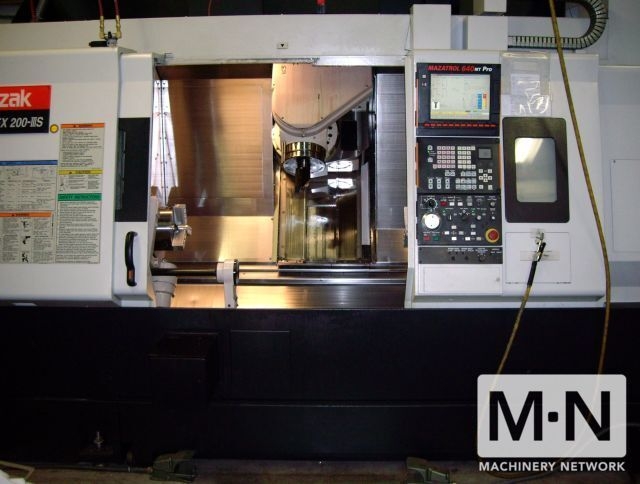

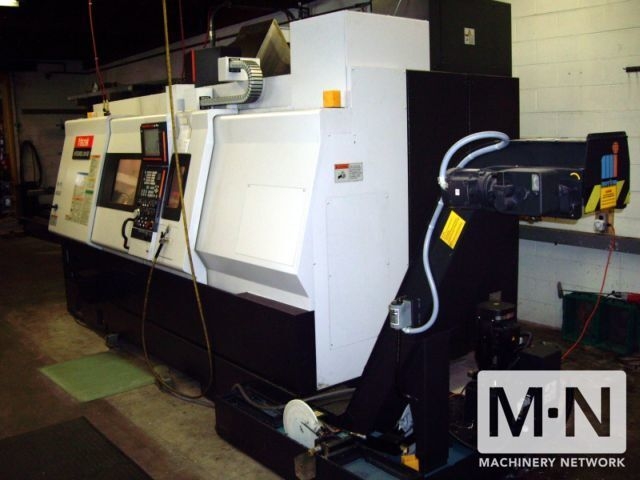

(1) USED MAZAK INTEGREX 200-IIIS CNC TURNING CENTER
WITH SUBSPINDLE NEW- 2004
SPECIFICATIONS:
MAIN SPINDLE:
CHUCK DIAMETER: 8"
TURNING DIAMETERS: MAXIMUM: 26"
TURNING LENGTHS: MAXIMUM: 40"
MAXIMUM SWING: 26"
BAR CAPACITY: 2.55"
SPINDLE SPEEED: 35-5000 RPM
SPINDLE BORE: 2.99"
SPINDLE DRIVE MOTOR: 29.3 HP

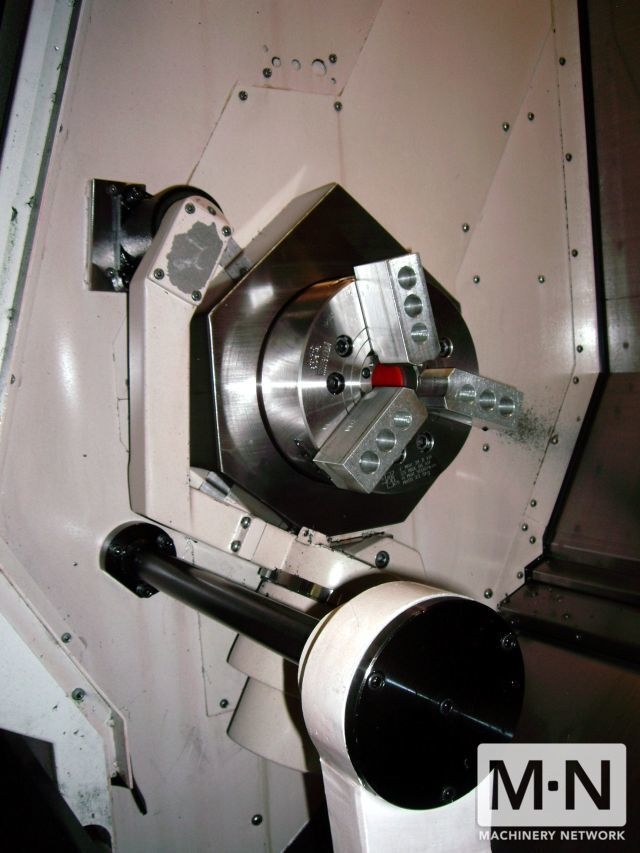

SUB SPINDLE:
CHUCK DIAMETER: 8"
BAR CAPACITY: 2.55"
SPINDLE SPEED: 35-5000 RPM
SPINDLE BORE: 2.99"
SPINDLE DRIVE MOTOR: 24.6 HP

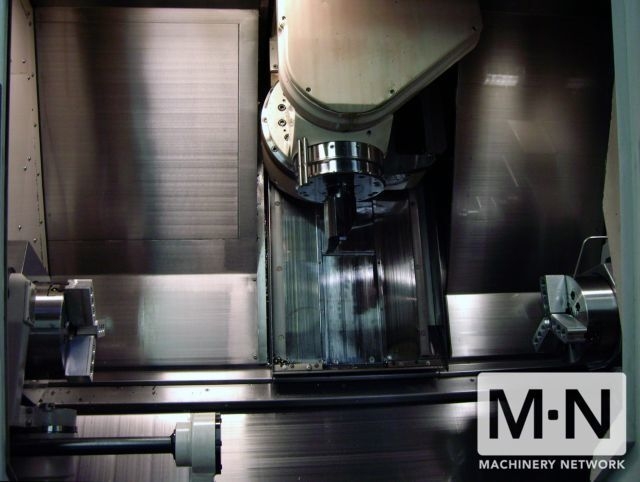

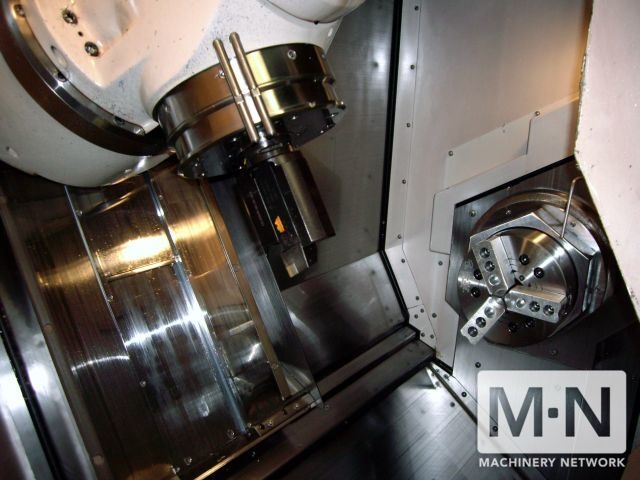

MILLING HEAD:
TYPE: SINGLE SPINDLE WITH ATC UNIT
TOOL SHANK TYPE
(MILLING/TURNING): CAPTO C6
90 DEG. INDEXING TIME: .5 SECONDS
MOTOR OUTPUT: 20 HP
MILLING SPINDLE SPEED: 15-1200 RPM
AXIS SPECIFICATIONS:
RAPID FEET RATE:
X/Z: 1496/1496 IPM
Y: 1023 IPM
W: 1181 IPM
EQUIPPED WITH:

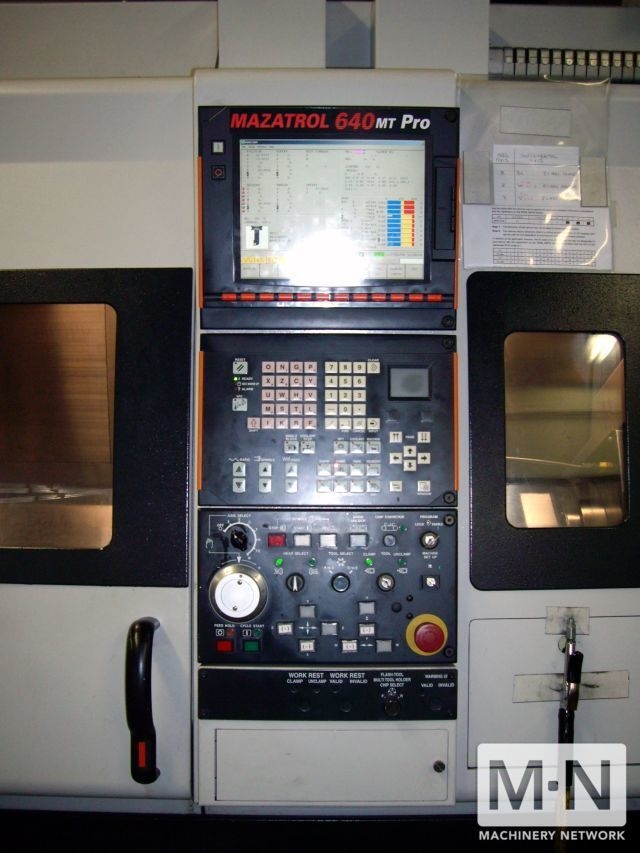

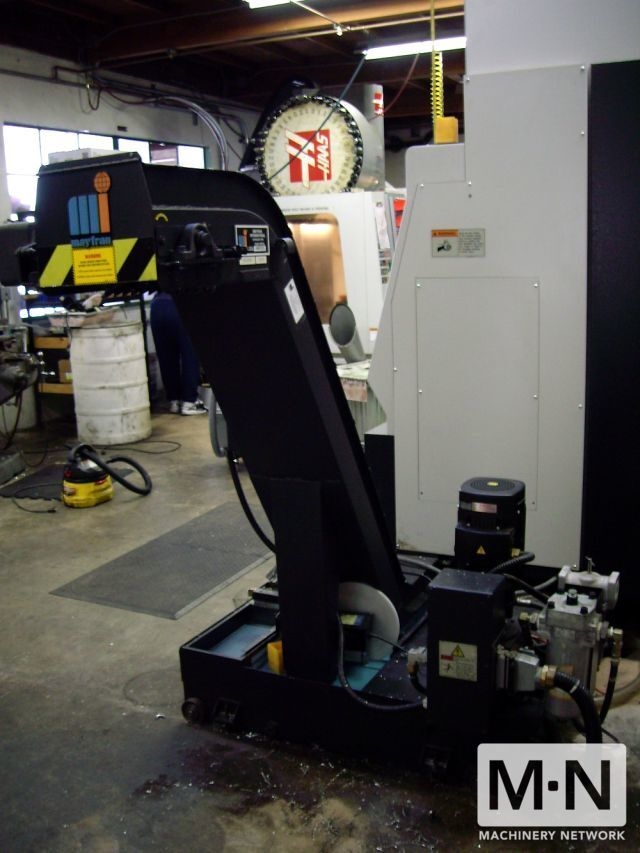

FUSION 640MT PRO CNC CONTROL, CHIP CONVEYOR, (40)TOOL HOLDERS, PARTS CATCHER, BACKGROUND PATH CHECK, EIA/ISO, CHANGE TO EIA, B AXIS ANGLE POSITIONING TURNING, MULTI TOOL HOLDER/ FLASH TOOL, SHAPE COMP, HIGH SPEED, 2ND AUXI FUNCTION, NOB, Y-AXIS CONTROL, SYNCHRO. MILL TAPPING, THREAD START POINT COMPENSATION, SCALE FEED BACK, CYLINDRICAL INTERPOLATION, POLYGON MACHINING, TOOL CENTER POINT CONTROL, SIMULTANEOUS 5-AXIS CONTROL, ENHANCED Y-AXIS MAZATROL, SYNCRO. MAIN SPINDLE TAPPING, EIA HELICAL INTERPORATION, IEA COORDINATE ROTATION, B AXIS CONTROL, ENHANCED Y-AXIS MAZATROL(FACE 1), ENHANCED Y-AXIS MAZATROL(FACE 2), ROTARY-AXIS SUBMICRON, GANTRY ROBOT CONTROL, AUTO PECKING, EIA HELICAL TAP, SUB SP. 1/1000TH DEG. POSITIONING, SUB C-AXIS CONTROL, ROTARY-AXIS SHAPE COMP, SUBMICRON SYSTEM, RE-THREAD, ETERNET RUNNING
WITH SUBSPINDLE NEW- 2004
SPECIFICATIONS:
MAIN SPINDLE:
CHUCK DIAMETER: 8"
TURNING DIAMETERS: MAXIMUM: 26"
TURNING LENGTHS: MAXIMUM: 40"
MAXIMUM SWING: 26"
BAR CAPACITY: 2.55"
SPINDLE SPEEED: 35-5000 RPM
SPINDLE BORE: 2.99"
SPINDLE DRIVE MOTOR: 29.3 HP
SUB SPINDLE:
CHUCK DIAMETER: 8"
BAR CAPACITY: 2.55"
SPINDLE SPEED: 35-5000 RPM
SPINDLE BORE: 2.99"
SPINDLE DRIVE MOTOR: 24.6 HP
MILLING HEAD:
TYPE: SINGLE SPINDLE WITH ATC UNIT
TOOL SHANK TYPE
(MILLING/TURNING): CAPTO C6
90 DEG. INDEXING TIME: .5 SECONDS
MOTOR OUTPUT: 20 HP
MILLING SPINDLE SPEED: 15-1200 RPM
AXIS SPECIFICATIONS:
RAPID FEET RATE:
X/Z: 1496/1496 IPM
Y: 1023 IPM
W: 1181 IPM
EQUIPPED WITH:
FUSION 640MT PRO CNC CONTROL, CHIP CONVEYOR, (40)TOOL HOLDERS, PARTS CATCHER, BACKGROUND PATH CHECK, EIA/ISO, CHANGE TO EIA, B AXIS ANGLE POSITIONING TURNING, MULTI TOOL HOLDER/ FLASH TOOL, SHAPE COMP, HIGH SPEED, 2ND AUXI FUNCTION, NOB, Y-AXIS CONTROL, SYNCHRO. MILL TAPPING, THREAD START POINT COMPENSATION, SCALE FEED BACK, CYLINDRICAL INTERPOLATION, POLYGON MACHINING, TOOL CENTER POINT CONTROL, SIMULTANEOUS 5-AXIS CONTROL, ENHANCED Y-AXIS MAZATROL, SYNCRO. MAIN SPINDLE TAPPING, EIA HELICAL INTERPORATION, IEA COORDINATE ROTATION, B AXIS CONTROL, ENHANCED Y-AXIS MAZATROL(FACE 1), ENHANCED Y-AXIS MAZATROL(FACE 2), ROTARY-AXIS SUBMICRON, GANTRY ROBOT CONTROL, AUTO PECKING, EIA HELICAL TAP, SUB SP. 1/1000TH DEG. POSITIONING, SUB C-AXIS CONTROL, ROTARY-AXIS SHAPE COMP, SUBMICRON SYSTEM, RE-THREAD, ETERNET RUNNING
