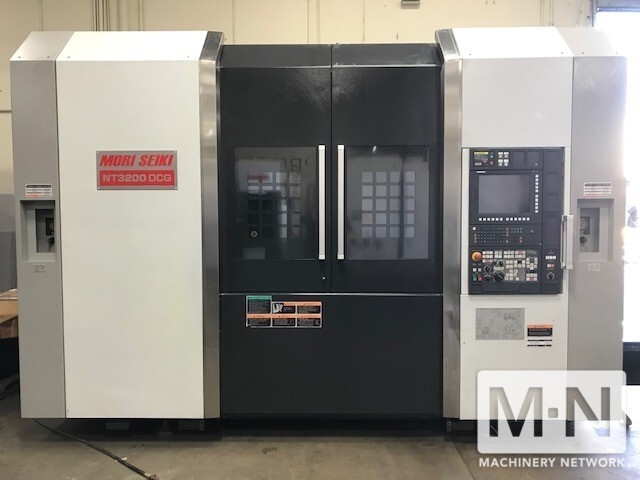

MORI SEIKI NT-3200 DCG/ 1000 SZ
Type:
LATHES, COMBINATION, N/C & CNC, (3-axis Or More)
Manufacturer:
MORI SEIKI
Model:
NT-3200 DCG/ 1000 SZ
Condition:
Not Specified
Year:
2006
Stock #:
37825
Status:
Sold
Description:

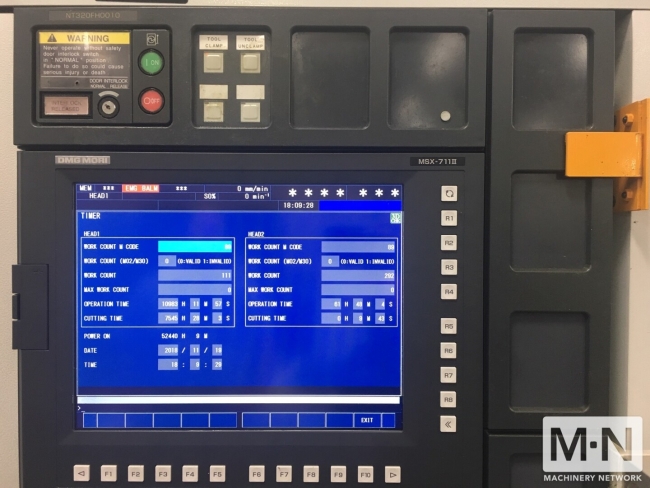

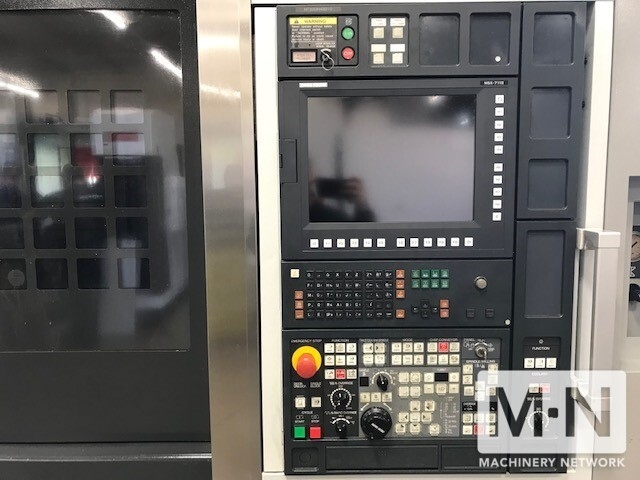

Mori MSX-711 Control , 40 tool mag
Location:
California, United States
Specifications from OEM brochure and equipped with are described to the best of our knowledge. ALL items should be confirmed by buyer.
(1) USED MORI SEIKI NT-3200 DCG/ 1000 SZ
NEW 2006
SPECIFICATIONS:
- MORI MSX-711 CONTROL

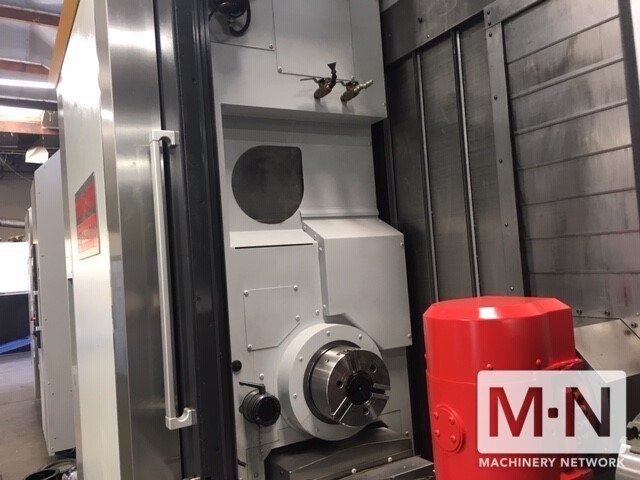

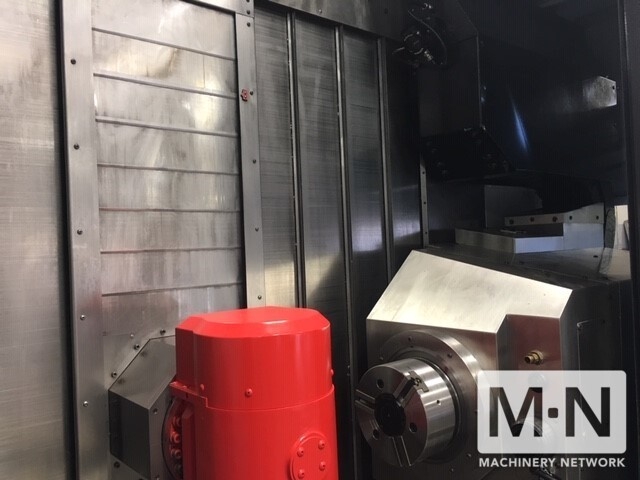

- (2) 5,000 RPM TURNING SPINDLES
O THRU-SPINDLE HOLE DIA. 2.9”
O MINIMUM SPINDLE INDEXING ANGLE .0001 DEG

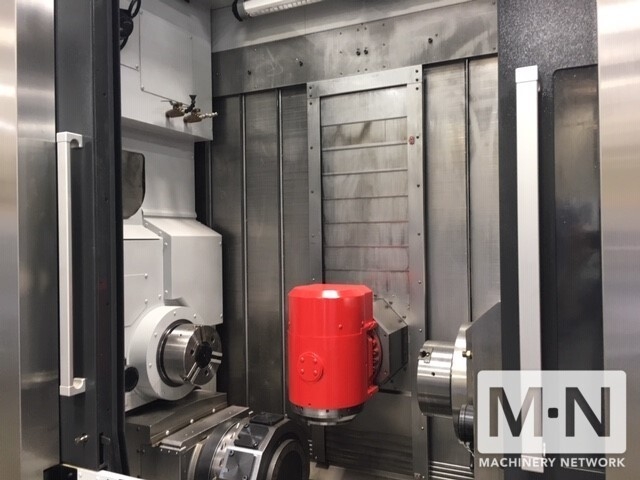

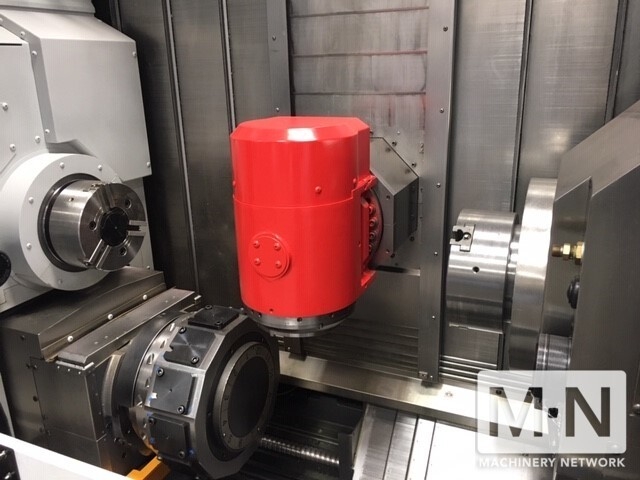

- 12,000 RPM MILLING SPINDLE

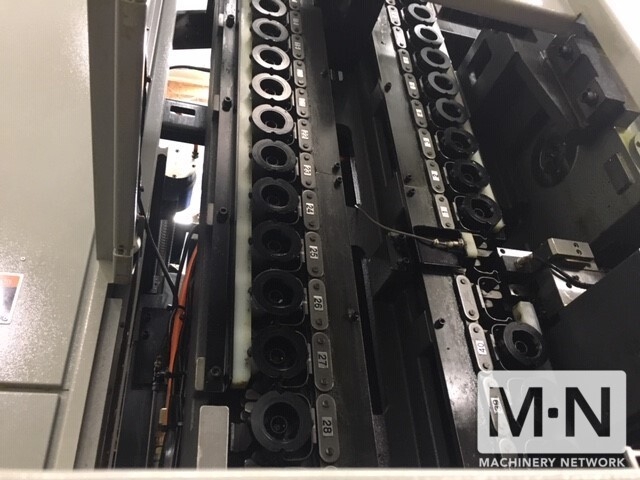

O 40 TOOL CAPACITY MAGAZINE
O MINIMUM B-AXIS INDEXING ANGLE 1 DEG
O 240 TOOL OFFSETS
- 12 STATION LOWER TURRET (TURRET 2)
O BUILT-IN MOTOR / ALL LIVE-TOOLING CAPABLE – 6,000 RPM
O 64 TOOL OFFSETS
- BUILT-IN TOOL PRESETTER
- CHIP CONVEYOR
- TOOL LIFE MANAGEMENT

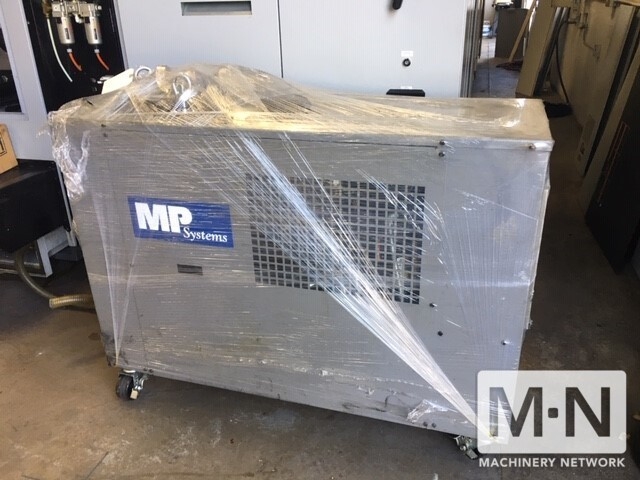

- INCLUDES HIGH PRESSURE UNIT
OTHER MANUFACTURER SPECS:
O MAX. WORKPIECE SWING 23.6”
O SWING OVER CROSS-SLIDE (TURRET 2) 13.4”
O MAX. DISTANCE BETWEEN SPINDLE LARGE NOSES 49.4”
O MAX. TURNING DIAMETER (TOOL-SPINDLE CAPTO C5 = 23.6”, TURRET 2 = 8.2”)
O MAX. TURNING LENGTH 39.4”
O BAR WORK CAPACITY 2.6” DIA.
NEW 2006
SPECIFICATIONS:
- MORI MSX-711 CONTROL
- (2) 5,000 RPM TURNING SPINDLES
O THRU-SPINDLE HOLE DIA. 2.9”
O MINIMUM SPINDLE INDEXING ANGLE .0001 DEG
- 12,000 RPM MILLING SPINDLE
O 40 TOOL CAPACITY MAGAZINE
O MINIMUM B-AXIS INDEXING ANGLE 1 DEG
O 240 TOOL OFFSETS
- 12 STATION LOWER TURRET (TURRET 2)
O BUILT-IN MOTOR / ALL LIVE-TOOLING CAPABLE – 6,000 RPM
O 64 TOOL OFFSETS
- BUILT-IN TOOL PRESETTER
- CHIP CONVEYOR
- TOOL LIFE MANAGEMENT
- INCLUDES HIGH PRESSURE UNIT
OTHER MANUFACTURER SPECS:
O MAX. WORKPIECE SWING 23.6”
O SWING OVER CROSS-SLIDE (TURRET 2) 13.4”
O MAX. DISTANCE BETWEEN SPINDLE LARGE NOSES 49.4”
O MAX. TURNING DIAMETER (TOOL-SPINDLE CAPTO C5 = 23.6”, TURRET 2 = 8.2”)
O MAX. TURNING LENGTH 39.4”
O BAR WORK CAPACITY 2.6” DIA.
