MORI SEIKI NT-4250DCG/1500 SZ
Type:
LATHES, COMBINATION, N/C & CNC, (3-axis Or More)
Manufacturer:
MORI SEIKI
Model:
NT-4250DCG/1500 SZ
Condition:
Not Specified
Year:
2011
Stock #:
37758
Status:
Sold
Description:
MSX-711 IV Control
Location:
California, United States
Specifications from OEM brochure and equipped with are described to the best of our knowledge. ALL items should be confirmed by buyer.
(1) USED MORI SEIKI NT4250DCG/ 1500SZ
NEW 2011
SPECIFICATIONS:
MAX. WORK PIECE SWING DIAMETER.......................28.74”
SWING OVER CROSS SLIDE...............................28.74”
SWING OVER CROSS SLIDE AT TURRET 2 ................. 15.75”
MAX TURNING DIAMETER WITH TOOL SPINDLE (CAPTO C6)....25.98”
WITH TURRET 2 13.78”
MAX. TURNING LENGTH..................................60.71”
MAX. BAR CAPACITY....................................3.15”
MAX. DISTANCE BETWEEN CENTERS........................73.31”
TRAVELS
Y-AXIS TRAVEL......................................± 8.27”
X1 - AXIS TRAVEL (TOOL SPINDLE)......................29.53”
Z1 - AXIS TRAVEL (TOOL SPINDLE)......................61.02”
X2 – AXIS TRAVEL (TURRET 2)..........................7.68”
Z2 – AXIS TRAVEL (TURRET 2)..........................60.04”
B – AXIS INDEXING TRAVEL (TOOL SPINDLE)........... ± 120°
MAIN SPINDLE
MAX. SPINDLE SPEED (RPM).............................4,000
NO. OF SPINDLE SPEED RANGES (WINDING CHANGE).........2
SPINDLE NOSE ...................................... A2-8
SPINDLE BORE DIAMETER................................3.58”
C-AXIS SPINDLE POSITIONING...........................0.0001°
SPINDLE BEARING ID...................................5.51”
SPINDLE TORQUE (30 MIN./CONT. RATING) [FT.LB}....... 413/302
COUNTER SPINDLE (SUB SPINDLE)
MAX. SPINDLE SPEED (RPM).............................4,000
NO. OF SPINDLE SPEED RANGES (WINDING CHANGE).........2
SPINDLE NOSE........................................A2-8
SPINDLE BORE DIAMETER................................3.58”
C-AXIS SPINDLE POSITIONING ..........................0.0001°
SPINDLE BEARING ID ..................................5.51”
SPINDLE TORQUE (30 MIN./CONT. RATING) [FT.LB}........413/302

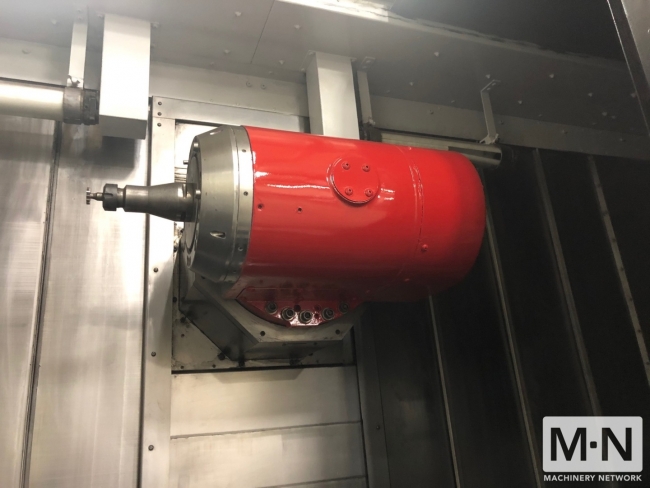

TOOL SPINDLE
NO. OF TOOL STATIONS ................................1
B-AXIS INDEXING TIME (SEC.)..........................0.4 / 90°
MIN. B-AXIS INDEXING INCREMENT...................... 0.0001°
MAX. SPINDLE SPEED (RPM).............................12,000
SPINDLE TOOL HOLDER TYPE.............................CAPTO C6
SPINDLE BEARING INNER DIAMETER.......................2.76”
ATC TOOL STORAGE CAPACITY............................40
MAX. TOOL DIAMETER (W AND W/O ADJACENT TOOL).........2.76/5.51”
MAX. TOOL LENGTH.....................................15.75”
MAX. TOOL WEIGHT (LBS)...............................22
TOOL CHANGE TIME (TOOL-TO-TOOL)..................... 1.25 SEC.
MAX. SPINDLE TORQUE (FT.LB) ........................ 88.50
TURRET 2.
NO. OF TOOL STATIONS.................................12
TOOL HOLDER SQUARE SHANK.............................1”
MAX. BORING BAR DIAMETER.............................2”
TURRET INDEXING TIME (STATION-TO-STATION)............0.28 SEC.
MAX. LIVE TOOL SPEED (RPM)...........................6,000
MAX. LIVE TOOL TORQUE (FT.LB)........................29.50
FEEDRATE
Y-AXIS RAPID TRAVERSE RATE (IN./MIN.) ...............1,181
X1 / Z1 RAPID TRAVERSE RATE (IN./MIN.) ..............1,969
X2 / Z2 RAPID TRAVERSE RATE (IN./MIN.)...............1,181
A-AXIS RAPID TRAVERSE RATE [COUNTER SPINDLE].........1,181
B-AXIS RAPID TRAVERSE RATE (RPM).....................100
C-AXIS RAPID TRAVERSE RATE (RPM).....................250
MOTORS
MAIN SPINDLE (30MIN. / CONT.) [HP]...................30/25
COUNTER SPINDLE (30MIN. / CONT.) [HP]................30/25
TOOL SPINDLE (TURRET 1) MOTOR (10MIN. / CONT.) [HP] .25/15
TURRET 2. LIVE TOOL MOTOR (5MIN. / CONT.) [HP].......7.5/5
COOLANT PUMP CTS TOOL SPINDLE (TURRET 1) ............1.4 HP
COOLANT SHOWER AND BACKWASH, COOLANT GUN ............1.4 HP
TURRET 2 COOLANT PUMP ...............................1.4 HP
COOLANT THROUGH CHUCK (MAIN/COUNTER SPINDLE, EACH) ..1.6 HP
COOLANT PUMP STEADY REST ROLLER WASH (OPTION)........0.7
POWER SOURCE
POWER SUPPLY (KVA)...................................83
MACHINE SIZE
MACHINE HEIGHT.......................................110”
FLOOR SPACE (WIDTH X DEPTH)..........................212X129”
MACHINE WEIGHT ......................................56,320 LB
EQUIPPED WITH
MSX-711 IV CONTROL
CHIP CONVEYOR
ALL AVAILABLE TOOLING / MANUALS
NEW 2011
SPECIFICATIONS:
MAX. WORK PIECE SWING DIAMETER.......................28.74”
SWING OVER CROSS SLIDE...............................28.74”
SWING OVER CROSS SLIDE AT TURRET 2 ................. 15.75”
MAX TURNING DIAMETER WITH TOOL SPINDLE (CAPTO C6)....25.98”
WITH TURRET 2 13.78”
MAX. TURNING LENGTH..................................60.71”
MAX. BAR CAPACITY....................................3.15”
MAX. DISTANCE BETWEEN CENTERS........................73.31”
TRAVELS
Y-AXIS TRAVEL......................................± 8.27”
X1 - AXIS TRAVEL (TOOL SPINDLE)......................29.53”
Z1 - AXIS TRAVEL (TOOL SPINDLE)......................61.02”
X2 – AXIS TRAVEL (TURRET 2)..........................7.68”
Z2 – AXIS TRAVEL (TURRET 2)..........................60.04”
B – AXIS INDEXING TRAVEL (TOOL SPINDLE)........... ± 120°
MAIN SPINDLE
MAX. SPINDLE SPEED (RPM).............................4,000
NO. OF SPINDLE SPEED RANGES (WINDING CHANGE).........2
SPINDLE NOSE ...................................... A2-8
SPINDLE BORE DIAMETER................................3.58”
C-AXIS SPINDLE POSITIONING...........................0.0001°
SPINDLE BEARING ID...................................5.51”
SPINDLE TORQUE (30 MIN./CONT. RATING) [FT.LB}....... 413/302
COUNTER SPINDLE (SUB SPINDLE)
MAX. SPINDLE SPEED (RPM).............................4,000
NO. OF SPINDLE SPEED RANGES (WINDING CHANGE).........2
SPINDLE NOSE........................................A2-8
SPINDLE BORE DIAMETER................................3.58”
C-AXIS SPINDLE POSITIONING ..........................0.0001°
SPINDLE BEARING ID ..................................5.51”
SPINDLE TORQUE (30 MIN./CONT. RATING) [FT.LB}........413/302
TOOL SPINDLE
NO. OF TOOL STATIONS ................................1
B-AXIS INDEXING TIME (SEC.)..........................0.4 / 90°
MIN. B-AXIS INDEXING INCREMENT...................... 0.0001°
MAX. SPINDLE SPEED (RPM).............................12,000
SPINDLE TOOL HOLDER TYPE.............................CAPTO C6
SPINDLE BEARING INNER DIAMETER.......................2.76”
ATC TOOL STORAGE CAPACITY............................40
MAX. TOOL DIAMETER (W AND W/O ADJACENT TOOL).........2.76/5.51”
MAX. TOOL LENGTH.....................................15.75”
MAX. TOOL WEIGHT (LBS)...............................22
TOOL CHANGE TIME (TOOL-TO-TOOL)..................... 1.25 SEC.
MAX. SPINDLE TORQUE (FT.LB) ........................ 88.50
TURRET 2.
NO. OF TOOL STATIONS.................................12
TOOL HOLDER SQUARE SHANK.............................1”
MAX. BORING BAR DIAMETER.............................2”
TURRET INDEXING TIME (STATION-TO-STATION)............0.28 SEC.
MAX. LIVE TOOL SPEED (RPM)...........................6,000
MAX. LIVE TOOL TORQUE (FT.LB)........................29.50
FEEDRATE
Y-AXIS RAPID TRAVERSE RATE (IN./MIN.) ...............1,181
X1 / Z1 RAPID TRAVERSE RATE (IN./MIN.) ..............1,969
X2 / Z2 RAPID TRAVERSE RATE (IN./MIN.)...............1,181
A-AXIS RAPID TRAVERSE RATE [COUNTER SPINDLE].........1,181
B-AXIS RAPID TRAVERSE RATE (RPM).....................100
C-AXIS RAPID TRAVERSE RATE (RPM).....................250
MOTORS
MAIN SPINDLE (30MIN. / CONT.) [HP]...................30/25
COUNTER SPINDLE (30MIN. / CONT.) [HP]................30/25
TOOL SPINDLE (TURRET 1) MOTOR (10MIN. / CONT.) [HP] .25/15
TURRET 2. LIVE TOOL MOTOR (5MIN. / CONT.) [HP].......7.5/5
COOLANT PUMP CTS TOOL SPINDLE (TURRET 1) ............1.4 HP
COOLANT SHOWER AND BACKWASH, COOLANT GUN ............1.4 HP
TURRET 2 COOLANT PUMP ...............................1.4 HP
COOLANT THROUGH CHUCK (MAIN/COUNTER SPINDLE, EACH) ..1.6 HP
COOLANT PUMP STEADY REST ROLLER WASH (OPTION)........0.7
POWER SOURCE
POWER SUPPLY (KVA)...................................83
MACHINE SIZE
MACHINE HEIGHT.......................................110”
FLOOR SPACE (WIDTH X DEPTH)..........................212X129”
MACHINE WEIGHT ......................................56,320 LB
EQUIPPED WITH
MSX-711 IV CONTROL
CHIP CONVEYOR
ALL AVAILABLE TOOLING / MANUALS
