MORI SEIKI NT6600DCG/3000
Type:
LATHES, COMBINATION, N/C & CNC, (3-axis Or More)
Manufacturer:
MORI SEIKI
Model:
NT6600DCG/3000
Condition:
Not Specified
Year:
2009
Stock #:
35601
Status:
Sold
Description:
NT6600DCG/3000, MORI MSX-711
Location:
Illinois, United States
Specifications from OEM brochure and equipped with are described to the best of our knowledge. ALL items should be confirmed by buyer.

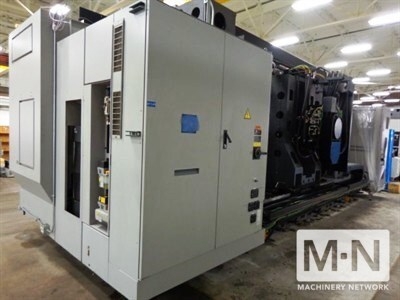

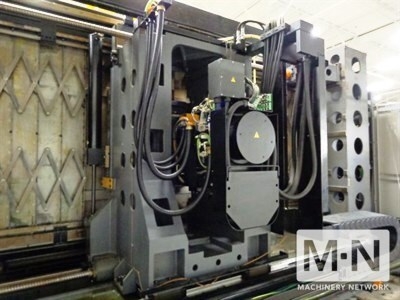

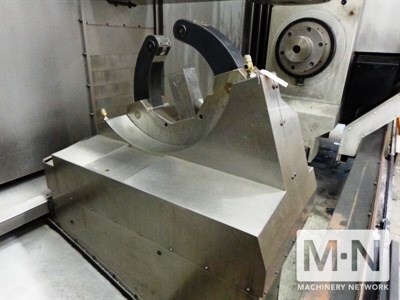

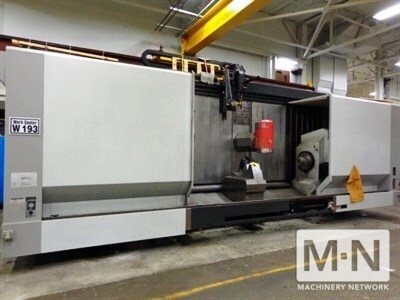

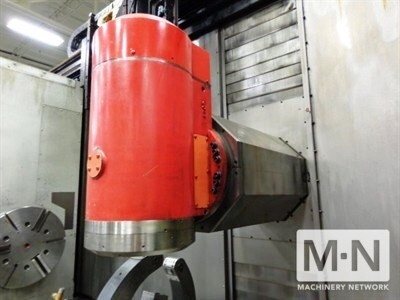

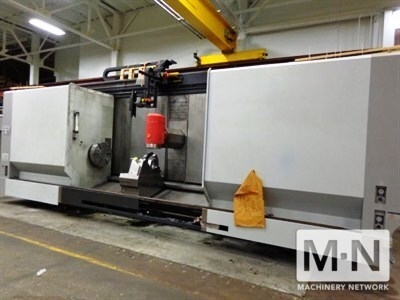

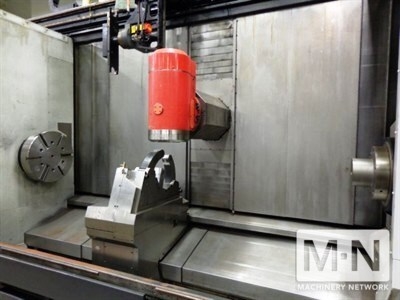

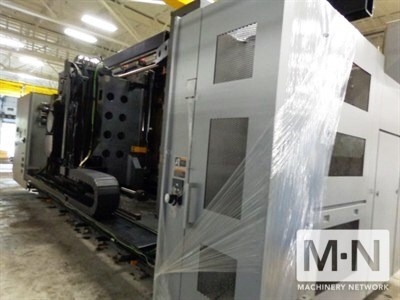

(1) USED MORI SEIKI NT 6600DCG/3000 CNC MULTI TASKING CENTER
NEW 2009
SPECIFICATIONS:
SWING OVER BED..............................42.13"
SWING OVER CROSSSLIDE.......................42.13"
MAX. DISTANCE SPINDLES S ...................138.1"
MAX. TURNING LENGTH S ......................121.1"
MAX. TURNING DIA. ..........................42.13"
X AXIS TRAVEL ..............................40.94"
Z AXIS TRAVEL ..............................124.00"
Y- AXIS TRAVEL ............................+12.99" -11.02"
B AXIS MIN. INDEX ANGLE/INDEX RANGE ....+/ -120 DEGREE
C AXIS 1 & 2 ...............................0001 DEG.

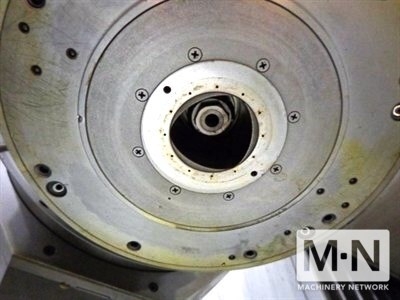

SPINDLE BORE 1 & 2 .........................7.3"

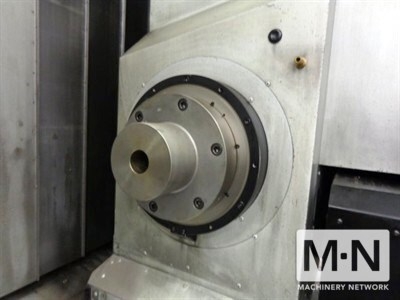

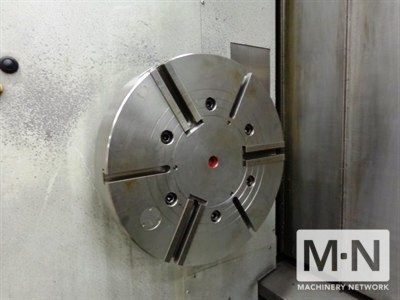

SPINDLE NOSE (1 & 2) .......................A2-15"
SPINDLE SPEEDS (1 & 2) .....................1500 RPM (2 SPEEDS)
RAPID TRAVERSE RATE X-Y-Z ..................1575/1181/1260 IPM
NUMBER OF TOOL CHANGER .....................50 ATC
B AXIS INDEX TIME ..........................55 SEC/90 DEG.
MIN. B AXIS INDEX INCREMENT.................0001
SPINDLE SPEED...............................8,000 RPM
SPINDLE TAPER...............................CAPTO C8
ROTARY TOOL SPINDLE BEARING ................3.9"
MAX TOOL DIAMETER...........................4.72"/9.84"
MAX TOOL LENGTH.............................23.62"
TOOL CHANGE TIME............................2.4 SEC
SPINDLE 1 DRIVE MOTOR.......................60 HP
ROTARY SPINDLE DRIVE MOTOR (1)..............40 HP
EQUIPPED WITH
MORI MSX-711 CNC CONTROL
AI CONTOURING CONTROL II
AUTOMATIC IN MACHINE TOOL PRESETTER

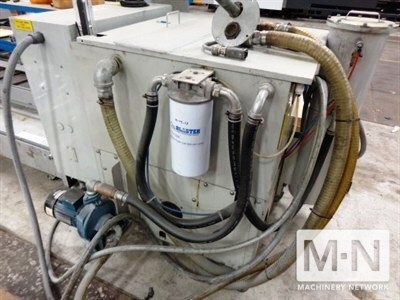

CHIP BLASTER EV 2002 1000PSI
CONCEPT 2000 CHIP CONVEYOR HINGE TYPE WITH DRUM FILTRATION
CONTINUOUS THREAD CUTTING / RETRACT TURIN
CUSTOM MACRO
DATA SERVER
DYNAMIC DIAMETER / RADIUS SWITCHING
FAST ETHERNET
MAPPS III
PROGRAM RESTART / FLOATING REFERENCE POINT RETURN
PROGRAM STORAGE 640M / 500 REGISTERED PROGRAMS
PROGRAMMABLE DATA INPUT DNC
PROGRAMMABLE DATA INPUT G10
TOOL OFFSET FOR 5 AXIS MACHINING
TOOL OFFSETS SPDL 1 240 / SPDL 2 64
NEW 2009
SPECIFICATIONS:
SWING OVER BED..............................42.13"
SWING OVER CROSSSLIDE.......................42.13"
MAX. DISTANCE SPINDLES S ...................138.1"
MAX. TURNING LENGTH S ......................121.1"
MAX. TURNING DIA. ..........................42.13"
X AXIS TRAVEL ..............................40.94"
Z AXIS TRAVEL ..............................124.00"
Y- AXIS TRAVEL ............................+12.99" -11.02"
B AXIS MIN. INDEX ANGLE/INDEX RANGE ....+/ -120 DEGREE
C AXIS 1 & 2 ...............................0001 DEG.
SPINDLE BORE 1 & 2 .........................7.3"
SPINDLE NOSE (1 & 2) .......................A2-15"
SPINDLE SPEEDS (1 & 2) .....................1500 RPM (2 SPEEDS)
RAPID TRAVERSE RATE X-Y-Z ..................1575/1181/1260 IPM
NUMBER OF TOOL CHANGER .....................50 ATC
B AXIS INDEX TIME ..........................55 SEC/90 DEG.
MIN. B AXIS INDEX INCREMENT.................0001
SPINDLE SPEED...............................8,000 RPM
SPINDLE TAPER...............................CAPTO C8
ROTARY TOOL SPINDLE BEARING ................3.9"
MAX TOOL DIAMETER...........................4.72"/9.84"
MAX TOOL LENGTH.............................23.62"
TOOL CHANGE TIME............................2.4 SEC
SPINDLE 1 DRIVE MOTOR.......................60 HP
ROTARY SPINDLE DRIVE MOTOR (1)..............40 HP
EQUIPPED WITH
MORI MSX-711 CNC CONTROL
AI CONTOURING CONTROL II
AUTOMATIC IN MACHINE TOOL PRESETTER
CHIP BLASTER EV 2002 1000PSI
CONCEPT 2000 CHIP CONVEYOR HINGE TYPE WITH DRUM FILTRATION
CONTINUOUS THREAD CUTTING / RETRACT TURIN
CUSTOM MACRO
DATA SERVER
DYNAMIC DIAMETER / RADIUS SWITCHING
FAST ETHERNET
MAPPS III
PROGRAM RESTART / FLOATING REFERENCE POINT RETURN
PROGRAM STORAGE 640M / 500 REGISTERED PROGRAMS
PROGRAMMABLE DATA INPUT DNC
PROGRAMMABLE DATA INPUT G10
TOOL OFFSET FOR 5 AXIS MACHINING
TOOL OFFSETS SPDL 1 240 / SPDL 2 64
