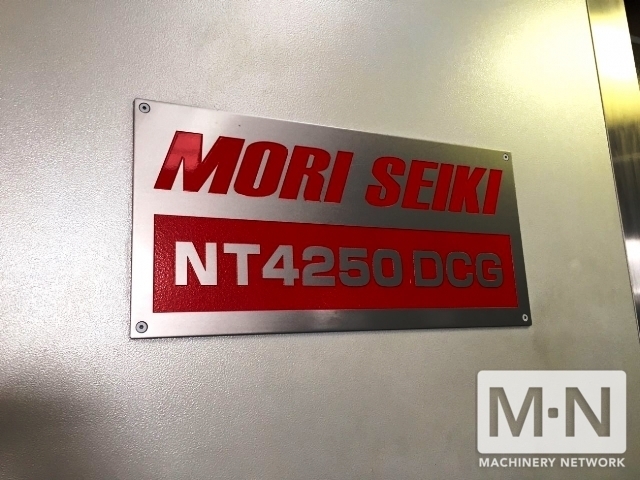

MORI SEIKI NT4250DCG 1500SZ

Type:

LATHES, COMBINATION, N/C & CNC, (3-axis Or More)

Manufacturer:

MORI SEIKI

Model:

NT4250DCG 1500SZ

Condition:

Not Specified

Year:

2008

Stock #:

35748

Status:

Sold

Description:

NT4250DCG 1500SZ

Location:

New York, United States

Specifications from OEM brochure and equipped with are described to the best of our knowledge. ALL items should be confirmed by buyer.

Quote Request Have one for sale?

For more information call +1 (818) 465-6700 or contact us

Spec Sheet:

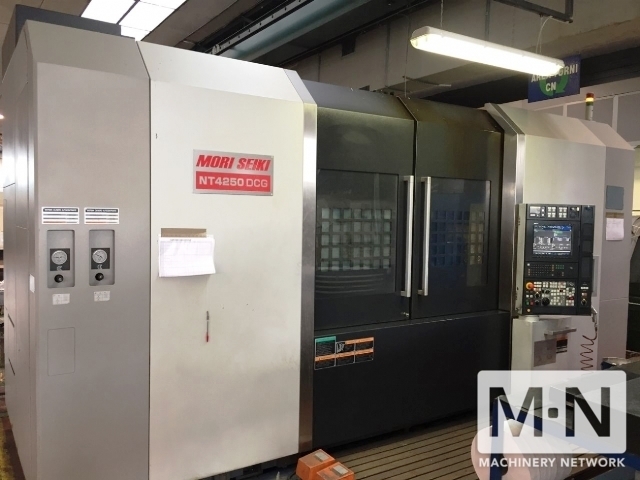

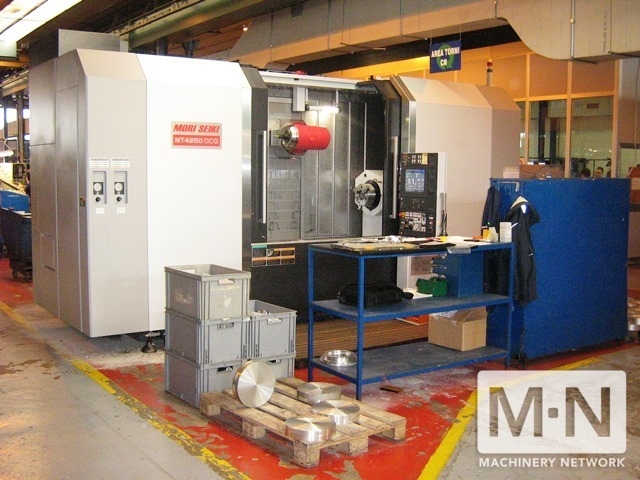

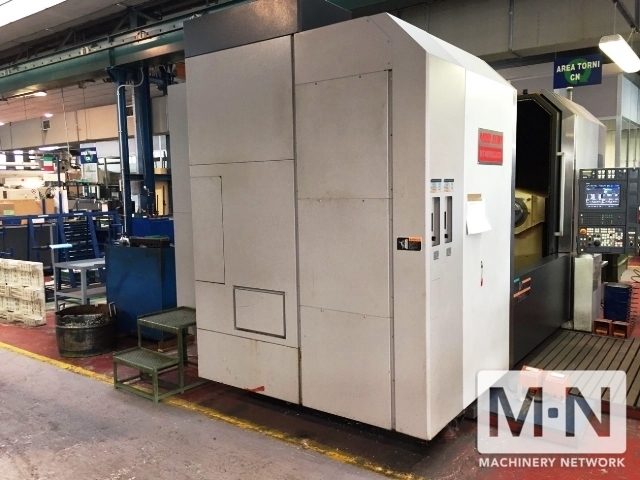

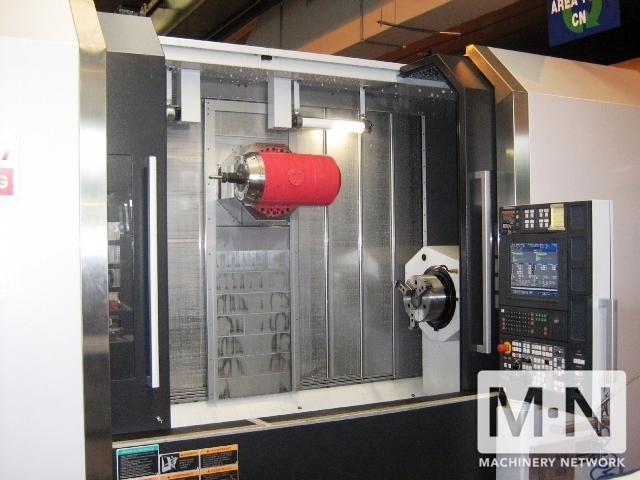

(1) USED MORI SEIKI NT4250DCG 1500SZ CNC MULTI-TASKING TURNING CENTER
NEW: 2008

SPECIFICATIONS:
WORKING HOURS: <18,000
WORKING CAPACITY MAX BAR WORKING DIAMETER: 80 MM
MAX SWING DIAMETER: 730 MM
MAX WORKING LENGTH: 1542 MM

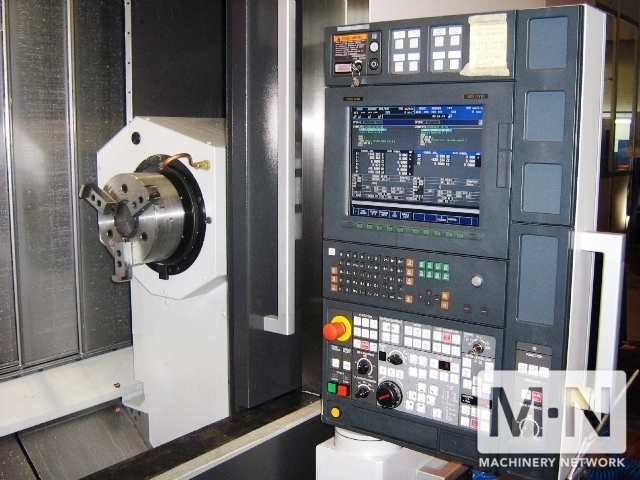

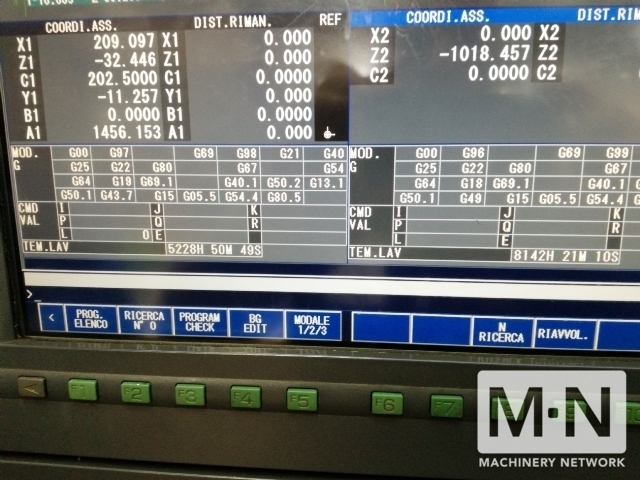

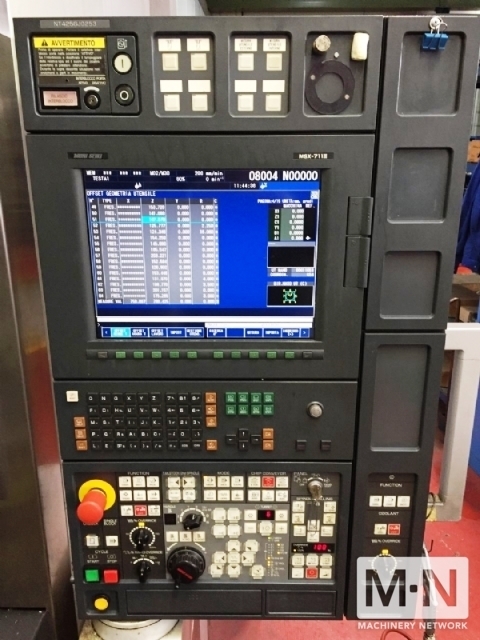

CNC : MORI SEIKI MSX711III
MAIN SPINDLE MAX ROTATION SPEED: 4000 RPM
SPINDLE NOSE: ASA8”
SPINDLE HOLE: 91 MM
INTERNAL BEARING DIAMETER: 140 MM
MAX POWER: 26/22 KW
MAX TORQUE: 723 NM
ACCURACY (C AXIS): 0,0001 °
C AXIS SPEED: 250 RPM

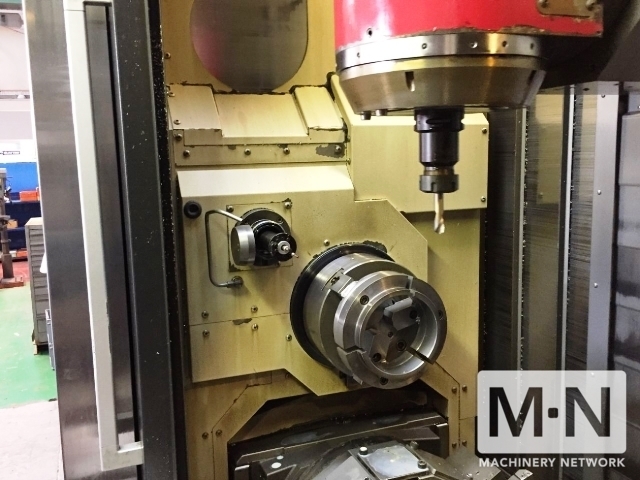

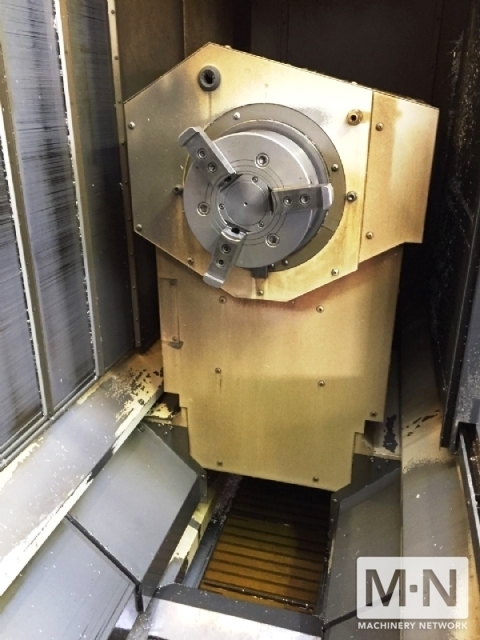

SUBSPINDLE MAX ROTATION SPEED: 4000 RPM
SPINDLE NOSE: ASA8”
SPINDLE HOLE: 91 MM
INTERNAL BEARING DIAMETER: 140 MM
MAX POWER: 22/18,5 KW
MAX TORQUE: 723 NM
ACCURACY (C AXIS): 0,0001 °
C AXIS SPEED: 250 RPM
ATC POSITIONS: 100

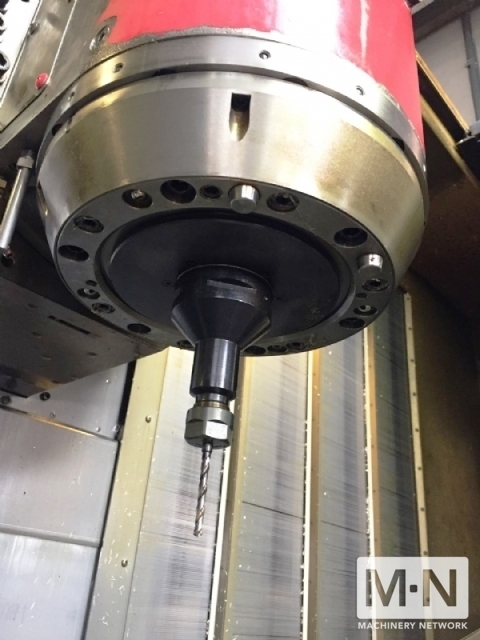

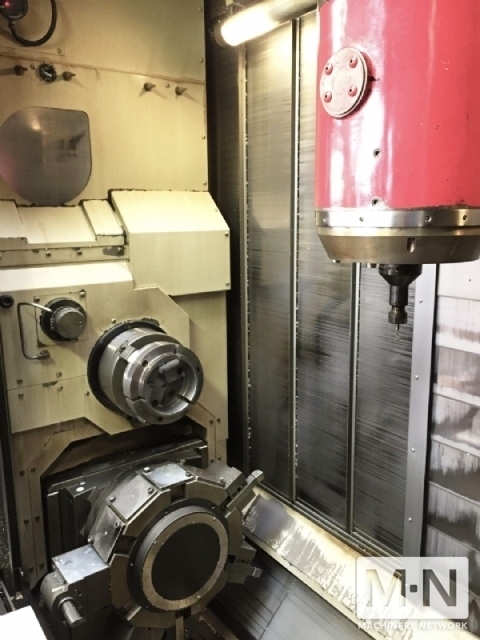

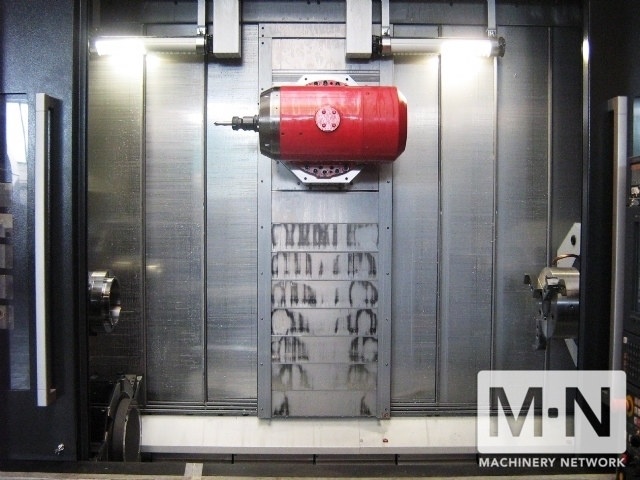

MILLING HEAD SPINDLE TAPER: CAPTO C6
ACCURACY (B AXIS): 0,0001 °
SPINDLE SPEED: 12000 RPM
SPINDLE POWER: 18,5/11 KW
SPINDLE TORQUE: 120 NM
AXIS STROKE X: 750 MM
RAPID FEED X: 50 M/MIN
AXIS STROKE Z: 1550+100(ATC) MM
RAPID FEED Z: 50 M/MIN
AXIS STROKE Y: +/-210 MM
RAPID FEED Y: 30 M/MIN

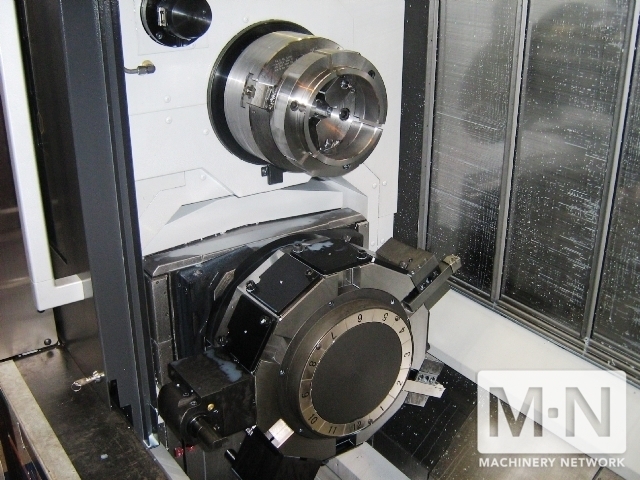

POSITIONS NUMBER: 12
NUMBER OF DRIVEN STATIONS: 12
DRIVEN TOOLS SPEED: 6000 RPM
DRIVEN TOOLS POWER: 5,5/3,7 KW
DRIVEN TOOLS TORQUE: 40 NM
AXIS STROKE X2: 195 MM
RAPID FEED X2: 50 M/MIN
AXIS STROKE Z2: 1525 MM
RAPID FEED Z2: 50 M/MIN
MACHINE TOTAL WEIGHT: 25600 KG
FLOOR SPACE: 5391X3272X2793 MM

EQUIPPED WITH:
RIGID TAPPING

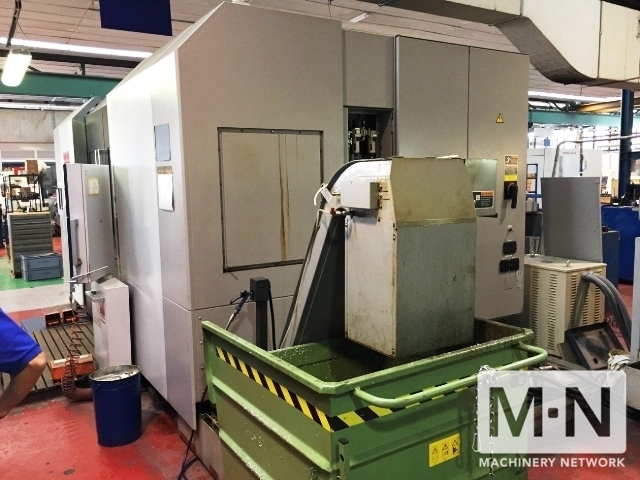

CHIP CONVEYOR

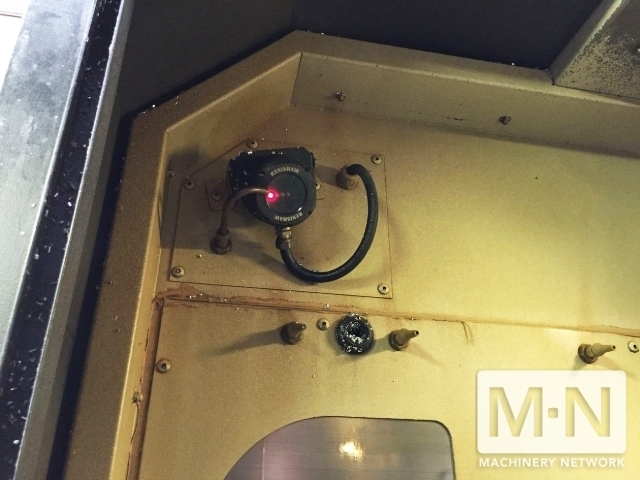

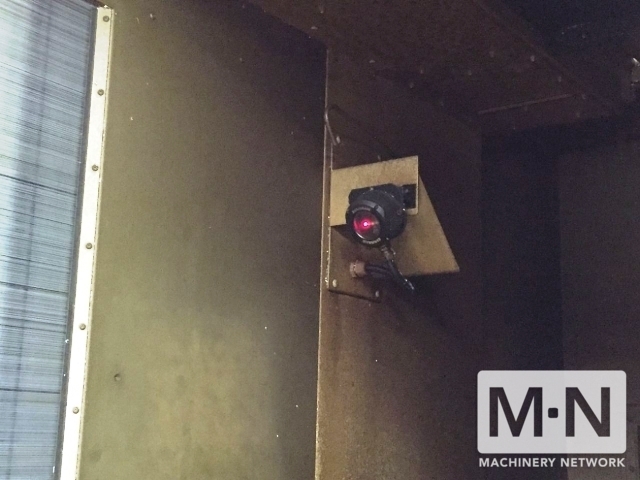

WORKPIECE TOUCH PROBE: RENISHAW LASER

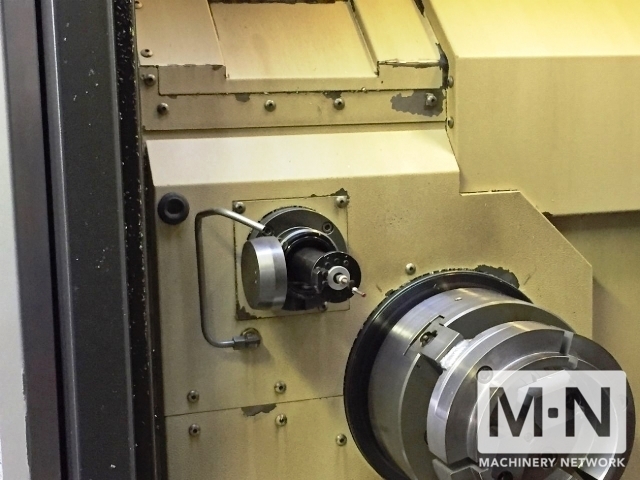

TOOL PRESETTER
COOLANT PUMP
MAINTENANCE & USE BOOKS
ELECTRICAL DRAWINGS
CE CERTIFICATION
