MORI SEIKI NLX 1500/500 SY
Type:
LATHES, COMBINATION, N/C & CNC, (3-axis Or More)
Manufacturer:
MORI SEIKI
Model:
NLX 1500/500 SY
Condition:
Not Specified
Year:
2014
Stock #:
36373
Status:
Sold
Description:
2" BAR, LNS SERVO 3 BAR FEED AND ASSORTED LIVE HOLDERS, CHIP CONVEYOR, TOOL SETTER, PARTS CATCHER
Location:
California, United States
Specifications from OEM brochure and equipped with are described to the best of our knowledge. ALL items should be confirmed by buyer.

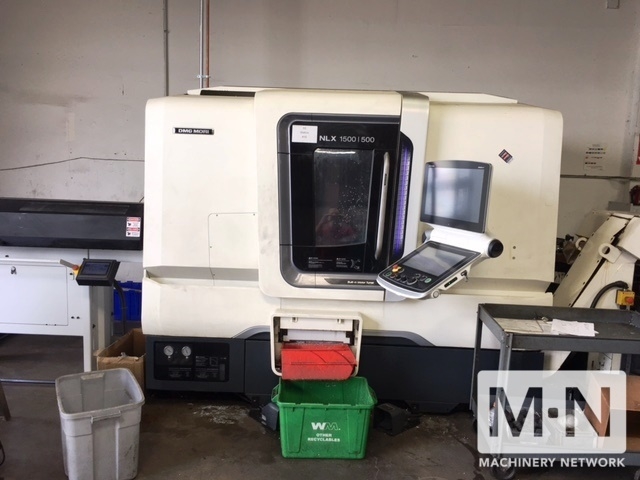

(1) USED MORI SEIKI NLX-1500SY/500 CNC TURNING CENTER
NEW 2014
SPECIFICATIONS:
MAX. TURNING DIAMETER.................15.1"
MAX. TURNING LENGTH...................20.2"
BAR WORK CAPACITY.....................2"
TRAVEL
X-AXIS................................10.2"
Y-AXIS................................3.9" (± 2)
Z-AXIS (TYPE 500).....................23.2"
MAIN SPINDLE
MAX. SPINDLE SPEED....................6,000 RPM
SPINDLE BEARING INNER DIAMETER........3.9"
NUMBER OF TOOL STATIONS TOOL..........12
MAX. ROTARY TOOL SPINDLE SPEED........10,000 RPM
RAPID TRAVERSE RATE
X-AXIS................................1,181. IPM
Y-AXIS................................393.7 IPM
Z-AXIS................................1,181 IPM
MOTOR
SPINDLE DRIVE MOTOR (30 MIN/CONT).....15 HP
EQUIPPED WITH:
21.5" ERGOLINE® AND MAPPS CONTROL
LNS SERVO 3 BAR FEED

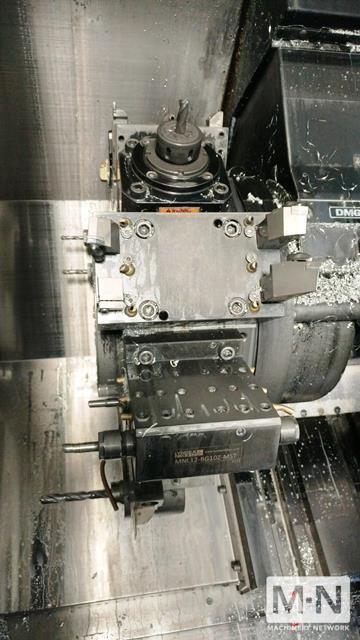

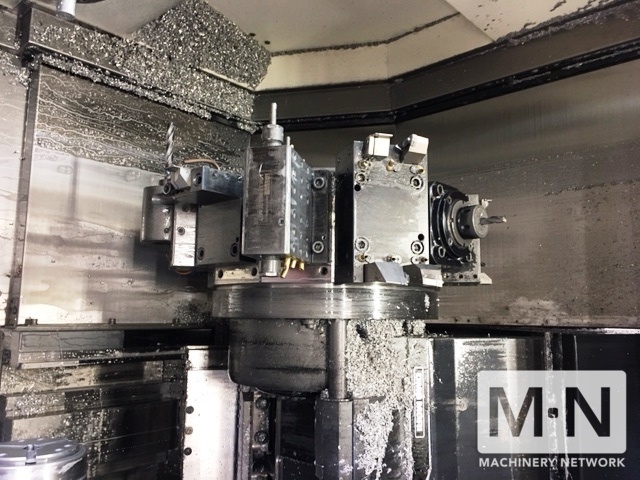

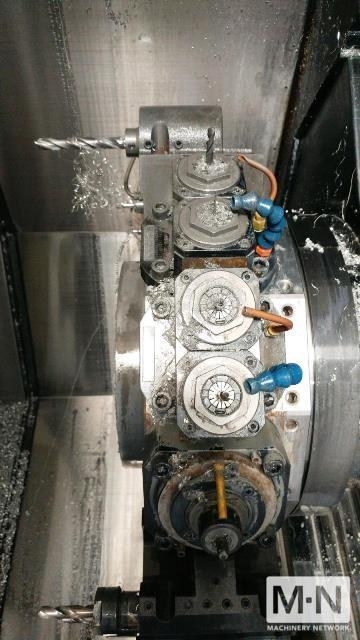

ASSORTED LIVE HOLDERS
CHIP CONVEYOR
TOOL SETTER
PARTS CATCHER
NEW 2014
SPECIFICATIONS:
MAX. TURNING DIAMETER.................15.1"
MAX. TURNING LENGTH...................20.2"
BAR WORK CAPACITY.....................2"
TRAVEL
X-AXIS................................10.2"
Y-AXIS................................3.9" (± 2)
Z-AXIS (TYPE 500).....................23.2"
MAIN SPINDLE
MAX. SPINDLE SPEED....................6,000 RPM
SPINDLE BEARING INNER DIAMETER........3.9"
NUMBER OF TOOL STATIONS TOOL..........12
MAX. ROTARY TOOL SPINDLE SPEED........10,000 RPM
RAPID TRAVERSE RATE
X-AXIS................................1,181. IPM
Y-AXIS................................393.7 IPM
Z-AXIS................................1,181 IPM
MOTOR
SPINDLE DRIVE MOTOR (30 MIN/CONT).....15 HP
EQUIPPED WITH:
21.5" ERGOLINE® AND MAPPS CONTROL
LNS SERVO 3 BAR FEED
ASSORTED LIVE HOLDERS
CHIP CONVEYOR
TOOL SETTER
PARTS CATCHER
