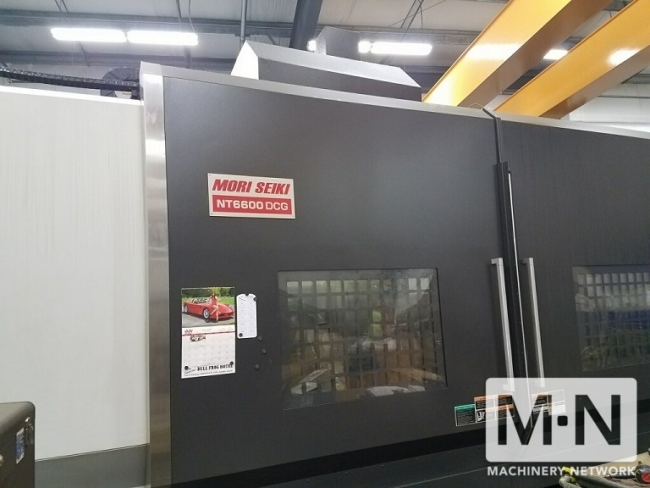

MORI SEIKI NT6600DCG6000
Type:
LATHES, COMBINATION, N/C & CNC, (3-axis Or More)
Manufacturer:
MORI SEIKI
Model:
NT6600DCG6000
Condition:
Not Specified
Year:
2012
Stock #:
36568
Status:
Sold
Description:

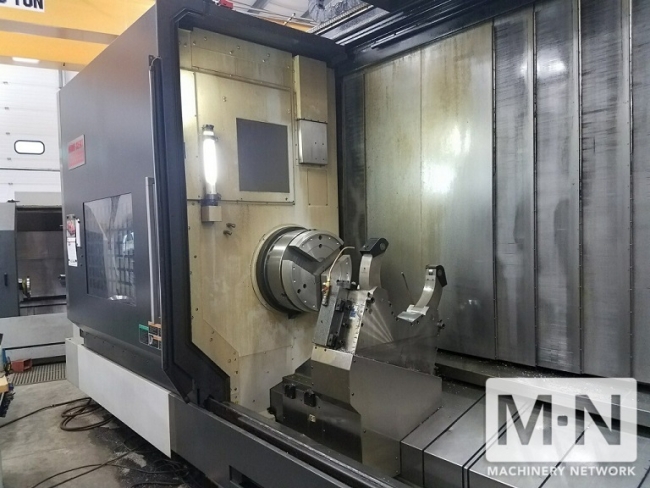

MORI SEIKI MAPPS IV, 42" MAX SWING. 14" SPINDLE DIAM., 24" KITAGAWA CHUCK, 100 TOOLS SOLD FOR 800K TO NY DEALER
Location:
United States
Specifications from OEM brochure and equipped with are described to the best of our knowledge. ALL items should be confirmed by buyer.
(1) USED MORI SEIKI NT6600 DCG/6000CS NEW IN 2012
WITH MSX-711 IV Control Unit
SPECIFICATIONS:
C. SPINDLE 1 & 2
1. Maximum spindle Speed..............................1,000 RPM
2. Number of Spindle Speed Ranges ................... 2 (winding change-over speed)
3. Type of Spindle Nose ..............................JIS A2-20
4. Through-Spindle Hole Diameter..................... 10.8” 275mm
5. Minimum Spindle Indexing Increment................ 0.0001°
6. Spindle Bearing Inner Diameter ................... 14.2” 360mm
7. Spindle Torque (Low Speed) (30 min/cont) ......... 5,003.6/4,111.2 ft-lbf 6,784/5,574 N·m
8. Spindle Torque (High Speed) (30 min/cont)......... 2,224.5/1,830.0 ft-lbf 3,016/2,481 N·m

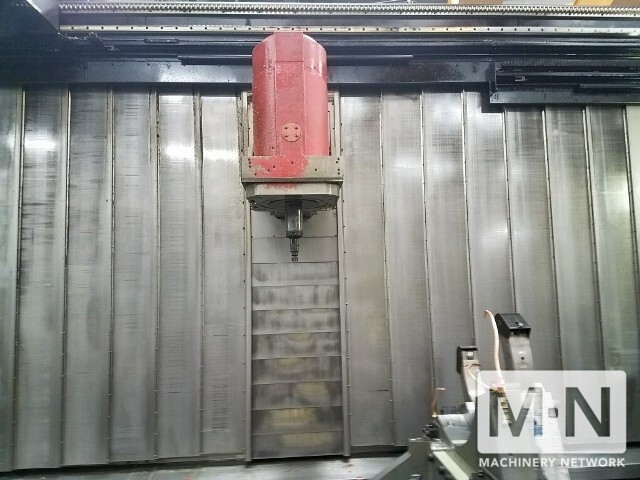

D. TOOL SPINDLE
1. Number of Tool Stations............................1
2. B-Axis Indexing Time.............................. 0.85 Seconds at 90°
3. Minimum B-Axis Indexing Increment................. 1°
4. Maximum Tool Spindle Speed........................ 8,000 RPM
5. Taper Hole of Rotary Tools........................ Capto C8
6. Inner Diameter of Rotary Tool Spindle Bearing..... 3.9” 100mm
7. Tool Storage Capacity .............................100
8. Maximum Tool Diameter with Adjacent Tools ........ Ø 4.7” 120mm
9. Maximum Tool Diameter without Adjacent Tools ..... Ø 9.8” 250mm
10. Maximum Tool Length ............................. 23.6” 600mm
11. Maximum Tool weight.............................. 66.0 Lbs 30kg
12. Maximum Tool Mass Moment (from Spindle Gauge line)21.6 ft-lbf 29.4 N·m
13. Spindle Torque (15%ED/15 min/cont) .............. 222.7/129.1/108.4 ft-lbf 302/175/147 N·m
E. FEEDRATE
1. Rapid Traverse Rate
X-Axis Tool Spindle ..................................131.2 fpm 40 m/min
Y-Axis Tool Spindle ..................................98.4 fpm 30 m/min
Z-Axis Tool Spindle ..................................105.0 fpm 32 m/min
Spindle 2 – A-Axis ...................................49.2 fpm 15 m/min
XA, XB, XC Steady Rest ...............................5.2 fpm 1.6 m/min
ZA, ZB, ZC Steady Rest ...............................26.2 fpm 8 m/min
2. B-Axis Rapid Traverse Rate.........................23.8 RPM
3. C-Axis Rapid Traverse Rate.........................70 RPM
F. MOTORS
1. Spindle 1 Drive Motor (30 min/cont) ...............60/50 HP 45/37 kW
2. Spindle 2 Drive Motor (30 min/cont) ...............60/50 HP 45/37 kW
3. Tool Spindle Drive Motor (30 min/cont) ............40/30 HP 30/22 kW
G. POWER SOURCES
1. Electrical Power Supply (cont).....................131.4 kVA
2. Compressed Air Supply .............................72.5 PSI 0.5 MPa, 237.6 GPM 900 L/min
H. COOLANT TANK CAPACITY .............................396.0 Gallons 1,500 L
I. DIMENSIONS AND WEIGHT
1. Machine Height (from floor)
With Optional Hinge Belt Chip Conveyor ...................... 168.1” 4,269mm
With Optional Hinge Belt, Scraper-Type + Drum Filter Conveyor 169.4” 4,304 mm
2. Floor Space (W x D) ...................................... 494.1” 12,550mm x 182.5” 4,636mm
3. Weight of Machine ........................................ 123,200 Lbs. 56,000 kg
J. CONTROL SPECIFICATION .....................................MSX-711 IV Control Unit
STANDARD EQUIPMENT
• Spindle:
o Spindle 1 & 2: 1,500 RPM, 30/26/22 kW (40/34.7/30 HP) (25%ED/30 min/cont)
o Spindle Cooling Specifications
o Spindle Orientation
• Tool Spindle:
o Max. Tool Spindle Speed: 8,000 RPM, 30/22 kW (40/30 HP) (30 min/cont)
o Type of Tool Spindle Taper Hole: CAT50
o B-Axis Min. Indexing Increment: 1° Indexing
• 50 Tool Storage Capacity
• Chip Disposal:
o Chip Conveyor Interface
o Air Blow System (Chuck), Spindle 2
• Coolant
o Thru-Spindle Coolant System (Tool Spindle): 50/60 Hz (750/1,500 W)
• Automatic In-Machine Tool Presetter
• Automatic Power Off System
• Built-in Worklight
• Hand Tools
• Chuck Foot Switch
• Safety Features:
o Complete Covers
o Impact Resistant Viewing Window
o Door Interlock System Including Mechanical Lock
o Low Hydraulic Pressure Detecting Switch
o Low Air Pressure Detecting Switch
o Software Overtravel
INVESTMENT DESCRIPTION
Mori Seiki Model NT6600 DCG/6000CS Multi-Axis Turning Center $ 1,487,000.00
OPTIONAL EQUIPMENT
1. Kitagawa 24” Hollow Chuck Unit........................... $ 40,540.00
2. Tool Storage Capacity, 100 Tools (Capto C8,Dual Contact). $ 76,140.00
3. Tool Spindle Full Indexing Specifications................ $ 41,340.00

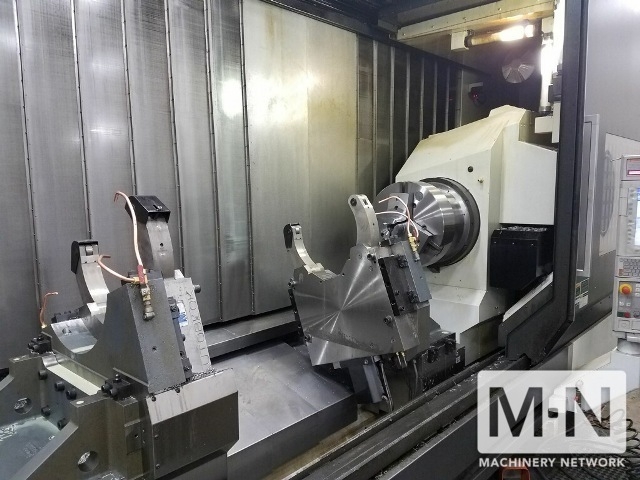

4. SLU-6Z Hydraulic Steady Rest (Programmable, Dia. 125-460mm)
(Triple).................................................... $ 326,000.00
5. Super High Pressure Coolant System Interface (7.0 MPa) .. $ 3,870.00
6. Coolant Gun ............................................. $ 3,070.00
7. Chip Conveyor (Hinge Belt, Right Discharge).............. $ 36,800.00
8. Automatic Door........................................... $ 16,940.00
9. Signal Tower, 3 Layers (Red, Yellow, Green).............. $ 800.00
10. Weekly Timer............................................ $ 4,000.00
12. Long Boring Bar Specifications (Tool end change by ATC.. $ 110,270.00
Excluding End Tool, Holder & Boring Bar
13. In-Machine Workpiece Measuring System Radio-Transmission
Type Touch Sensor................................... $ 21,470.00
Total for a Mori Seiki NT6600 DCG/6000CS
Equipped as Quoted Above ......................... $ 2,168,240.00
THE SELLER PAID IN 2012.............................$ 1,800,000.00
MACHINE IS UNDER POWER READY TO INSPECT
ALL AVAILABLE MANUALS
Give me a PO subject to inspection
Thanks
