MORI SEIKI NT5400/1800
Type:
LATHES, COMBINATION, N/C & CNC, (3-axis Or More)
Manufacturer:
MORI SEIKI
Model:
NT5400/1800
Condition:
Not Specified
Year:
2009
Stock #:
34048
Status:
Sold
Description:
NT5400***SOLD***
Location:
Kansas, United States
Specifications from OEM brochure and equipped with are described to the best of our knowledge. ALL items should be confirmed by buyer.

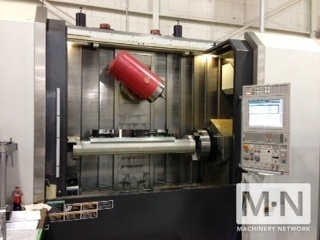

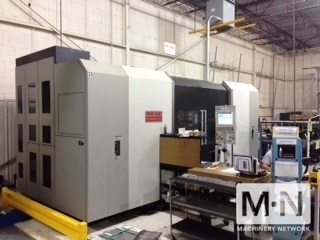

(1) USED MORI SEIKI NT5400DCG/1800SZ MULTI-AXIS HORIZONTAL TURNING CENTER
MFG. 09', DELIVERED 2010 FROM AN AEROSPACE SHOP WITH LOW HOURS!
SPECIFICATIONS:
MAXIMUM TURNING LENGTH:...............75.6”,
MAXIMUM TURNING DIAMETER:.............36.2”
TOOL SPINDLE, ........................18.5” TURRET,
BARWORK CAPACITY......................4.1”,
Y AXIS TRAVEL @ ......................20.0”
SPINDLE #1
60/50 HORSEPOWER SPINDLE MOTOR (30 MIN. CONT.) HIGH OUTPUT
JIS A2-11 SPINDLE NOSE,
BAR WORK CAPACITY 4.1”, SPINDLE BORE @ 4.7”
2,400 RPM, 2 SPEED RANGES
MINIMUM SPINDLE INDEX DIAMETER, .0001 DEGREE
18” HOLLOW CHUCK UNIT, 3 JAW HYDRAULIC
SPINDLE #2
60/50 HORSEPOWER SPINDLE MOTOR (30 MIN. CONT.) HIGH OUTPUT
JIS A2-11 SPINDLE NOSE
SPINDLE BORE @ 4.7”
2,400 RPM, 2 SPEED RANGES
MINIMUM SPINDLE INDEX DIAMETER, .0001 DEGREE
18” HOLLOW CHUCK UNIT, 3 JAW HYDRAULIC
TOOL SPINDLE
40/30 HORSEPOWER SPINDLE MOTOR (30 MIN. CONT.)
ONE TOOL STATION
IN-MACHINE WORKPIECE MEASUREMENT SYSTEM, RENISHAW MP700 SPINDLE PROBE
TOOL SPINDLE FULL INDEXING SPECIFICATIONS, (FULL 5 AXIS CONTOURING)
TOOL SPINDLE SPEED @ 8,000 RPM
SPINDLE TAPER , CAPTO C8 Equipped with 40 extra holders
LOWER TURRET
10 TOOL STATION TOTAL
BOLT TIGHTENED TURRET HEAD
TURRET INDEXING TIME .28 SECONDS
LOWER TURRET MILLING FUNCTION, MAXIMUM ROTARY TOOL SPEED @ 6,000 RPM
1” SHANK HEIGHT FOR SQUARE TOOL
2” BORING BAR SHANK CAPACITY

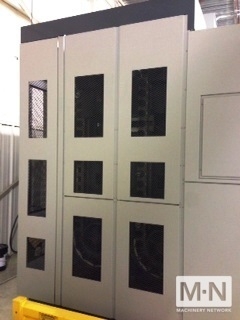

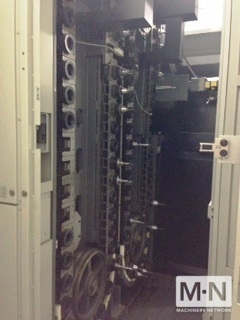

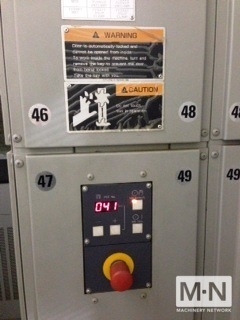

AUTOMATIC TOOL CHANGER, ATC
EIGHTY (80) TOOL POCKETS
CAPTO C8 TOOL STYLE POCKET
MAXIMUM TOOL DIAMETER SIDE BY SIDE @ 4.7”
MAXIMUM TOOL DIAMETER WO ADJACENT TOOL @ 9.8”
MAXIMUM TOOL LENGTH @ 23.6”
MAXIMUM TOOL MASS @ 66 LBS.
EQUIPPED WITH:

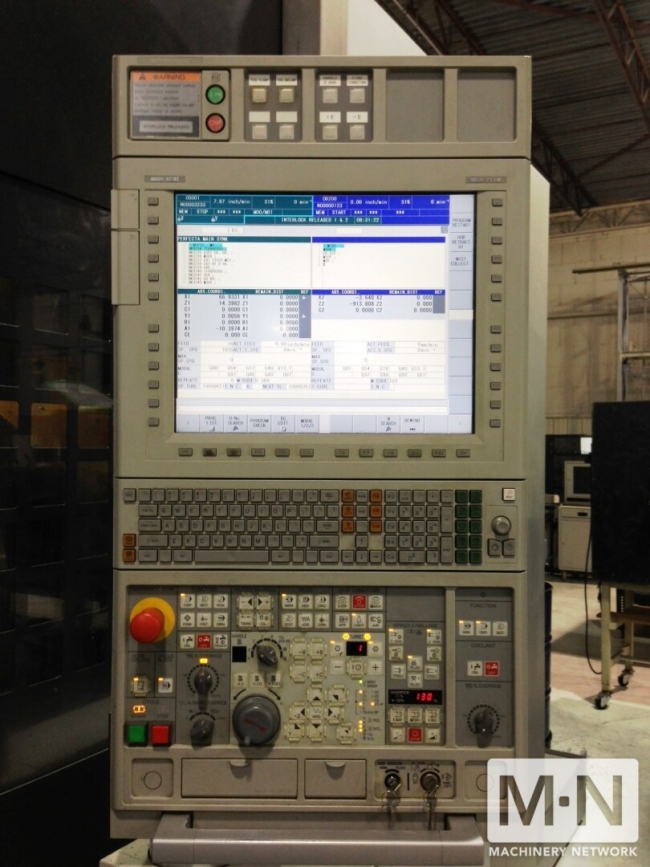

FANUC 31iTA CNC CONTROL (MSX-711T3 IV)
OIL COOLER
CHUCK FOOT SWITCH
SPINDLE ORIENTATION
CHIP CONVEYOR INTERFACE
EXTERNAL CHIP CONVEYOR (RIGHT DISCHARGE, HINGE TYPE) 1800
CHUCK AIR BLOW FOR SPINDLE # TWO
MANUAL TYPE IN-MACHINE TOOL PRESETTER FOR SPINDLES #1 & 2
COOLANT SYSTEM TOOL SPINDLE
COOLANT SYSTEM LOWER TOOL TURRET
THROUGH TOOL SPINDLE COOLANT SYSTEM INTERFACE, TOOL SPINDLE
HIGH PRESSURE COOLANT PUMP, 1,000 PSI
AUTOMATIC SLIDEWAY LUBRICATING SYSTEM (LOW LUBE ARM)
MIST COLLECTOR I/F (DUCT ONLY)
COMPLETE COVERS
AUTOMATIC POWER OFF SYSTEM
LOW AIR PRESSURE DETECTION SWITCH
LOW HYDRAULIC PRESSURE DETECTION SWITCH
DOOR INTERLOCK SYSTEM
BUILT IN WORKLIGHT
INCLUDES ONE SEAT OF ON MACHINE ESPRIT, OFF MACHINE ESPRIT, & POST
PROGRAMMABLE DATA INPUT, G10
TOOL OFFSET FOR 5 AXIS MACHINING
DYNAMIC DIAMETER RADIUS SWITCHING
AI CONTOUR CONTROL II
DATA SERVER
FAST ETHERNET
MEMORY CARD FOR DATA SERVER
CUSTOM MACRO COMMON VARIABLES, 600 IN TOTAL
MORI MONITOR
HIGH SPEED CANNED CYCLE
PROGRAM RESTART
POLYGON TURNING
SPINDLE 1 HOBBING FUNCTION
ISLANDS OPEN POCKETS
SMOOTH INTERPOLATION
INVERSE TIME FEED
PART PROGRAM STORAGE LENGTH 1280M (512KB) IN TOTAL + 1000 REGISTERABLE
PROGRAMS
MAPPS TOOL MANAGEMENT SYSTEM FOR NT
INCH METRIC CONVERSION
MACHINE LOCK
CHAMFERING ON/OFF
ABNORMAL LOAD DETECTION
OPERATION
DRY RUN
SINGLE BLOCK
JOB FEEDRATE
MANUAL ZERO RETURN
MANUAL PULSE HANDLE FEED
INTERPOLATION FUNCTIONS
NANO INTERPOLATION
EXACT STOP MODE
POSITIONING, LINEAR INTERPOLATION TYPE POSITIONING IS POSSIBLE
CYLINDRICAL INTERPOLATION
HELICAL INTERPOLATION
THREAD CUTTING/SYNCHRONOUS FEED
RETRACT DURING THREAD CUTTING CYCLE
CONTINUOUS THREAD CUTTING
ZERO RETURN
ZERO RETURN CHECK
2ND ZERO RETURN
3RD & 4TH ZERO RETURN
POLAR COORDINATE INTERPOLATION
FEED FUNCTIONS
RAPID TRAVERSE RATE OVERRIDE
FEED PER MINUTE
FEED PER REVOLUTION
CONSTANT TANGENTIAL VELOCITY CONTROL
CUTTING FEEDRATE CLAMP
AUTOMATIC ACCELERATION/DECELERATION
OPTIMUM TORQUE ACCELERATION/DECELERATION
FEEDRATE OVERIDE 0 -200%
FEEDRATE OVERIDE CANCEL
AI CONTOUR CONTROL I
PROGRAM INPUT
OPTIONAL BLOCK SKIP, 1 BLOCK
MAXIMUM COMMAND VALUE, +/- 9 DIGITS
PROGRAM FILE NAME, 32 CHARACTERS
SEQUENCE NUMBER, 5-DIGIT M CODE
ABSOLUTE INCREMENTAL PROGRAMMING
DECIMAL POINT PROGRAMMING
DIAMETER RADIUS PROGRAMMING
PLANE SELECTION
ROTARY AXIS DESIGNATION
ROTARY AXIS ROLL-OVER
COORDINATE SYSTEM SETTING
AUTOMATIC COORDINATE SYSTEM SETTING
PROGRAMMABLE DATA INPUT
SUB-PROGRAM CALL
CUSTOM MACRO
CUSTOM MACRO COMMON VARIABLES
SINGLE REPETITIVE CYCLE
MULTIPLE REPETITIVE CYCLE
MULTIPLE REPETITIVE CYCLE II
HOLE MACHINING CANNED CYCLE
3D COORDINATE CONVERSION
F15 FORMAT
DYNAMIC DIAMETER RADIUS SWITCHING
MISCELLANEOUS FUNCTIONS/SPINDLE SPEED FUNCTIONS
MISCELLANEOUS FUNCTION 4-DIGIT M CODE
AUXILIARY FUNCTION LOCK
MULTIPLE MISCELLANEOUS FUNCTION COMMANDS
SPINDLE SPEED FUNCTION, 5-DIGIT S CODE
SPINDLE SPEED OVERIDE
SPINDLE 1 ORIENTATION
SPINDLE 2 ORIENTATION
ROTARY TOOL SPINDLE ORIENTATION
SPINDLE SYNCHRONIZED CONTROL
SIMPLIFIED SYNCHRONIZED CONTROL
MULTIPLE SPINDLE CONTROL
SYNCHRONIZED TAPPING, TOOL SPINDLE
TOOL FUNCTIONS
TOOL FUNCTION, 4-DIGIT T CODE
NUMBER OF TOOL OFFSETS H1: 240 SETS H2: 64 SETS
TOOL POSITION OFFSET
Y AXIS OFFSET
TOOL NOSE RADIUS OFFSET
TOOL GEOMETRY OFFSET TOOL WEAR OFFSET
TOOL LIFE MANAGEMENT B
NUMBER OF TOOL LIFE MANAGEMENT B SETS, 240
7-DIGIT TOOL OFFSET DATA
TOOL OFFSET MEASUREMENT DIRECT DATA INPUT
TOOL OFFSET MEASUREMENT DIRECT DATA INPUT B, IN-MACHINE TOOL PRESETTER
CORNER CIRCULAR INTERPOLATION
EDITING
BACKGROUND EDITING
EXPANDED TAPE EDITING
UNDO/REDO FUNCTION (MAPPS)
LINE NUMBER DISPLAY (MAPPS)
PROGRAM PROTECT
SETTING & DISPLAY
STATUS DISPLAY
CLOCK FUNCTION
ACTUAL POSITION DISPLAY
PROGRAM COMMENT DISPLAY; 190 CHARACTERS
PARAMETER DISPLAY SETTING
ALARM DISPLAY
ALARM HISTORY DISPLAY
OPERATOR’S MESSAGE HISTORY DISPLAY
OPERATION HISTORY DISPLAY
RUNNING TIME/NUMBER OF PARTS DISPLAY
ACTUAL FEEDRATE DISPLAY
DISPLAY OF ACTUAL SPINDLE SPEED AND T CODE
OPERATION PANEL: DISPLAY SECTION 15” TFT COLOR LCD
ADDITIONAL OPTIONS
TOOL CENTER POINT CONTROL
5 EXTERNAL M-CODES
SPINDLE 2 TAILSTOCK SPECIFICATIONS
TOOL SPINDLE CS CONTROL (B0907-0390-01)
