MORI SEIKI NZ-2000-T3Y3
Type:
LATHES, COMBINATION, N/C & CNC, (3-axis Or More)
Manufacturer:
MORI SEIKI
Model:
NZ-2000-T3Y3
Condition:
Not Specified
Year:
2008
Stock #:
33490
Status:
Sold
Description:
2008 Mori Seiki NZ 2000 T3Y3 with MSX701
Videos:
Location:
California, United States
Specifications from OEM brochure and equipped with are described to the best of our knowledge. ALL items should be confirmed by buyer.

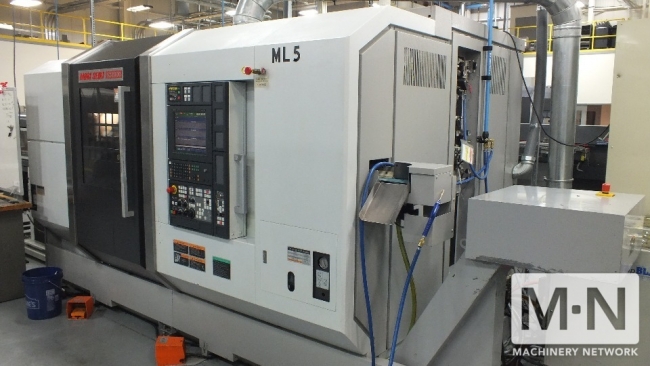

(1) USED MORI-SEIKI NZ-2000-T3Y3 MULTI AXIS CNC TURNING CENTER NEW: 2008
SPECIFICATIONS: SWING OVER BED: ................................. 31/5" SWING OVER CROSS SLIDE: ......................... 31.5" MAX DISTANCE BETWEEN SPINDLE LARGE NOSES: ....... 44.4"
STANDARD TURNING DIAMETER: ...................... 7.9" BAR CAPACITY: ................................... 2.5" TRAVELS:
X1, X2, X3: ..................................... 8.3" Y1, Y3: ......................................... 4.3" <+ 2.6" , -1.8"> Y2: ............................................. 4.3" <+ 1.8" , -2.6"> Z1, Z3: ......................................... 11.8" <+ 3.9"> , Z2 31.9" B AXIS TRAVEL SPINDLE 2: ........................ 34.3" SPINDLE 1 & 2: MAX SPINDLE SPEED: .............................. 5000 RPM SPEED RANGES: ................................... 2 SPINDLE NOSE: ................................... JIS A2 -6 THROUGH SPINDLE HOLE DIAMETER: .................. 2.9" SPINDLE BEARING INSIDE DIAMETER: ................ 4.7" MIN. SPINDLE INDEXING INCREMENT:................. 0.001 3 TURRETS: ...................................... 16 STATIONS EACH, 48 TOTAL TURRET INDEXING TIME, 1 STATION: ................ 0.18 SEC MAX ROTARY TOOL SPEED: .......................... 6000 RPM FEEDRATE:
X1, X2, X3 : .................................... 1181.1 IPM Y1, Y2, Y3 : .................................... 787.4 IPM Z2, Z2, Z3 : .................................... 1968.5 IPM JOG FEED RATE: .................................. 196.9 IPM ELECTRICAL POWER SUPPLY: ........................ 96.2 KVA MACHINE WEIGHT: ................................. 20,900 LBS
EQUIPPED WITH:

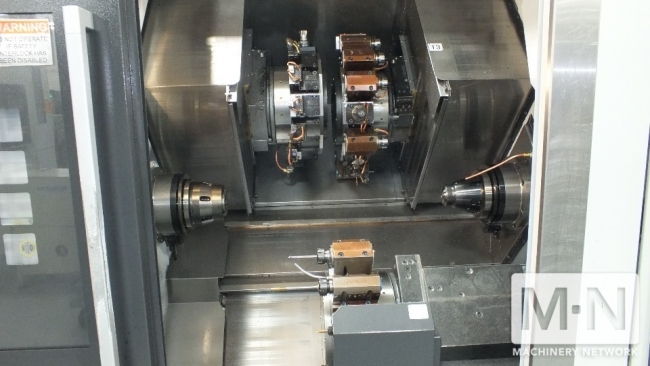

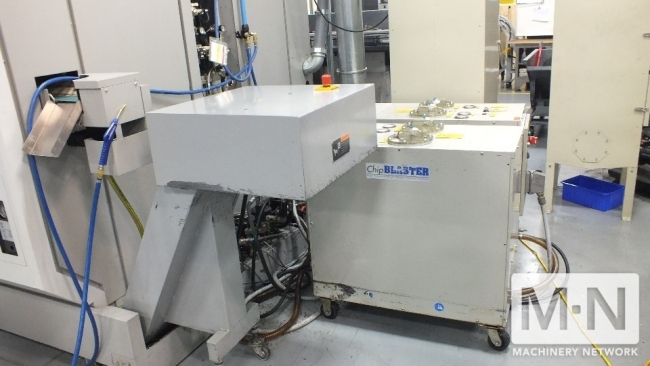

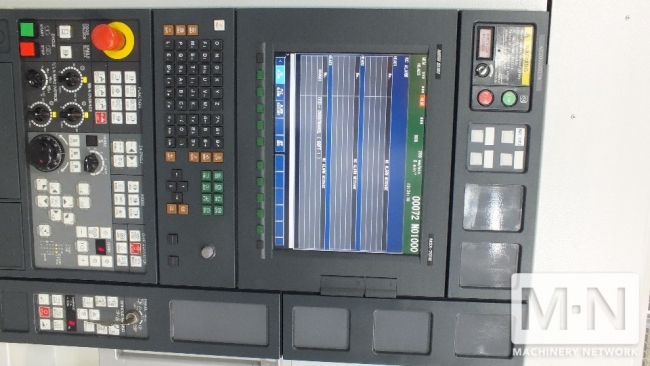

MSX-701 III CNC CONTROL (2) UPPER & (1) LOWER TURRET WITH TWIN OPPOSED SPINDLES Y-AXIS MILLING CAPABILITY ON ALL (3) TURRETS COLLET CHUCKS ON MAIN & SUBSPINDLES LNS SERVO S3 MAGAZINE BARFEED OVERHEAD AUTO PARTS CATCHER MANUAL TOOL PRESETTER (L & R) CHIP CONVEYOR HIGH PRESSURE COOLANT PUMPS
SPECIFICATIONS: SWING OVER BED: ................................. 31/5" SWING OVER CROSS SLIDE: ......................... 31.5" MAX DISTANCE BETWEEN SPINDLE LARGE NOSES: ....... 44.4"
STANDARD TURNING DIAMETER: ...................... 7.9" BAR CAPACITY: ................................... 2.5" TRAVELS:
X1, X2, X3: ..................................... 8.3" Y1, Y3: ......................................... 4.3" <+ 2.6" , -1.8"> Y2: ............................................. 4.3" <+ 1.8" , -2.6"> Z1, Z3: ......................................... 11.8" <+ 3.9"> , Z2 31.9" B AXIS TRAVEL SPINDLE 2: ........................ 34.3" SPINDLE 1 & 2: MAX SPINDLE SPEED: .............................. 5000 RPM SPEED RANGES: ................................... 2 SPINDLE NOSE: ................................... JIS A2 -6 THROUGH SPINDLE HOLE DIAMETER: .................. 2.9" SPINDLE BEARING INSIDE DIAMETER: ................ 4.7" MIN. SPINDLE INDEXING INCREMENT:................. 0.001 3 TURRETS: ...................................... 16 STATIONS EACH, 48 TOTAL TURRET INDEXING TIME, 1 STATION: ................ 0.18 SEC MAX ROTARY TOOL SPEED: .......................... 6000 RPM FEEDRATE:
X1, X2, X3 : .................................... 1181.1 IPM Y1, Y2, Y3 : .................................... 787.4 IPM Z2, Z2, Z3 : .................................... 1968.5 IPM JOG FEED RATE: .................................. 196.9 IPM ELECTRICAL POWER SUPPLY: ........................ 96.2 KVA MACHINE WEIGHT: ................................. 20,900 LBS
EQUIPPED WITH:
MSX-701 III CNC CONTROL (2) UPPER & (1) LOWER TURRET WITH TWIN OPPOSED SPINDLES Y-AXIS MILLING CAPABILITY ON ALL (3) TURRETS COLLET CHUCKS ON MAIN & SUBSPINDLES LNS SERVO S3 MAGAZINE BARFEED OVERHEAD AUTO PARTS CATCHER MANUAL TOOL PRESETTER (L & R) CHIP CONVEYOR HIGH PRESSURE COOLANT PUMPS
