MORI SEIKI NZ 1500T
Type:
LATHES, COMBINATION, N/C & CNC, (3-axis Or More)
Manufacturer:
MORI SEIKI
Model:
NZ 1500T
Condition:
Not Specified
Year:
2009
Stock #:
33491
Status:
Sold
Description:

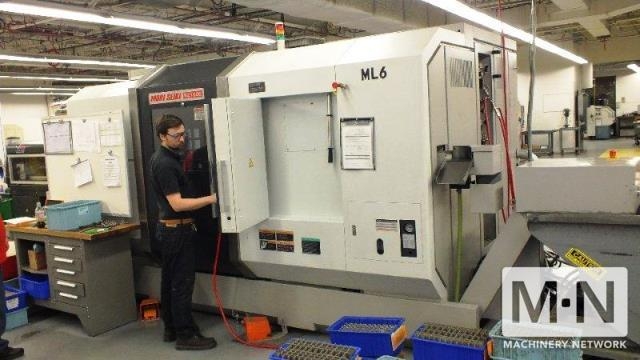

2009 Mori Seiki NZ 1500T3Y3 With MSX701
Location:
California, United States
Specifications from OEM brochure and equipped with are described to the best of our knowledge. ALL items should be confirmed by buyer.
1) USED MORI SEIKI NZ 1500T3Y3 MULTI AXIS CNC TURNING/MILLING CENTER NEW: 2009 SPECIFICATIONS: SWING OVER BED:..............................31.5" SWING OVER CROSS SLIDE:31/5" MAX. DISTANCE BETWEEN SPINDLE LARGE NOSES:...44.4" MAX. TURNING DIAMETER:.......................12.5" STANDARD TURNING DIAMETER:...................7.9" MAX. WORKPIECE DELIVERY DIAMETER:............11.8" MAX. TURNING LENGTH:.........................31.9" BAR CAPACITY:................................2.0" TRAVELS:

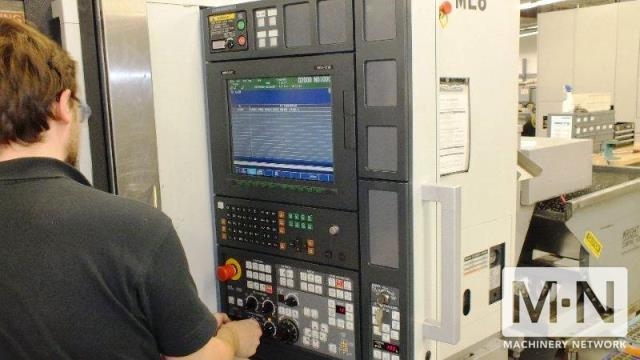

X1, X2, X3:..................................8.3" Y1, Y3:......................................4.3 <+(2.6), -(.18)> Y2:..........................................4.3<+(1.8), -(2.6)> Z1, Z3:......................................11.8 <+ 3.9> Z2:..........................................31.9 B AXIS TRAVEL SPINDLE 2:.....................35.4" SPINDLE 1 & 2: MAX SPINDLE SPEED:.......................6000 RPM 2 SPEED RANGES SPINDLE NOSE:...........................JIS A2-5 THROUGH SPINDLE HOLE DIAMETER:...............2.4 SPINDLE BEARING INSIDE DIAMETER:.............3.9 MIN SPINDLE INDEXING INCREMENT:..............001 TURRETS: 16 STATIONS X 3 TURRETS:.................48 TOOL STATIONS TURRET INDEXING TIME (1STATION):.........18 SEC. MAX. ROTARY TOOL SPEED:..................6000 RPM FEED RATES RAPID TRAVERSE: X1, X2, X3:.................................1181.1 IPM Y1, Y2, Y3:.................................787.4 IPM Z1, Z2, Z3:.................................1968.5 IPM MACHINE WEIGHT:..............................20,460 LBS. EQUIPPED WITH: MSX 701III CNC CONTROL LNS SERVO S3 MAGAZINE BAR FEEDER COLLET CHUCKS ON MAIN & SUBSPINDLES TOOLSETTER 18 LIVE TOOL HOLDERS FIRE SUPPRESSION CHIP CONVEYOR CHIP BLASTER HIGH PRESSURE COOLANT PUMPS
X1, X2, X3:..................................8.3" Y1, Y3:......................................4.3 <+(2.6), -(.18)> Y2:..........................................4.3<+(1.8), -(2.6)> Z1, Z3:......................................11.8 <+ 3.9> Z2:..........................................31.9 B AXIS TRAVEL SPINDLE 2:.....................35.4" SPINDLE 1 & 2: MAX SPINDLE SPEED:.......................6000 RPM 2 SPEED RANGES SPINDLE NOSE:...........................JIS A2-5 THROUGH SPINDLE HOLE DIAMETER:...............2.4 SPINDLE BEARING INSIDE DIAMETER:.............3.9 MIN SPINDLE INDEXING INCREMENT:..............001 TURRETS: 16 STATIONS X 3 TURRETS:.................48 TOOL STATIONS TURRET INDEXING TIME (1STATION):.........18 SEC. MAX. ROTARY TOOL SPEED:..................6000 RPM FEED RATES RAPID TRAVERSE: X1, X2, X3:.................................1181.1 IPM Y1, Y2, Y3:.................................787.4 IPM Z1, Z2, Z3:.................................1968.5 IPM MACHINE WEIGHT:..............................20,460 LBS. EQUIPPED WITH: MSX 701III CNC CONTROL LNS SERVO S3 MAGAZINE BAR FEEDER COLLET CHUCKS ON MAIN & SUBSPINDLES TOOLSETTER 18 LIVE TOOL HOLDERS FIRE SUPPRESSION CHIP CONVEYOR CHIP BLASTER HIGH PRESSURE COOLANT PUMPS
