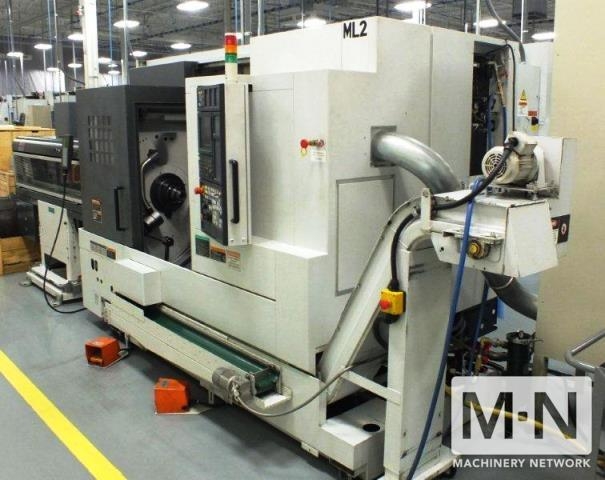

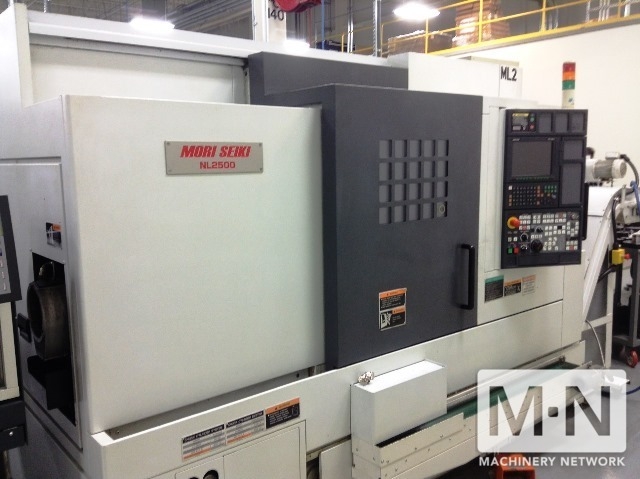

MORI SEIKI NL2500 SY/700

Type:

LATHES, COMBINATION, N/C & CNC, (3-axis Or More)

Manufacturer:

MORI SEIKI

Model:

NL2500 SY/700

Condition:

Not Specified

Year:

2008

Stock #:

33488

Status:

Sold

Description:

MORI SEIKI NL 2500SY, 14" TURN DIAM., 5K RPM

Location:

California, United States

Specifications from OEM brochure and equipped with are described to the best of our knowledge. ALL items should be confirmed by buyer.

Quote Request Have one for sale?

For more information call +1 (818) 465-6700 or contact us

Spec Sheet:

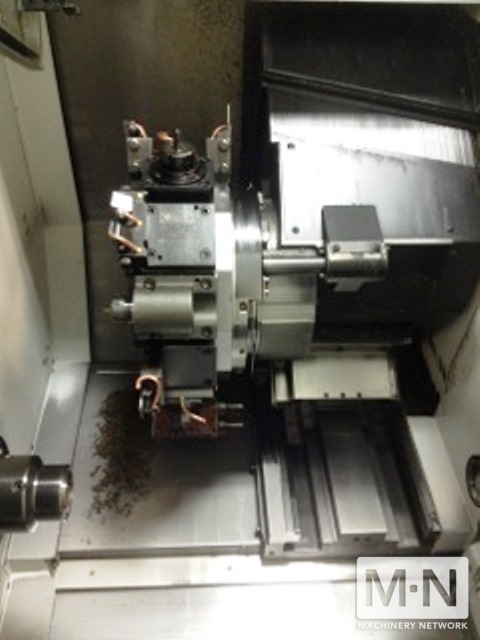

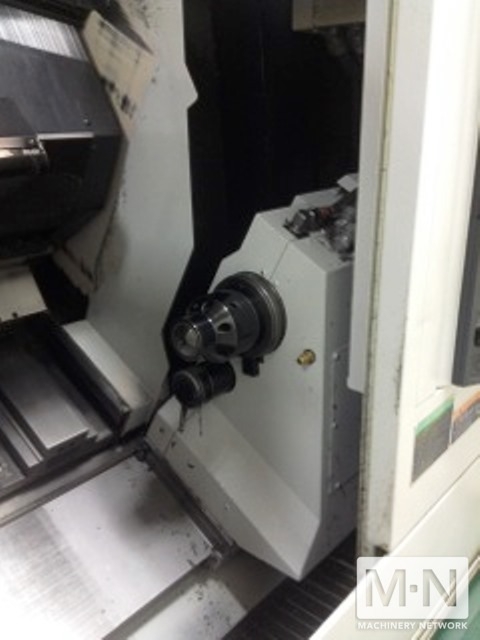

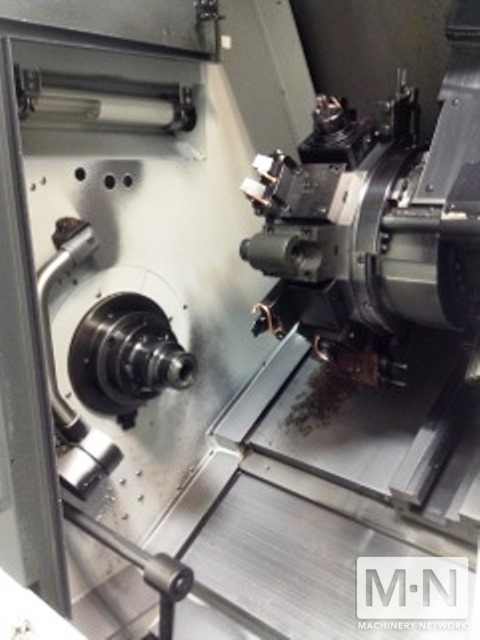

1) USED MORI SEIKI NL-2500SY MULTI AXIS CNC TURNING CENTER NEW: 2008 SPECIFICATIONS: SWING OVER BED .......................... 36.4" SWING OVER FRONT COVER .................. 29.7" MAX. TURNING DIAMETER.................... 14" MAX. TURNING LENGTH ..................... 27.7" BAR WORK CAPACITY ....................... 3.1" X-AXIS TRAVEL ........................... 10.2" Z-AXIS TRAVEL ........................... 31.3" Y-AXIS TRAVEL ........................... 3.9<+/-2.0> HEADSTOCK 2 TRAVEL B-AXIS ............... 28.9" MAX. SPINDLE SPEED, MAIN ................ 4,000 RPM MAX. SPINDLE SPEED, SUB ................. 6,000 RPM MAIN SPINDLE NOSE ....................... A2-8 SUB SPINDLE NOSE ........................ A2-5 THRU SPINDLE HOLE DIA., MAIN ............ 3.6" THRU SPINDLE HOLE DIA., SUB ............. 1.7" MIN. SPINDLE INDEXING ANGLE ............. 0.001 DEG. NUMBER OF TOOL STATIONS ................. 12 SHANK HEIGHT FOR SQUARE TOOL ............ 1" SHANK DIAMETER FOR BORING BAR ........... 2" TURRET INDEXING TIME .................... 0.25" MAX. ROTARY TOOL SPEED .................. 6,000 RPM RAPID TRAVERSE RATE X,Z,B ............... 1,181 IPM RAPID TRAVERSE RATE Y ................... 393.7 IPM RAPID TRAVERSE RATE C ................... 400 min MAIN SPINDLE DRIVE MOTOR ................ 25/20 HP SUB SPINDLE DRIVE MOTOR ................. 15/10 HP ROTARY TOOL DRIVE MOTOR ................. 7.5/5 HP APPROX. WEIGHT .......................... 13,640 LBS. EQUIPPED WITH: - MSX-850III CNC CONTROL - TOOLSETTER FOR MAIN & SUBSPINDLES - COLLET CHUCKS ON MAIN & SUBSPINDLES - FULL C-AXIS ON MAIN & SUBSPINDLES - 12 POSITION TURRET - CHIP CONVEYOR - (6)LIVE TOOLHOLDERS - ALL AVAILABLE STANDARD TOOLHOLDERS - ALL AVAILABLE MANUALS - LNS SERVO S3 MAGAZINE BARFEED
