MORI SEIKI SL-603C
Type:
LATHES, COMBINATION, N/C & CNC, (3-axis Or More)
Manufacturer:
MORI SEIKI
Model:
SL-603C
Condition:
Not Specified
Stock #:
36359
Status:
Sold
Description:
MSX-500III CTRL, 90" CENTER DIST., 10" SPINDLE BORE,
Location:
California, United States
Specifications from OEM brochure and equipped with are described to the best of our knowledge. ALL items should be confirmed by buyer.

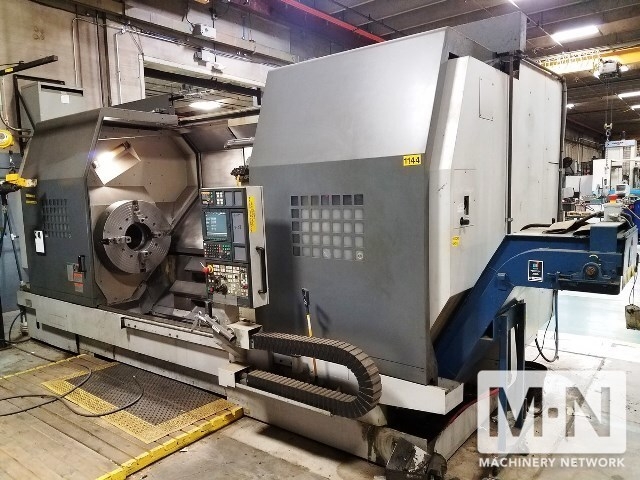

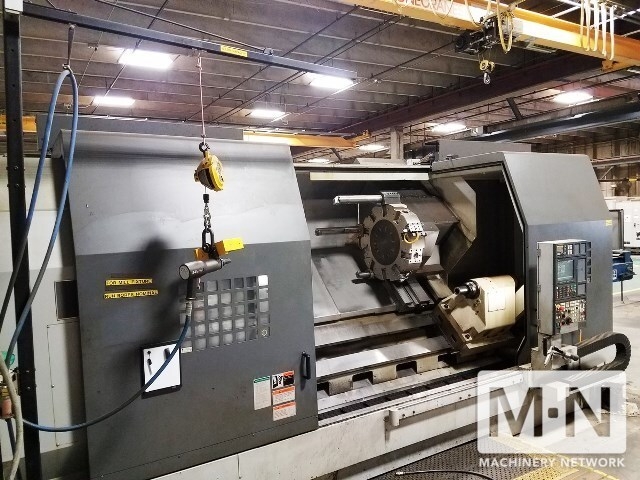

(1) USED MORI SEIKI SL-603C CNC LATHE
SPECIFICATIONS:
MAX SWING OVER BED 39.1"
MAX TURNING DIAMETER 35.4"
DISTANCE BETWEEN CENTERS 90.6"
MAX MACHINING LENGTH 78.7"
DISTANCE BETWEEN CENTERS 90.6"
SPINDLE BORE DIAMETER 10.2"
SPINDLE NOSE A1-203
SPINDLE SPEEDS 1,500 RPM
TURRET 10 POSITION
X-AXIS TRAVEL 19.1"
Z-AXIS TRAVEL 84.6"
RAPID TRAVERSE 787 IPM
TAILSTOCK QUILL DIAMETER 5.9"
TAILSTOCK TRAVEL 82.7"
MAIN MOTOR 60 HP
DIMENSIONS 275" X 135" X 114"
MACHINE WEIGHT 40,700 LBS
EQUIPPED WITH:

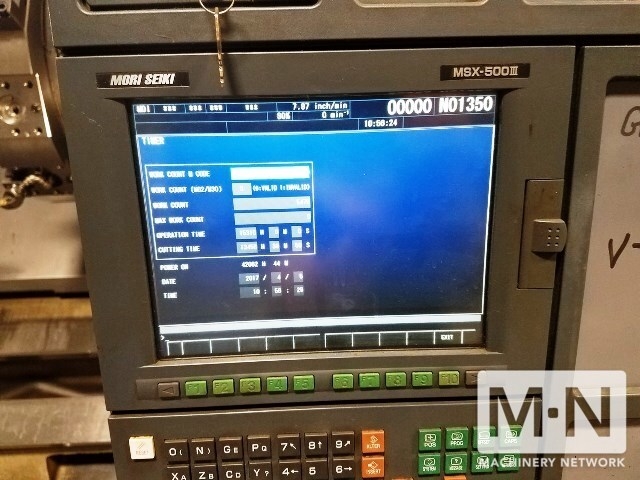

MSX-500III CONTROL
CHIP CONVEYOR
TOOL BLOCKS
MANUALS
SPECIFICATIONS:
MAX SWING OVER BED 39.1"
MAX TURNING DIAMETER 35.4"
DISTANCE BETWEEN CENTERS 90.6"
MAX MACHINING LENGTH 78.7"
DISTANCE BETWEEN CENTERS 90.6"
SPINDLE BORE DIAMETER 10.2"
SPINDLE NOSE A1-203
SPINDLE SPEEDS 1,500 RPM
TURRET 10 POSITION
X-AXIS TRAVEL 19.1"
Z-AXIS TRAVEL 84.6"
RAPID TRAVERSE 787 IPM
TAILSTOCK QUILL DIAMETER 5.9"
TAILSTOCK TRAVEL 82.7"
MAIN MOTOR 60 HP
DIMENSIONS 275" X 135" X 114"
MACHINE WEIGHT 40,700 LBS
EQUIPPED WITH:
MSX-500III CONTROL
CHIP CONVEYOR
TOOL BLOCKS
MANUALS
