MORI SEIKI NLX2500SY/700
Type:
LATHES, COMBINATION, N/C & CNC, (3-axis Or More)
Manufacturer:
MORI SEIKI
Model:
NLX2500SY/700
Condition:
Not Specified
Stock #:
34981
Status:
Sold
Description:
MORI SEIKI, NLX2500SY/700
Location:
Illinois, United States
Specifications from OEM brochure and equipped with are described to the best of our knowledge. ALL items should be confirmed by buyer.

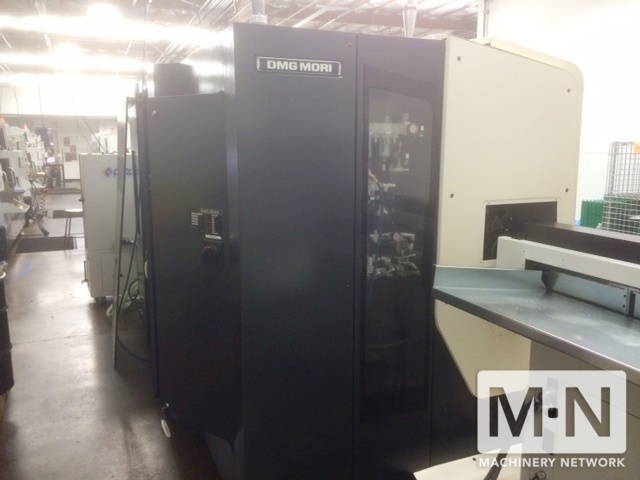

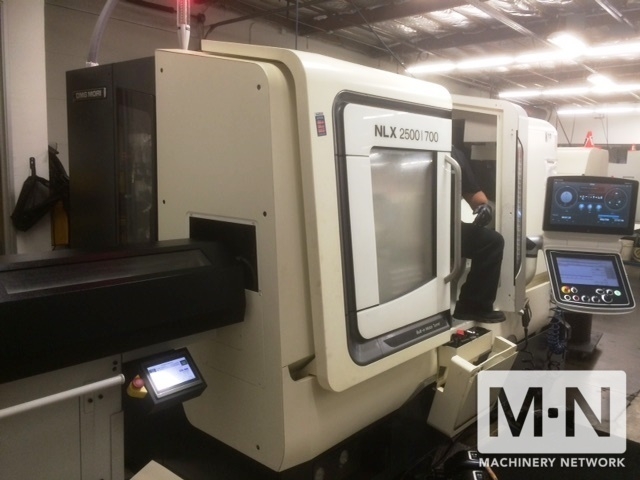

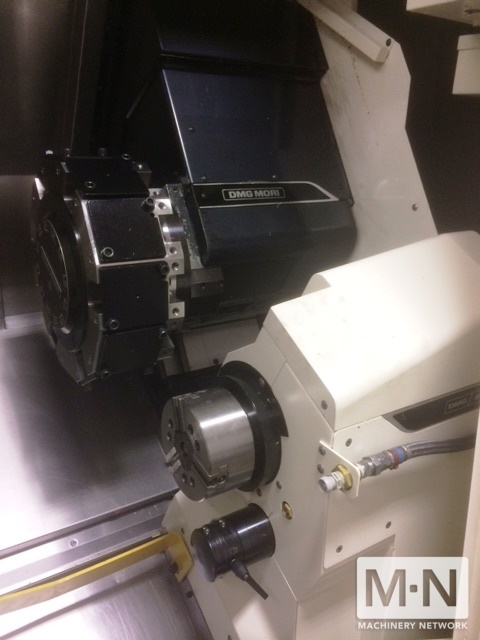

(1) USED MORI SEIKI NLX2500SY/700 CNC TURNING CENTER
NEW 2013
FRONT END CELOS ERGOLINE WITH MSX-850 CONTROL
SPECIFICATIONS:
MAX TURNING DIAMETER: ............... 14.4"
STANDARD TURNING DIAMETER: .......... 10.6"
MAX CUTTING LENGTH: ................. 20"
BAR CAPACITY......................... 2.55"
TRAVELS:
X-AXIS: ............................. 10.2"
Z-AXIS: ............................. 23.2"
Y-AXIS: ............................. 3.9" +/- 2"
Overhang of O.D. cutting rotary tool: 100 mm (limited Y-axis travel)
B-AXIS: ............................. 24.6"
SPINDLE SPEED: ...................... 5,000 RPM
SUB SPINDLE SPEED: .................. 6,000 RPM
TOOL STATIONS: ...................... 12
High-speed rotary tool spindle........10,000 min-1
CELOS ERGOLINE WITH MSX-850 CONTROL OPTIONS:
Polygon turning
Circular threading
Islands, open pockets
High-speed canned cycle
Program restart
Tool retract and recover
EQUIPPED WITH:
Control M730UM

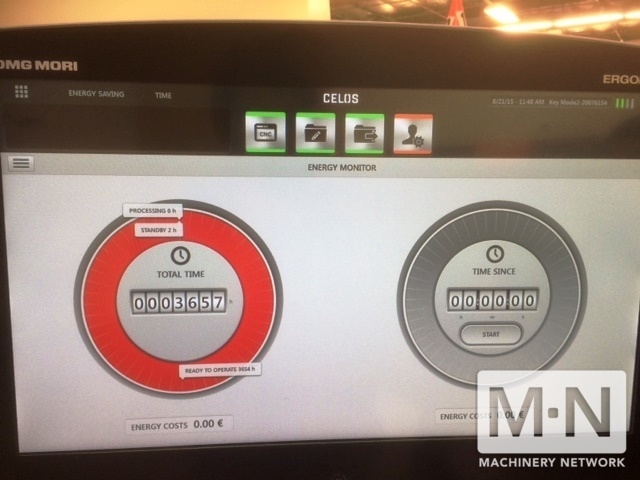

CELOS - ERGOline Touch

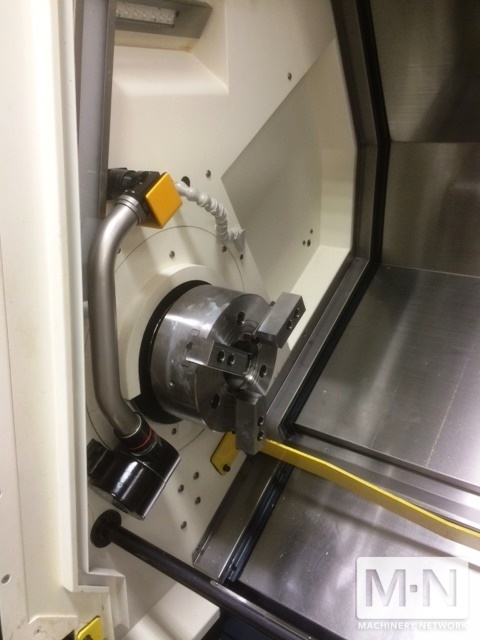

(Spindle 1) KITAGAWA 10" Hollow Chuck Unit BB210A821 + KITAGAWA Hollow SS1881K21
(Spindle 2) KITAGAWA 6" Hollow Chuck Unit B206A521F + HOWA Solid C1SB115M4774
Coolant gun
Chuck top coolant (Main spindle) & (Sub spindle)

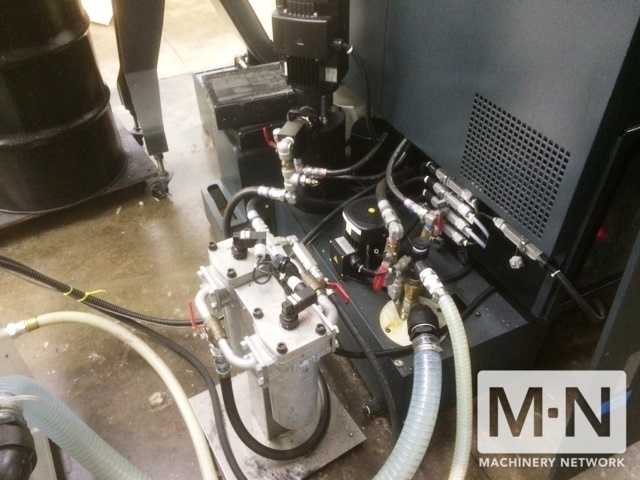

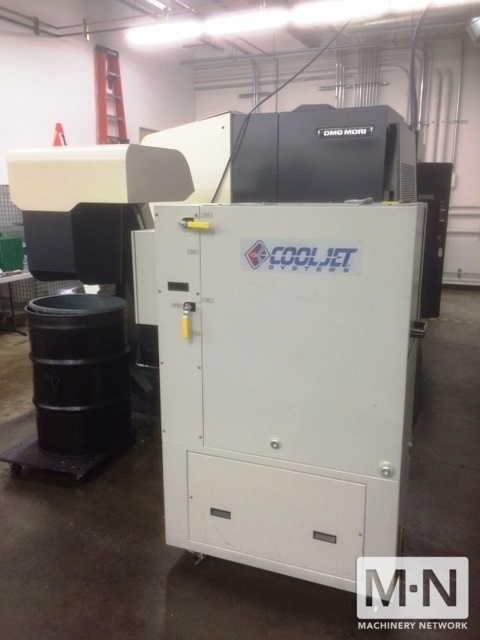

High-pressure coolant system 1 MPa (1.1 kW) for 50Hz area, 1.5 MPa (2.2 kW) for 60Hz area

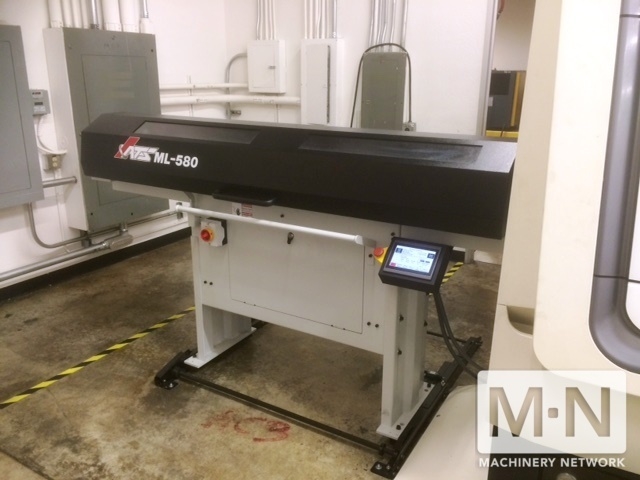

LNS BAR FEEDER
BAR FEED INTERFACE READY (LNS) (multiple)
Air blow for tool tip

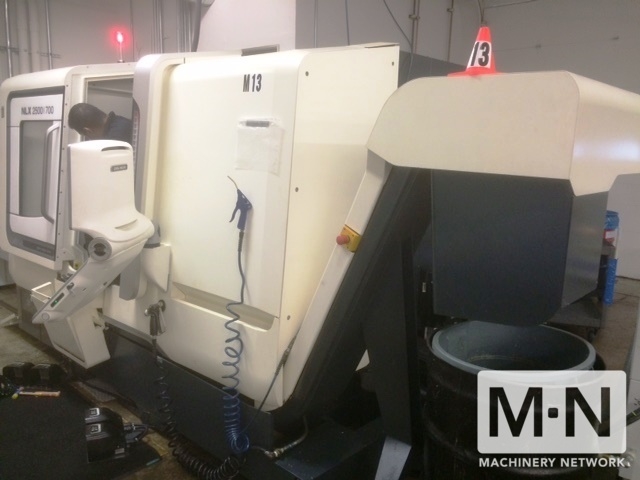

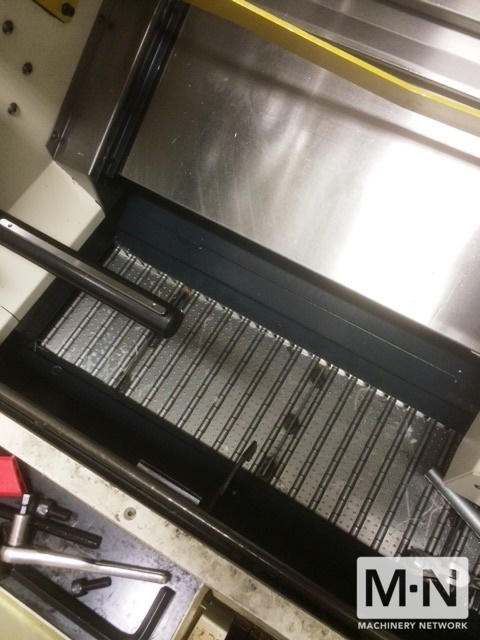

CHIP CONVEYOR
Chuck cylinder stroke check (liner position monitoring) (spindle 1, 2) (J-002351)
Chuck foot switch (double) for spindle 1, 2
SUB SPINDLE WITH Y AXIS
ALL STATIC TOOL HOLDERS THAT CAME WITH THE MACHINE
Chuck cylinder stroke check (liner position monitoring) (spindle 1, 2) (J-002351)
2 RADIAL LIVE TOOL HOLDERS- COMES IN FROM THE SIDE OF THE TURRET
1 AXIAL DUAL SIDE TOOL HOLDER- LIVE-
HAS BOTH DIRECTION MILLING OR DRILLING ON Z AXIS
NEW 2013
FRONT END CELOS ERGOLINE WITH MSX-850 CONTROL
SPECIFICATIONS:
MAX TURNING DIAMETER: ............... 14.4"
STANDARD TURNING DIAMETER: .......... 10.6"
MAX CUTTING LENGTH: ................. 20"
BAR CAPACITY......................... 2.55"
TRAVELS:
X-AXIS: ............................. 10.2"
Z-AXIS: ............................. 23.2"
Y-AXIS: ............................. 3.9" +/- 2"
Overhang of O.D. cutting rotary tool: 100 mm (limited Y-axis travel)
B-AXIS: ............................. 24.6"
SPINDLE SPEED: ...................... 5,000 RPM
SUB SPINDLE SPEED: .................. 6,000 RPM
TOOL STATIONS: ...................... 12
High-speed rotary tool spindle........10,000 min-1
CELOS ERGOLINE WITH MSX-850 CONTROL OPTIONS:
Polygon turning
Circular threading
Islands, open pockets
High-speed canned cycle
Program restart
Tool retract and recover
EQUIPPED WITH:
Control M730UM
CELOS - ERGOline Touch
(Spindle 1) KITAGAWA 10" Hollow Chuck Unit BB210A821 + KITAGAWA Hollow SS1881K21
(Spindle 2) KITAGAWA 6" Hollow Chuck Unit B206A521F + HOWA Solid C1SB115M4774
Coolant gun
Chuck top coolant (Main spindle) & (Sub spindle)
High-pressure coolant system 1 MPa (1.1 kW) for 50Hz area, 1.5 MPa (2.2 kW) for 60Hz area
LNS BAR FEEDER
BAR FEED INTERFACE READY (LNS) (multiple)
Air blow for tool tip
CHIP CONVEYOR
Chuck cylinder stroke check (liner position monitoring) (spindle 1, 2) (J-002351)
Chuck foot switch (double) for spindle 1, 2
SUB SPINDLE WITH Y AXIS
ALL STATIC TOOL HOLDERS THAT CAME WITH THE MACHINE
Chuck cylinder stroke check (liner position monitoring) (spindle 1, 2) (J-002351)
2 RADIAL LIVE TOOL HOLDERS- COMES IN FROM THE SIDE OF THE TURRET
1 AXIAL DUAL SIDE TOOL HOLDER- LIVE-
HAS BOTH DIRECTION MILLING OR DRILLING ON Z AXIS
