MORI SEIKI NL3000-700

Type:

LATHES, COMBINATION, N/C & CNC, (3-axis Or More)

Manufacturer:

MORI SEIKI

Model:

NL3000-700

Condition:

Not Specified

Year:

2006

Stock #:

34878

Status:

Sold

Description:

MORI SEIKI NL3000

Location:

Illinois, United States

Specifications from OEM brochure and equipped with are described to the best of our knowledge. ALL items should be confirmed by buyer.

Quote Request Have one for sale?

For more information call +1 (818) 465-6700 or contact us

Spec Sheet:

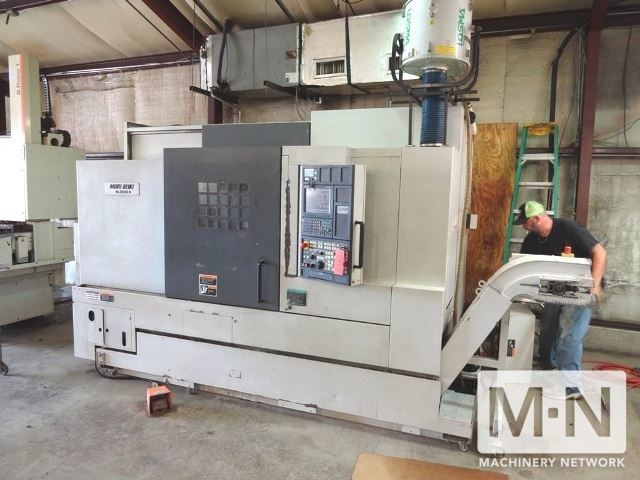

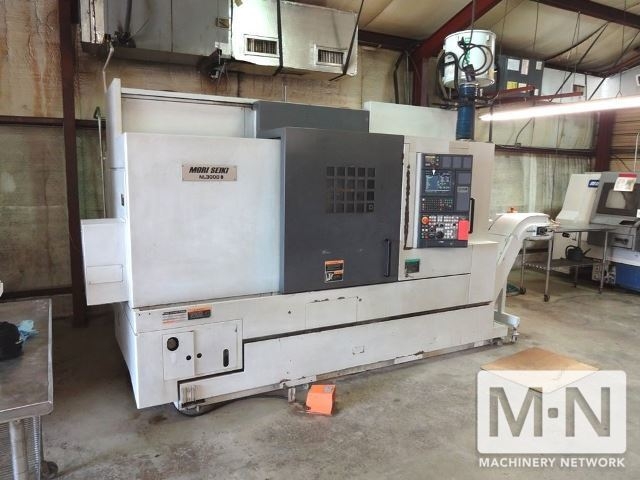

(1) USED MORI SEIKI NL-3000 / 700 CNC TURNING CENTER
MFG. 2006

SPECIFICATIONS:
CHUCK SIZE.........................12"
MAX DIAMETER BAR CAPACITY..........3.5"
MAX SWING OVER BED / COVER.........39.2" / 32.5"
TURNING DIAMETER (MAX / STD).......16.5" / 12.2"
MAX MACHINING LENGTH...............28"
SPINDLE SPEED......................3000 RPM
SPINDLE BORE.......................4.1"
SPINDLE NOSE.......................A2-8
SPINDLE MOTOR......................30 / 24.7 HP
SPINDLE TORQUE.....................756 FT. LBS.
TOOLS..............................12
RAPID TRAVERSE RATES...............1181 IPM
X-AXIS TRAVEL......................11"
Z-AXIS TRAVEL......................32.3"
TURRET INDEX (SINGLE STEP).........0.3 SECONDS
TAILSTOCK TAPER ................MT#5
MACHINE DIMENSIONS (L X W X H).....134.3" X 82.2" X 89.4"
MACHINE WEIGHT.....................13,200 LBS.

EQUIPPED WITH:

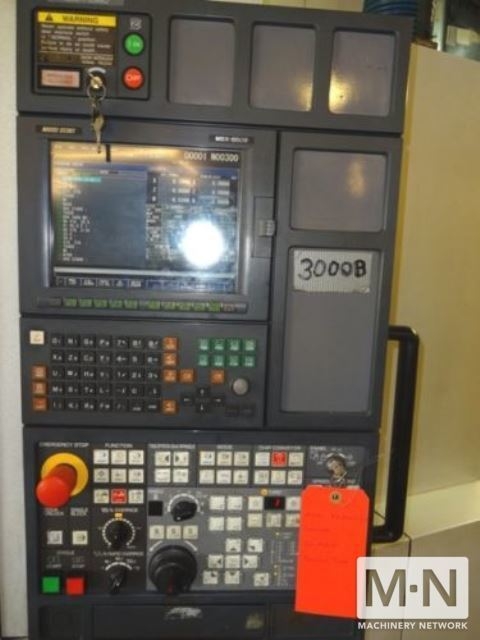

MORIC MSX-850 (MITSUBISHI) CNC CONTROL
10.4" COLOR LCD
MAPPS III CONVERSATIONAL PROGRAMMING

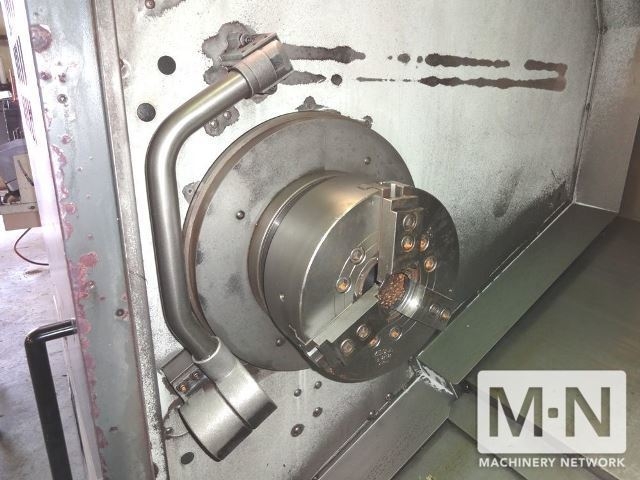

12" KITAGAWA B212 HYDRAULIC 3-JAW CHUCK
TOOL PRESETTER
SERVO DRIVEN TURRET

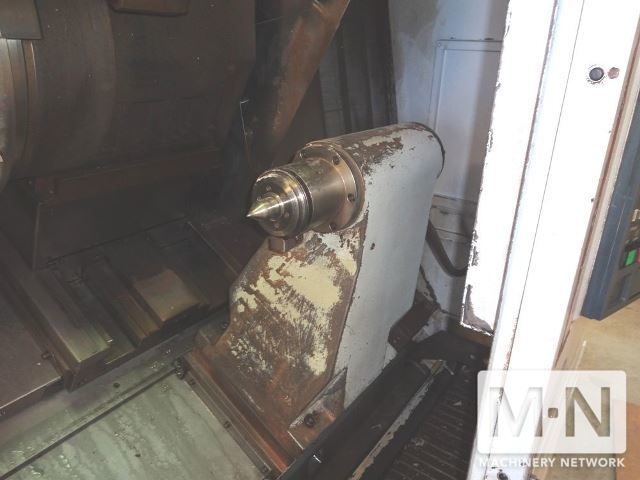

SERVO DRIVEN TAILSTOCK

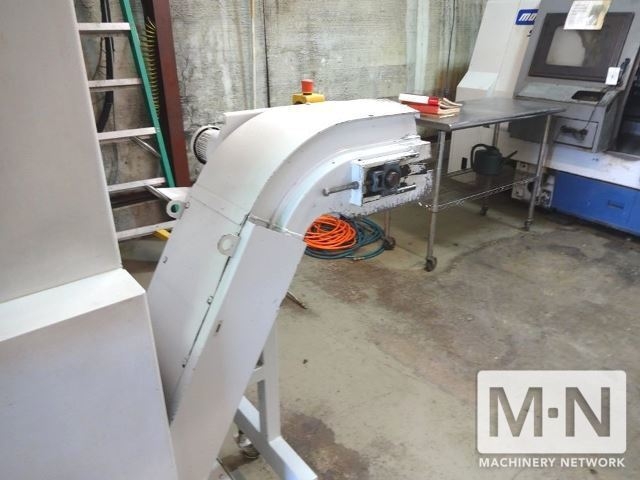

CHIP CONVEYOR (SIDE EXIT)
HEAVY DUTY BOX WAY CONSTRUCTION
MFG DATE NOVEMBER 2006
