MORI SEIKI NL-1500SY
Type:
LATHES, COMBINATION, N/C & CNC, (3-axis Or More)
Manufacturer:
MORI SEIKI
Model:
NL-1500SY
Condition:
Not Specified
Year:
2004
Stock #:
34444
Status:
Sold
Description:
MSX-850III Control, w/Gantry Loader, 8” Main Chuck, 6” Sub Chuck, 6K RPM
Videos:
Location:
California, United States
Specifications from OEM brochure and equipped with are described to the best of our knowledge. ALL items should be confirmed by buyer.

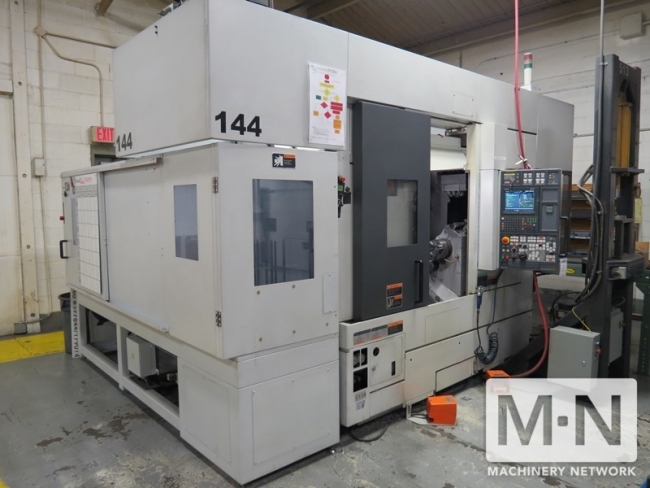

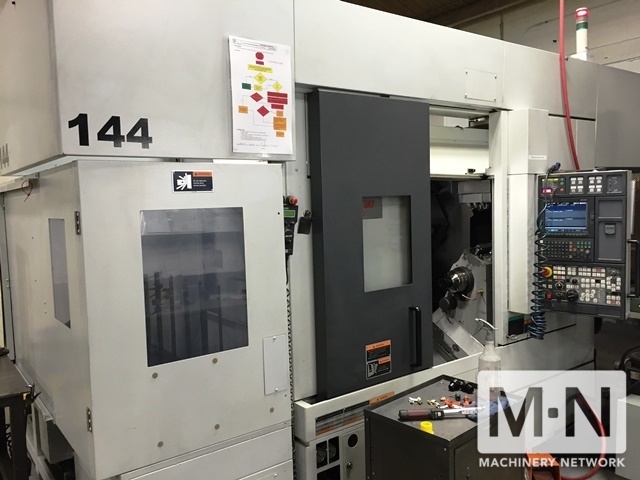

(1) USED MORI SEIKI NL-1500SY CNC MULTI-AXIS LATHE
MFG. 2004 INSTALLED 2008
SPECIFICATIONS:
MAX. SWING / SWING OVER CROSS SLIDE:.........36.37" / 29.72"
MAX. TURNING DIAMETER / MAX. TURNING LENGTH..14.01" / 20.2"
DISTANCE BETWEEN CENTERS:....................29"
MAIN SPINDLE:SPINDLE SPEEDS MIN.- MAX.:......60-6,000 RPM
SPINDLE BORE / BAR CAPACITY / NOSE...........2.4" / 2" / A2-5
MAIN MOTOR (30 MIN / CONTINUOUS).............20 HP
SUB-SPINDLE:.................................45 - 4,500 RPM
SPINDLE BORE/BAR CAP/SPINDLE NOSE/INDEXING:..1.7" / 1.2" / A2-5
MOTOR (30 MIN. / CONT.)......................10 / 7.5 HP

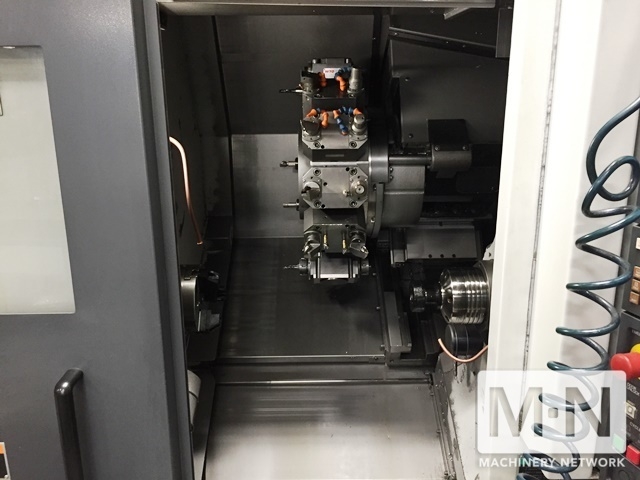

TURRET: NUMBER OF POSITIONS..................12 STATIONS
X-AXIS TRAVEL:...............................10.24"
Z-AXIS TRAVEL:...............................23.2"
Y-AXIS TRAVEL:...............................3.9"
ROTARY TOOLS:ROTARY TOOL SPEED...............6,000 RPM
ROTARY TOOL MOTOR (30 MIN./CONTINUOUS).......7.5 HP
RAPIDS: RAPID TRAVERSE (X & Z )..............1,181 IPM
FEED RATE (X & Z )...........................0.04 - 787 IPM
FLOOR SPACE (L X W X H):.....................122" X 81" X 84"
WEIGHT (APPROX)..............................17,000 LBS
EQUIPPED WITH
MAIN AND SUB-SPINDLE DESIGN
Y AXIS MILLING

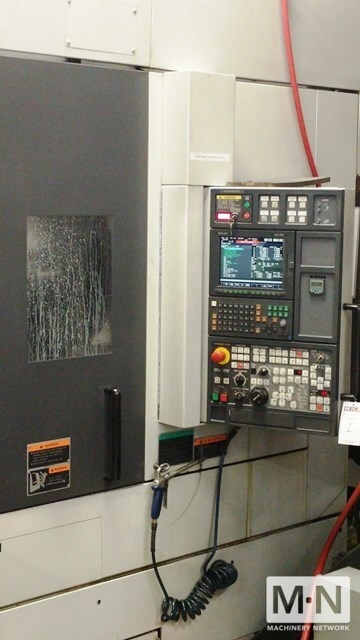

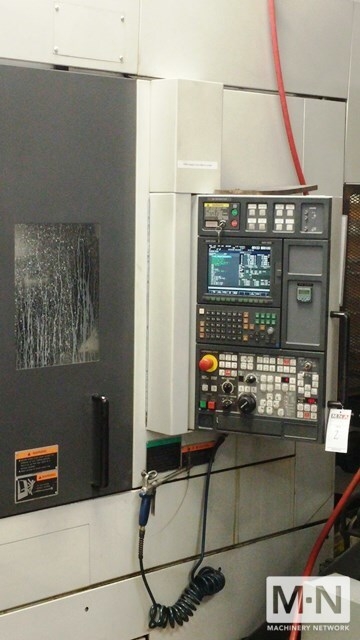

MORI MSX-850III CONTROL

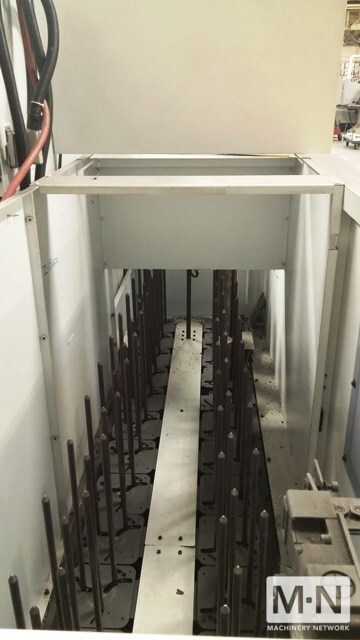

G-LOADER (NEVER USED)
ALL AVAILABLE MANUALS
8" CHUCK
6" CHUCK
MFG. 2004 INSTALLED 2008
SPECIFICATIONS:
MAX. SWING / SWING OVER CROSS SLIDE:.........36.37" / 29.72"
MAX. TURNING DIAMETER / MAX. TURNING LENGTH..14.01" / 20.2"
DISTANCE BETWEEN CENTERS:....................29"
MAIN SPINDLE:SPINDLE SPEEDS MIN.- MAX.:......60-6,000 RPM
SPINDLE BORE / BAR CAPACITY / NOSE...........2.4" / 2" / A2-5
MAIN MOTOR (30 MIN / CONTINUOUS).............20 HP
SUB-SPINDLE:.................................45 - 4,500 RPM
SPINDLE BORE/BAR CAP/SPINDLE NOSE/INDEXING:..1.7" / 1.2" / A2-5
MOTOR (30 MIN. / CONT.)......................10 / 7.5 HP
TURRET: NUMBER OF POSITIONS..................12 STATIONS
X-AXIS TRAVEL:...............................10.24"
Z-AXIS TRAVEL:...............................23.2"
Y-AXIS TRAVEL:...............................3.9"
ROTARY TOOLS:ROTARY TOOL SPEED...............6,000 RPM
ROTARY TOOL MOTOR (30 MIN./CONTINUOUS).......7.5 HP
RAPIDS: RAPID TRAVERSE (X & Z )..............1,181 IPM
FEED RATE (X & Z )...........................0.04 - 787 IPM
FLOOR SPACE (L X W X H):.....................122" X 81" X 84"
WEIGHT (APPROX)..............................17,000 LBS
EQUIPPED WITH
MAIN AND SUB-SPINDLE DESIGN
Y AXIS MILLING
MORI MSX-850III CONTROL
G-LOADER (NEVER USED)
ALL AVAILABLE MANUALS
8" CHUCK
6" CHUCK
