MORI SEIKI MT-2000SZ
Type:
LATHES, COMBINATION, N/C & CNC, (3-axis Or More)
Manufacturer:
MORI SEIKI
Model:
MT-2000SZ
Condition:
Not Specified
Year:
2002
Stock #:
34062
Status:
Sold
Description:
MT-2000SZ, MSG 501 CONTROL, 2.5" BAR CAP.,
Location:
Florida, United States
Specifications from OEM brochure and equipped with are described to the best of our knowledge. ALL items should be confirmed by buyer.

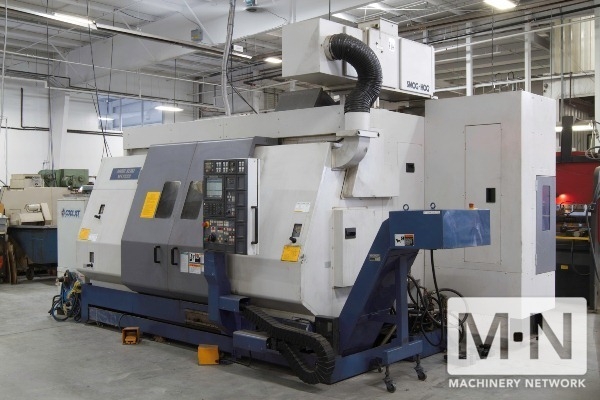

(1) USED MORI SEIKI MT-2000SZ MULTI-TAKING CNC TURNING CENTER
NEW 2002
SPECIFICATIONS:
MAX SWING OVER BED / CARRIAGE: ........33.4" / 17.3" - 23.6"
MAX TURNING DIAMETER / LOWER TURRET: ..21.6" / 11"
MAX DIAMETER BAR CAPACITY: ............2.5"
MAX MACHINING LENGTH: .................40.1"
DISTANCE BETWEEN SPINDLES: ............50.4"
SPINDLE MOTOR: ........................20 / 15 HP
SPINDLE SPEED: ........................4,500 RPM
SPINDLE BORE: .........................2.9"
SPINDLE NOSE: ........................A2-6
TOOLS: ................................120
RAPID TRAVERSE RATES (X & Z / Y): .....945 / 630 IPM
MILLING MOTOR: ........................25 / 20 /15 HP
MILLING SPEED: ........................8,000 RPM
SUB SPINDLE CHUCK SIZE: ...............6"
SUB SPINDLE MOTOR: ....................10 / 7.5 HP
SUB SPINDLE SPEED: ....................6,000 RPM
SUB SPINDLE BAR CAPACITY: .............1.7"
LOWER TURRET TOOLS: ...................12
LOWER TURRET MILLING MOTOR: ...........10 HP
LOWER TURRET MILLING SPEED: ...........4000 RPM
TOOL CHANGE TIME (T-T): ...............1.6 SECONDS
X-AXIS TRAVEL / LOWER TURRET: .........22.2" / 6.1"
Z-AXIS TRAVEL / LOWER TURRET: .........42.4" / 36.7"
Y-AXIS TRAVEL +/-: ....................3.1"
B-AXIS ROTATION +/-: .................120
B-AXIS INDEX: .........................001 DEGREES
C-AXIS INDEX (MAIN & SUB SPINDLE): ....001 DEGREES
GEAR RANGES: ..........................2
TOOL CHANGE TIME (T-T): ...............1.6 SECONDS
MAX TOOL DIAMETER: ....................3.5" / 4.9"
MAX TOOL LENGTH: ......................11"
MAX TOOL WEIGHT: ......................15.4 LBS.
MACHINE DIMENSIONS (L X W X H)(APPROX):254"X126"X138"
MACHINE WEIGHT (APPROX.):..............26,400 LBS.
EQUIPPED WITH (MUST BE VERIFIED BY BUYER):
MSG 501 CONTROL
CHUCK SIZE: 8"
SLU-2 PROGRAMMABLE STEADY INDEXABLE ON LOWER SIDE
COOL JET HIGH PRESSURE THROUGH SPINDLE COOLANT SYSTEM
320 METERS
MAPPS PROGRAMMING
POLAR COORDINATE INTERPOLATION
CYLINDRICAL/HELICAL INTERPOLATION
THREAD CUTTING RETRACT
RIGGID TAPPING MILL HEAD
BALANCED CUTTING
SECOND SPINDLE ORIENTATION
CUSTOM MACRO B
INTERFACE CHECK FOR THE TURNING AREA AXIS RECOMPOSITION
720 OFFSETS
8" CHUCK FRONT 6" SUB 3 JAW HYDRAULIC CHUCKS
C,Y, 7 B-AXIS MILLING CAPABILITY
120 ATC MAGAZINE
RENISHAW PROBE
TOOL PRESETTER FRONT AND REAR
LOW PRESSURE DETECTING SWITCH
AUTO POWER OFF
CHIP CONVEYOR/MIST BUSTER AIR FILTRATION
NEW 2002
SPECIFICATIONS:
MAX SWING OVER BED / CARRIAGE: ........33.4" / 17.3" - 23.6"
MAX TURNING DIAMETER / LOWER TURRET: ..21.6" / 11"
MAX DIAMETER BAR CAPACITY: ............2.5"
MAX MACHINING LENGTH: .................40.1"
DISTANCE BETWEEN SPINDLES: ............50.4"
SPINDLE MOTOR: ........................20 / 15 HP
SPINDLE SPEED: ........................4,500 RPM
SPINDLE BORE: .........................2.9"
SPINDLE NOSE: ........................A2-6
TOOLS: ................................120
RAPID TRAVERSE RATES (X & Z / Y): .....945 / 630 IPM
MILLING MOTOR: ........................25 / 20 /15 HP
MILLING SPEED: ........................8,000 RPM
SUB SPINDLE CHUCK SIZE: ...............6"
SUB SPINDLE MOTOR: ....................10 / 7.5 HP
SUB SPINDLE SPEED: ....................6,000 RPM
SUB SPINDLE BAR CAPACITY: .............1.7"
LOWER TURRET TOOLS: ...................12
LOWER TURRET MILLING MOTOR: ...........10 HP
LOWER TURRET MILLING SPEED: ...........4000 RPM
TOOL CHANGE TIME (T-T): ...............1.6 SECONDS
X-AXIS TRAVEL / LOWER TURRET: .........22.2" / 6.1"
Z-AXIS TRAVEL / LOWER TURRET: .........42.4" / 36.7"
Y-AXIS TRAVEL +/-: ....................3.1"
B-AXIS ROTATION +/-: .................120
B-AXIS INDEX: .........................001 DEGREES
C-AXIS INDEX (MAIN & SUB SPINDLE): ....001 DEGREES
GEAR RANGES: ..........................2
TOOL CHANGE TIME (T-T): ...............1.6 SECONDS
MAX TOOL DIAMETER: ....................3.5" / 4.9"
MAX TOOL LENGTH: ......................11"
MAX TOOL WEIGHT: ......................15.4 LBS.
MACHINE DIMENSIONS (L X W X H)(APPROX):254"X126"X138"
MACHINE WEIGHT (APPROX.):..............26,400 LBS.
EQUIPPED WITH (MUST BE VERIFIED BY BUYER):
MSG 501 CONTROL
CHUCK SIZE: 8"
SLU-2 PROGRAMMABLE STEADY INDEXABLE ON LOWER SIDE
COOL JET HIGH PRESSURE THROUGH SPINDLE COOLANT SYSTEM
320 METERS
MAPPS PROGRAMMING
POLAR COORDINATE INTERPOLATION
CYLINDRICAL/HELICAL INTERPOLATION
THREAD CUTTING RETRACT
RIGGID TAPPING MILL HEAD
BALANCED CUTTING
SECOND SPINDLE ORIENTATION
CUSTOM MACRO B
INTERFACE CHECK FOR THE TURNING AREA AXIS RECOMPOSITION
720 OFFSETS
8" CHUCK FRONT 6" SUB 3 JAW HYDRAULIC CHUCKS
C,Y, 7 B-AXIS MILLING CAPABILITY
120 ATC MAGAZINE
RENISHAW PROBE
TOOL PRESETTER FRONT AND REAR
LOW PRESSURE DETECTING SWITCH
AUTO POWER OFF
CHIP CONVEYOR/MIST BUSTER AIR FILTRATION
