MORI SEIKI NZ-2000 T3Y3
Type:
LATHES, COMBINATION, N/C & CNC, (3-axis Or More)
Manufacturer:
MORI SEIKI
Model:
NZ-2000 T3Y3
Condition:
Not Specified
Year:
2008
Stock #:
33536
Status:
Sold
Description:
MORI SEIKI NZ-2000 T3Y3, 2.5" BAR CAP, 2.8" SPINDLE BORE,
Location:
California, United States
Specifications from OEM brochure and equipped with are described to the best of our knowledge. ALL items should be confirmed by buyer.

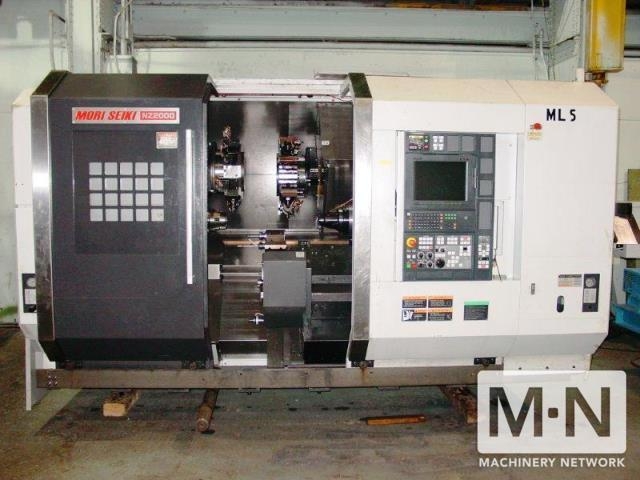

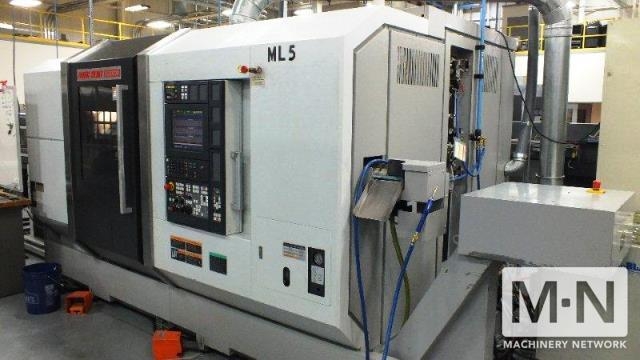

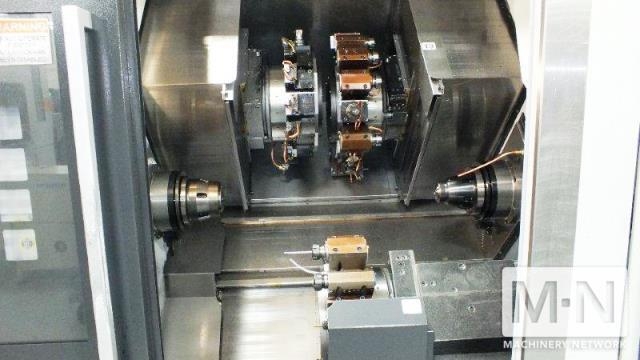

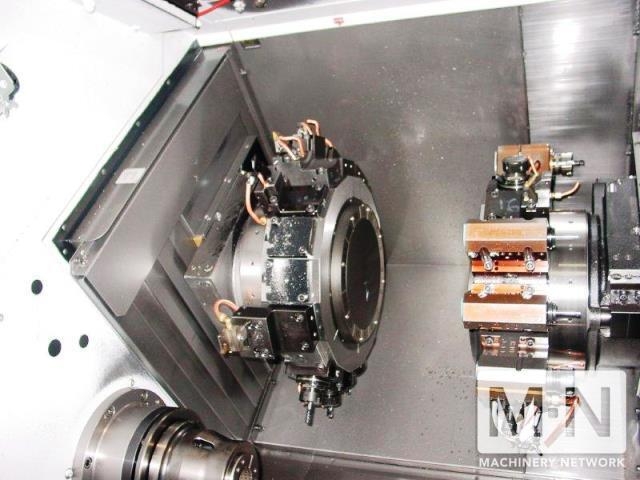

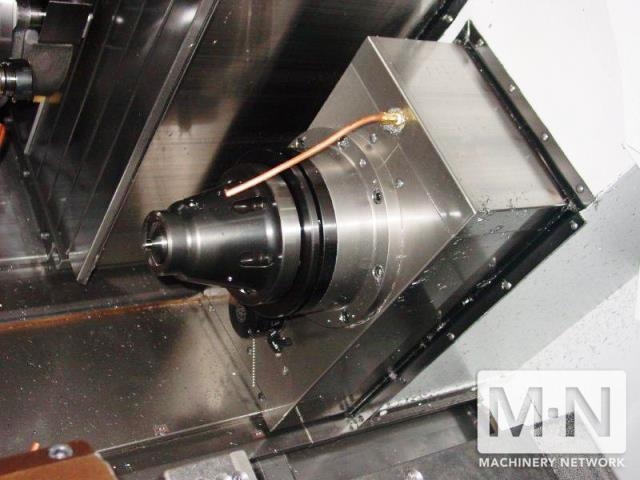

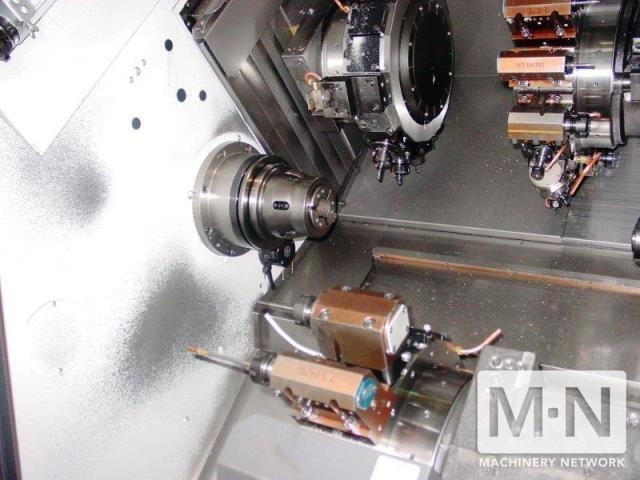

1) USEDMORI SEIKI NZ-2000 T3Y3 MULTI AXIS CNC TURNING/MILLING CENTER

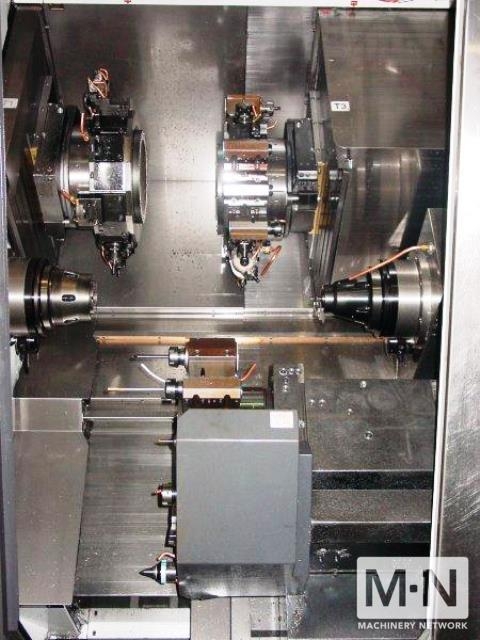

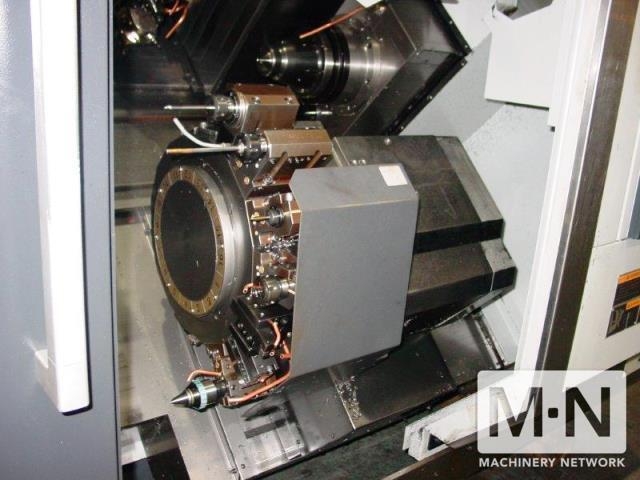

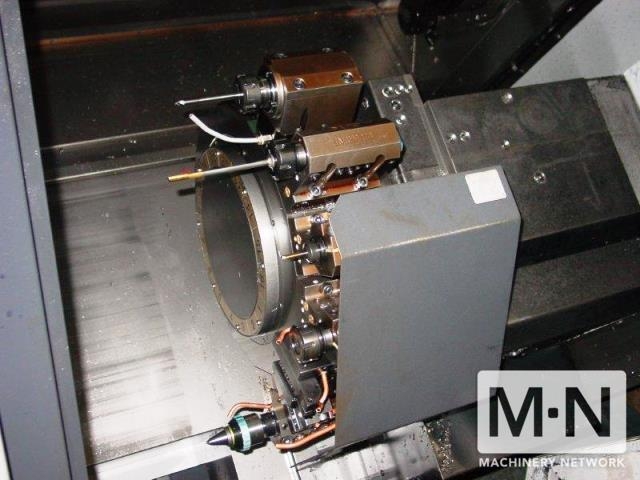

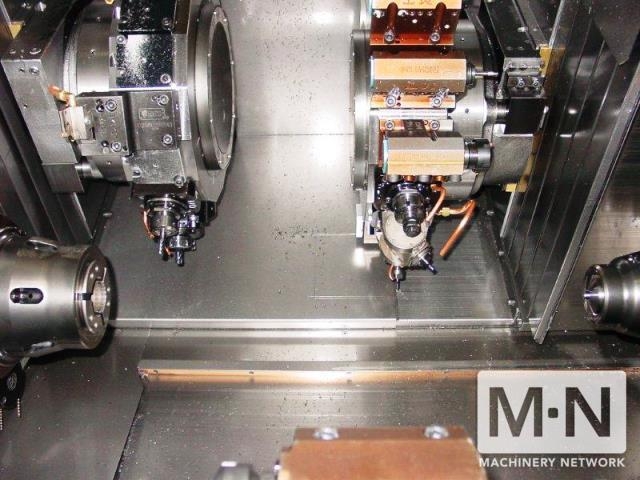

NEW: 2008 SPECIFICATIONS: Max Diameter Bar Capacity ................ 2.56" Max Swing Over Bed ....................... 31.5" Turning Diameter (Max / Std) ............. 12.5" / 7.9" Distance Between Spindles ................ 44.4" Max Machining Length ..................... 31.9" Spindle Speed (L & R) .................... 5000 RPM Spindle Bore (L & R) ..................... 2.87" Spindle Nose (L & R) ..................... A2-6 Spindle Motor (L & R) .................... 33.3 / 29.3 HP Milling Speed ............................ 6000 RPM Milling Motor ............................ 10 / 7.3 HP Turret Type .............................. 16 Stations x 3 (All Live) Turret Tool Mounting Capacity ............ 16 x 3 = 48 Rapid Traverse Rates (X / Z) ............. 1181 / 1968 IPM X-Axis Travel (All Turrets) .............. 8.27" Z1-Axis Travel ........................... 11.81" Z2-Axis Travel ........................... 31.89" Z3-Axis Travel ........................... 11.81" Y-Axis Travel (All Turrets) .............. 4.3" C-Axis Index (L & R Spindles) ........ .001 Degrees B-Axis Travel (Right Spindle) ......... 36.22" Machine Dimensions .................... 201.6" x 107.1" x 91.3" Machine Weight ........................ 20,900 lbs. EQUIPPED WITH: MORI MSX-701 III CNC CONTROL (2) Upper & (1) Lower Turret with Twin Opposed Spindles Y-Axis Milling Capability on All (3) Turrets Collet Chucks on Main & Subspindles LNS SERVO S3 Magazine Barfeed Overhead Auto Parts Catcher Manual Tool Presetter (L & R) Chip Conveyor High Pressure Coolant Pumps (18) Rotary Toolholders All Available Standard Toolholders All Available Manuals
NEW: 2008 SPECIFICATIONS: Max Diameter Bar Capacity ................ 2.56" Max Swing Over Bed ....................... 31.5" Turning Diameter (Max / Std) ............. 12.5" / 7.9" Distance Between Spindles ................ 44.4" Max Machining Length ..................... 31.9" Spindle Speed (L & R) .................... 5000 RPM Spindle Bore (L & R) ..................... 2.87" Spindle Nose (L & R) ..................... A2-6 Spindle Motor (L & R) .................... 33.3 / 29.3 HP Milling Speed ............................ 6000 RPM Milling Motor ............................ 10 / 7.3 HP Turret Type .............................. 16 Stations x 3 (All Live) Turret Tool Mounting Capacity ............ 16 x 3 = 48 Rapid Traverse Rates (X / Z) ............. 1181 / 1968 IPM X-Axis Travel (All Turrets) .............. 8.27" Z1-Axis Travel ........................... 11.81" Z2-Axis Travel ........................... 31.89" Z3-Axis Travel ........................... 11.81" Y-Axis Travel (All Turrets) .............. 4.3" C-Axis Index (L & R Spindles) ........ .001 Degrees B-Axis Travel (Right Spindle) ......... 36.22" Machine Dimensions .................... 201.6" x 107.1" x 91.3" Machine Weight ........................ 20,900 lbs. EQUIPPED WITH: MORI MSX-701 III CNC CONTROL (2) Upper & (1) Lower Turret with Twin Opposed Spindles Y-Axis Milling Capability on All (3) Turrets Collet Chucks on Main & Subspindles LNS SERVO S3 Magazine Barfeed Overhead Auto Parts Catcher Manual Tool Presetter (L & R) Chip Conveyor High Pressure Coolant Pumps (18) Rotary Toolholders All Available Standard Toolholders All Available Manuals
